Icom IC-M25 Marine Radio

Name: Icom IC-M25 Marine Radio
Brand: ICOM
SKU: 325680870904658
Price: 20.00 USD
Availability: InStock

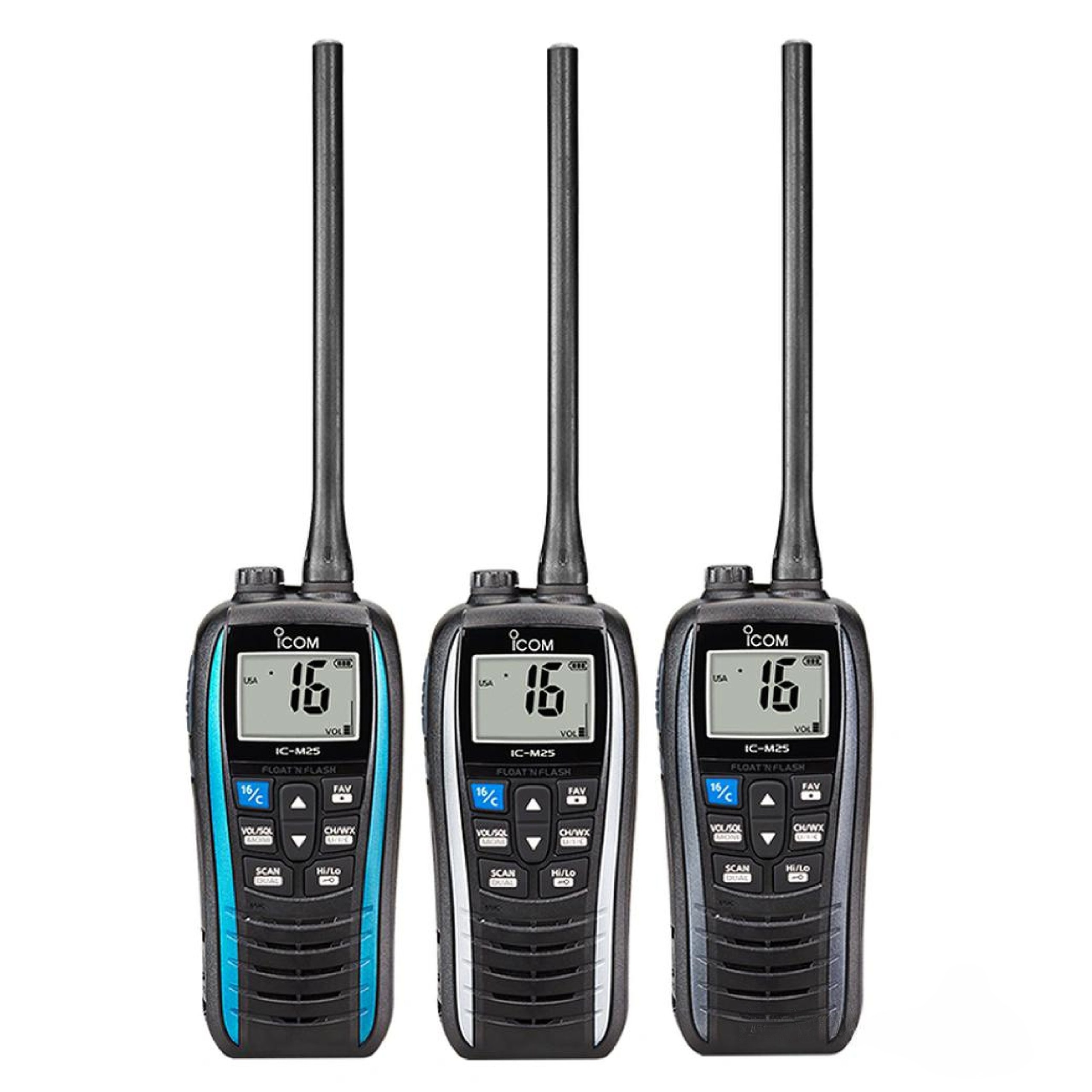

Icom IC-M25

The Icom IC-M25 is a VHF marine radio that weighs only 228 grams and is just 31 millimeters thick. It meets IPX7 waterproof standards and can float on water. It’s the perfect choice for cruise ship crews, sailing regatta participants, and weekend fishing enthusiasts.

icom m25 vhf radio marine walkie talkie waterproof two way radio

Main features

Floating Flash Function

If the Icom M25 VHF radio is dropped into the water, it will immediately float to the surface, emitting a high-intensity red flash and a 95-decibel alarm—day or night. Crew members can spot the device from 100 meters away, eliminating the need to budget for”lost radios”on every charter.

AquaQuake™ Automatic Drain Function

When you lift the marine radio from the sea, a built-in piezoelectric sensor immediately drains water from the speaker grille. Audio clarity is restored within ten seconds, ensuring you don’t miss any safe communications.

One-handed operation

Oversized rubber buttons, a raised PTT button, and non-slip textured sides allow for easy channel switching even with wet gloves. The top LCD screen displays large numbers clearly even through polarized sunglasses—eliminating the need to painstakingly navigate menus, even on rough seas.

USB-C 3-Hour Fast Charging

Say goodbye to a dedicated charging dock. Using the same USB-C cable as your chart plotter or mobile phone, you can charge the 1500 mAh battery from 0% to 100% in 180 minutes. Power banks, solar panels, and 12V outlets can all be used as on-site chargers.

14-Hour Energy-Saving Mode
Selecting the 2.5-watt medium-power mode, this waterproof two-way radio achieves a 14-hour battery life (5 hours transmit / 5 hours receive / 90 hours standby). No need for a spare battery, meeting the needs of fishing competitions from morning till night—thanks to the built-in battery, it won’t be lost.

700mW Clear and Loud Audio
The 40mm speaker, driven by a 24-bit DAC, delivers 700mW (8 ohms) of power output—louder than many full-size car radios. Even at 70dB of engine noise, voice remains clearly audible, ensuring the helmsman can hear every”bang.”

IPX7 Waterproof Rating
The icom m25 VHF radio can be submerged in 1 meter of water for 30 minutes, fearless of large waves, heavy rain, and polar navigation. Even when the keyboard is frozen, it remains fully functional, proving it’s not just a weather-resistant toy.

Other Features

Eco (2.5 W) / High (5 W) power
Dual/Tri-watch
Favorite channel
Auto backlight
Key lock
Monitor (squelch open)
Auto scan
Weather alert

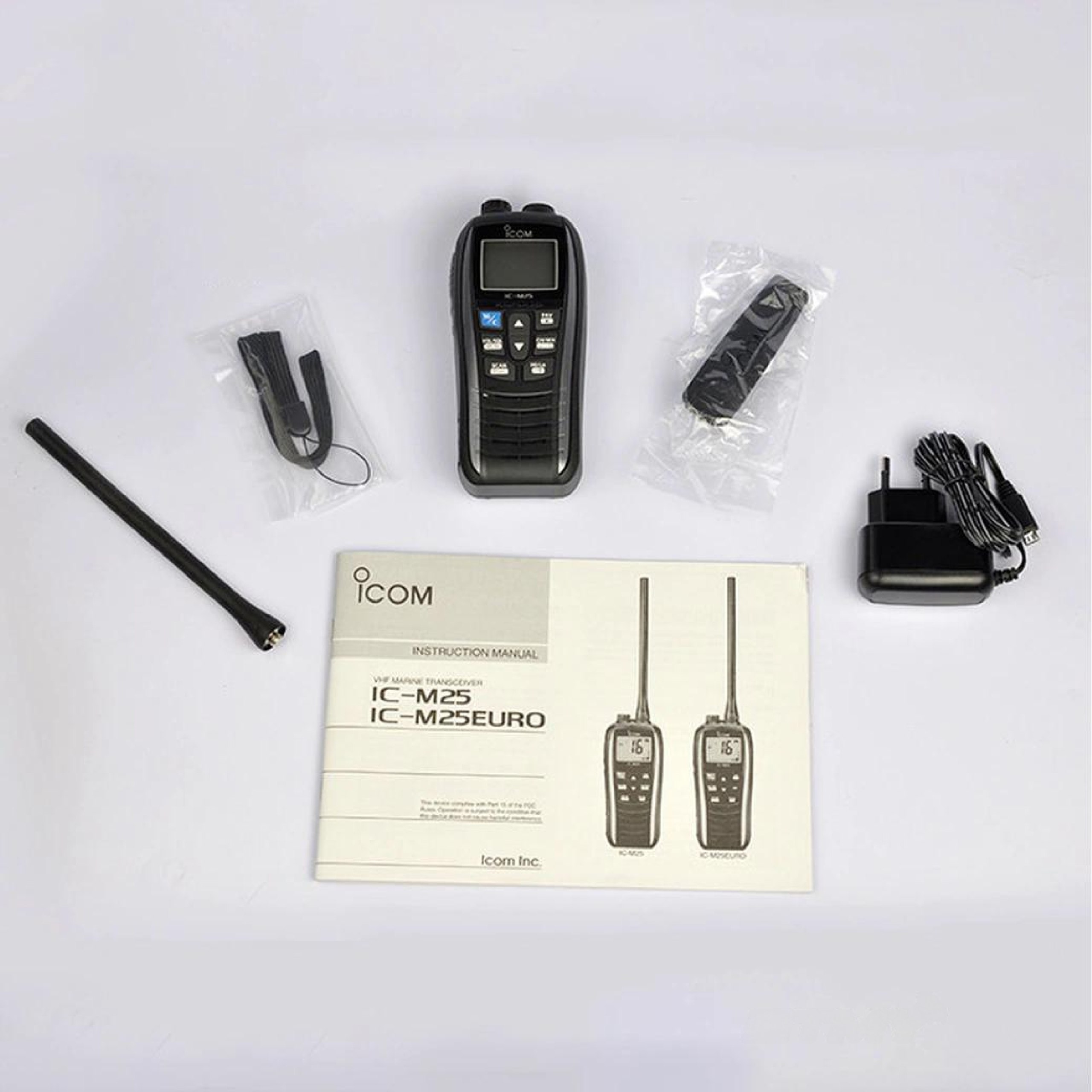

Accessories

1*IC-M25 Handheld radio
1*Antenna
1*Lanyard
1*Back Clip
1*USB Charger
1*User Manual

Specifications

GENERAL
Frequency range Tx / Rx			156.025–157.425 MHz / 156.050–163.275 MHz
Usable channel groups			INT, USA, CAN, Wx channels
Type of emission			16KOG3E (FM)
Power supply voltage			3.7 V DC nominal
Current drain Tx / Rx (Int SP / Ext SP)			2.3 A / 300 mA / 200 mA (max audio)
Operating temperature range			–20 °C to +60 °C; –4 °F to +140 °F
Antenna impedance			50 Ω
Dimensions (W×H×D) projections not included			56.6 × 134.2 × 30.5 mm; 2.2 × 5.3 × 1.2 in
Weight (approx.) with FA-SC59v & MB-133			220 g; 7.8 oz
TRANSMITTER
Output power			5 W (approx.) / 1 W
Max. frequency deviation			±5.0 kHz
Frequency stability			±10 ppm
Spurious emissions			–68 dBc typical
Adjacent channel power			70 dB
Residual modulation			40 dB
RECEIVER
Sensitivity			0.25 µV typical (at 12 dB SINAD)
Squelch sensitivity			0.25 µV typical (at threshold)
Adjacent channel selectivity			70 dB typical
Spurious response			70 dB typical
Intermodulation			70 dB typical
Audio output power (at 10 % distortion)	Internal SP		550 mW typical (12 Ω load)
	External SP		300 mW typical (4 Ω load)
Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Ingress Protection Standard		IPX7 (Waterproof protection)
