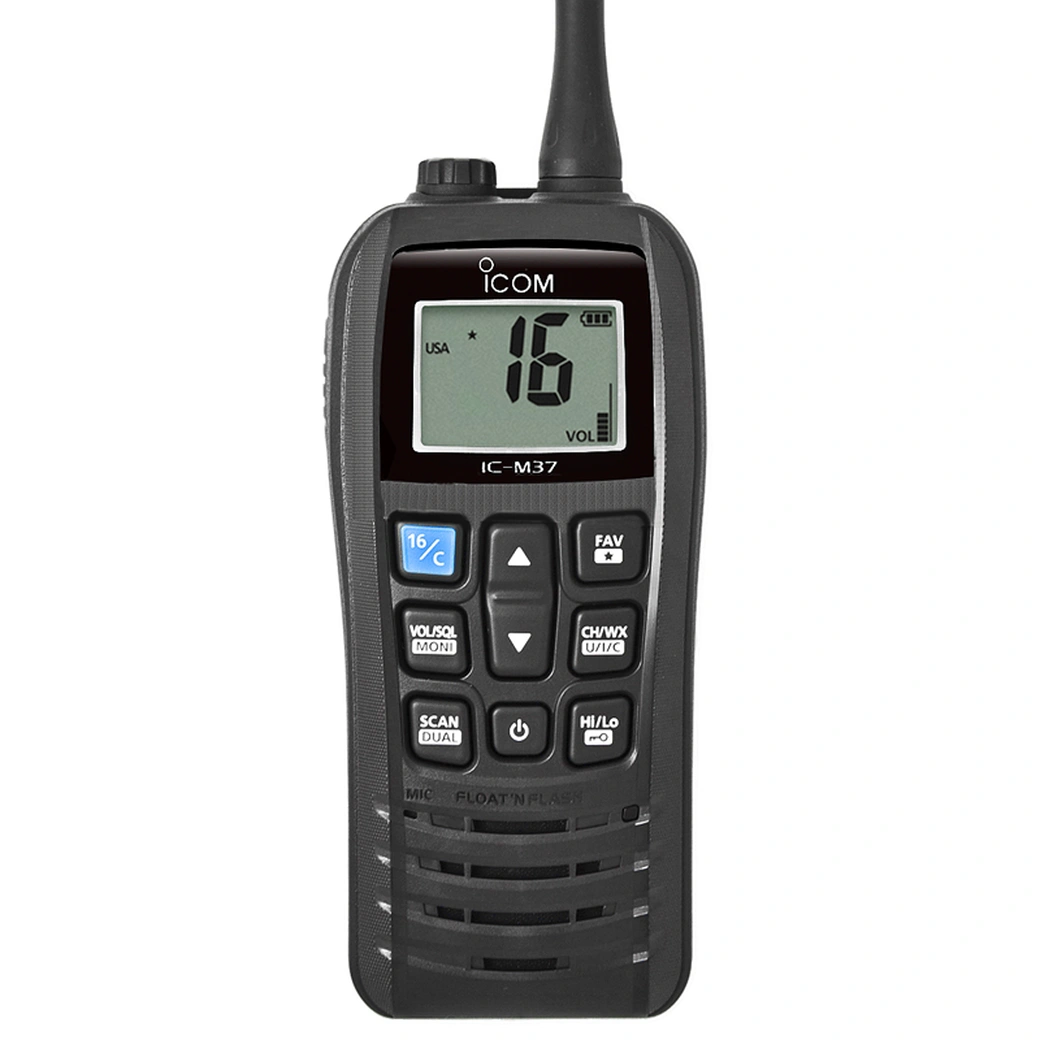

Icom IC-M37 Walkie Talkie
Icom IC-M37
Icom IC-M37 is a marine VHF radio that combines advanced functionality with user-friendly design. Its advanced floating and illumination features, long-lasting battery performance, compatibility with international marine communication systems, and enhanced usability make it an ideal choice for marine communication.
Icom ic-m37 marine vhf radio walkie talkie
Features
Floating and Illumination Functionality
The Icom IC-M37 boasts a floating function that allows it to float and emit light even if accidentally dropped into water. This feature significantly reduces the risk of losing the device overboard, ensuring it remains visible and recoverable in low-light or night-time conditions. This is particularly useful in emergency situations where quick access to communication equipment is crucial.
Long-Lasting Battery Performance
With a battery life of about 12 hours, the IC-M37 offers 1.5 times longer operation than its predecessor. This extended battery life ensures that users can rely on the device for extended periods without frequent recharging, making it suitable for long voyages or extended use in remote areas.
Multiple Scanning and Monitoring Functions
The Icom IC-M37 offers multiple scanning functions, including priority scanning and automatic scanning, allowing users to monitor multiple channels efficiently. Its dual-frequency/tri-frequency monitoring functions enable users to listen to multiple channels simultaneously, ensuring they stay informed of all relevant communications. This is particularly useful in busy shipping areas or during coordinated operations where information from multiple sources is essential.
Excellent Water Resistance
The Icom IC-M37 has an IPX7 rating for water resistance. This ensures that the device can withstand immersion in water up to 1 meter deep for a duration of 30 minutes. This makes it suitable for marine environments where exposure to water is a common occurrence, ensuring reliable performance even in wet conditions.
Other Functions
- IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)
- Low Battery Alert function
- Voice Loud and Mute function
- AquaQuake function
- Dualwatch and Tri-Watch functions
- Favorite Channel function
- Instant access to channel 16 and the Call channel
- BP-296 user replaceable Li-ion battery pack supplied
- Weather channels with Weather Alert function
IC-M37 Accessories
- 2200mAh Battery BP-296
- Antenna FA-SC59V
- Lanyard
- Back Clip
- Charger BC-217S
- Power adaptor
- Manual
Specifications
| GENERAL | ||
| Frequency range Tx RX |
156.025-157.425 MHz 156.050-163.275 MHz |
|
| Usable channel groups | INT,USA,CAN,Wx channels | |
| Type of emission | 16KOG3E | |
| Current drain (at 3.7 V DC) TX(6.0 W/1.o W output) RX(Max.audio.Int.SP/Ext.SP) |
2.75 A/1.0A 0.4 A/o.2A |
|
| Operating temperature range | -20℃ to +60℃, -4F to +140°F | |
| Antenna impedance | 50 Ω | |
| Dimensions (WxHxD) (projections not included) |
59.7×140.5×38.7 mm, 2.4×5.5×1.5 in |
|
| Weight (approximate) | 293g, 10.3 oz (with BP-296, antenna and belt clip) |
|
| TRANSMITTER | ||
| Output power (High/Low) | 6 W/1 W | |
| Max. frequency deviation | ±5 kHz | |
| Frequency stability | ±10 ppm | |
| Spurious emissions | -68 dBc typical | |
| RECEIVER | ||
| Sensitivity (at 12 dB SINAD) | 0.25 μV typical | |
| Squelch sensitivity (Threshold) | 0.25 μV typical | |
| Adjacent channel selectivity | 70 dB typical | |
| Spurious response | 70 dB typical | |
| Intermodulation | 70 dB typical | |
| Hum and noise | 40 dB | |
| Audio output power (at 10% distortion) |
Internal SP | 0.7 W typical (8 Ω load) |
| External SP | 0.3 W typical (4 Ω load) | |
