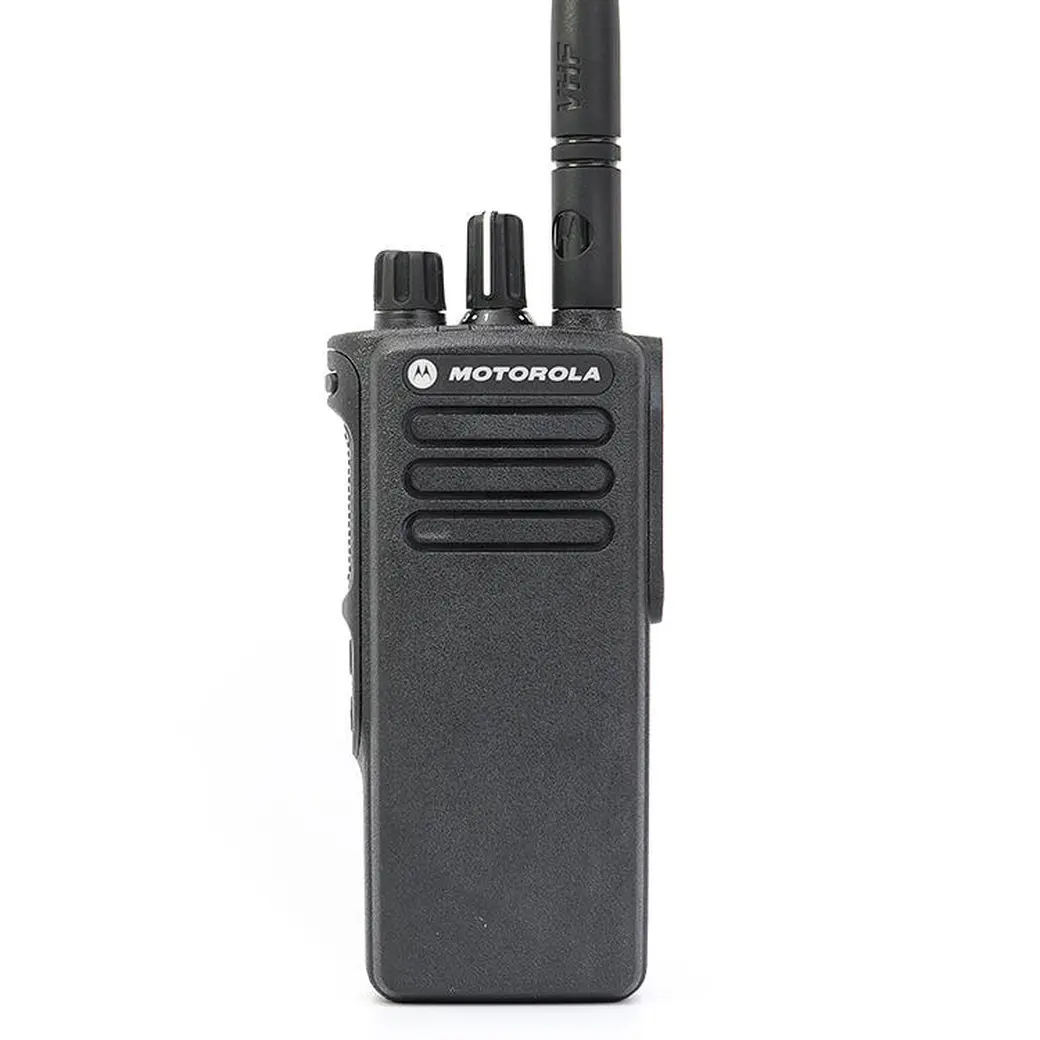

Motorola DGP5050 Walkie Talkie
Motorola DGP5050
Motorola DGP5050 digital two-way radio series is a versatile and reliable communication solution for various industries in the Latin American market, offering advanced features and durable performance to meet business communication needs.
Product Information
Motorola DGP5050 is a high-end DMR digital walkie-talkie, featuring digital signaling, 11 communication methods, and voice-activated transmission. Its IP57 waterproof design ensures reliable use in harsh outdoor environments. The digital LCD color screen offers intuitive displays and warnings. DMR mode enhances communication safety and efficiency, with encryption for confidentiality. DGP5050 also supports map applications, navigation, and weather queries, making it suitable for field exploration, mining, defense, and more.
Superior Audio Quality
Motorola DGP5050 is a high-end DMR digital walkie-talkie, featuring digital signaling, 11 communication methods, and voice-activated transmission. Its IP57 waterproof design ensures reliable use in harsh outdoor environments. The digital LCD color screen offers intuitive displays and warnings. DMR mode enhances communication safety and efficiency, with encryption for confidentiality. DGP5050 also supports map applications, navigation, and weather queries, making it suitable for field exploration, mining, defense, and more.
Superior Audio Quality
The DGP5050 delivers outstanding audio clarity with intelligent audio technology that automatically adjusts volume based on background noise. This is ideal for workers in noisy environments like construction sites or manufacturing plants. The increased background noise suppression filters out unwanted sounds, ensuring clear communication. Additionally, embedded Bluetooth audio allows for seamless use of wireless accessories without adapters, enhancing convenience and efficiency.
Advanced Data Capabilities
With integrated Bluetooth data, the DGP5050 enables real-time information transmission from work crews to the office, which is crucial in time-sensitive operations such as emergency response or utility repairs. The integrated GPS allows for tracking mobile work teams, making it suitable for transportation or field services where monitoring worker locations is essential. The large, full-color display operates in day or night mode, ensuring easy viewing of contact lists and messages even in bright sunlight.
High-Powered Performance
Utilizing TDMA digital technology, the DGP5050 offers integrated voice and data communication with twice the calling capacity of analog systems. This is advantageous in scenarios requiring simultaneous communication among multiple teams. The battery performance is also superior, operating up to 40 percent longer between recharges compared to analog radios, ensuring reliable communication throughout shifts.
Rich Functionality & Durability
The DGP5050 offers enhanced call signaling, privacy-scrambling, and option board expandability to meet specific business needs. The transmit interrupt suite prioritizes critical communication, essential in emergency situations. Programmable button features and customizable voice announcements provide convenient operation, especially when workers can’t view the display. The radios meet demanding specifications, including IP57 for water submersibility and U.S. Military 810 standards, ensuring durability in harsh environments.
Smooth Migration & Wide Coverage
The DGP5050 series operates in both analog and digital modes, allowing businesses to migrate to digital at their own pace. The dynamic mixed mode repeater functionality ensures compatibility during the transition. With IP Site Connect, it can extend coverage to create a wide area network or enhance single site coverage, making it suitable for businesses with geographically dispersed locations.
Accessories
- Antenna
- Battery(Standard 1500mAh/2150mAh/2150mAh Intrinsically Safe)
- Charger
- Power adapter
- Dust cover
- Clip
- Manual
Specifications
| General | |||
| VHF | UHF | ||
| Channel Capacity | 32 | ||
| Frequency | 136-174 MHz | 403-527 MHz | |
| IMPRES Hi-Cap Li-ion 2150 mAH Battery (PMNN4409) |
(HxWxL) | 5.13 inch / 2.17 inch / 1.56 inch (130.3 mm / 55.2 mm / 39.6 mm) |
|
| Weight | 11.39 oz (323 g) | ||
| Slim IMPRES Li-ion 1500 mAH Battery (PMNN4407) |
(HxWxL) | 5.13 inch / 2.17 inch / 1.35 inch (130.3 mm / 55.2 mm / 34.3 mm) |
|
| Weight | 10.69 oz (303 g) | ||
| IMPRES Hi-Cap Li-ion FM 2300 mAH Battery (NNTN8129) |
(HxWxL) | 5.13 inch / 2.17 inch / 1.56 inch (130.3 mm / 55.2 mm / 39.6 mm) |
|
| Weight | 11.75 oz (333 g) | ||
| Power Supply | 7.5V (Nominal) | ||
| Operating Temperature | -30°~ +60° C | ||
| FCC Description | ABZ99FT3085 | ABZ99FT4086 | |
| IC Description | 109AB-99FT3085 | 109AB-99FT4086 | |
| Battery | |||
| Average Battery Life | 5/5/90 duty cycle with carrier squelch and transmitter in high power | ||
| Slim IMPRES Li-ion 1500 mAh Battery | Analog: 7.7 hrs/ Digital: 11.3 hrs | Analog: 8 hrs/ Digital: 11.8 hrs | |
| IMPRES Hi-Cap Li-ion 2150 mAH Battery | Analog: 11.1 hrs/ Digital: 16.2 hrs | Analog: 11.5 hrs/ Digital: 17 hrs | |
| IMPRES Hi-Cap Li-ion FM 2300 mAH Battery | Analog: 11.9 hrs/ Digital: 17.3 hrs | Analog: 12.3 hrs/ Digital: 18.1 hrs | |
| Receiver | |||
| VHF | UHF | ||
| Frequency | 136-174 MHz | 403-527 MHz | |
| Channel Spacing | 12.5 kHz / 25 kHz | ||
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 0.5 ppm | ||
| Analog Sensitivity (12dB SINAD) | 0.3uV 0.22uV (typical) | ||
| Digital Sensitivity | 0.25 uV (0.19 uV typical) | ||
| Intermodulation (TIA603D) | 70 dB | ||
| Adjacent Channel Selectivity (TIA603A)-1T | 60dB @ 12.5kHz / 70dB @ 25 kHz | ||
| Adjacent Channel Selectivity (TIA603D)-2T | 45dB @ 12.5kHz / 70dB @ 25 kHz | ||
| Spurious Rejection (TIA603D) | 70 dB | ||
| Rated Audio | 0.5 W | ||
| Audio Distortion @ Rated Audio | 5% (3% typical) | ||
| Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz | ||
| Audio Response | TIA603D | ||
| Conducted Spurious Emissions (TIA603D) | -57 dBm | ||
| Transmitter | |||
| VHF | UHF | ||
| Frequency | 136-174 MHz | 403-527 MHz | |
| Channel Spacing | 12.5 kHz / 25 kHz | ||
| Frequency Stability (-30°C, +60°C, +25°C Ref) | ± 1.5 ppm | ||
| Low Power Output | 1 W | 1 W | |
| High Power Output | 5W | 4W | |
| Modulation Limiting | ± 2.5 kHz @ 12.5 kHz | ||
| ± 5.0 kHz @ 25 kHz | |||
| FM Hum and Noise | -40 dB @ 12.5 kHz | ||
| -45 dB@ 25 kHz | |||
| Conducted / Radiated Emission | -36 dBm < 1 GHz | ||
| -30 dBm > 1 GHz | |||
| Adjacent Channel Power | 60 dB @ 12.5 kHz | ||
| 70 dB @ 25 kHz | |||
| Audio Response | TIA603D | ||
| Audio Distortion | 3% | ||
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
||
| Digital Vocoder Type | AMBE +2™ | ||
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | ||
| Environmental Specifications | |||
| Operating Temperature | -30℃ ~ +60℃ | ||
| Storage Temperature | -40℃ ~ +85℃ | ||
| ESD | IEC 61000-4-2(level 3) | ||
| Thermal Shock | Per MIL-STD | ||
| Dust & Water Intrusion | IEC60529 – IP57 | ||
| Humidity | Per MIL-STD | ||
| Packaging Test | MIL-STD 810D and E | ||
