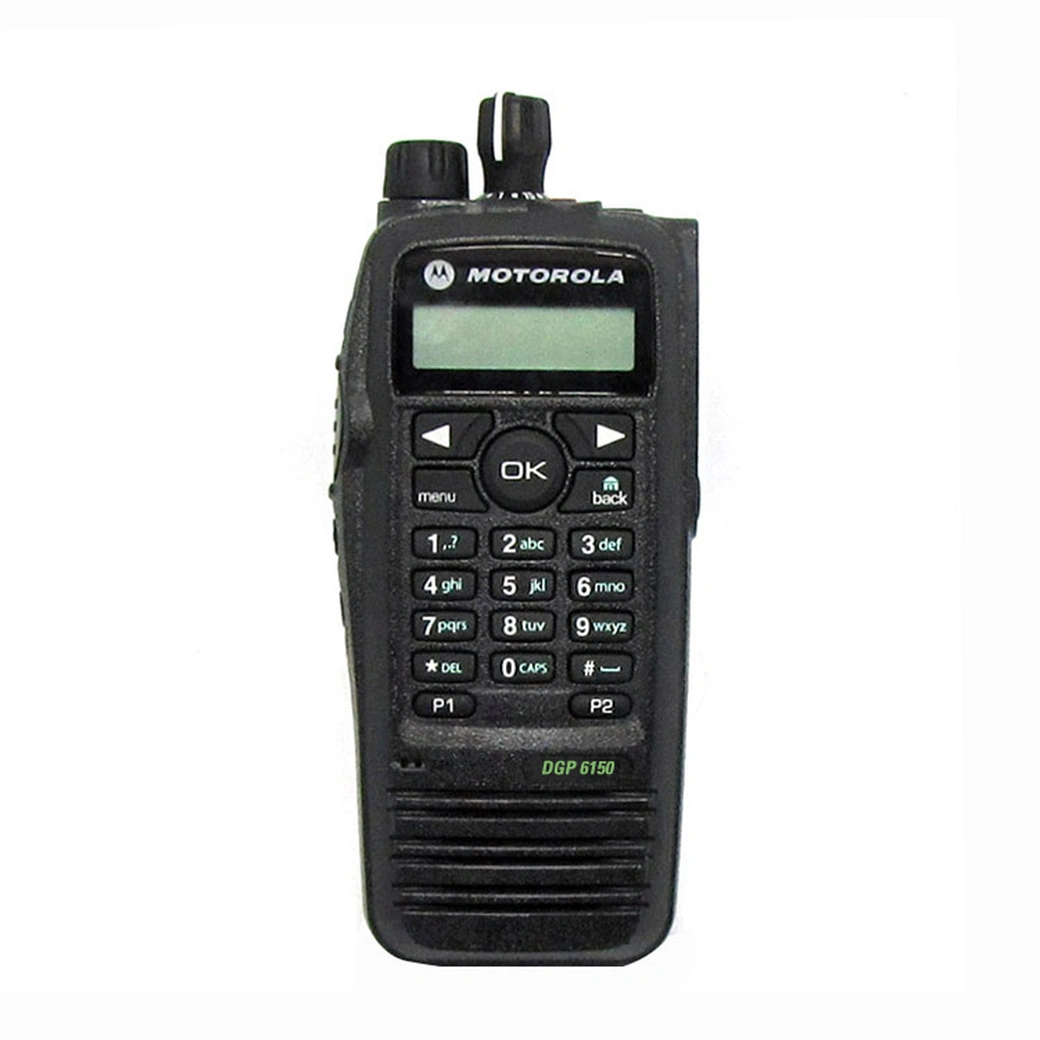

Motorola DGP6150 Walkie Talkie
Main features
Dual-Mode Foresight
Motorola DGP6150 arrives ready for both 12.5 kHz digital DMR and legacy 25 kHz analog channels on the same hardware.It covers VHF (136-174 MHz) and UHF (403-470 / 450-512 MHz), letting integrators quote nation-wide tenders with a single line item..
Built for Big Systems
Support for up to 1 000 channels with alphanumeric naming and 256-entry contact list turns the motorola dmr radio into a trunked-style experience on conventional infrastructure.IP Site-Connect roaming is already in firmware; just add an IP gateway and the subscriber walks between buildings without changing channels.
Military-Grade Survivability
Meets MIL-STD 810 C/D/E/F and IP57 submersibility—one-meter for 30 minutes—so your proposal beats cheaper “business-grade” competitors on TCO.
GPS & Text Out-of-the-Box
Integrated GPS (display model) feeds AVL dashboards without external trackers—sell a location-service subscription on day one.160-character text messaging and quick-send templates move work-order tickets silently, eliminating voice channel congestion.Bluetooth 2.1 + EDR is inside every unit; pair wireless earpieces or barcode scanners and mark up the accessories line for extra margin.
Other Functions
- Power Level
- Scan On/Off
- Scan List Edit
- Zone Selection
- Tones/Alerts On/Off
- Keypad Lock
- Display Backlight
- VOX Enable/Disable
- GPS On/Off
- Emergency Button Action
- Antenna(UHF/VHF)
- Battery (1500mah/2150mah)
- Charger
- Power adapter
- Dust cover
- Clip
- Manual
Specifications
| General | |||
| Channel Capacity | 1000 | ||
| Frequency | VHF 136–174 MHz | UHF 403–527 MHz / 450–512 MHz | |
| Dimensions (H×W×L) w/ NiMH | 131.5 × 63.5 × 35.2 mm | ||
| Weight | Li-Ion non-FM 330 g | Li-Ion FM 340 g | NiMH 400 g |
| Power Supply | 7.5 V nominal | ||
| Battery life (5/5/90) Analog | IMPRES Li-Ion 8 h | IMPRES FM 8.5 h | NiMH 8 h |
| Battery life (5/5/90) Digital | IMPRES Li-Ion 13 h | IMPRES FM 12 h | NiMH 11 h |
| Receiver | |||
| Channel Spacing | Digital 12.5 kHz & Analog 12.5 / 25 kHz | ||
| Frequency Stability | ±1.5 ppm (no GPS) / ±0.5 ppm (with GPS) | ||
| Analog Sensitivity (12 dB SINAD) | VHF 0.35 μV (0.22 μV typ.) | UHF 0.3 μV (0.22 μV typ.) | |
| Digital Sensitivity (5 % BER) | 0.3 μV | ||
| Intermodulation (TIA603D) | 70 dB | ||
| Adjacent Channel Selectivity | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | ||
| Spurious Rejection (TIA603C) | 70 dB | ||
| Rated Audio | 500 mW | ||
| Audio Distortion @ Rated Audio | 5 % (3 % typical) | ||
| Hum and Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz | ||
| Conducted / Radiated Emission | -36 dBm < 1 GHz / -30 dBm > 1 GHz | ||
| Adjacent Channel Power | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | ||
| Audio Response | TIA603C | ||
| Transmitter | |||
| Power Output (Low / High) | VHF 1 W / 5 W | UHF 1 W / 4 W | |
| Modulation Limiting | ±2.5 kHz @ 12.5 kHz | ±5.0 kHz @ 25 kHz | |
| 4FSK Digital Modulation | 7K60FXD (data) / 7K60FXE (data+voice) | ||
| Digital Vocoder | AMBE++ | ||
| Digital Protocol | ETSI-TS 102 361-1 | ||
