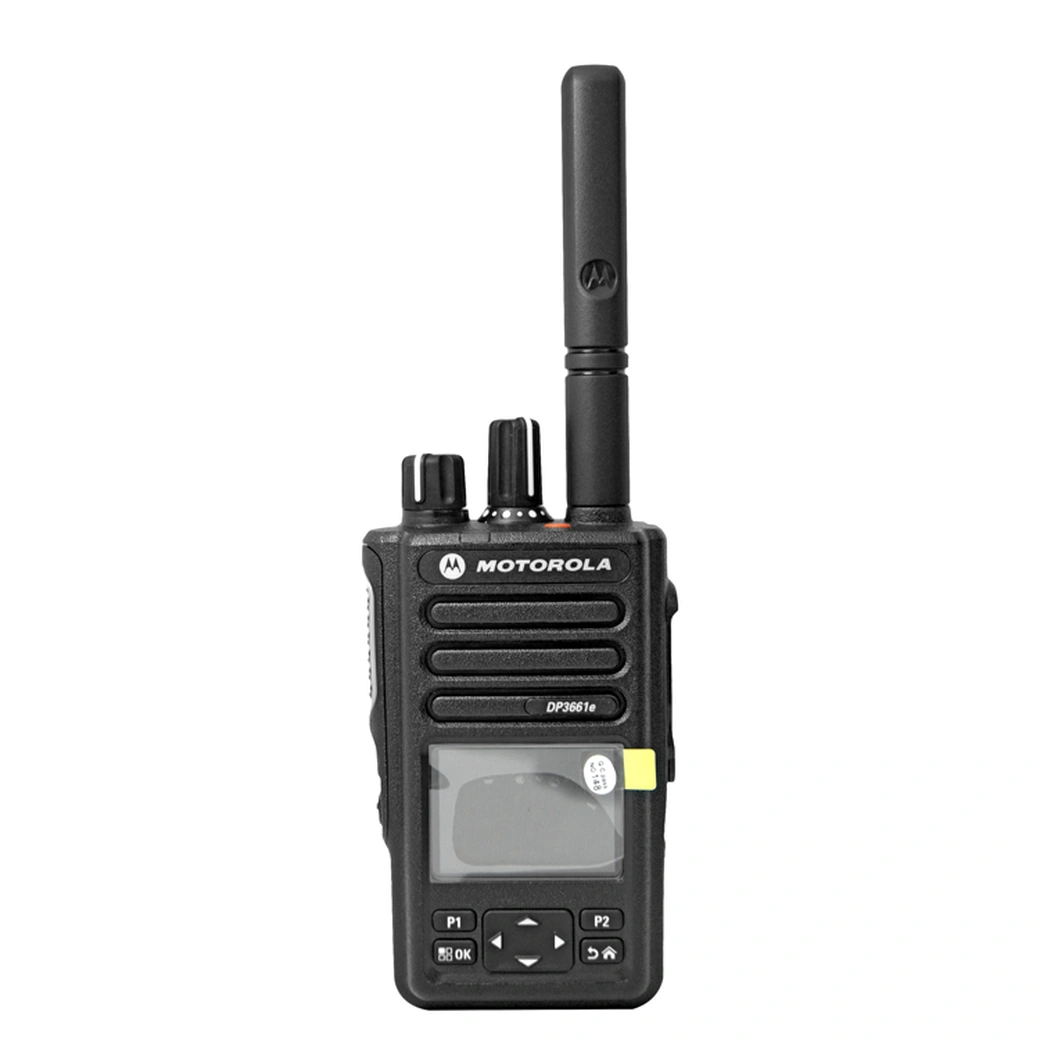

Motorola DP3661e Walkie Talkie
Main features
Ultra-Compact Professional Core
The dp3661e motorola measures just 100 × 55 × 45 mm and weighs 290 g with the high-capacity IMPRES battery, making it the smallest full-power UHF/VHF unit in the motorola dmr radios range. Slip it into a turnout coat pocket or clip it under a ballistic vest—range is not sacrificed for size.
Certified Rugged, IP68 & MIL-STD-810G
Drop it two meters onto concrete, submerge it two meters for two hours—this motorola security radio keeps talking. Integrators can spec one SKU across police, fire, and industrial sites without worrying about environmental caveats.
DMR Tier II / Tier III Ready
As a native motorola dmr radio, it supports Direct Mode, IP Site Connect, Capacity Plus, and Capacity Max. One firmware load lets you scale from a six-channel analog club to a multi-site trunked network without swapping hardware.
Crystal-Clear Audio & Active Noise Cancellation
A 0.5 W loudspeaker, AMBE+2 vocoder, and SINC+ noise suppression deliver 3 % distortion-free audio at 100 dB SPL. When paired with IMPRES or Bluetooth earpieces, the dp3661e motorola outperforms consumer-grade models in turbine halls and nightclub venues alike.
Mission-Critical Safety Features
A single orange button triggers emergency call, Transmit Interrupt, and Man-Down with integrated accelerometer. These motorola security radios create an invisible safety net—integrators can sell “lone-worker compliance” as a value-added package.
Over-the-Air Programming & Wi-Fi Updates
Built-in Wi-Fi and Bluetooth 4.0 allow code-plug changes, firmware flashes, and AES-256 key rotation without touching the radio. Reduce truck rolls and cut staging time by 60 %—a win for every integrator’s margin.
Other functions
- Colour display models
- Integrated accelerometer
- for optional Man Down
- Bluetooth 4.0
- Indoor location tracking
- Multi-constellation GNSS
- for increased location accuracy
- Integrated Wi-Fi
- Over-the-air software updates
- IMPRES energy
- Enhanced audio quality
- Improved expandability
- Better range (up to 8%)
- Better waterproofing(IP68)
DP3661e Accessories
- Battery
- Antenna
- Lanyard
- Back Clip
- Charger
- Power adaptor
- Manual
Specification
| Specification | Details |
|---|---|
| Band | UHF |
| Frequency Range | 403–527 MHz |
| High Power Output | 4 W |
| Low Power Output | 0.5 W |
| Channel Spacing | 12.5 / 20 / 25 kHz |
| Channel Capacity | 1,000 channels |
| With 1700 mAh Li-ion IP67 Battery | |
| Dimensions (H×W×D) | 100 × 55 × 36 mm |
| Weight | 290 g |
| Battery Life (Digital / Analog) | 16.0 / 12.0 hours |
| With IMPRES 2900 mAh Li-ion TIA IP68 Battery | |
| Dimensions (H×W×D) | 100 × 55 × 45 mm |
| Weight | 341 g |
| Battery Life (Digital / Analog) | 26.5 / 20.0 hours |
| With IMPRES 3000 mAh Li-ion IP68 Battery | |
| Dimensions (H×W×D) | 100 × 55 × 45 mm |
| Weight | 341 g |
| Battery Life (Digital / Analog) | 27.5 / 20.5 hours |
| Power Supply (Nominal) | 7.5 V |
