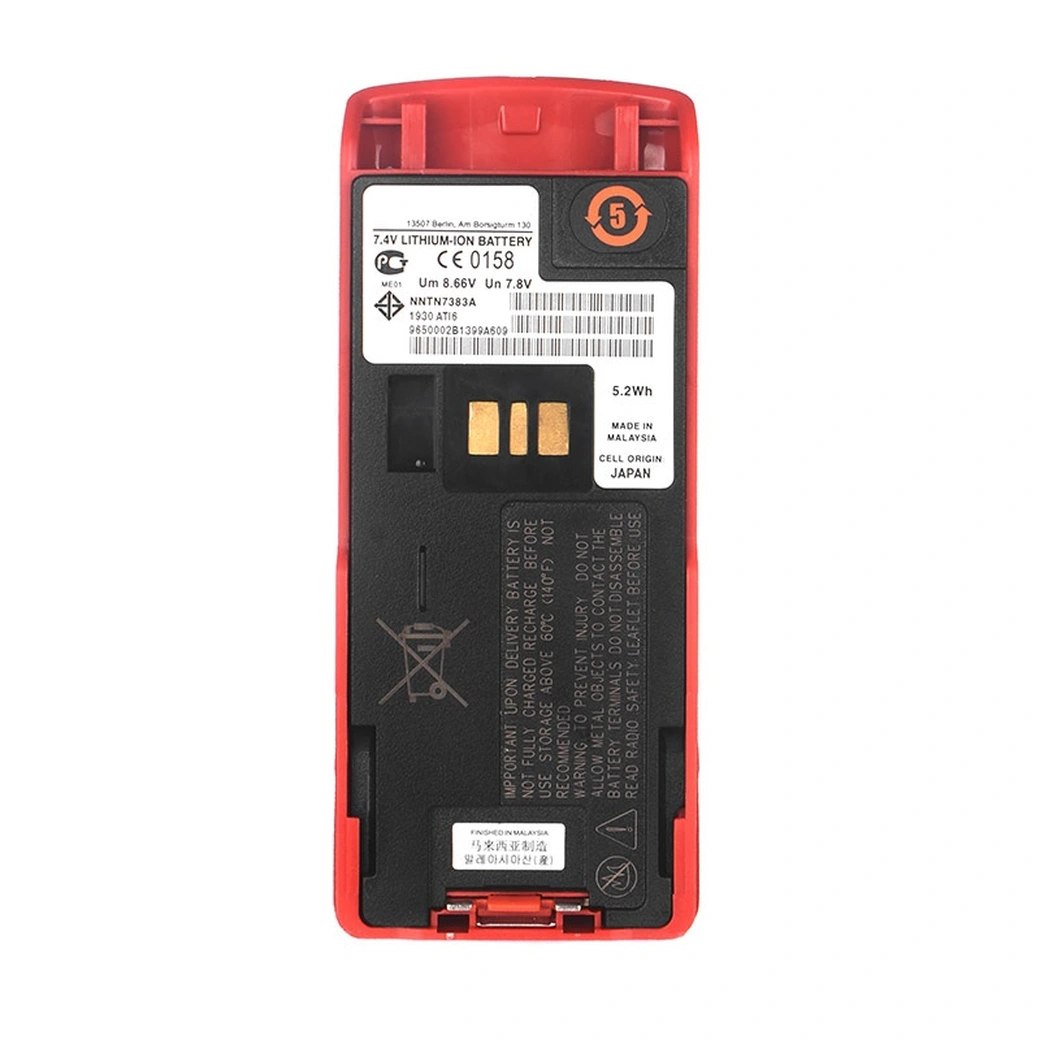

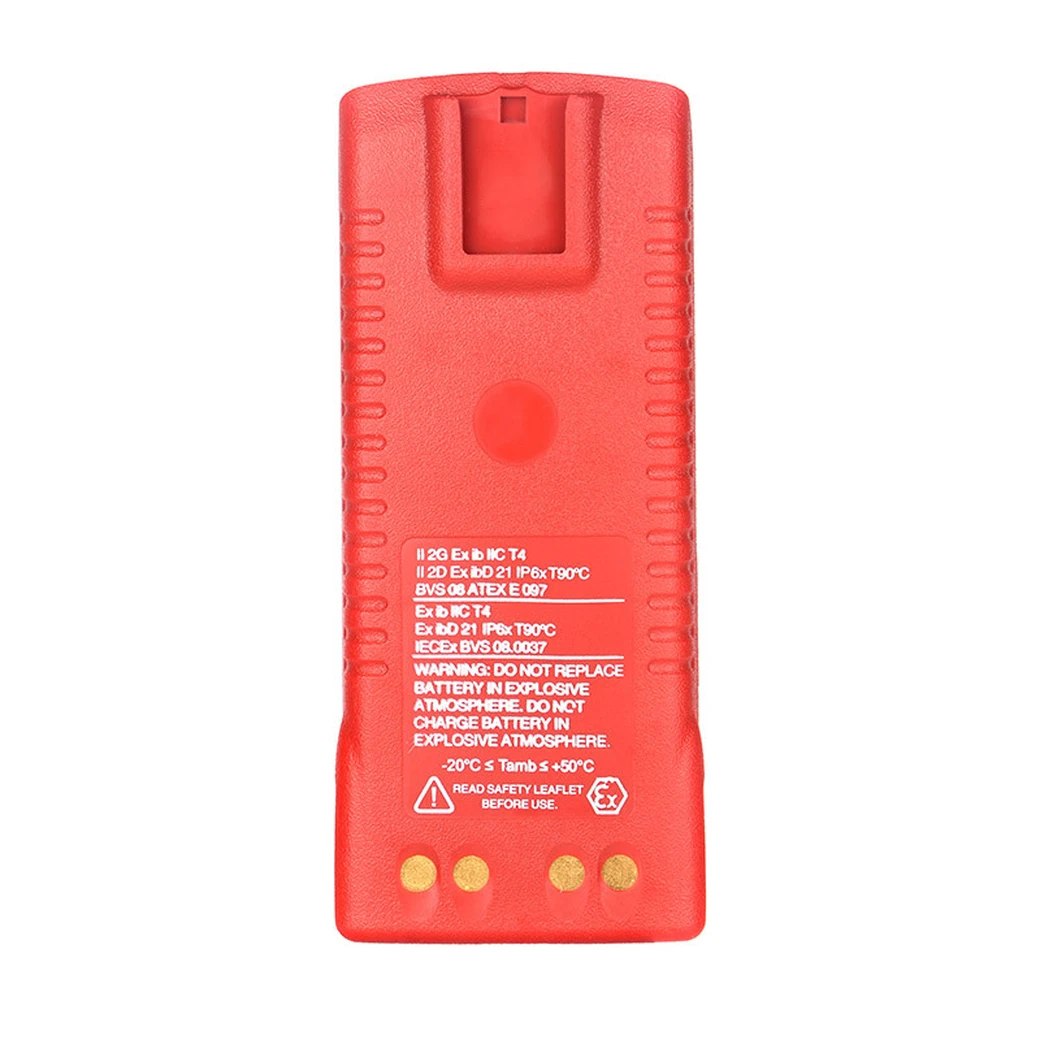

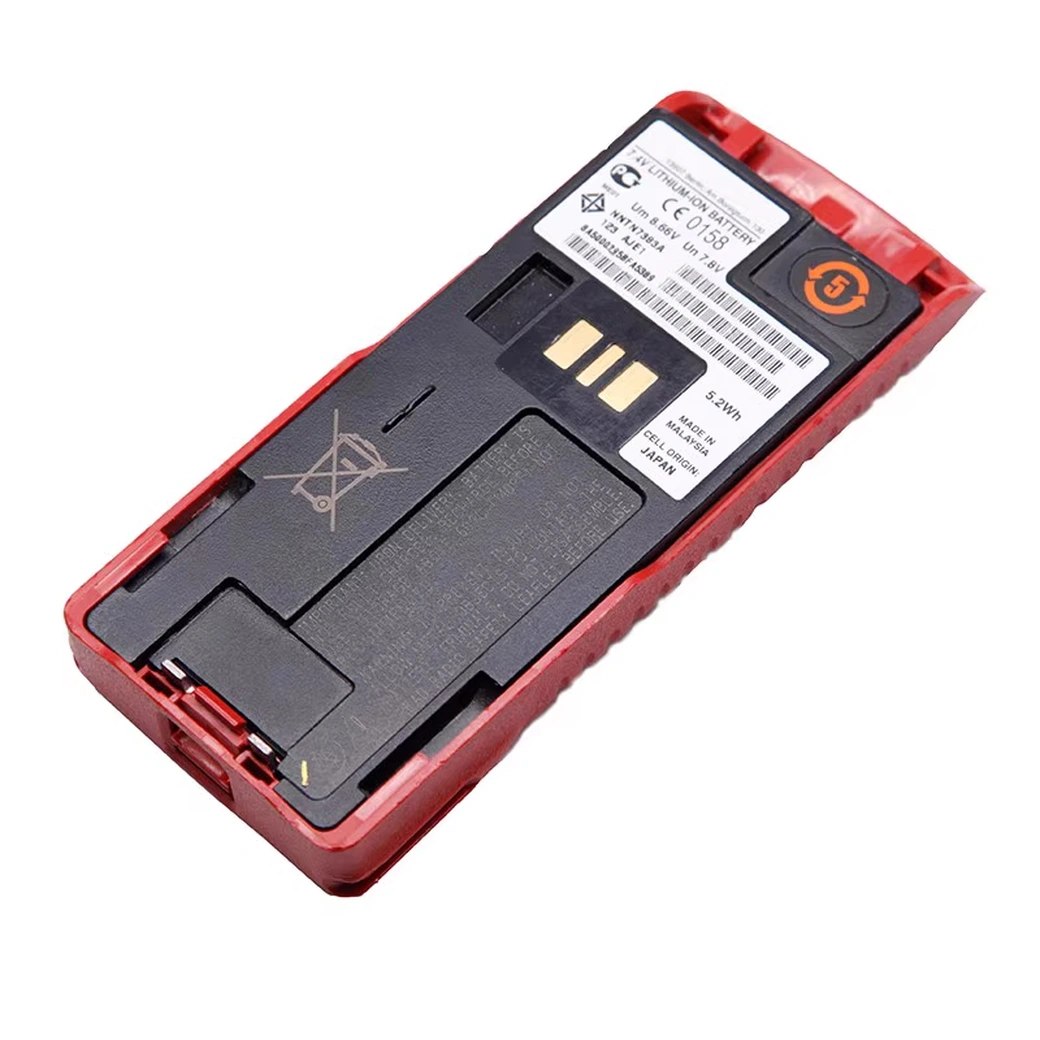

Motorola NNTN7383 Battery
Motorola NNTN7383
NNTN7383 750 mAh pack is the only mtp850ex battery that keeps the MTP850Ex intrinsically-safe portable legal for Ex ib IIC T4 gas and Ex ibD 21 dust environments.
motorola mtp850ex battery,motorola radio battery,motorola atex battery
Main features
Dual ATEX Marks
Ex ib IIC T4 Gb & Ex ibD 21 IP6x T90 °C moulded into the label—accepted by EU safety inspectors when you quote motorola nntn7383.
Ex ib IIC T4 Gb & Ex ibD 21 IP6x T90 °C moulded into the label—accepted by EU safety inspectors when you quote motorola nntn7383.
750 mAh Optimised Capacity
Delivers 8 h @ 5-5-90 duty on high-power TETRA; matches shift length while staying under 100 g—perfect for mtp850ex battery hot-swap routines.
Delivers 8 h @ 5-5-90 duty on high-power TETRA; matches shift length while staying under 100 g—perfect for mtp850ex battery hot-swap routines.
Typical Integration Scenarios
-
Offshore Drilling Rigs – Zone 1 rating satisfies hazardous-area permit; mtp850ex battery keeps crews connected during 12-h tours.
-
Petrochemical Loading Bays – Ex ib IIC T4 prevents ignition in vapour-rich atmosphere; no extra hot-work paperwork.
-
Underground Coal Mines – IP6x dust-tight seal survives continuous rock dust; motorola nntn7383 tolerates humid shaft conditions.
-
Flour Milling Plants – Ex ibD 21 rating safe for combustible dust zones; radio stays live through shift change.
Specification
| Battery model | NNTN7383 |
| Battery type | ATEX Li-ion battery |
| Voltage | 7.4 V |
| Battery capacity | 750 mAh |
| Adapted model | MTP850EX |
| Explosion-proof level | Ex ib IIC T4 Ex ibD 21 IP6x T90°C 12G Ex ib IIC T4 11 2D Ex ibD 21 IP6x T90°C BVS 08 ATEX E 097 |
