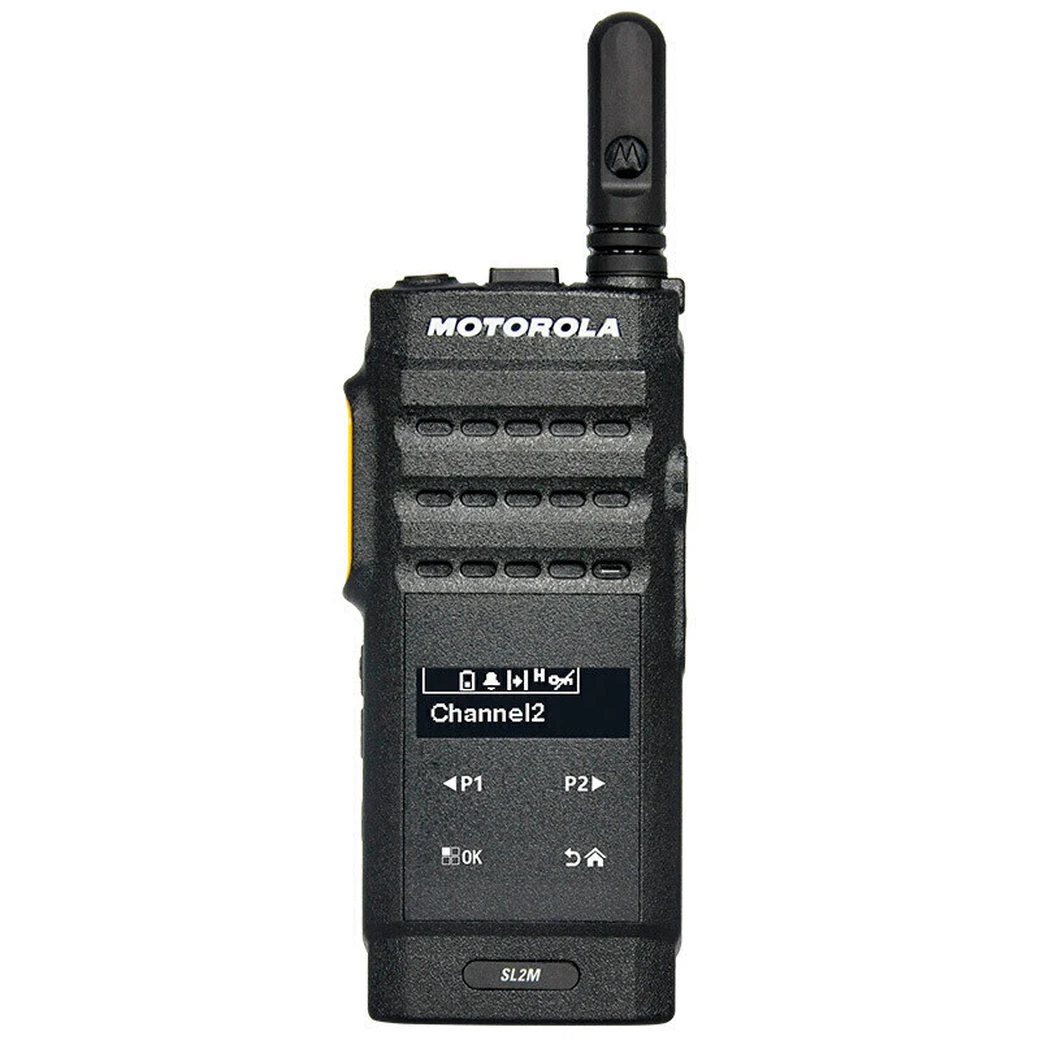

Motorola SL2M Walkie Talkie
Main features
Stealth Ergonomic Design
Traditional commercial two-way radios force employees to choose between security and style. The SL2M’s anodized aluminum body is narrower than most smartphones, so valet parkers, concierges, and nurses can wear it under a suit jacket or lanyard without leaving a mark. An embedded PTT button, four programmable virtual buttons, and a dual-line OLED display only light up when needed, maintaining the sleek look guests expect.
Analog/Digital Dual-Mode
The Motorola SL2M features software-selectable analog and DMR Tier II modes. It can operate on 12.5 kHz analog signals on traditional channels today and switch to 6.25e equivalent spectrum in digital mode tomorrow—no hardware changes, no new antennas, and no additional licensing fees.
Wireless Workflow
Frontline employees hate cables. Built-in Bluetooth 4.0 allows Motorola DMR radios to pair with concealed headsets, PTT buttons, and even barcode scanners. Wi-Fi 802.11 b/g/n supports wireless code updates, allowing new channel plans to be pushed wirelessly to up to 500 devices; all programming can be completed upon staff arrival, without the need for any programming cables.
Exceptional Voice Quality
The Motorola SL2M uses an AMBE+2 vocoder with 40 dB adjacent channel rejection and 0.19 µV digital sensitivity. Calls from concierges in the loading/unloading area are as clear as calls from security guards on the mezzanine level. Intelligent audio automatically boosts the volume when the ambient sound pressure level exceeds 85 dB and immediately lowers it when the environment quiets down.
All-Day Battery Life
The 2300 mAh lithium-ion battery provides up to 13.5 hours of battery life in digital mode (5-5-90 duty cycle). Shift workers can simply change the battery—no tools, no cup contact, no damage to plastic clips. A 30-minute fast charge can restore 50% of the battery
Other Function
-
Channel Announcement
-
Voice Announcement
-
Scan List Programming
-
Transmit Interrupt
-
Lone Worker
-
Emergency Alarm
-
Bluetooth Audio Switch
-
Wi-Fi Enable/Disable
-
Power Level Selection
-
Keypad Lock
Accessories
- Antenna
- Battery
- Charger
- Hand strap
- Carry holster
- User Manual
Specifications
| General | ||
| Band | VHF | UHF |
| Frequency | 136–174 MHz | 403–470 MHz |
| High Power Output (Digital) | 3 W | |
| High Power Output (Analog) | 2 W | |
| Low Power Output | 0.5 / 1 W | |
| Channel Spacing | 12.5 / 25 kHz | |
| Channel Capacity | 256 | |
| Dimensions (H×W×D) Radio + Std Battery | 125.7 × 55.0 × 22.7 mm | |
| Weight Radio + Std Battery | 190 g | |
| Digital / Analog Battery Life (Li-Ion 2300 mAh) | 13.5 / 11 hrs | |
| Power Supply (Nominal) | 3.7 V | |
| Receiver | ||
| Analog Sensitivity (12 dB SINAD) | 0.3 μV, 0.22 μV (typical) | |
| Digital Sensitivity (5 % BER) | 0.25 μV, 0.19 μV (typical) | |
| Intermodulation (TIA603D) | 70 dB | |
| Adjacent Channel Selectivity (TIA603A)-1-tone | 60 dB (12.5 kHz channel) 70 dB (25 kHz channel) |
|
| Adjacent Channel Selectivity (TIA603D)-2-tone | 45 dB (12.5 kHz channel) 70 dB (25 kHz channel) |
|
| Spurious Rejection (TIA603D) | 70 dB | |
| Transmitter | ||
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination: 7K60F1W |
|
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |
| Conducted/Radiated Emission (TIA603D) | –36 dBm < 1 GHz –30 dBm > 1 GHz |
|
| Adjacent Channel Power | 60 dB (12.5 kHz channel) 70 dB (25 kHz channel) |
|
| Frequency Stability | ±0.5 ppm | |
| Environmental Specifications | ||
| Operating Temperature | –10 °C ~ +60 °C | |
| Storage Temperature | –40 °C ~ +85 °C | |
| Electrostatic Discharge | IEC 61000-4-2 Level 3 | |
| Dust & Water Intrusion | IEC 60529 – IP54 | |
| Packaging Test | MIL-STD 810D and E | |
