Anytone AT-779UV Mini HAM Amateur Mobile Radio VHF UHF Dual band 199CH 25W FM Scrambler Mobile Car Radio (for Power supply OUTPUT 12V Private Car)
Features:
-1.4″ TFT screen
– CTCSS,DCS,DTMF,2Tone,5Tone setting for each single channel
– 11 groups fixed scrambler code plus self define scrambler code
– LCD brightness control
– Main unit and microphone key lock function
– Compander function
– Tone Pulse frequency
– Mini size with dimensions 4.72ft*3.94ft*1.34ft
-12V power supply from Private car cigarette lighter directly
-Frequency Step:2.5/5/6.25/10/12.5/15/20/25/30/50KHz
-Squelch Level Setting
-Scan
-Carrier/CTCSS/DCS/5TONE/2TONE/DTMF
Specifications:
|
General |
||
| Frequency Range | VHF:136-174MHz, UHF:400-490MHz, FM:86.7-108MHz | |
| Number of Channels | 199 | |
| Channel Spacing | 25KHz(Wide Band), 12.5KHz (Narrow Band) | |
| Phrase-lock Step | 2.5KHz,5Khz,6.25KHz,10KHz.12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz | |
| Operating Voltage | DC13.8V±15% | |
| Squelch Method | Carrier/CTCSS/DCS/5tone/2tone/DTMF | |
| Frequency Stability | ±2.5ppm | |
| Operating Temperature | -20℃~+60℃ | |
| Dimensions(W*D*H) | 124 (W) x 101(D) x 36 (H)mm | |
| Weight | about 0.5Kg | |
|
Transmitter Part |
||
| Wide Band | Narrow Band | |
| Power Output | 25W/10W/5W | |
| Modulation | 16KΦF3E | 11KΦF3E |
| Adjacent Channel Power | ≥70dB | ≥60dB |
| Hum & Noise | ≥40dB | ≥36dB |
| Spurious Emission | ≥60dB | ≥60dB |
| Audio Response | +1~-3dB (0.3~3KHz) | +1~-3dB (0.3~3KHz) |
| Audio Distortion | ≤5% | |
|
Receiver Part |
||
| Wide Band | Narrow Band | |
| Sensitivity (12dBm SINDA) | ≤0.25μV | ≤0.35μV |
| Adjacent Channel SelectivityAdjacent Channel Selectivity | ≥60dB | ≥60dB |
| IntermodulationIntermodulation | ≥60dB | ≥60dB |
| Spurious response | ≥60dB≥60dB | ≥60dB |
| Audio Response | +1~-3dB (0.3~3KHz) | +1~-3dB (0.3~3KHz) |
| Hum & Noise | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio power output | >2W@16Ω | |

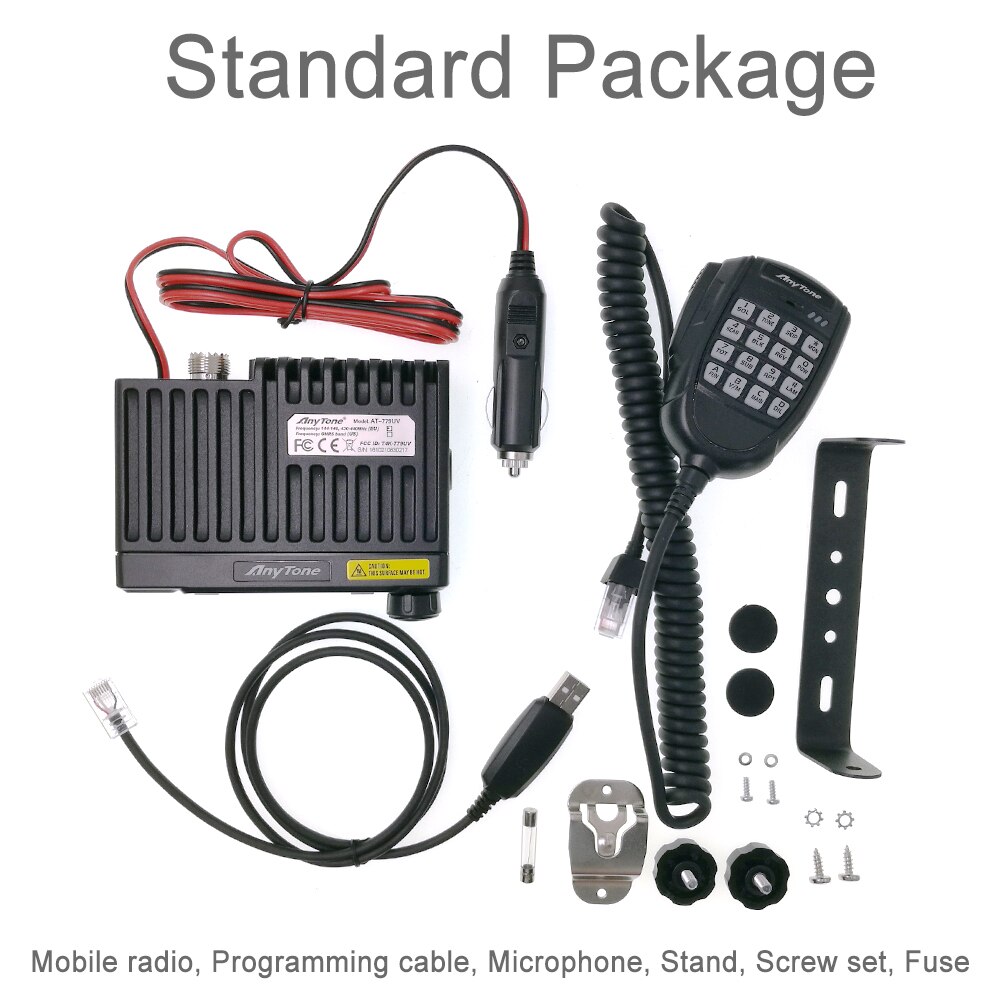

Package Contain:
1× AT-779UV Mobile Radio
1× Speaker Microphone
1× Mobile Bracket
1× Fuse
1× Microphone Clip
4× Screws
2× pads
1× Manual

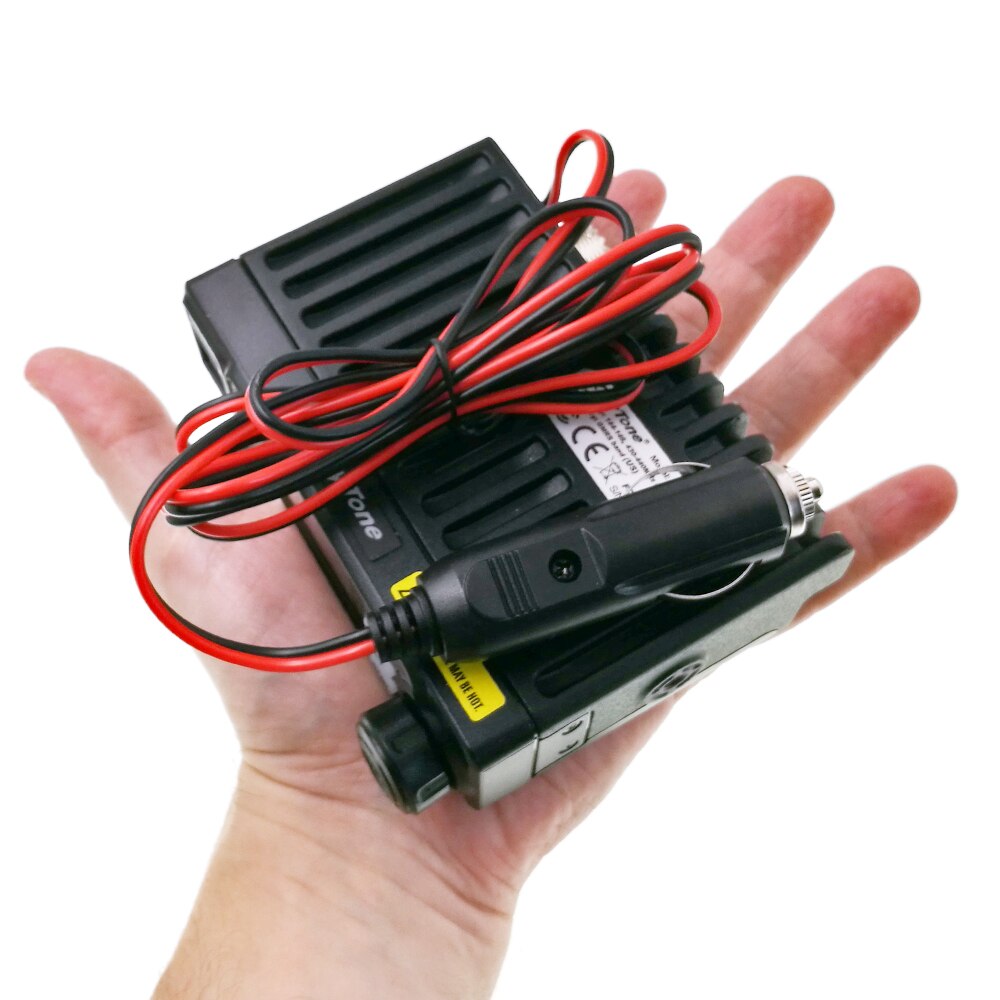

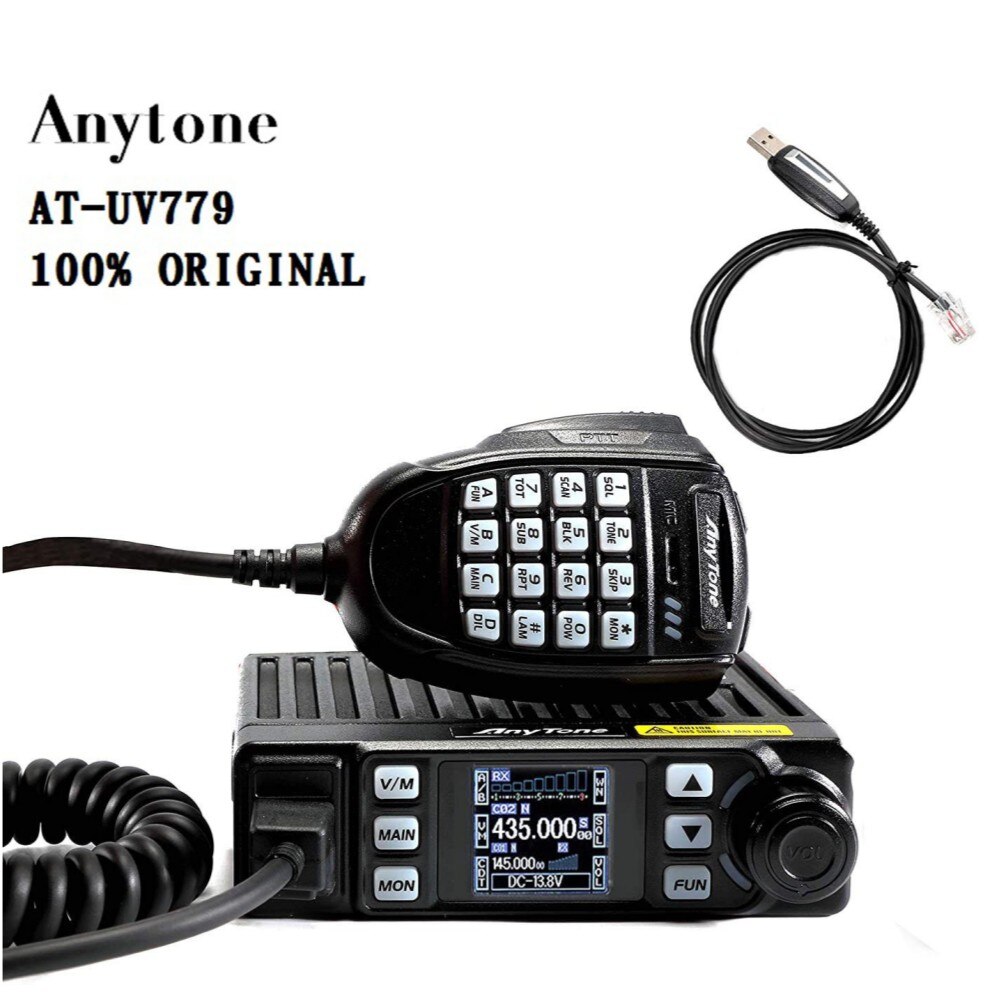

Photos:
