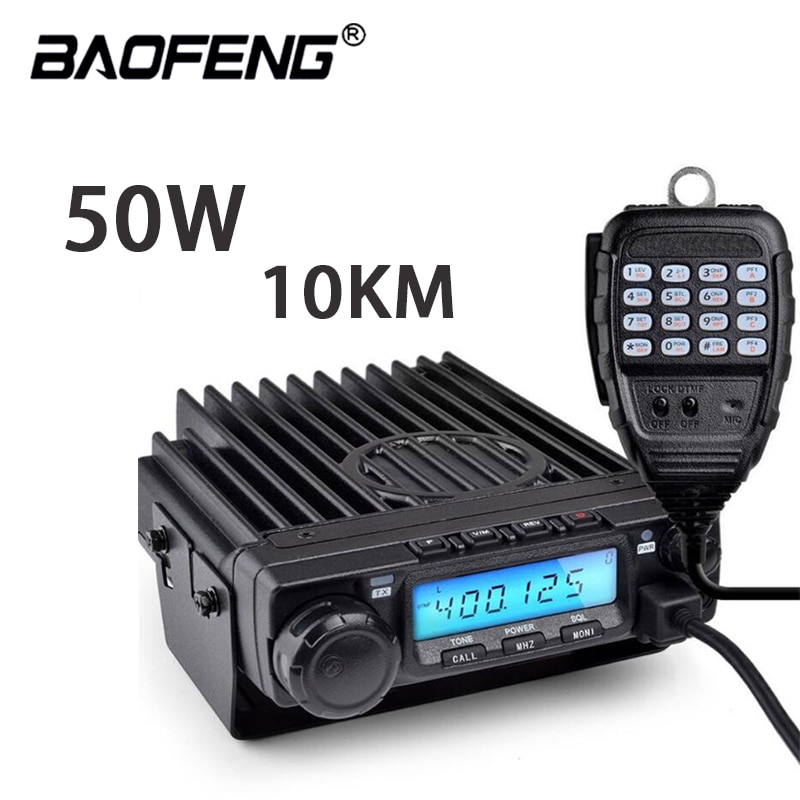

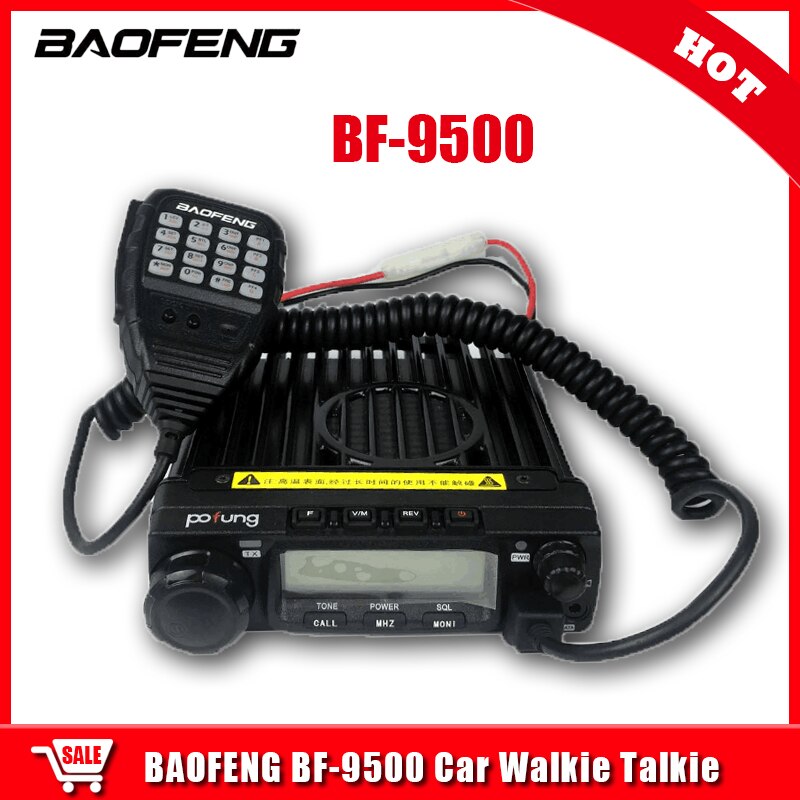

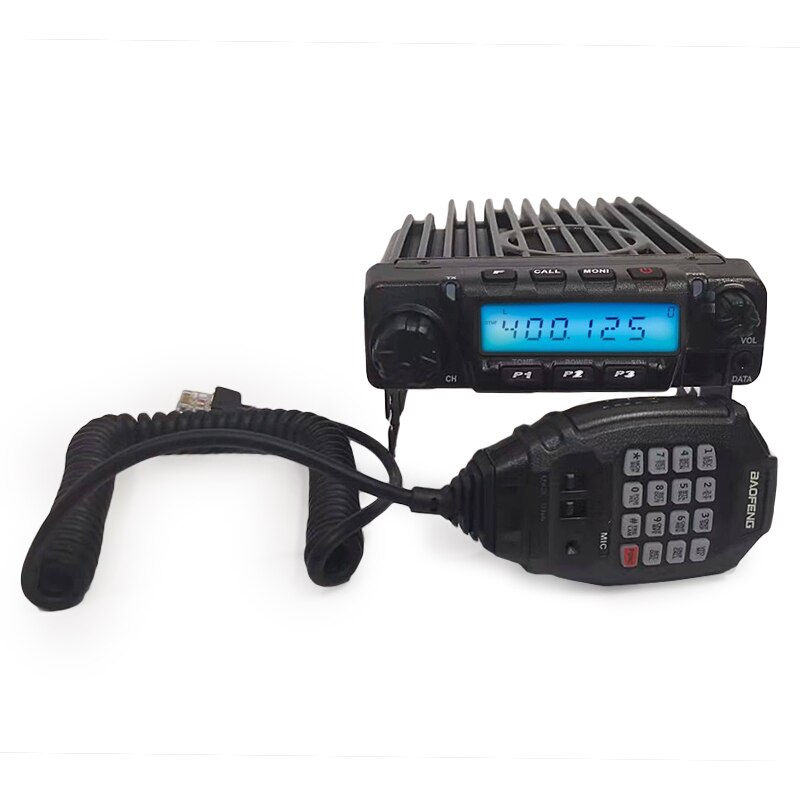

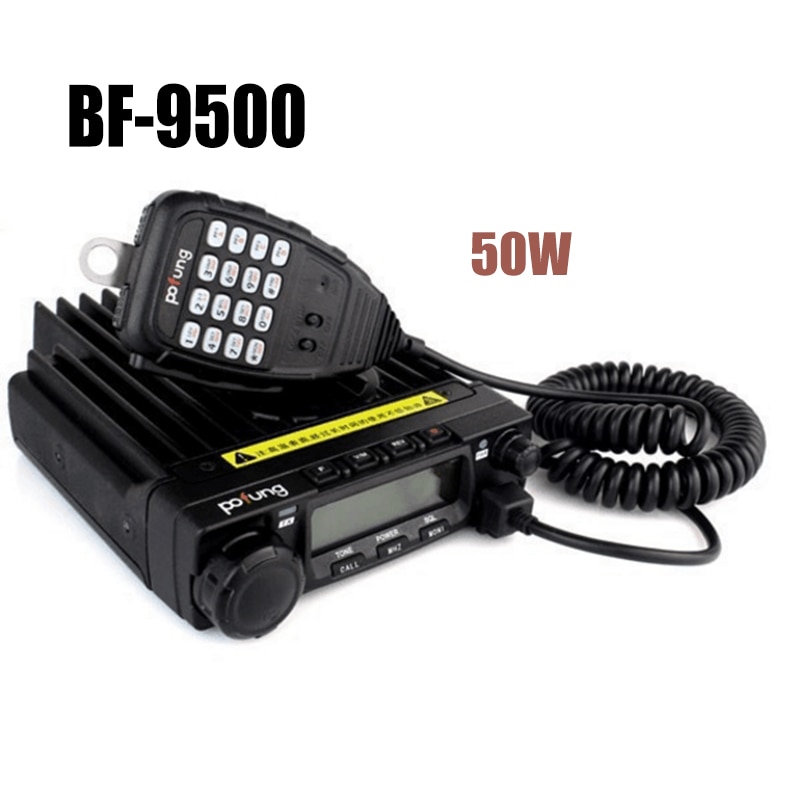

Baofeng BF-9500 Car Radio Station Walkie Talkie Smart Professional Band Mode UHF Mobile Radio
Pofung Baofeng BF-9500 Car Radio Station Walkie Talkie Smart Professional Ham HF Mobile Multi Band Mode UHF 50W 10 50 KM
50W/25W/10W UHF 450-470MHz BaoFeng/Pofung BF-9500 Large LCD Portable Mobile Transceiver Vehicle Radio

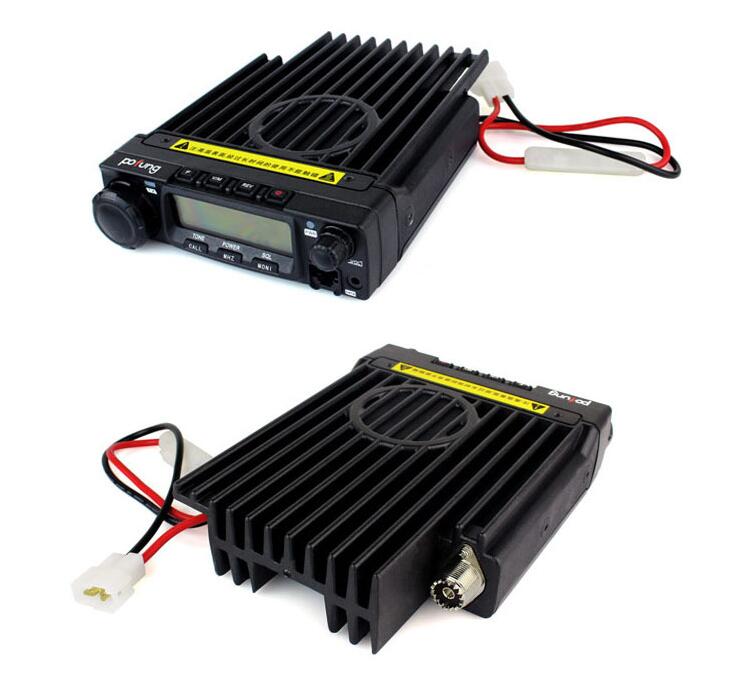

Pofung BF-9500 Mobile Radioits great looking appearance, rigid case and a variety of power functions that
meet the needs of those motor fleets and riders, quite a ideal kit for amatuer mobile radio.
BF-9500 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable.
Features:

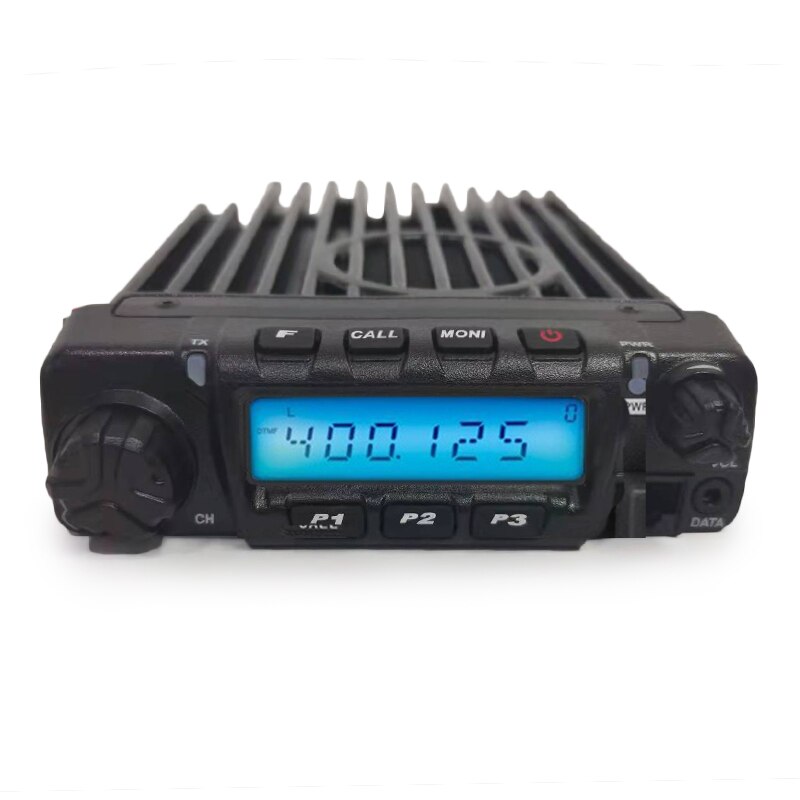

1. Large LCD with adjustable brightness, more intuitive display

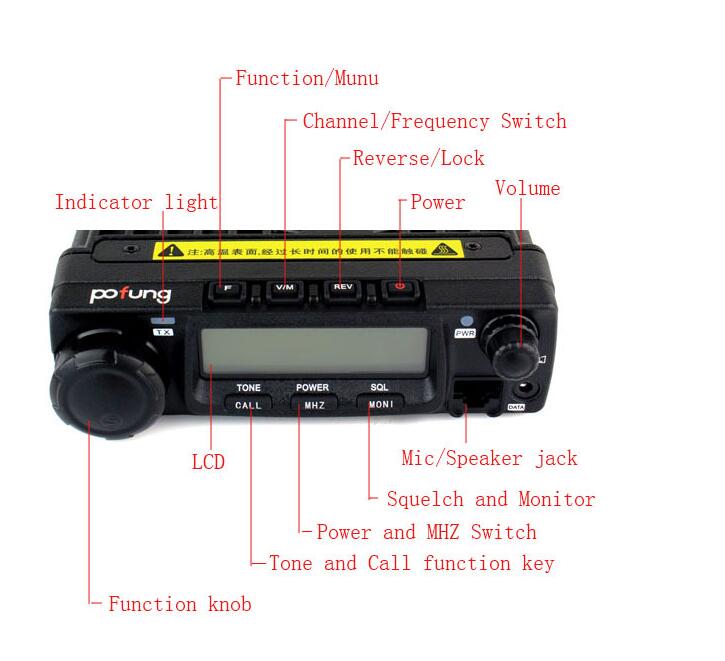

2. Rational button layout and user-friendly operation interface, ease of use
3. Up to 200 programmable memorized channels
4. Using five tone to send message,emergency alarm, call all ani, remotely kill, remotely waken, etc.
5. Programming different CTCSS, DCS, 2Tone, 5Tone in per channel. rejecting extra calling from other stations
6. High/medium/low power, meet the needs of long distance communication
7. Automatic calling identification function by DTMA-ANI or 5Tone-ANI
8. Theft alarm port, improves the safety of your car
9. High quality material and advanced craftsmanship make sure great heat transfer and continuous&stable working
Specification:
|
Receiver |
||
|
Wide band |
Narrow band |
|
|
Sensitivity(12dB SINAD) |
≤0.25μV |
≤0.35μV |
|
Adjacent channel select |
≥70dB |
≥60db |
|
Intermediation |
≥65dB |
≥60dB |
|
Spurious rejection |
≥70dB |
≥70dB |
|
Audio response |
0.3~3K |
0.3~2.55K |
|
Hum&Noise |
≥45dB |
≥40dB |
|
Audio distortion |
≤5% |
|
|
Audio power output |
>2W @ 10% |
|
|
Transmitter |
||
|
Power output |
40W |
|
|
Modification |
16KΦF3E |
11KΦF3E |
|
Adjacent channel power |
≥70dB |
≥60dB |
|
Hum&Noise |
≥40dB |
≥36dB |
|
Spurious emission |
≥60dB |
≥60dB |
|
Audio response |
0.3~3K |
|
|
Audio distortion |
≤5% |
|
|
General |
||
|
Frequency range |
UHF 400~470MHz |
|
|
Memory channels |
200 channels(0-199) |
|
|
Channels spacing |
25KHz(Wide Band),20K(Middle Band),12.5K(Narrow Band) |
|
|
Phase-locked step |
2.5KHz 5KHz 6.25KHz 8.33KHz 10KHz 12.5KHz 25KHz 50KHz 100KHz |
|
|
Operating voltage |
DC13.8V±15% |
|
|
Squelch |
CARRIER/CTCSS/DCS/5TONE/DTMF |
|
|
Frequency stability |
±2.5ppm |
|
|
Operating temperature |
-20°C~60°C |
|
|
Dimension |
145x47x190mm |
|
|
Weight |
Approx.1.2kg |
|
Packaging Details:
Standard package or specail package
package size : 355x250x80mm
net weight :1.916kg
gross weight :1.970kg

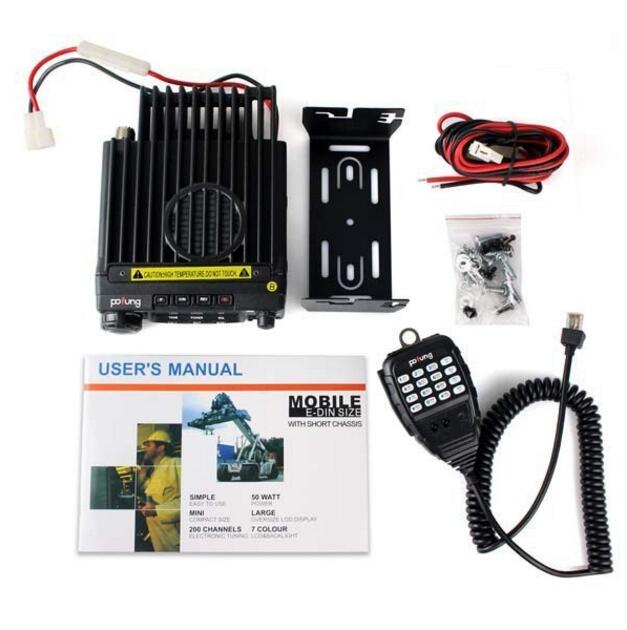

Each Package Contain:
1 xBF-9500 Mobile Vehicle Radio

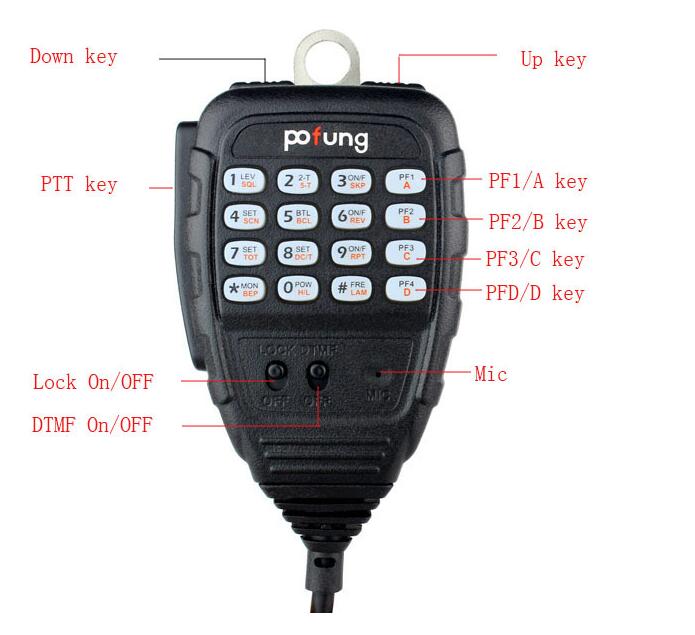

1 xIntercom Unit(Keypad DTMF microphone)
1 xMount Holder
1 x DCConnection Cable
1 xMounting Screws
1 x User manua
