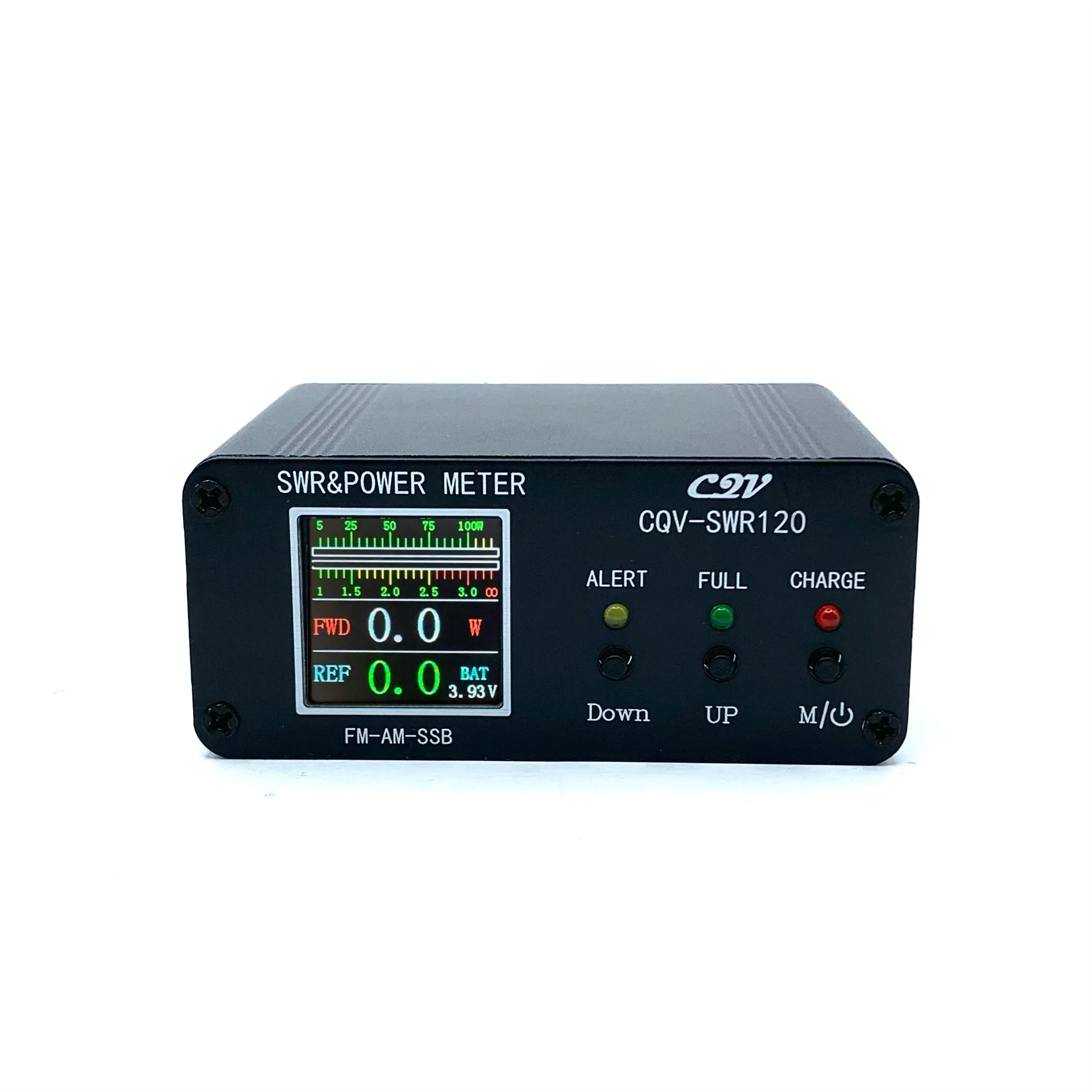

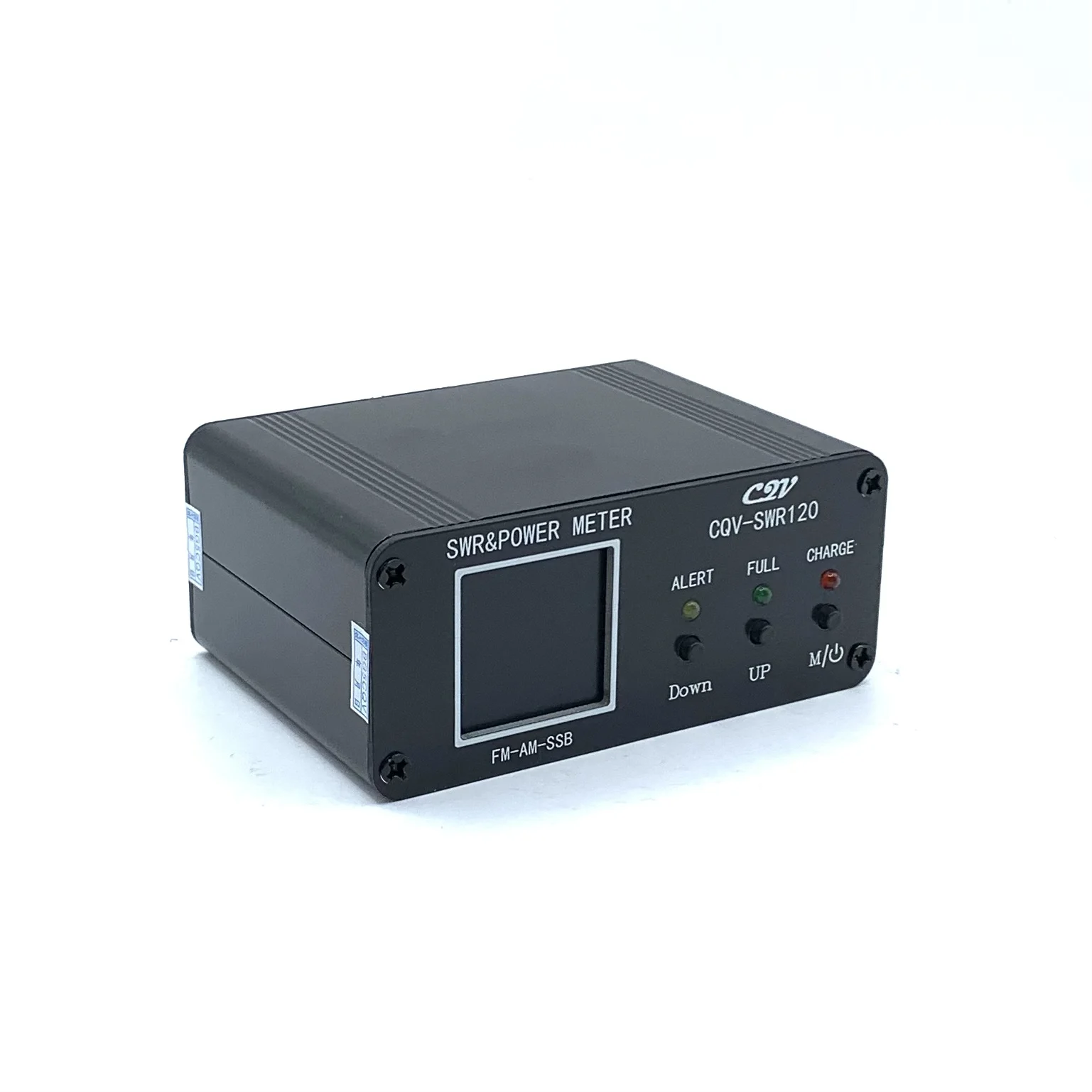

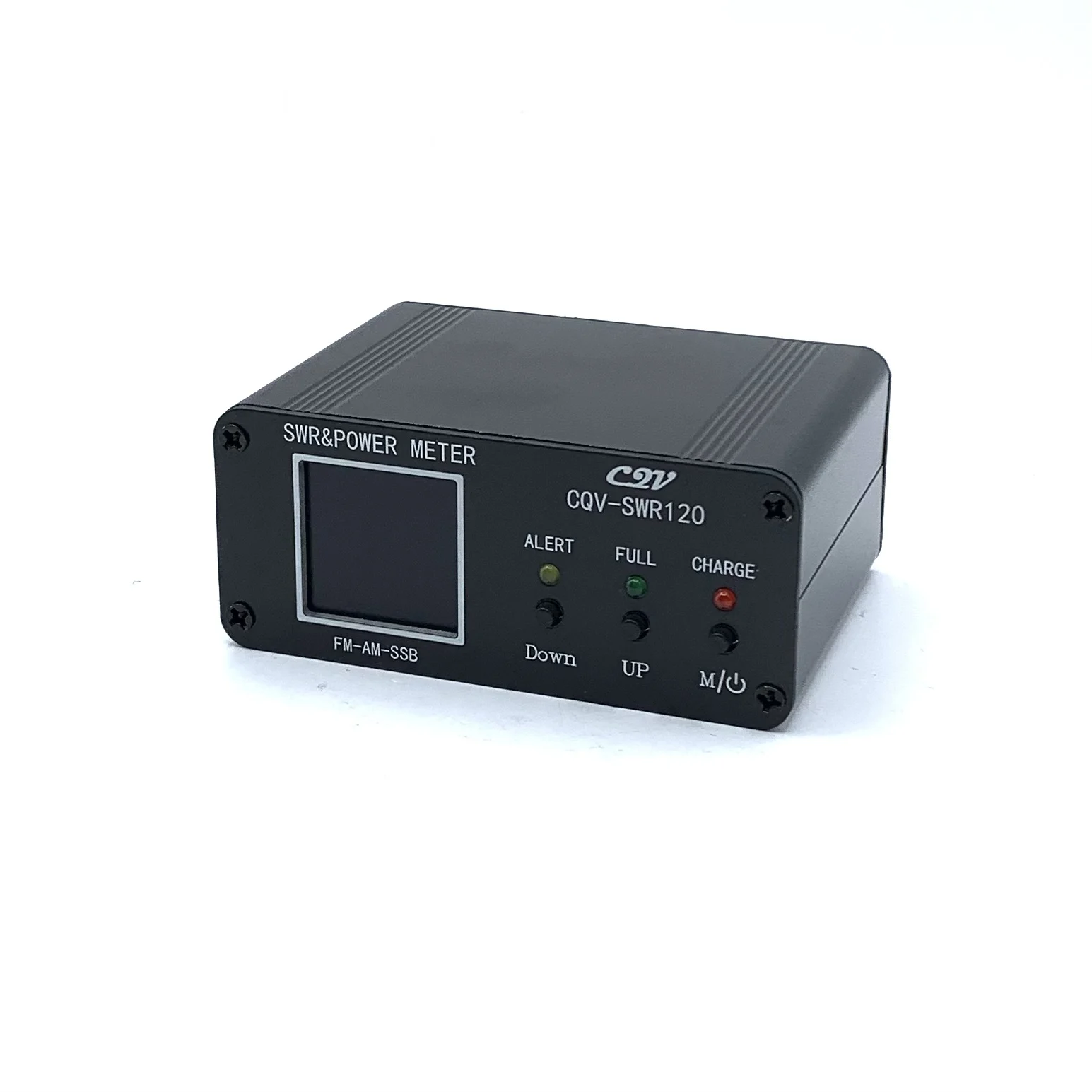

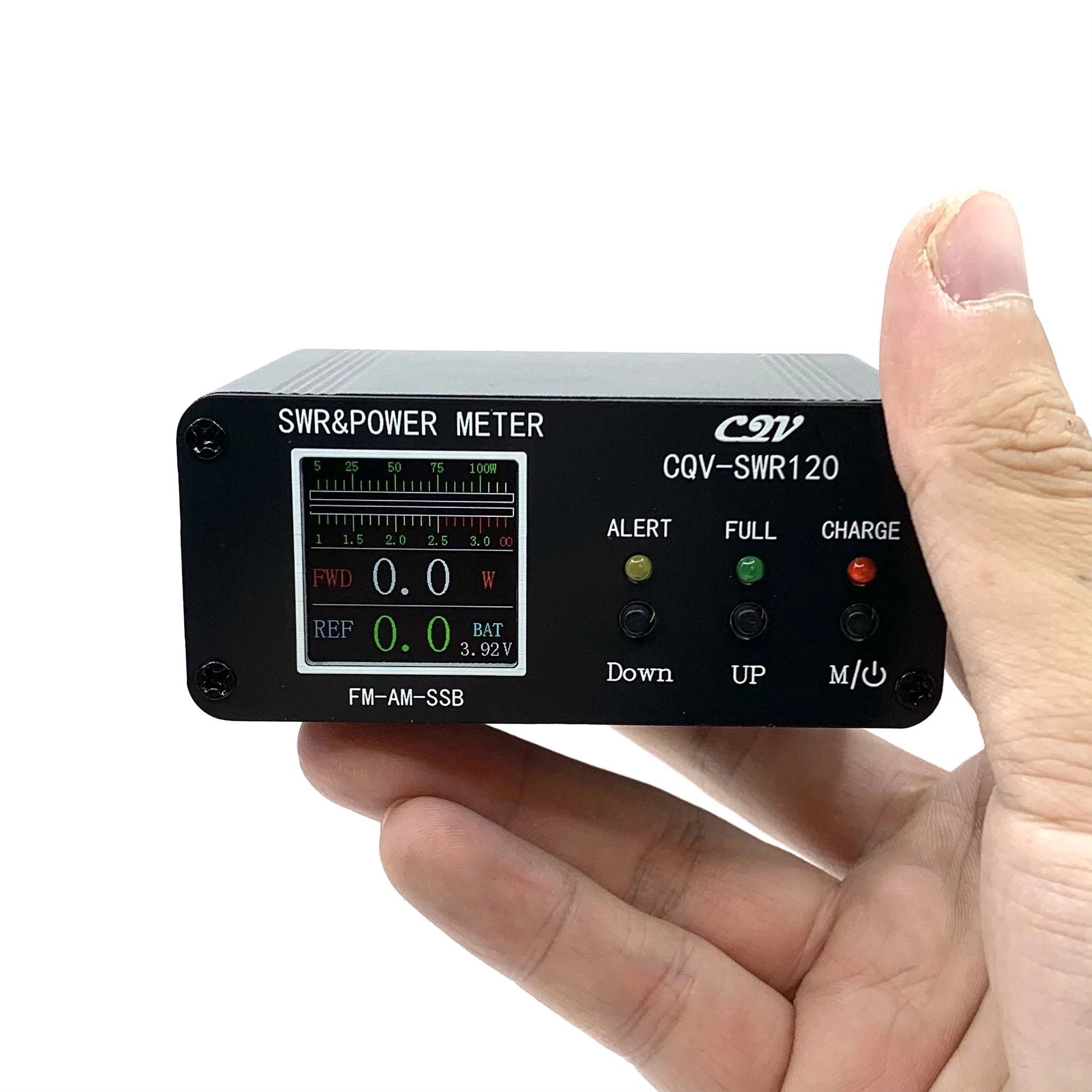

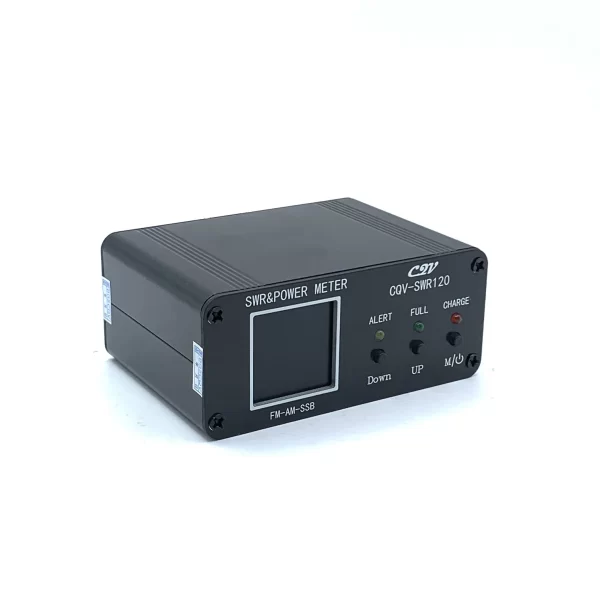

CQV-SWR120 120W 1.8-54Mhz Digital Power Standing Wave Meter High Standing Wave Alarm Function 240 * 240 Full Color HD Display

Introduction:

*120W digital power standing wave meter

*Direct reading of multiple parameters of forward and reverse power standing wave

*240 * 240 full color HD display

*High standing wave alarm function

*Delayed shutdown function, transmitting automatic startup function, and battery undervoltage protection function.

*LED dual indication function

*Power fine-tuning function, standing wave fine-tuning function.

*One button switching function of Chinese and English menus

*Buzzer one key on/off function

*One button switching function of multiple display interfaces

*Customized standing wave alarm setting function

*Customized shutdown delay time setting function

Technical specifications

*Operating frequency: 1.8-54Mhz

*Measuring range: 0.5-120W (SSB mode can reach 200w at most, and the buzzer will alarm when it exceeds 200w)

*Standing wave range: 1-99.9 (the default alarm is greater than 2.0, and the alarm point can be manually set through the hidden function)

*Charging interface: Type_ c 5v/1A

*Battery model: 3.7v/1000mAh (when the battery voltage is lower than 3.4v, the buzzer will ring for charging, and it will automatically shut down when the battery voltage is lower than 3.35v)

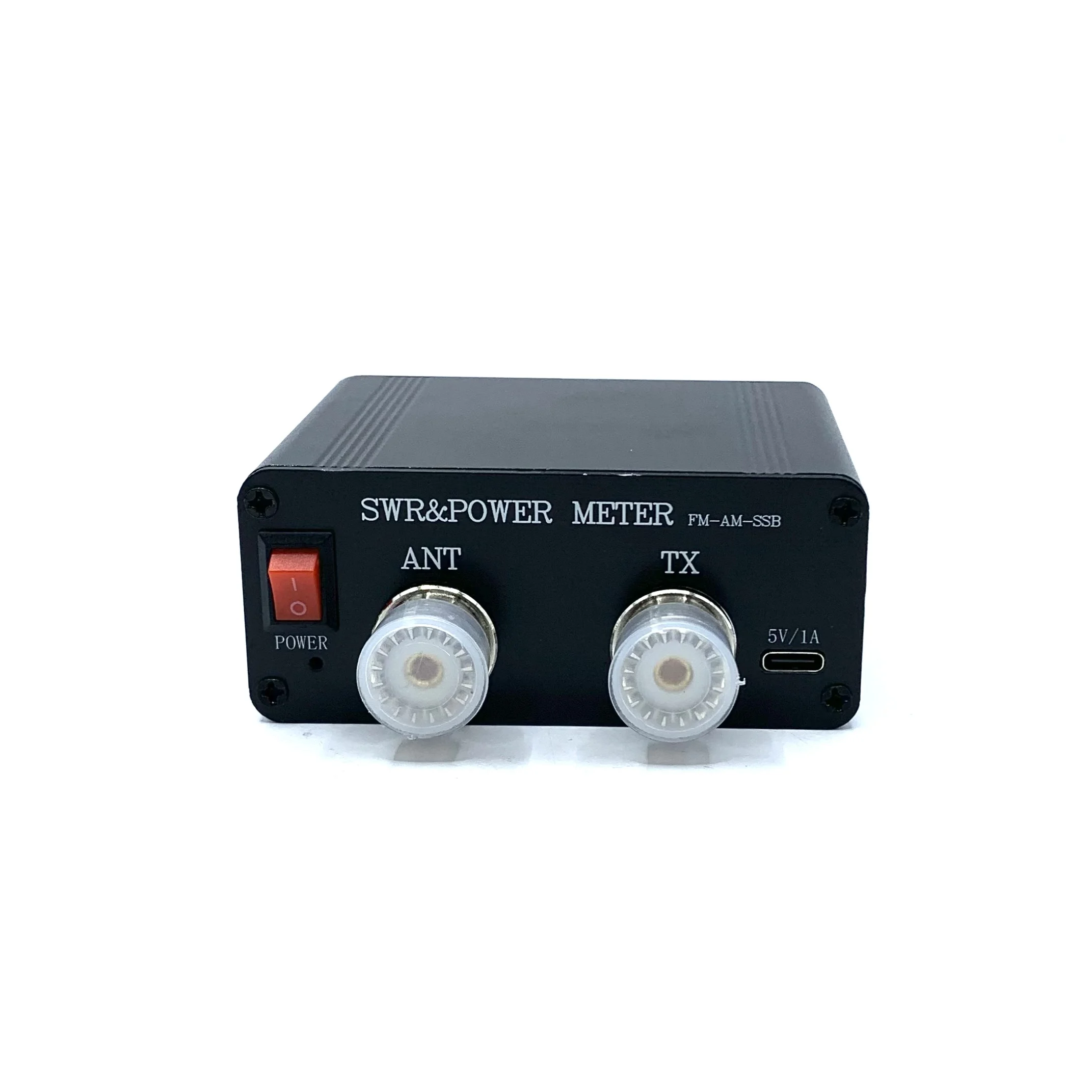

*Interface type: UHF (SL16)

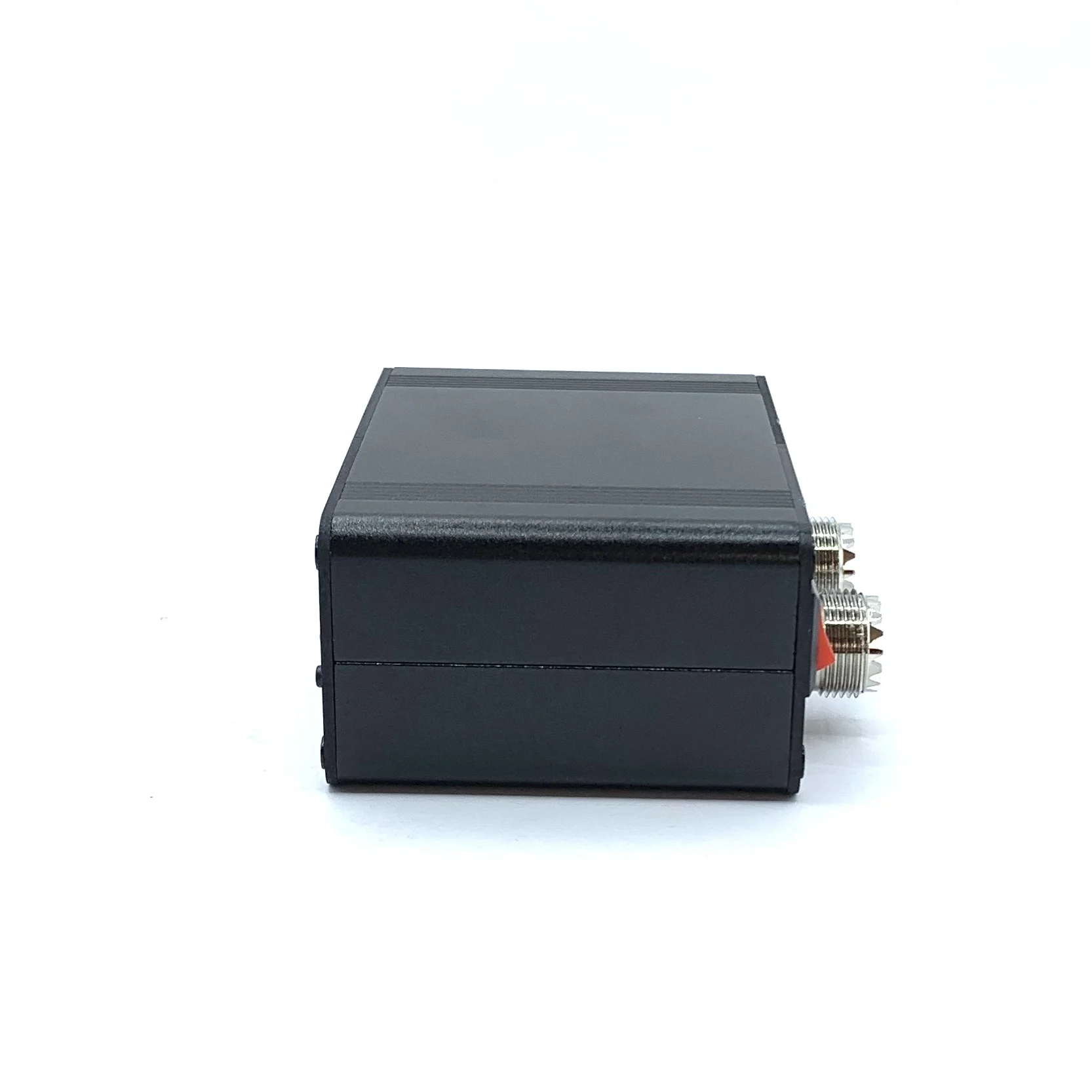

*Shell size: 88mm * 63mm * 38mm (excluding protruding parts)

Packagke included:

1 x SWR Meter
