HYT Walkie Talkie Hytera PD500 400-470MHz UHF Digital Portable Radio DMR Handheld Transmitter PD-500
Features:
The PD500 DMR handheld radio impresses with its lightweight design, range of functions and excellent value for money. Its compact housing, outstanding voice quality and support for both digital and analog radio will bring a breath of fresh air to your radio communication. The PD500 handheld radio is designed in accordance with the DMR standardand therefore meets all the open standard’s requirements.
Improved use of the audio frequency spectrum
Thanks to the TDMA process, the PD500 enables you to assign the available bandwidth with double the channel capacity. This has a clear mitigating effect on the increasing spectrum scarcity encountered when using DMR radio systems.
Ergonomic design
The PD500 handheld radio is easy to operate and highly reliable, which is indispensable in critical situations.
Individual button design
The two rotary buttons of the radio transceiver are separated by the antenna. This design prevents operating errors.
Reliability
The PD500 meets all requirements of the open DMR ETSI standard (ETSI-TS 102 361-1, -2, -3), the MIL810-C/D/E/F/G standard and degree of protection IP54. Thus excellent features are offered even under harsh operating conditions.
Powerful battery
Compared to the FDMA process in analog mode, with TDMA the battery service life can be improved by approximately 40% when using DMR.
Excellent voice quality
With the combined application of the narrow band codec and digital technologies for error correction, the PD500 ensures excellent voice quality even in loud environments and in peripheral areas of radio coverage.
Upgradeable software
The upgradeable software makes the use of new features possible. By altering the firmware-software, other digital and analog operating modes can be enabled, without the need for purchasing a new radio device.
Specifications:
| General data | |
| Frequency range | UHF: 400 – 470 MHz |
| Supported operation modes | · DMR Tier II (DMR conventional), Simulcast
· Analog DMR Tier II in reference to ETSI TS 102 361-1/2/3 |
| Channel capacity | 256 |
| Number of zones | 16 |
| Channel spacing | 12.5/20/25 kHz (analog) 12.5 kHz (digital) |
| Operating voltage | 7.4 V (nominal) |
| Battery | 1500 mAh (lithium-ion battery) |
| Battery service life(5-5-90 duty cycle) | approx. 11 hours (analog) approx. 16 hours (digital) with 1500 mAh approx. 20 hours (digital) with 2000 mAh |
| Frequency stability | ±0.5 ppm |
| Antenna impedance | 50 Ω |
| Dimensions (H×W×D) (with standard battery, without antenna) |
115 x 54 x 27 mm |
| Weight | approx. 260 g |
| Programmable keys | 1 |
| Transmitter | |
| Transmitting power | VHF: 1 / 5 W UHF: 1 / 4 W |
| Modulation | 11 K0F3E at 12.5 kHz 14 K0F3E at 20 kHz 16 K0F3E at 25 kHz |
| 4FSK digital modulation | 12.5 kHz (data only): 7K60FXD 12.5 kHz (data and voice): 7K60FXW |
| Interfering signals and harmonics | -36 dBm < 1 GHz -30 dBm > 1 GHz |
| Modulation limiting | ±2.5 kHz at 12.5 kHz ±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
| Noise suppression | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Adjacent channel selectivity | 60 dB at 12.5 kHz 70 dB at 20/25 kHz |
| Audio sensitivity | +1 dB to -3 dB |
| Nominal audio distortion | ≤ 3% |
| Digital vocoder type | AMBE++ |
| Receiver | |
| Sensitivity (analog) | 0.22 μV (12 dB SINAD) 0.22 μV (typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
| Sensitivity (digital) | 0.22 μV / BER 5% |
| Adjacent channel selectivity TIA-603 ETSI |
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz 60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz |
| Intermodulation TIA-603 ETSI |
70 dB at 12.5/20/25 kHz 70 dB at 12.5/20/25 kHz |
| Spurious response rejection TIA-603 ETSI |
70 dB at 12.5/20/25 kHz 70 dB at 12.5/20/25 kHz |
| Hum and noise | 40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz |
| Nominal audio power output | 0.5 W |
| Nominal audio distortion | ≤ 3 % |
| Audio sensitivity | +1 dB to -3 dB |
| Conducted spurious emission | < -57 dBm |
| Ambient data | |
| Operating temperature range | -30 °C to +60 °C |
| Storage temperature range | -40 °C to +85 °C |
| ESD | IEC 61000-4-2 (level 4) ±8 kV (contact discharge) ±15 kV (air discharge) |
| Protection against dust and moisture | IP54 |
| Shock and vibration resistance | MIL-STD-810 C/D/E/F/G |
| Relative humidity | MIL-STD-810 C/D/E/F/G |
| All technical information was determined at the factory and in accordance with the corresponding standards. Subject to change on the basis of continuous development. | |
PACKAGE Contains:
1× PD500 UHF 400-470 DMR Portable Radio
1× BL1504 1500mAh Li-ion Battery
1× Desktop Charger W/ AC Adapter
1× Belt Clip
1× SMA-Female UHF Antenna
1× Hand Strap
1× Operating Manual

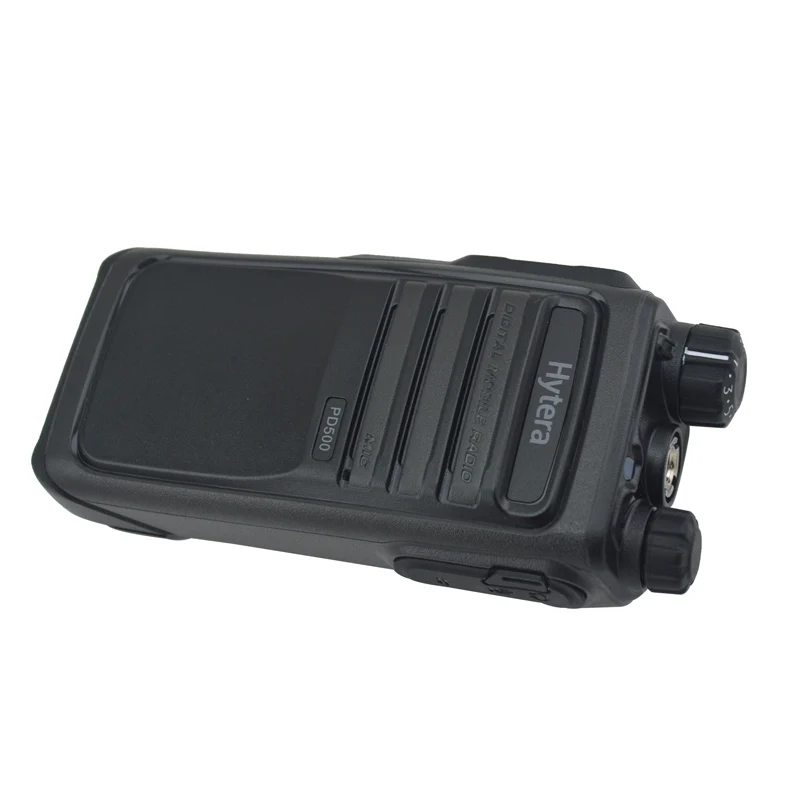

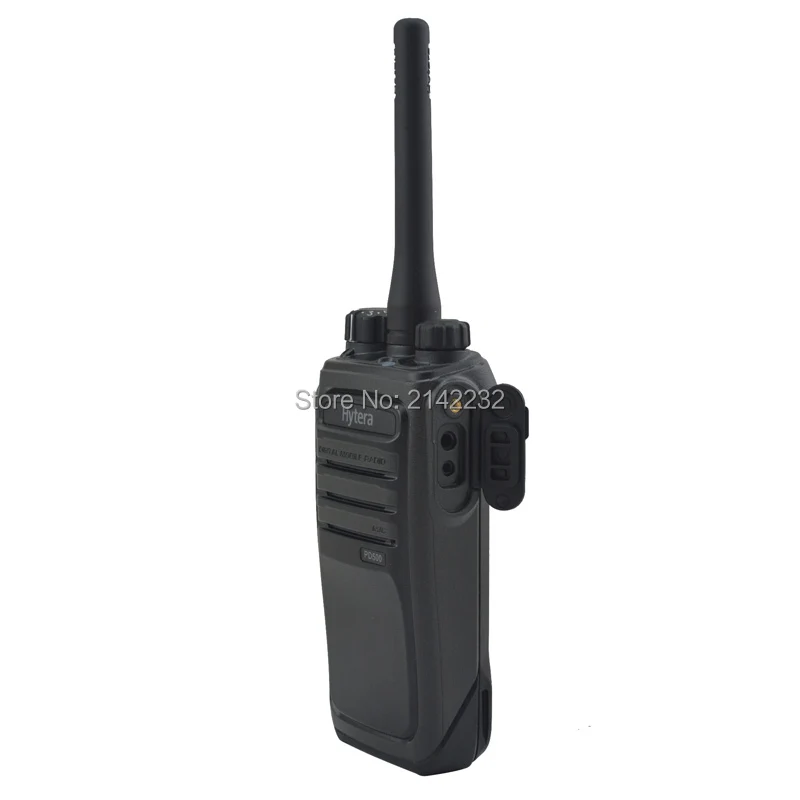

Photos:
