ICOM IC-M200 25W IPX7 Waterproof VHF MARINE TRANSCEIVER Submersible Car Radio Station 25W
Product Description
specifications
| Frequency range | Tx | 156.025 162.000 MHz |
|---|---|---|
| Rx | 156.025 162.025 MHz | |
| Usable channel groups | INT, USA, CAN channels | |
| Type of emission | 16K0G3E (FM) | |
| Power supply voltage | 13.8 V DC nominal (11.7 V 15.9 V DC) |
|
| Current drain | Tx (at 25 W output) | 5.5 A (Maximum) |
| Rx (Maximum audio) | 1.5 A (Maximum) | |
| Operating temperature range | 20 C to +60 C; 4 F to +140 F | |
| Antenna impedance | 50 | |
| Dimensions (W H D) (Projections not included) |
153 67 133 mm; 6.0 2.6 5.2 inch |
|
| Weight (approximately) |
790 g ; 1.7 lb |
Top Performance, Reliability, Quality and Great Value
- Compact and IPX7 Submersible Body – Withstands 1m delth for 30 minutes.
- Powerful Front Mount Speaker – Delivers loud and intelligible audio even in noisy maritime environments.
- Class Leading Receiver Performance – No compromise in operating fundamentals (75dB typical IMD and selectivity).
- Large Easy-to-see LCD – Large 43x27mm LCD shows essential information clearly with 4-step backlighting.
- Dualwatch and Tri-watch Function – Monitors CH 16 and/or call channel, while using another channel.
- Favourite Channel Function – Offers quick channel selection from the microphone up/down buttons.
- AquaQuake Draining Feature – Water free speaker grill for optimal radio at all times.
Other Features
- Accurate and reliable temperature compensated frequency stability

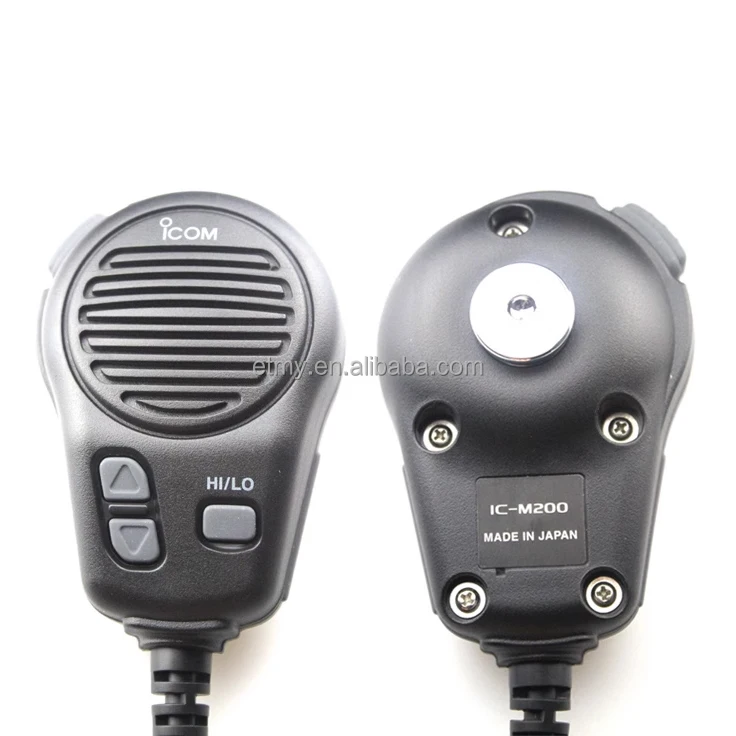

- Channel operation with the supplied hand microphone, HM-164B
- Instant-access button for Channel 16 and call channel
- Priority scan and Normal scan
- Built-in low voltage indicator
- Programmable private channels (subject to local regulations)
