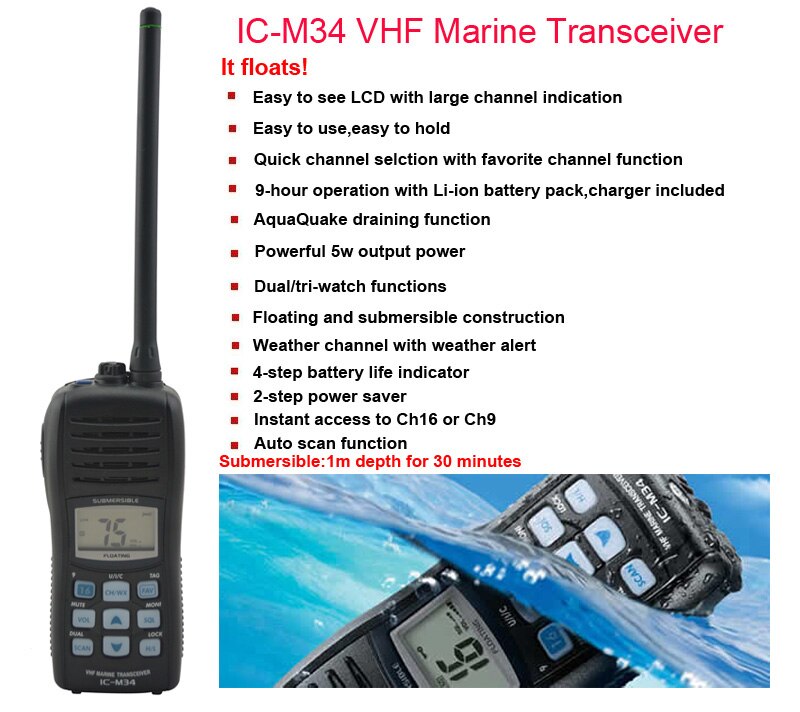

ICOM IC-M34 5W 88Channel VHF Marine Transceiver/Portable Two-way Radio/walkie talkie with Floating Waterproof & Submersible Function
Features:
1.Easy to see LCD with large channel indication
2.Easy to use, easy to hold
3.Quick channel selection with favorite channel function
4.Li-Ion battery and charger standard
5.AquaQuake draining function
6.Powerful 5W output power
7.Dual/Tri-watch functions
8.4-step battery life indicator
9.Weather channel with weather alert
10.2-step power saver
11.Auto scan function
12.Instant access to Ch 16 or Ch 9
13.Optional battery case for using with alkaline
cells (The IC-M34 may sink when the battery case
is attached, depending on the installed batteries)
Specifications:
|
GENERAL |
|
| Frequency Range | TX: 156.025-157.425MHz
RX: 156.050-163.275MHz |
| Usable Channels | USA,CAN,INT,WX Channels |
| Type of Emission | 16K0G3 (FM) |
| Current drain(at 7.4V DC) | Tx 1.5A (at 5W output)
Rx 200mA Typical (at AF max.) |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
| Antenna impedance | 50Ω (STUD) |
| Dimensions (W×H×D, projections not included) | 62×141.5×43mm |
| Weight (approx.) | 825g |
|
TRANSMITTER |
|
| Output power | 5W(High), 1W (Low) |
| Max. freq. deviation | ±5kHz |
| Frequency error | ±10ppm |
| Spurious emissions | –68dBc |
| Adj. channel power | 70dB |
| Audio harmonic distortion | 10% (at 60% dev.) |
| Residual modulation | 40dB |
|
RECEIVER |
|
| Receive system | Double-conversion
Superheterodyne |
| Sensitivity | 0.22µV typical |
| Squelch sensitivity | 0.35µV typical |
| Adj. Ch. selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation | 70dB typical |
| Hum and noise | 40dB |
| Audio output power | 0.35W typical at 10% distortion
with a 8Ω load |
Package Contains:
1× IC-M34 VHF Marine Transceiver
1× Battery Pack
1× Battery Charger
1× AC Adapter
1× Antenna
1× Belt Clip
1× Handstrap
1× User Manual

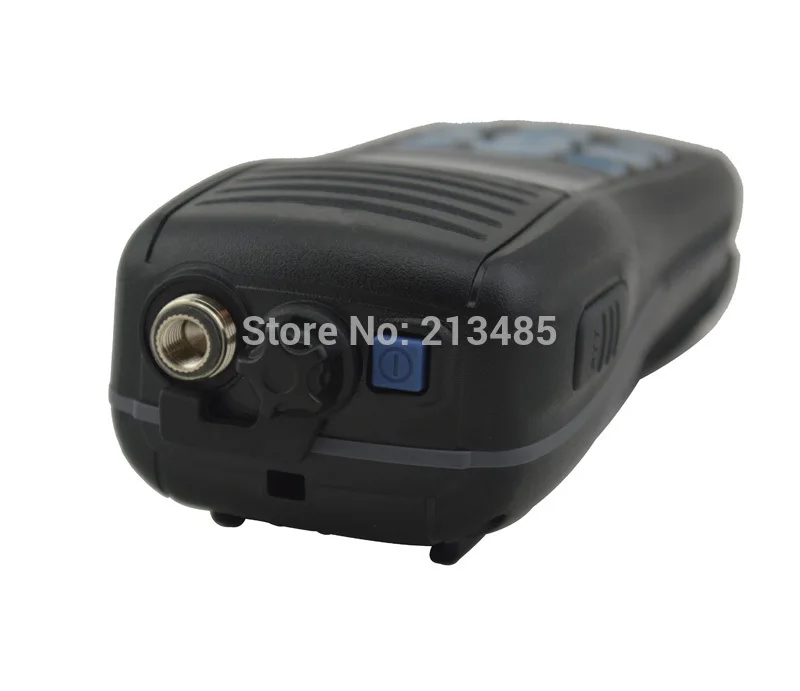

Pictures:
