Dual Bands , Dual Display , Classic Two Way Radio TK-UV3

MAIN FUNCTIONS:

1750 Hz Burst Tone

DTMF Encoding Function

Working Mode :vhf tx-uhf rx or uhf tx-vhf rx can be set freely

CTCSS/DCS Scan

VOX and SOS Function

Bright Flashlight Illumination

Digital FM Radio

Bandwidth Selection

Priority Scan ,Add Scanning Channel “

High/Low Power Selection

50 Groups CTCSS/105 Groups CCTCSS

IP55 Waterproof

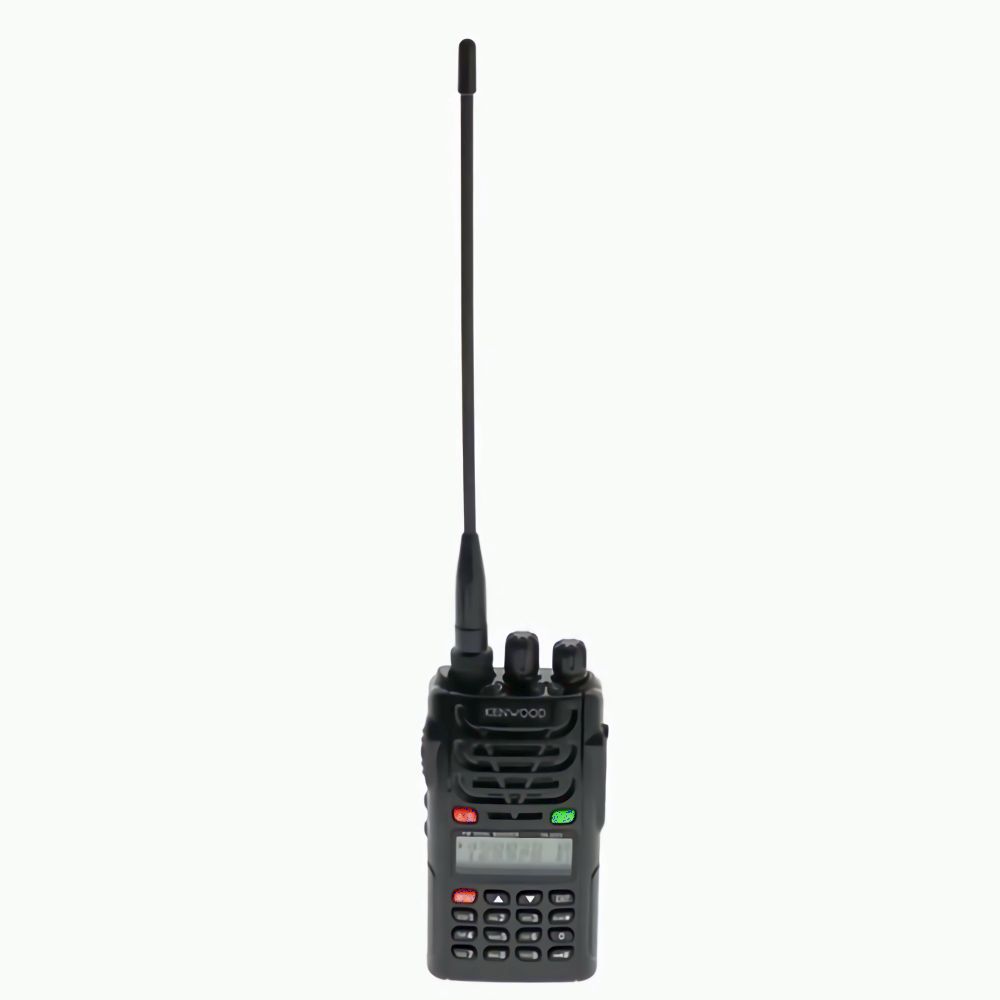

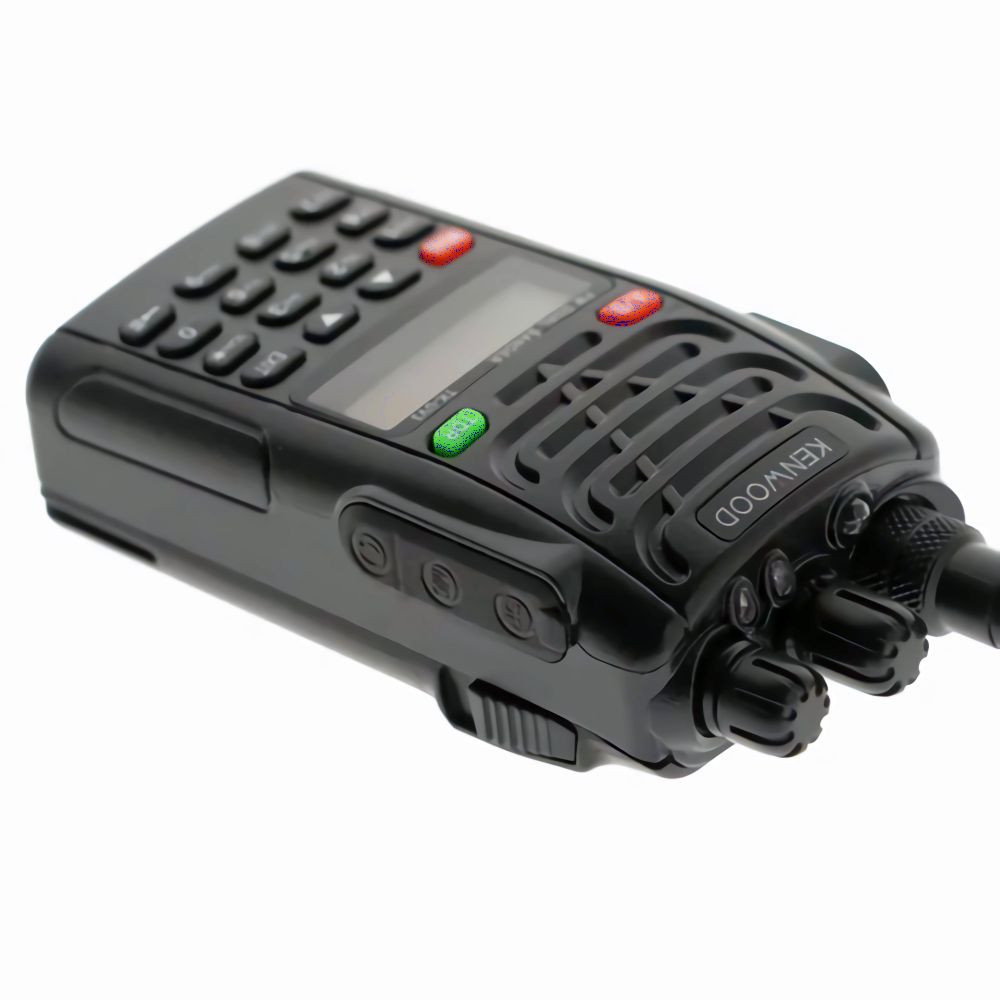

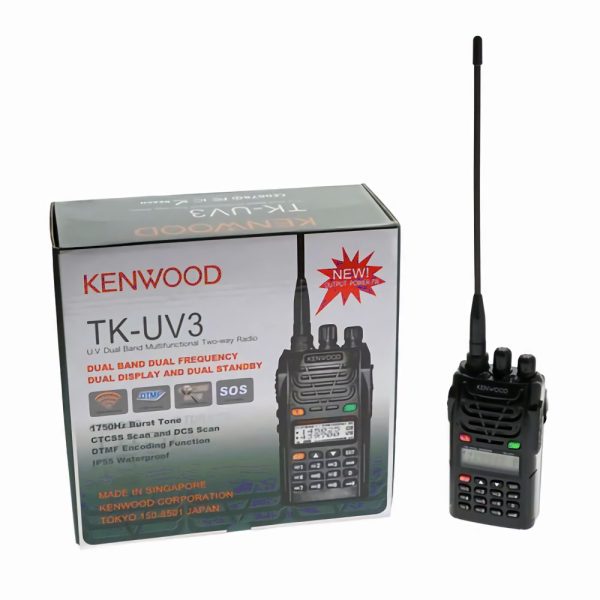

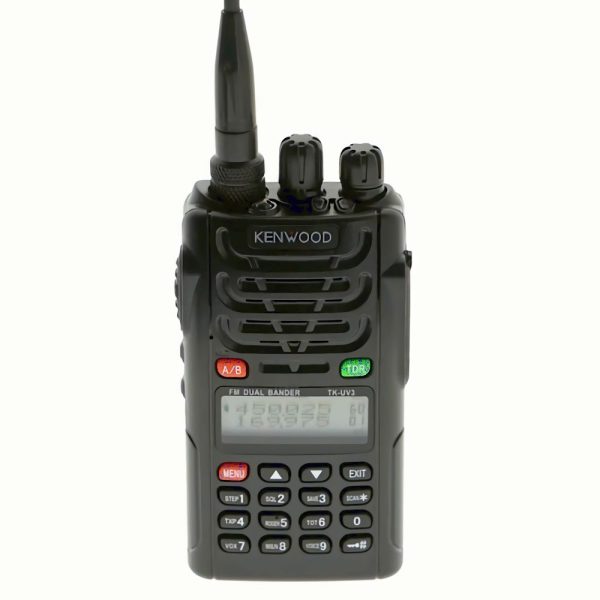

Kenwood TK-UV3 Two Way Radio Dual band UHF/VHF

Feature:

1. Dual Band, Dual Frequency, Dual Display and Dual Standby

2. Frequency Range (can be suitable for different countries or areas):

76-108MHz(RX)136-174Mhz (RX)400-470MHz(RX)136-174MHz(TX)406.1-470MHz(TX)

3. Working Mode: U-V, V-V or U-U selectable

4. Channel setting: VHF Tx & UHF Rx or UHF Tx &VHF Rx selectable

5. DTMF encoding

6. Digital FM radio (76-108MHz)

7. CTCSS/DCS scan

8. Output power: 5W VHF /4W UHF

9. 128 memory channels

10. VOX

11. Stopwatch timer function

12. 105 groups D.C.S/50 groups CTCSS

13. Voice guide

14. SOS Function

15. Wide/Narrow bandwidth selection (25KHz / 12.5KHz)

16. Multi-display modes ( channel order number/ channel frequency/ channel name selectable)

17. Reverse frequency

18. Multi-functional scan modes

19. Priority scan function

20. Bright flashlight illumination

21. Frequency steps selectable (5/6.25/10/12.5/25KHz/50KHz/100KHz)

22. High/Low power changeable when transmitting

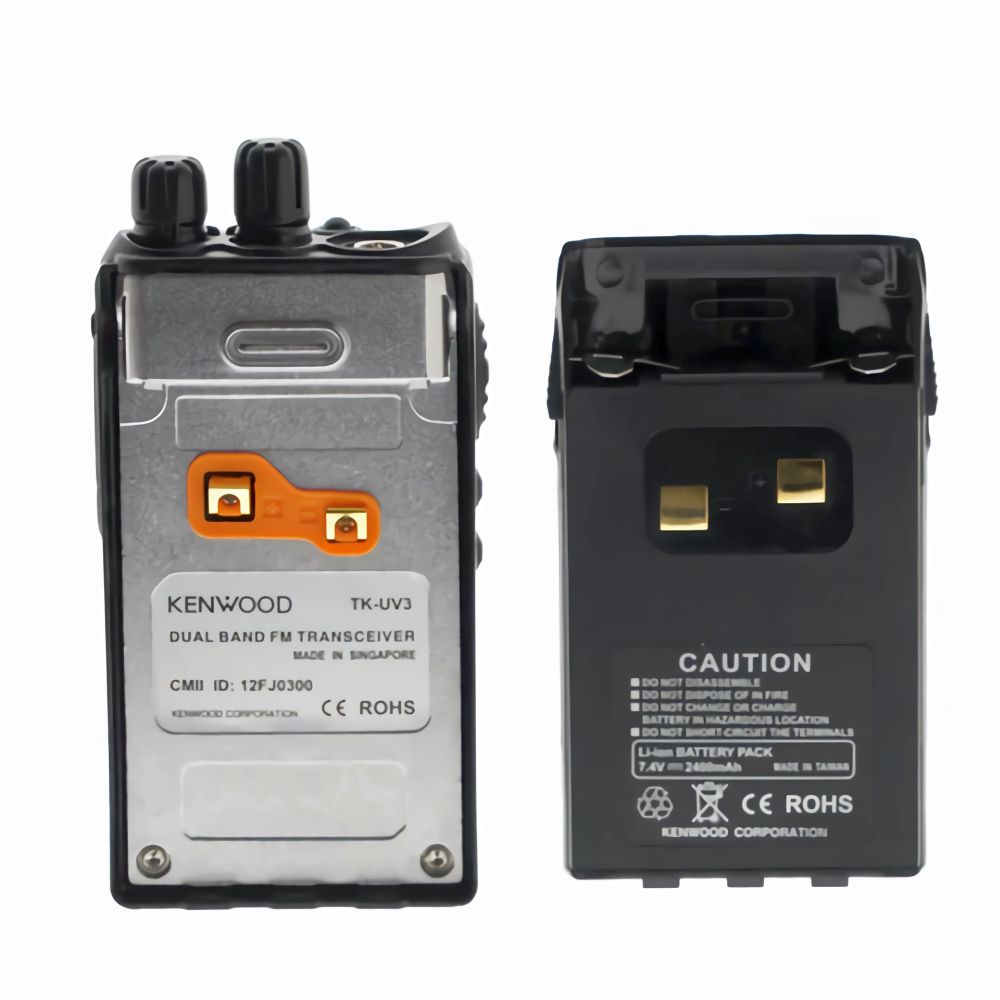

23. High capacity Li-ion battery pack

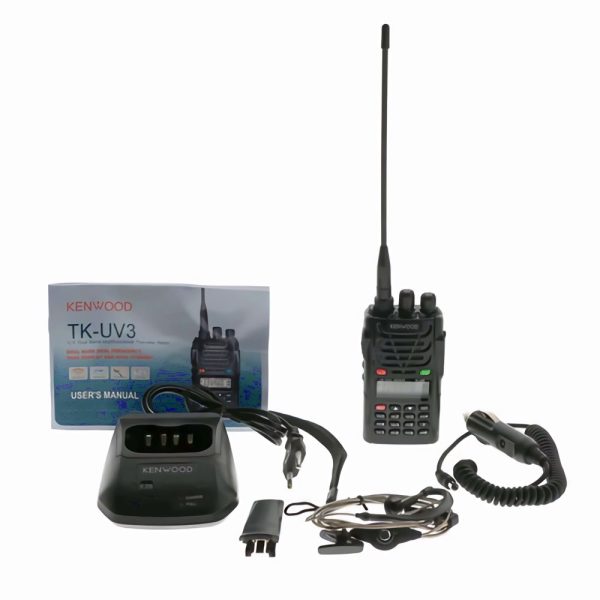

24. Intelligent charger

25. Offset frequency setting (0-69.950MHz)

26. Frequency shift direction setting

27. Busy channel lockout

28. Power-on message (Battery-V /Full Screen/Other Characters)

29. Low voltage prompt

30. Transmitting beginning/ ending prompt

31. Transmitting overtime prompt

32. Keypad lock (Auto / Manual)

33. Adding scanning channel

34. High/Low power switchable when transmitting

35. Programming by computer

36. Wire-clone function

37. Menu/ Channel reset

38. 1750Hz Burst Tone

Function:

Frequency Range	Frequency range can be suitable for different countries or areas: 76-108MHz(RX)136-174Mhz (RX)400-470MHz(RX)136-174MHz(TX)406.1-470MHz(TX)
Memory Channels	128 Channels
Frequency Stability	2.5ppm
Operating Voltage	7.4V
Operating Temperature	-30~+60
Waterproof	IP 55
Antenna Impedance	50Omega
Dimension	58times105times38(mm)
Weight	250g
Transmitter
Frequency Stability	.5PPM
RF Carrier Power	UHF: 4W VHF: 5W
Effective Radiation Power (ERP)	within pre-determined value 7.5dB
Max. Frequency Deviation	Channel Space: 25KHz Channel Space: 12.5KHz 2 5KHz
Audio Modulation	+3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power	Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB
Spurious Radiation	le-30dBm
Inter modulation Attenuation	ge40dB
Modulation Distortion	le10%
Residual FM	le-35dB
Residual AM	le3%
Receiver
Sensitivity (12dB SINAD)	0.16microV
Squelch Rejection Sensitivity	le0.8microV
Squelch Sensitivity	le0.2microV
Audio Output power	500mW
Audio Distortion	le5%
Audio Response	(300-3000Hz) +1 to -3dB
Co-channel Rejection	ge-8.0dB
Performance of Amplitude Limiter	le3
Adjacent Channel Selection	Channel Space: 25KHz ge70 dB Channel Space: 12.5KHz ge60 dB
Inter-modulation	ge65 dB
Resistance	ge84 dB
Spurious Radiation	9KHz-1GHzle-57dBm 1GHz-4GHzle-47dBm
