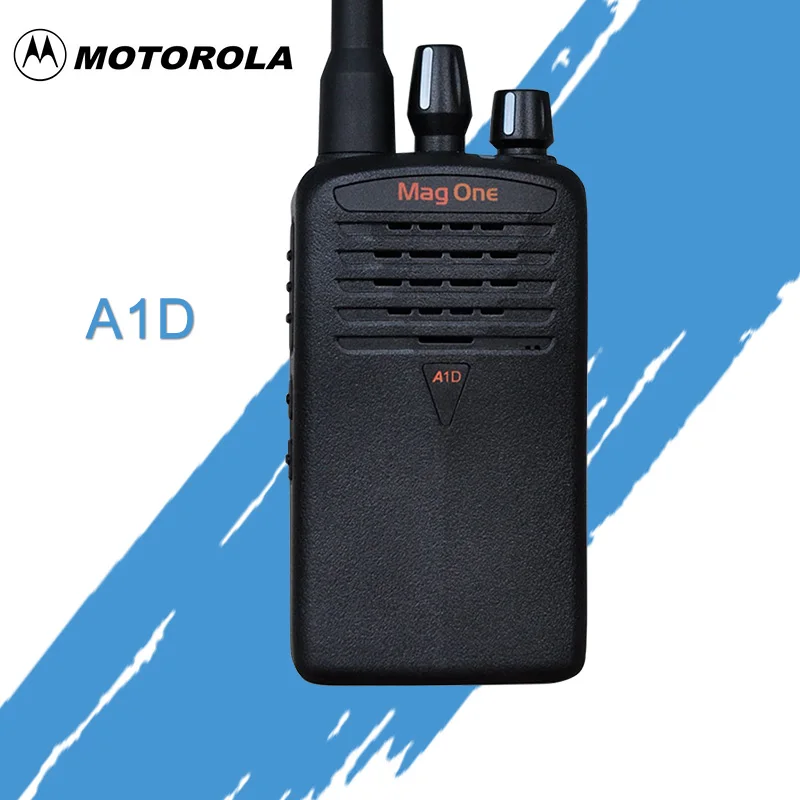

Mag One Digital Walkie Talkie / Analog Two Way Radio A1D Handheld High Power 400-470MHz Walkie Talkie Travel Console TransceiverConventional indicators |
|
| Frequency range | 400-470MHz |
| Audio out | 0.5W |
| Channel | 16 |
| Channel spacing | 12.5KHz/25KHz(simulation),12.5KHz(digital) |
| Working Temperature | -25℃ to +60℃ |
| Size | 100*56*34mm |
| Weight | 240g |

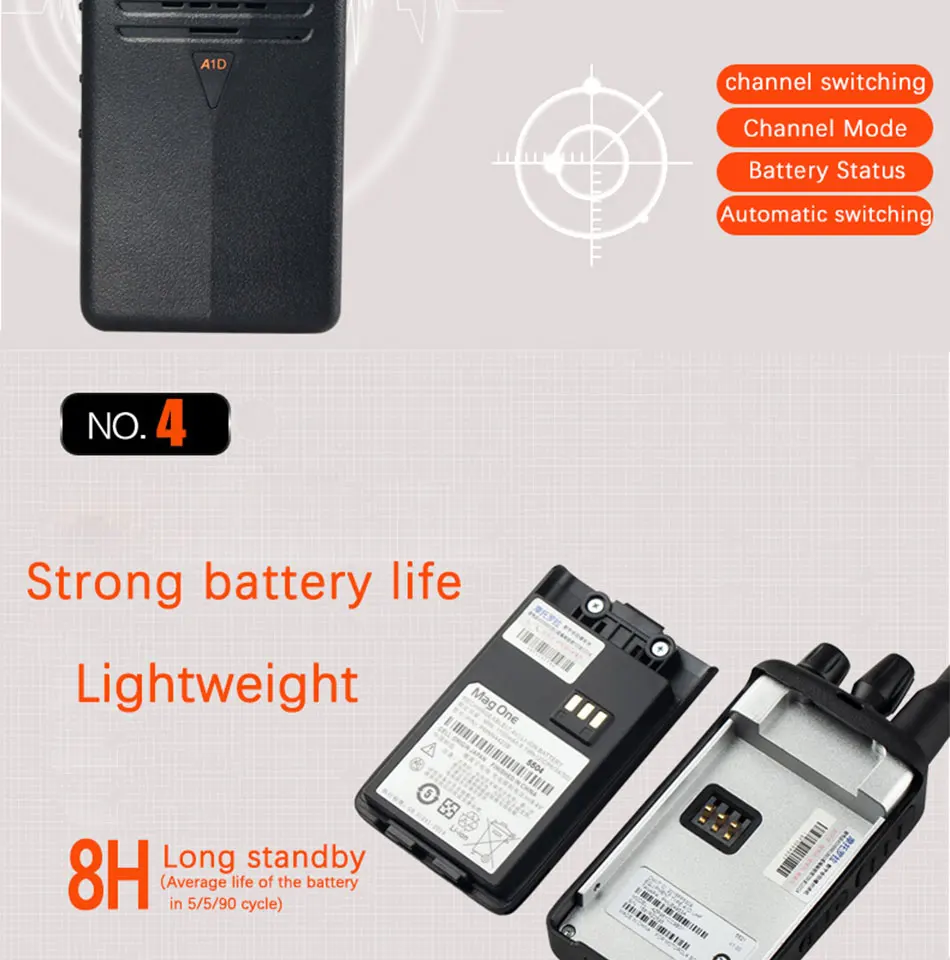

| Battery working time | 8 hours |
| Voltage | 7.2V |
| Transmitter | |
| RF output | 4W(high)/2W(low) |
| Frequency stability | <2.5ppm |
| Spurious and harmonic | <45dBc |
| FM interference and noise | -40dB 12.4KHz,-45dB 25.0KHz |
| Modulation limit | ±2.5KHz 12.5KHz ±5.0KHz 25.0KHz |
| Adjacent channel power | 66dBc |
| Radiation spurious emission | (<-1GHz)<-36dBm/(>-1GHz)<-30dBm |
| Audio frequency response | +1 to -3dB |
| Audio distortion | <2% |
| Receiver | |
| Sensitivity | -121dBm |
| Adjacent channel selectivity | 63dB |
| Intermodulation | 65dB |
| Audio distortion | <5% |
| CSQ interference and noise under 12.5KHz | -50dB |
| PL interference and noise under 12.5KHz | -50dB |
| DPL interference and noise under 12.5KHz | -45dB |
| Radiated spurious emission(<1GHz) | <-57dBm |
| Radiated spurious emission(>1GHz) | <-47dBm |
| Audio output when <5% is distorted | 0.5W 8ohms |
