Mag One A8 VHF 150-174MHz 5W Portable Two-Way Radio Motorola Walkie Talkie Motorola Transceiver
Features:
-Small, Compact and Easy to use
-16 Channels
-12.5/25kHz Channel Spacing
-PL/DPL
-2 programmable quick access buttons
-More than 8 hrs talk time # 5-5-90 duty cycle
-Battery Saver Mode
-High/Low Transmit Power Selection
-Low Battery Indicator
-Priority Scan
-Nuisance Channel Delete
-Repeater/ Talk around
-Monitor/Stick Permanent Monitor
-Button Lock
-Busy Channel Lockout
-Volume Set
-Time out timer (10-600 secs)
-Tight/ Normal Squelch Selection
Specifications:
|
General |
VHF |
UHF |
|
Frequency Range |
136-150MHz 150-174MHz |
403-425MHz 450-470MHz |
|
Memory Channels |
16 |
|
|
Channel Spacing |
12.5/25 kHz switchable |
|
|
Operating Temperature Range |
-30C to +60C (Radio) -20C to +60C (with NiMH battery) |
|
|
Dimensions (H X W X D) |
107mm x 58mm (bottom) x 37mm |
|
|
Weight |
350g |
|
|
Average Battery Life #5-5-90% Duty Cycle |
>8 hrs |
|
|
Sealing |
Passes rain testing per IPX4 |
|
|
Shock & Vibration |
Diecast with impact resistance polycarbonate housing
Passes EIA 603B |
|
|
Dust & Humidity |
Weather resistant housing passes EIA 603B |
|
|
Transmitter |
VHF |
UHF |
||
|
RF Output |
High power 5W |
Low Power 1W |
High power 4W |
Low Power 1W |
|
Spurs and Harmonics |
-63dBc (-26Bm at 5W: -27dBm at 4W) |
|||
|
Frequency Stability |
±2.5ppm |
|||
|
FM Hum & Noise |
40dB |
|||
|
Modulation Limiting |
<= 5Khz (25KHz) <= 2.5Khz (12.5kHz) |
|||
|
Audio Response (from 6dB/oct pre-emphasis, 300-3000Hz) |
+1/-3dB |
|||
|
Audio Distortion at 1 kHz tone, 60%rated max dev. |
<5% |
|||
|
Receiver |
VHF |
UHF |
|
Sensitivity (12dB SINAD) |
<-119dBm (0.25μV) |
<-117.5 dBm (0.3μV) |
|
Adjacent Channel Selectivity |
65dB (25kHz), 60dB (12.5kHz) |
|
|
Intermodulation |
65dB (25kHz), 60dB (12.5kHz) |
|
|
Spurious Rejection |
65dB |
|
|
Audio Distortion |
<5% |
|
|
Hum and Noise |
40dB |
|
|
Conducted Emission |
<-57dBm |
|
|
Audio Output at <5% Distortion |
500mW |
|
Each Set Package Contain:
1×Mag One A8 150-174MHz Radio
1×PMNN4071AC Li-ion Battery Pack
1×Charger Unit(Desktop Charger with AC Adapter)
1×Antenna
1×Hand Strap
1×User Manual

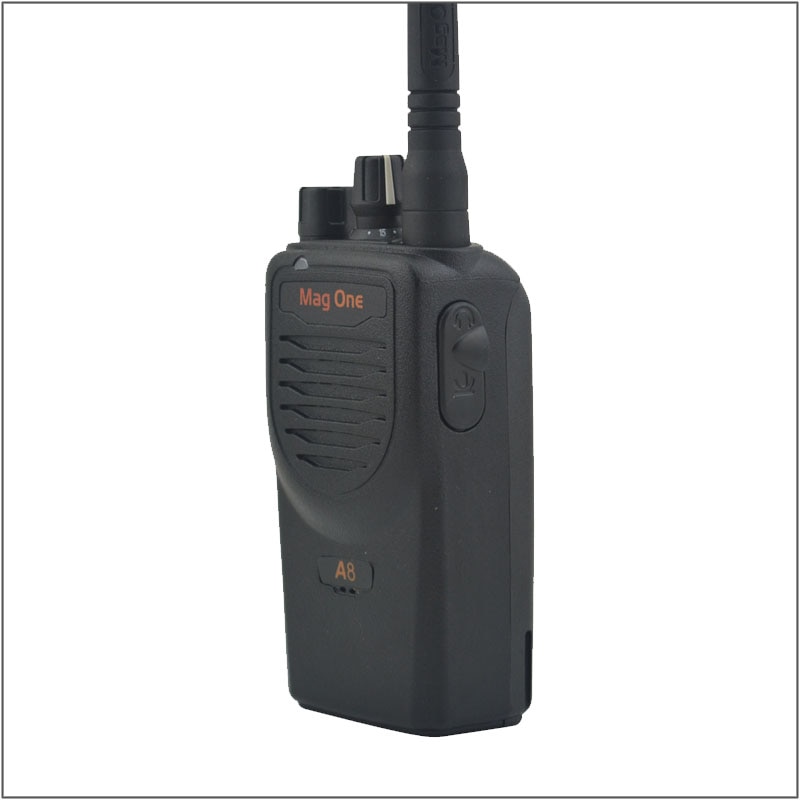

Pictures:
