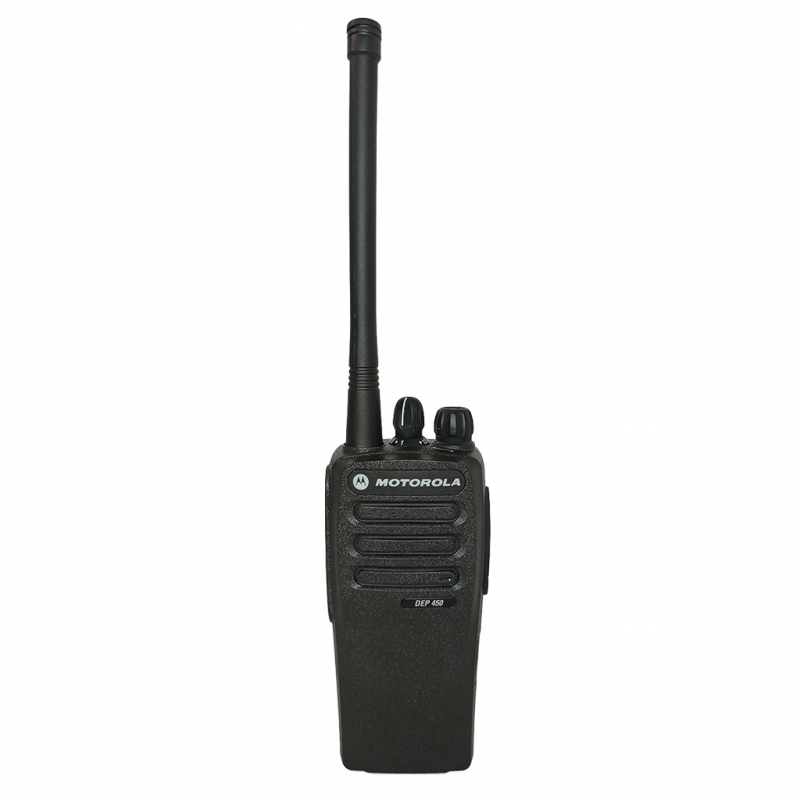

Motorola DEP450 Walkie Talkie
Motorola DEP450
Motorola DEP450 is a DMR portable two-way radio, the best solution for quickly migrating analog radio fleets to DMR two-way radios without dismantling and replacing infrastructure, retraining staff, or exceeding capital expenditure budgets. It’s suitable for factory floors, coordinating personnel for events, or ensuring secure communications in multi-story hotels.
Main features
Dual-Mode Operation
The Motorola DEP450 comes standard with both analog and DMR digital functions integrated into a single codec. Users can currently run traditional CSQ/PL tone communication systems and easily transition to DMR Tier II via software switching once a repeater is upgraded.
Dual-Timeslot Straight-Through Mode
For customers without repeaters, the radio still allows for two independent calls on a single 12.5 kHz channel via dual-capacity straight-through mode. This is 100% faster than analog two-way radios in the same band, an advantage often enough to secure investment at the first meeting.
High-Capacity Lithium-Ion Battery
The Motorola DEP450 uses a 2250 mAh battery pack, providing up to 19 hours of continuous operation in digital mode with a 5/5/90 duty cycle, 40% longer than its analog replacement.
Rugged and Durable
Operating temperature range -30 °C to +60 °C, IP54 protection rating, meets MIL-STD 810G military standard. It can withstand vibration, thermal shock, salt spray, and dust. This rugged and durable characteristic is its hallmark.
Audio Intelligence Suite
Based on DSP-driven noise suppression, AGC, and AMBE+2 vocoder, it delivers over 90% speech intelligibility even in background noise of 90 dB SPL.
Other Functions
-
Dual Capacity Direct Mode
-
32 Channel Zones
-
Programmable Side Buttons
-
Basic Digital Privacy
-
Analog Scrambling
-
MDC-1200 PTT-ID
-
Quik-Call II Decode
-
VOX Hands-free
-
Nuisance Channel Delete
-
Time-Out Timer
DEP450 accessories
-
Battery(1400mAh/ 2250mAh)
-
Antenna(VHF/UHF)
-
Lanyard
-
Back Clip
-
Charger
-
Power adaptor
-
User Manual
Specification
| Model Number | Motorola DEP450 |
| GENERAL SPECIFICATIONS | |
| Band | VHF: 136-174MHz UHF1: 403-470MHz UHF2: 450-527MHz |
| Power Output | VHF: 1/5W UHF: 1/4W |
| Channel Spacing | 12.5 kHz / 20 kHz / 25 kHz |
| Channel Capacity | 32 |
| Dimensions(H×W×D) | 127.7 × 61.5 × 42.0 mm |
| Weight (Radio + Standard 1600 mAh Battery) | 406 g |
| Digital/Analogue Battery Life (Standard 1600 mAh Battery) | 11.5 – 16.0 hrs |
| Power Supply (Nominal) | 7.5 V |
| TRANSMITTER SPECIFICATIONS | |
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60FID & 7K60FXD 12.5 kHz Voice: 7K60FIE & 7K60FXE 12.5 kHz Voice & Data: 7K60FIW |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 |
| Conducted/Radiated Emissions (TIA603D) | –36 dBm <1 GHz, –30 dBm >1 GHz |
| Adjacent Channel Power | 60 dB (12.5 kHz), 70 dB (25 kHz) |
| Frequency Stability | ±0.5 ppm |
| AUDIO SPECIFICATIONS | |
| Digital Vocoder Type | AMBE+2 |
| Audio Response | TIA603D |
| Rated Audio | 0.5 W |
| Audio Distortion at Rated Audio | 3 % |
| Hum and Noise | –40 dB (12.5 kHz), –45 dB (25 kHz) |
| Conducted Spurious Emissions (TIA603D) | –57 dBm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | –30 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Electrostatic Discharge | IEC 61000-4-2 Level 3 |
| Dust and Water Intrusion | IEC 60529 – IP54 |
| Packaging Test | MIL-STD 810D and E |
