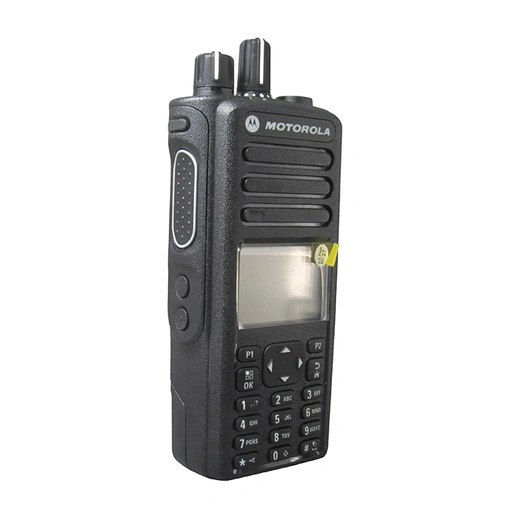

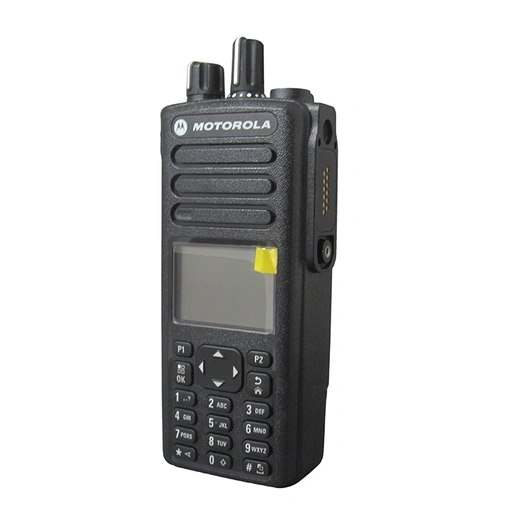

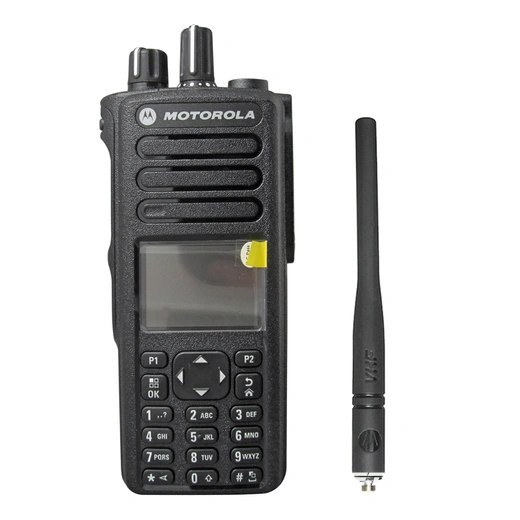

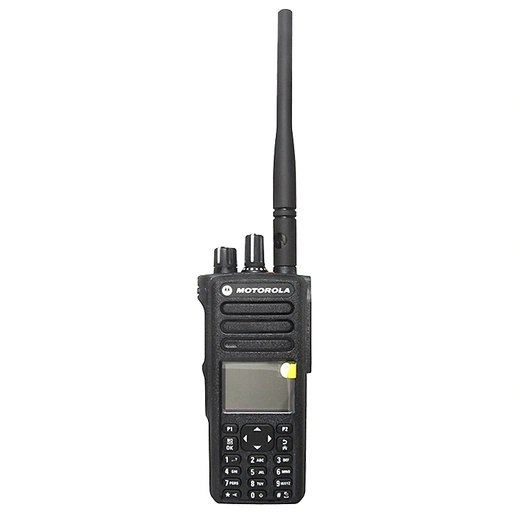

Motorola DGP8550e Walkie Talkie
Motorola DGP8550e UHF VHF Digital Two Way Radio
The Motorola DGP8550e is a professional two-way police radio. Whether you’re commanding patrols, protecting critical infrastructure, or managing supply chains across the continent, this Motorola DMR radio translates into precise, data-rich connectivity, ensuring personnel safety, smooth operations, and effective budget control.
Main Features
Durable Reliability
IP68 protection rating (2 meters immersion for 2 hours) and MIL-STD 810G compliant salt spray, dust, shock, and vibration testing mean the Motorola DGP8550e maintains its communication capabilities even after drops, immersion in water, or desert storms. Featuring a chemically resistant casing and rigorous HazLoc TIA-4950 certification, it operates safely even in hazardous environments such as oil refineries, grain silos, or explosives handling facilities.
Safety First, Always
A simple press of the orange emergency button triggers a transmission interruption, clears the channel, and activates the microphone, ensuring the control room can hear everything immediately. A built-in triaxial accelerometer provides a fall alarm and automatically sends GPS coordinates and a distress signal if the user remains stationary.
Single-person work timer, radio disable/enable function, and remote monitoring capabilities make the Motorola DGP8550e your reliable personal guardian, protecting your safety when unattended.
Clarity and Penetration Through Noisy Environments
A 3-watt front speaker and a redesigned Class D amplifier deliver 50% more volume than the previous generation, while SINC+ adaptive noise cancellation eliminates up to 25 dB of grinder, engine, and crowd noise. Intelligent Audio measures ambient noise 1000 times per second and automatically adjusts microphone gain to ensure your voice (not an alarm) reaches the dispatch center accurately. Optional text-to-speech announcements allow staff to broadcast channel aliases, battery levels, and emergency statuses without distraction.
All-Day Power
Choose from a slim 1650 mAh battery (16 hours of battery life), a high-capacity 2250 mAh battery (22 hours of battery life), or an ultra-high-capacity 3000 mAh lithium-ion battery (up to 29 hours of battery life on a single charge, an industry-leading figure), enough to power three consecutive shifts.
The IMPRES Smart Charger automatically adjusts each battery pack, extending cycle life by up to 30% and eliminating downtime caused by the”memory effect.”
Smart Interface
Featuring a large 5-line color display with day/night mode, it clearly displays caller ID, work orders, SMS messages, and telemetry data, even when wearing gloves. A full-size 17-key backlit keypad with five programmable buttons provides one-touch access to frequently used functions: emergency calls, scanning, zone switching, Bluetooth on/off, or custom applications.
Scalable Architecture
Supports analog, digital standard, IP Site Connect, Capacity Plus (single-site or multi-site), or the new Capacity Max trunking system—protecting your investment as your network grows. 1000 channel capacity across 64 zones enables a single fleet to simultaneously serve city police, fire, ambulance, and public works departments without interference.
Other functions
- Emergency Button
- Bluetooth
- Wi-Fi Enable/Disable
- GPS
- Text Messaging
- Work Order Ticketing
- Voice Announcement
- Scan On/Off
- Monitor
- Keypad Lock
- Noise-Cancellation
DGP8550e Accessories
- Antenna(440-490 MHz /403-450 MHz/403-527 MHz /136-155 MHz)
- Battery(1600mAh/2450mAh/2350mAh FM/3000mAh)
- Charger
- Power adapter
- Dust cover
- Back Clip
- Manual
Specifications
| General | ||||
| Band | VHF | 350 | UHF | 800 |
| Frequency | 136-174 MHz | 350-400 MHz | 403-527 MHz | 806-825 MHz 851-870 MHz |
| High Power | 5 W | 4 W | 4 W | 2.5 W |
| Low Power | 1 W | 1 W | 1 W | 1 W |
| Channel Spacing | 12.5 / 20 / 25 kHz | |||
| Channel Capacity | 1000 | |||
| Dimensions H×W×D (radio + slim battery) | 130 × 55 × 36 mm (5.1 × 2.2 × 1.4 in) | |||
| Weight (radio + slim battery) | 315 g (11 oz) | |||
| Dimensions H×W×D (radio + high-cap battery) | 130 × 55 × 41 mm (5.1 × 2.2 × 1.6 in) | |||
| Weight (radio + high-cap battery) | 347 g (12 oz) | |||
| Power Supply | 7.5 V nominal | |||
| Battery Life (Digital / Analog) | ||||
| Slim 1650 mAh | 16 h / 12 h | 15.5 h / 11.5 h | 15.5 h / 12 h | |
| High-cap 2250 mAh | 22 h / 16.5 h | 21 h / 16 h | 21 h / 17.5 h | |
| High-cap LV 3000 mAh | 29 h / 22 h | 28 h / 21.5 h | 28 h / 23 h | |
| Receiver | ||||
| Analog Sensitivity (12 dB SINAD) | 0.16 μV | 0.22 μV | ||
| Digital Sensitivity (5 % BER) | 0.14 μV | 0.19 μV | ||
| Frequency Stability | ±0.5 ppm | |||
| Intermodulation (TIA603D) | 70 dB | |||
| Adjacent Channel Selectivity (TIA603A)-1T | 60 dB @12.5 kHz / 70 dB @25 kHz | |||
| Adjacent Channel Selectivity (TIA603D)-2T | 45 dB @12.5 kHz / 70 dB @25 kHz | |||
| Spurious Rejection (TIA603D) | 70 dB | |||
| Hum and Noise | -40 dB @12.5 kHz / -45 dB @25 kHz | |||
| Conducted Spurious Emissions (TIA603D) | -57 dBm | |||
| Transmitter | ||||
| Conducted Spurious Emissions | 136-174 MHz | 403-527 MHz | ||
| Hum and Noise | -40 dB @12.5 kHz / -45 dB @25 kHz | |||
| Conducted/Radiated Emission (TIA603D) | -36 dBm <1 GHz / -30 dBm >1 GHz | |||
| Adjacent Channel Power | 60 dB @12.5 kHz / 70 dB @25 kHz | |||
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D / 7K60FXD 12.5 kHz Voice: 7K60F1E / 7K60FXE Combined: 7K60F1W |
|||
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |||
| Environmental | ||||
| Operating Temperature | -30 °C ~ +60 °C | |||
| Storage Temperature | -40 °C ~ +85 °C | |||
| Electrostatic Discharge | IEC 61000-4-2 (level 3) | |||
| Thermal Shock | Per MIL-STD table | |||
| Dust & Water Intrusion | IEC 60529 – IP68, 2 m for 2 hrs | |||
| Humidity | Per MIL-STD table | |||
| Packaging Test | MIL-STD 810D and E | |||
| Salt Fog | Per MIL-STD table | |||
| Audio | ||||
| Digital Vocoder Type | AMBE+2™ | |||
| Audio Response | TIA603D | |||
| Rated Audio | 0.5 W | |||
| Audio Distortion at Rated Audio | 3 % | |||
