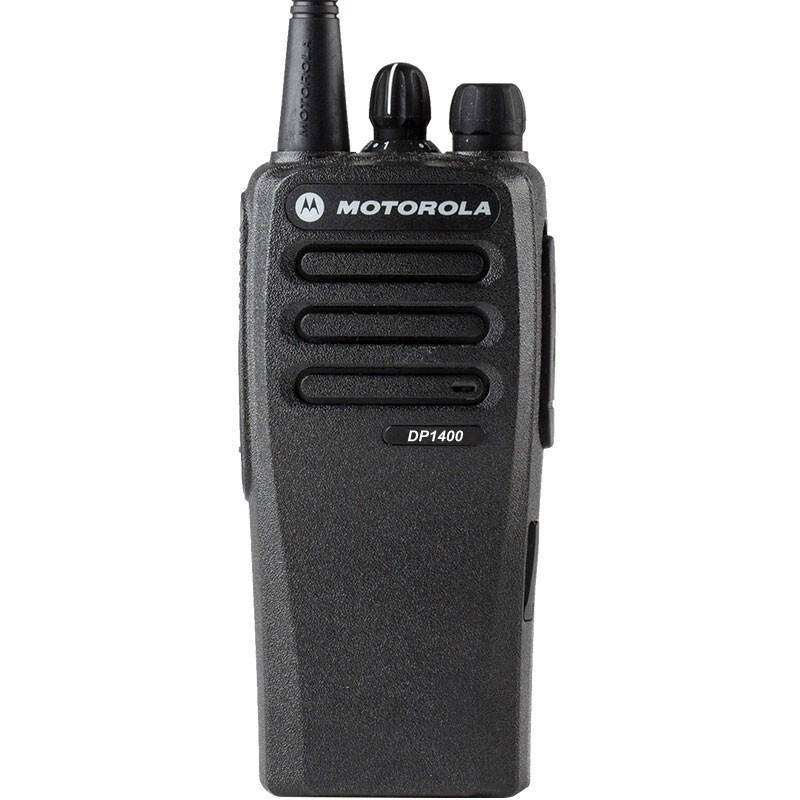

Motorola DP1400 Digital Radio
Simple and affordable, the DP1400 portable two-way analogue/digital radio connects your workforce efficiently. Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work crews connect.
The DP1400 is using the latest analogue and digital technology, the radio is perfect for the everyday, voice communications users. The radio offers a analogue and digital communications with high voice clarity and superior audio you would expect from a Motorola radio. The Motorola radios are built to last and all the radios have passed thoroughly extensive test.The DP1400 conforms the IP54 standard for water and dust ingress.
This affordable portable is compatible with advanced MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritise critical communications. When you need a simple, reliable, cost-effective communication solution to help multiple work crews connect, coordinate and collaborate, DP1400 two-way portable radios are made to get the job done right.
MOTOROLA DP1400 DIGITAL HAND PORTABLE RADIO
The Motorola Solutions DP1400 is the entry-level radio which is packed with features you would expect on higher-end equipment. As part of the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.
The DP1400 features 32 channels, allowing you to create more targeted communications for the different functions within your workforce. The radio’s ergonomic design gives users access to all the controls even when wearing gloves, while the two programmable buttons and a wide selection of accessories allow many customisation options for every user.
The DP1400 is your lifeline in critical communications which means it must be built for the toughest situations. Motorola Solutions tests the DP1400 to MIL-STD-810 to ensure it is built for the job. In addition to the standards testing, we also perform our unique Accelerated Life Testing (ALT) so you can be confident your radio will stand up to many years of use in the field.
Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work teams connect, coordinate and collaborate to get the job done right. By combining the latest analogue and digital two-way radio technology, the DP1400 is perfect for the everyday user who wants to stay connected.
ANALOGUE/DIGITAL
Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet while giving yourself the freedom to migrate to the latest technology at your own pace
AUTOMATIC GAIN CONTROL
Automatically compensates for changes in voice level, whether you are speaking softly or loudly, turning your head, or moving the microphone further away from your mouth.
TRANSMIT INTERRUPT CAPABILITY
Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.
COMPATIBLE WITH RADIO MANAGEMENT SUITE
Program your radios quickly and efficiently, with Motorola Solutions Radio Management tool. Radios can be programmed in batches to a standardised template, giving error-free results and optimised performance.
DUAL CAPACITY DIRECT MODE
Utilise the power of the 2-slot TDMA DMR standard to increase calling capacity and minimise licensing costs
ENCRYPTED COMMUNICATIONS
Keep your communications from being intercepted and your channels secure with 16-bit encryption
LONE WORKER
DP1400 can help protect those working on their own by regularly prompting the user to press a button on the radio. If the user does not respond within a specified length of time, a supervisor or dispatcher is notified that there may be a problem
IP54 RATED
Dustproof and splashproof, so you can work with confidence in challenging environments.
MOTOROLA DP1400 DIGITAL ICLUDES:
- Battery

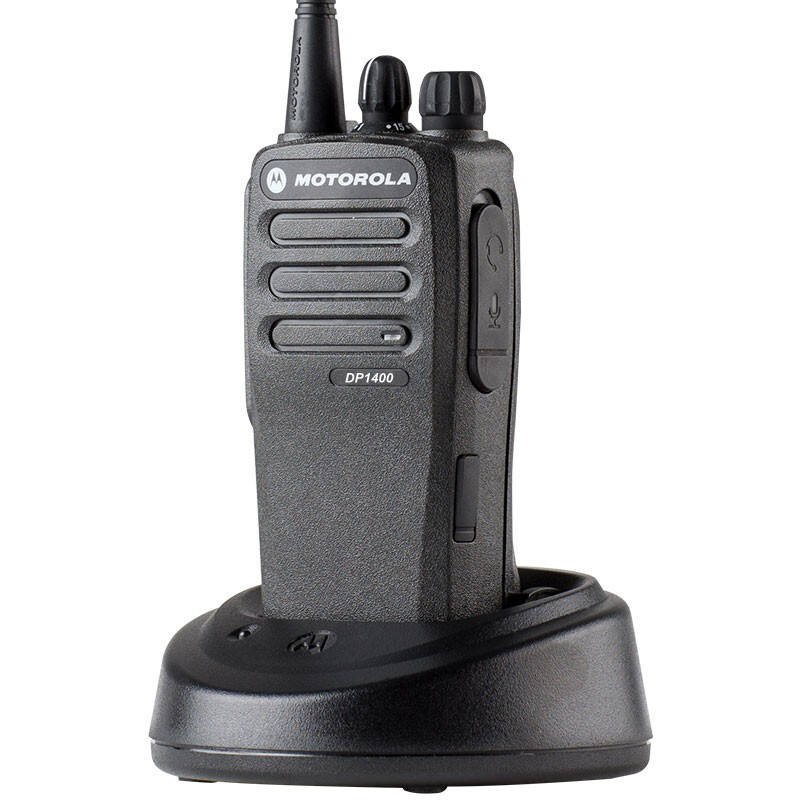

- Single-Unit Charger
- Antenna
- 3″ Belt Clip (HLN8255_)
- In-box Documentation
- NOTE: The 24 months warranty only applies to the radio, it does not apply to batteries or accessories shipped within the model package. Service From the Start packages are also available.
MOTOROLA DP1400 DIGITAL PHYSICAL CHARACTERISTICS:
Rotary on off volume | Yes |
Tri-colour status LED | Yes |
Emergency button | Programmable |
Keypad | None |
Display | No Display |
Weight (with standard battery) |
|
Dimensions H x W x D (with standard battery) |
|
MOTOROLA DP1400 DIGITAL RADIO FEATURES
Programmable buttons | Yes |
Voice operated transmit (VOX) | Yes |
Time out timer | Yes |
Talkaround | Yes |
Signalling | MDC/QCII/Digital |
Scrambling | Built-in |
Scan types | Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group |
Selective calling | Yes |
Digital Private Line | Yes |
Private Line | Yes |
Monitor Permanent (Sticky) Monitor | Yes |
CPS (Customer Programming Software) | Yes |
Channel spacing (kHz) | 12.5, 25, 20, 12.5 (6.25 efficient) |
Number of channels | 32 |
Channel scan | Yes |
Call tones | Yes |
Busy channel lockout | Yes |
Audio gain control | Yes |
Integrated voice and data | Yes |
Advanced Software Features | Remote Monitor |
MOTOROLA DP1400 DIGITAL TECHNOLOGY:
System type | Conventional, TDMA |
Digital technology | Yes |
MOTOROLA DP1400 DIGITAL USER ENVIRONMENT:
Noise reduction software | Yes |
Accelerated life test | Yes |
Mil spec | 810 C, 810 D, 810 E, 810 F, 810 G, 810 H |
IP Standards | IP54 |
