Motorola DP4800 VHF 136-174MHz Digital Portable Two-way Radio DMR Walkie Talkie
Wholesale Orignal Brand New DP4800 VHF 136-174MHz Digital Portable Two-way Radio Digital DMR Walkie Talkie
Features:
Large, Full-colour Display
Features a 5-line colour display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.
Day/Night Mode on Display
This display has improved resolution for easier viewing even in broad daylight. It also also features a night mode that makes the screen easier to read in dark environments.
Best-in-class Audio
Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according to the environments noise level.
Text Messaging
Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.
Embedded Bluetooth Audio (option)
Embedded into the radio to enable connectivity with wireless accessories including unique Operations Critical Wireless earpieces designed for rugged and reliable communications
Embedded Bluetooth Data (option)
Share real-time information easily by connecting radios to Bluetooth-enabled data devices
Integrated GPS (option)
Locate mobile work teams using integrated GPS.
Emergency Button
Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.
Security
Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption
Transmit Interrupt
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where its needed.
IP Site Connect
A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.
Capacity Plus
Single-site digital trunking system that maximizes the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies.
Linked Capacity Plus
Linked Capacity Plus is a multi-site digital trunking system configuration for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high capacity, wide area trunking solution.
Rugged, Reliable Design
Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP57).
Productivity-enhancing Data Applications
Features the industrys largest Application Developer Program to enable a wide variety of customized applications including: location tracking, email gateways, dispatch, telephony, man-down and work order ticket management
Intrinsic Safety
DP4000 Series radios are certified to meet the requirements for Factory Mutual (FM) and UL TIA4950 when properly equipped with a relevant battery option
Specifications:
|
General |
|
| Frequency Range | 136-174MHz |
| Channel Capacity | 1000 |
| Channel Spacing | 12.5/20/25kHz |
| Operating Temperature | -30°c~+60°c |
| Storage Temperature | -40°c~+85°c |
| Power Supply | 7.VV±20% |
| Dimensions | 130.3 x 55.2 x 35.8 mm |
| Weight | 335.5g |
|
Transmitter |
|
| Frequency Stability | ±0.5ppm |
| Low Power output | 1W |
| High Power output | 5W |
| Modulation Limitting | ±2.5kHz 12.5kHz/±4.0kHz 20KHz/±5.0kHz 25kHz |
| FM Hum and Noise | -40dB 12.5kHz/-45dB20/25kHz |
| Conducted/Radiated Emission | -36dBm<1GHz/-30dBm>1GHz |
| Adjacent Channel Power | 60dB 12.5kHz/70dB 20/25kHz |
| Audio Response | TIA603D |
| Audio Distortion | 3% |
| 4FSK Digital Modulation | 12.5kHz Date:7K60F1D & 7K60FXD
1.5kHz Voice:7KF60F1E & 7K60FXE Combination of 12.5kHz Voice & Data:7K60F1W |
| Digital Vocoder Type | AMBE+2 |
| Digital Protocol | ETSI TS 102 361-1,-2,-3 |
|
Receiver |
|
| Frequency Stability | ±0.5ppm |
| Digital Sensitivity | 5% BER:0.25μV
0.19μV(Typical) |
| Intermodulation(TIA603D) | 70dB |
| Adjacent Channel Selectivity (TIA603A)-1T) | 60dB 12.5kHz/70dB 20/25kHz |
| Adjacent Channel Selectivity (TIA603D)-2T) | 40dB 12.5kHz/70dB 20/25kHz |
| Spurious Rejection(TIA603D) | 70dB |
| Rated Audio | 0.5w |
| Audio Distortion | 5%(3% typical) |
| Hum and Noise | -40dB 12.5kHz/-45dB 20/25kHz |
| Audio Response | TIA603D |
| Conducted Spurious Emission(TIA603D) | -57dBm |
Package CONTAIN:
1× DP4800 VHF 136-174MHz Portable Radio
1× VHF Antenna
1× 7.4V 1600mAh PMNN4407ARC SlimLi-ion battery pack
1× WPLN4226A Desktop Charger with 48180090-A2 AC Adapter(Europe plug,UK plug,US plug all available)
1× Dust Cover Assembly
1× PMLN4651A Belt Clip
1× ENG User Manual

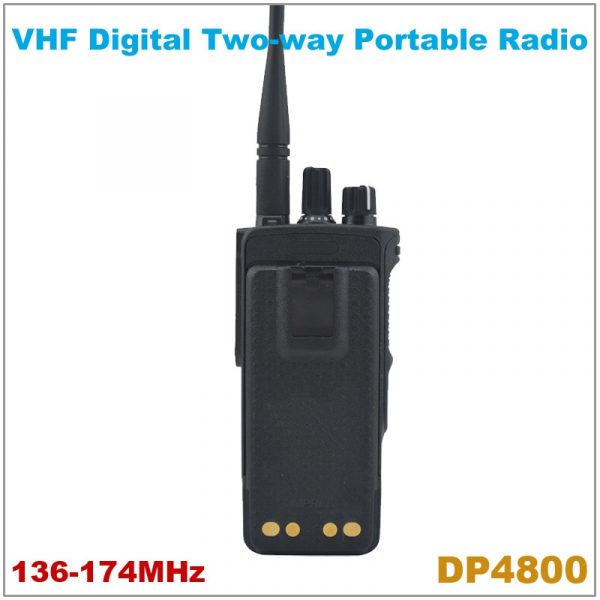

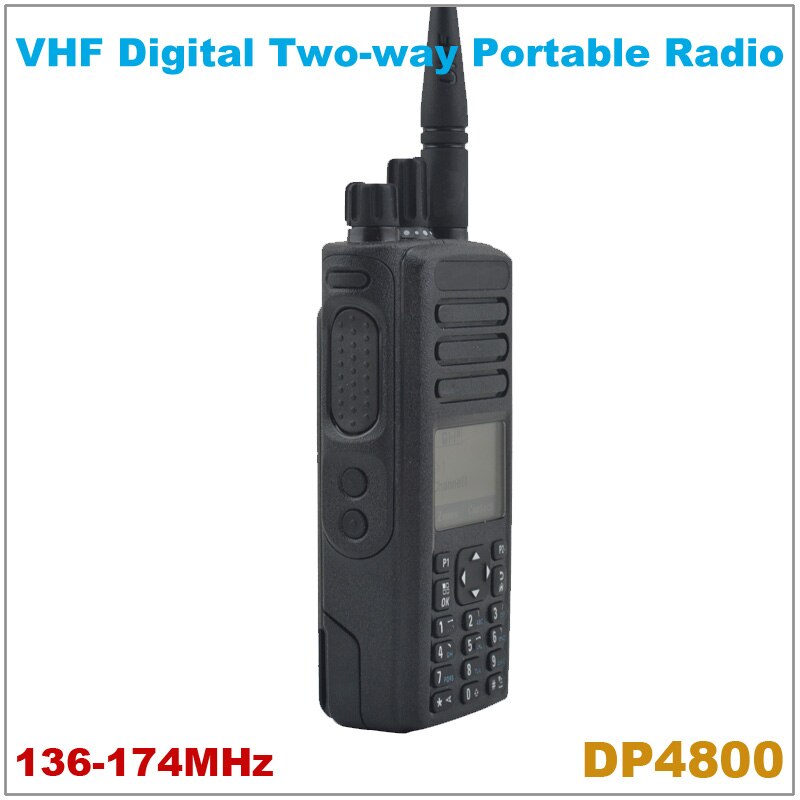

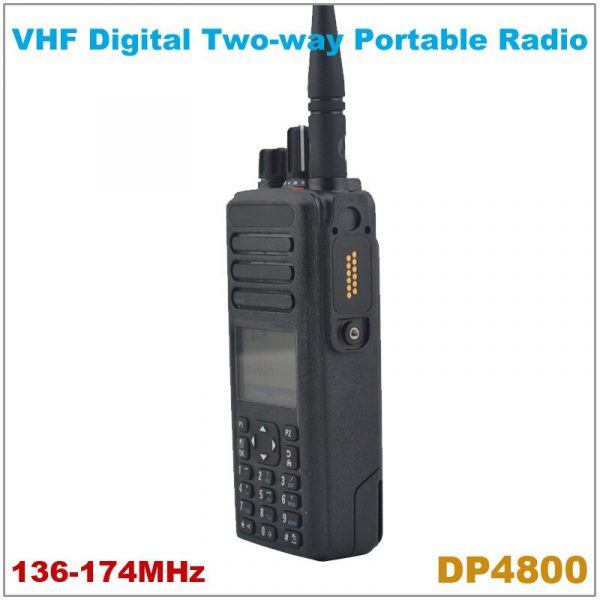

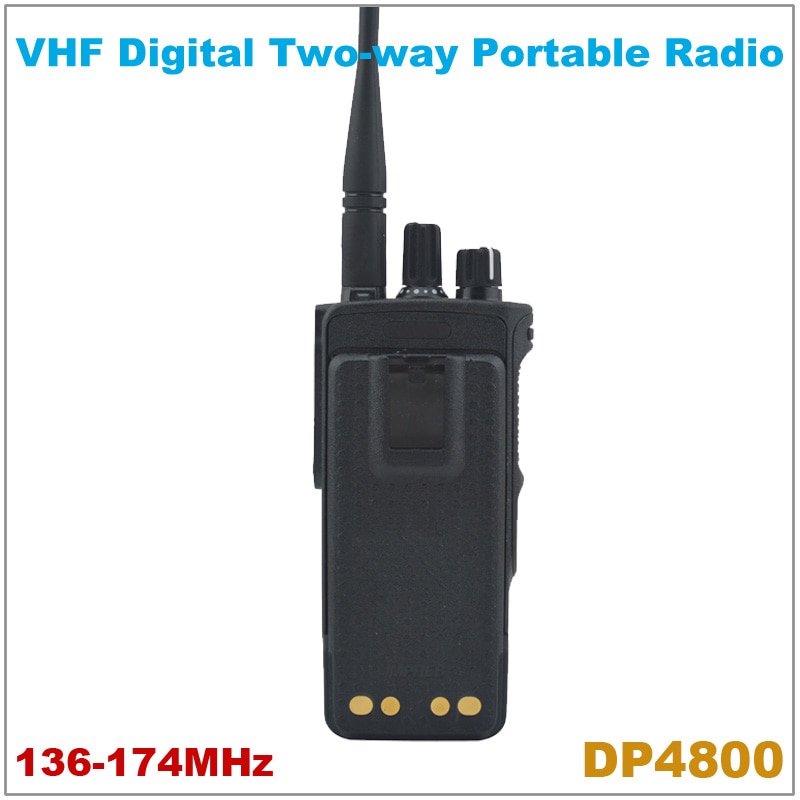

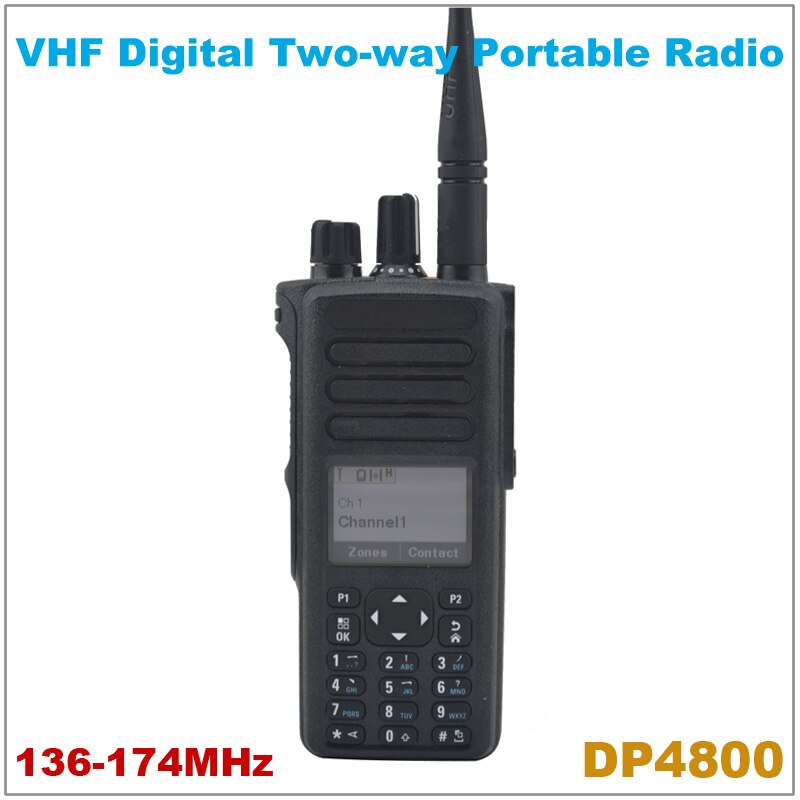

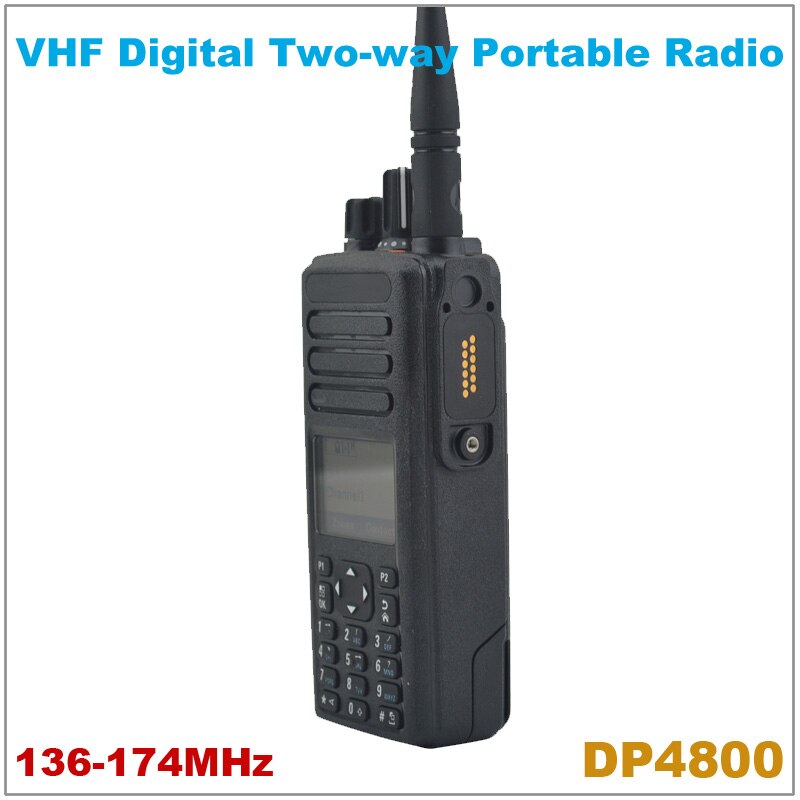

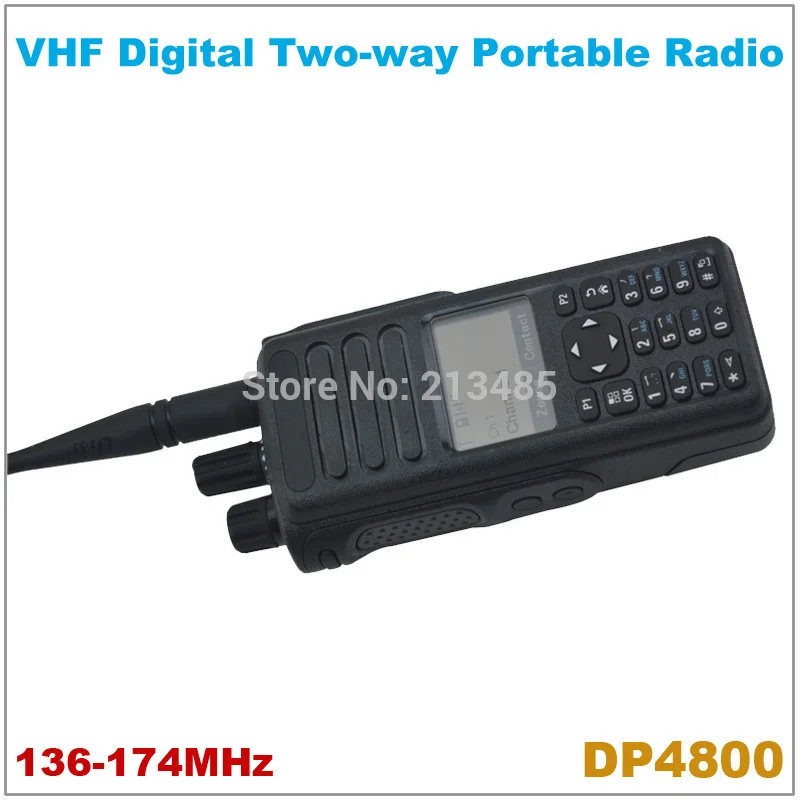

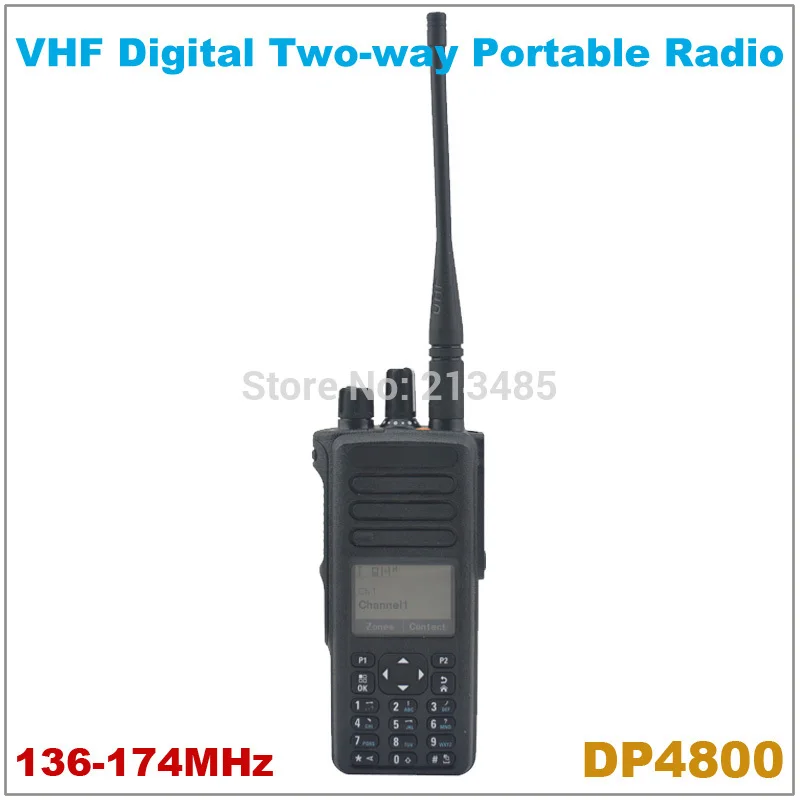

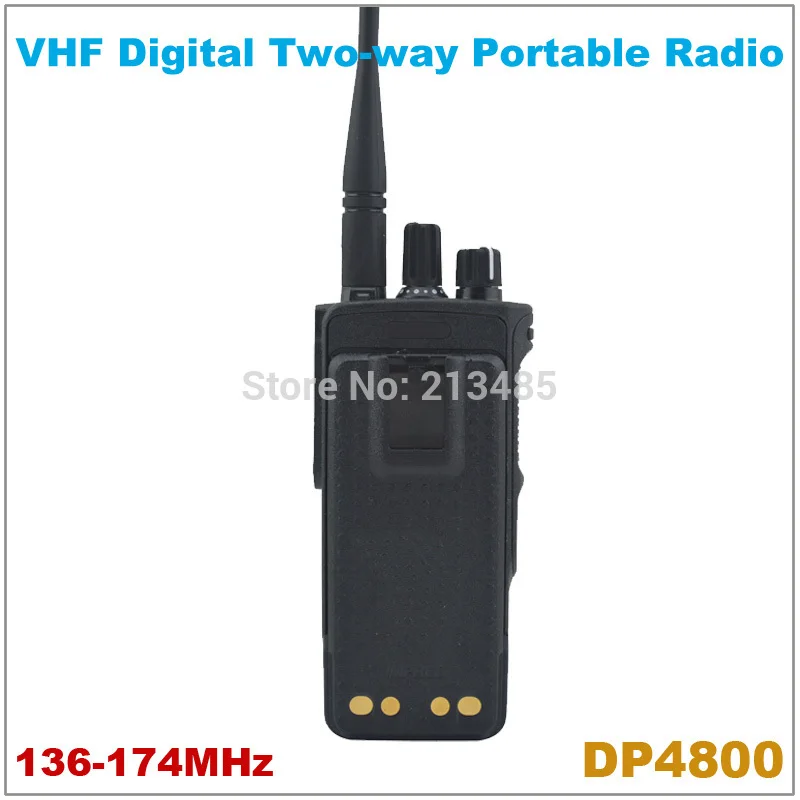

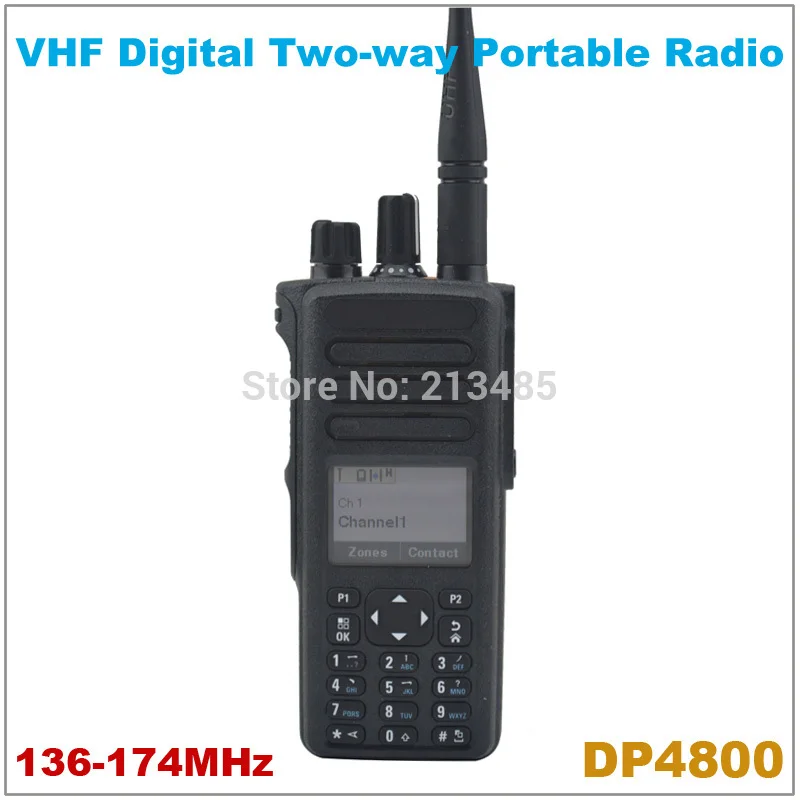

Picture:
.
