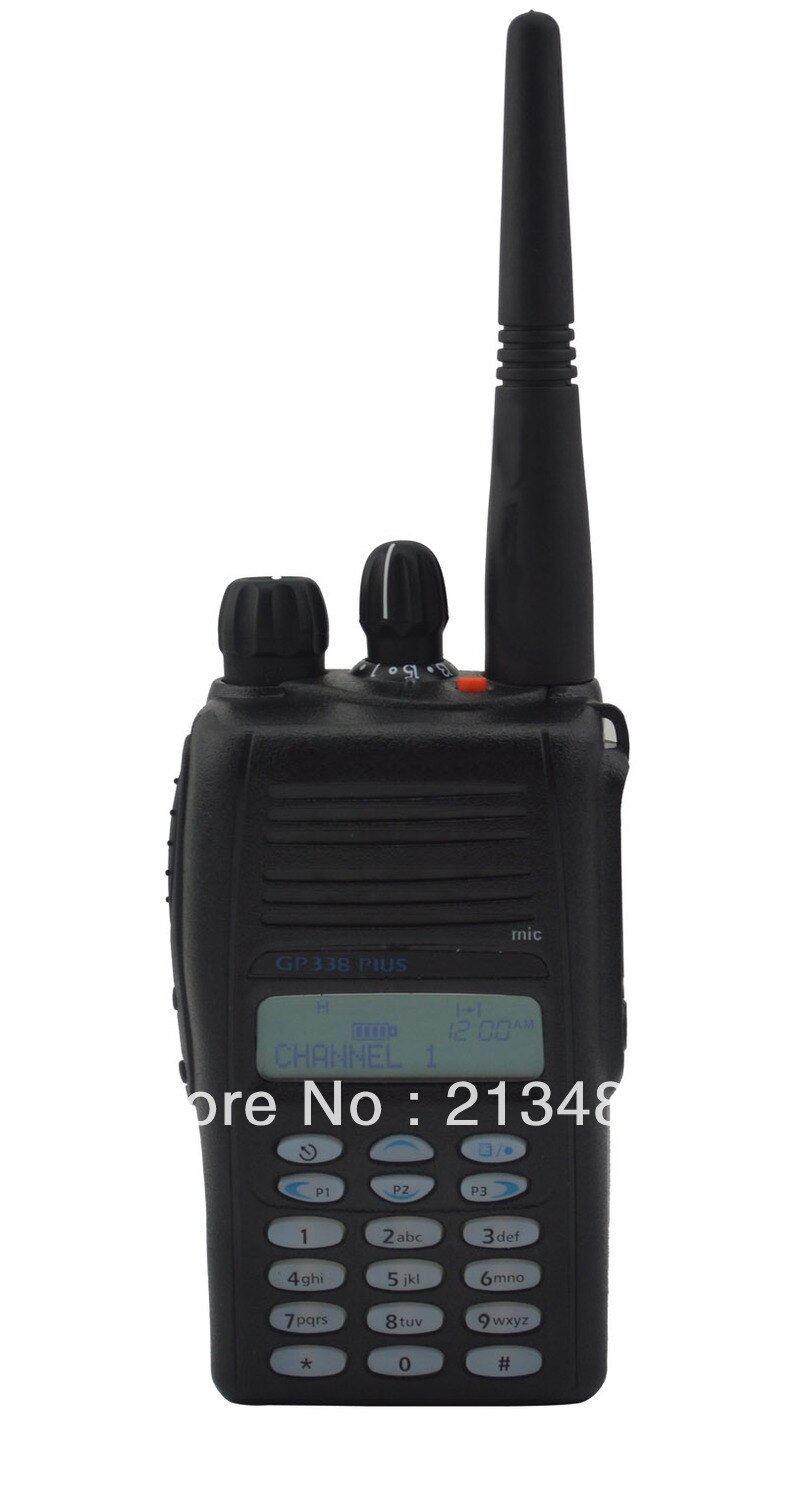

Motorola GP338plus VHF/UHF Professional Portable Two-Way Radio
Features:
1. Frequency Range:VHF136-174MHz or UHF 403-470MHz
2. Output power: 4W/5W
3. Channel: 255
4. VOX function
5. Built-in CTCSS/DCS
6. Critical alarm and the warning
7. Signaling-Quick Call II, DTMF, part of the MDC1200
8. MIL-STD 810 C/D/E
9. P. C programming
10. Talk Range:5-10 km
11. Power-save
12. Dimension:10.15cm5.55cm3.05cm
13. Weight:450g(include battery)
Specifications:
|
Technical specification |
||
|
Model |
GP338Plus |
|
|
GENERAL |
||
|
Frequency band |
VHF |
UHF |
|
Frequency range |
136-174MHz |
403-470MHz |
|
Output power |
5W(VHF)/4W(UHF) |
|
|
Channel capacity |
255 |
|
|
Operating voltage |
7.2VDC |
|
|
Antenna impedance |
50Ω |
|
|
Working temperature |
30°-+60° |
|
|
Frequency stability |
±2.5ppm |
|
|
Dimension(without antenna) |
101.5 x 55.5 x 33.0 mm |
|
|
Weight |
250g (including battery) |
|
|
Talk Range |
5-10km |
|
|
Weight(with battery) |
450g(including battery) |
|
|
Battery |
lithium battery OR Ni-MH battery |
|
|
compatible with American military standard (MIL-STD-810C/D/E) |
||
|
TRANSMITTER |
||
|
Modulation type |
P3E |
|
|
Modulation distortion |
<5%(300-3000Hz) |
|
|
Max Freq deviation |
<5KHz |
|
|
FM noise |
≤45dB |
|
|
RECEIVER |
||
|
Sensitivity |
0.16µ |
|
|
Selectivity |
55dB |
|
|
Adjacent channel selectivity |
≥65dB |
|
|
Noise respond |
≥60dB |
|
|
FM noise |
45dB |
|
|
Modulation type |
16koF3E |
|
|
Audio power output |
500mw when distortion less than 10% |
|
|
Audio distortion |
<5% |
|
Standard Package Contains:
1 x GP338Plus Radio
1 x 1200mAh Li-ion Battery Pack
1 x Antenna
1 x Li-ion Charger with Adapter
1× Dust Cover
1 x Users Manual
