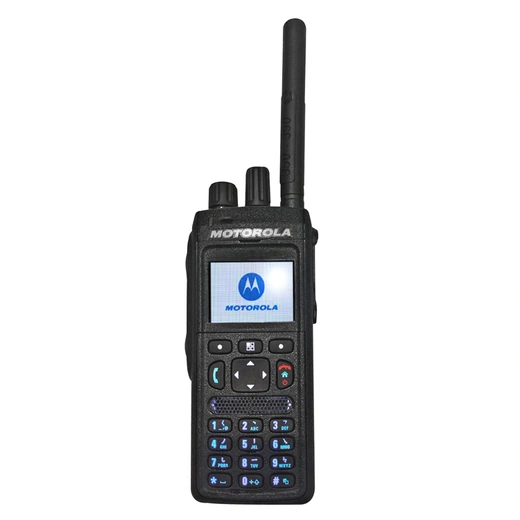

Motorola MTP3250 walkie talkie
Motorola MTP3250
The Motorola MTP3250 is a rugged and reliable two-way radio that offers secure communication for various industries.
Product Information
The full-featured MTP3250 walkie-talkie (including GPS) offers a complete TETRA feature package and is equipped with a full keypad. This model’s Bluetooth connectivity offers even more functionality for accessories and collaboration devices.
Function
safer
For situations where safety is critical, this optimized TETRA intercom delivers superior audio performance for all types of noisy and demanding calling environments. Speakers and accessories sound clearer at the highest volume setting. Slimport speakers deliver sound that evenly surrounds the radio, no matter where the radio is carried. The Automatic Gain Control system provides loud or soft volume adjustments for audio signals transmitted over the TETRA network, eliminating the need to set multiple audio profiles.
The receiver sensitivity of the MTP3250 is very high, so it can keep talking under the most demanding conditions, and it is suitable for long-distance, multi-construction areas, building and other calling situations. Considering that high power can further increase long-distance and in-building call performance, Motorola has added an industrial-grade Class 3L (1.8W) power output option to this model.
For situations where safety is critical, this optimized TETRA intercom delivers superior audio performance for all types of noisy and demanding calling environments. Speakers and accessories sound clearer at the highest volume setting. Slimport speakers deliver sound that evenly surrounds the radio, no matter where the radio is carried. The Automatic Gain Control system provides loud or soft volume adjustments for audio signals transmitted over the TETRA network, eliminating the need to set multiple audio profiles.
The receiver sensitivity of the MTP3250 is very high, so it can keep talking under the most demanding conditions, and it is suitable for long-distance, multi-construction areas, building and other calling situations. Considering that high power can further increase long-distance and in-building call performance, Motorola has added an industrial-grade Class 3L (1.8W) power output option to this model.
stronger

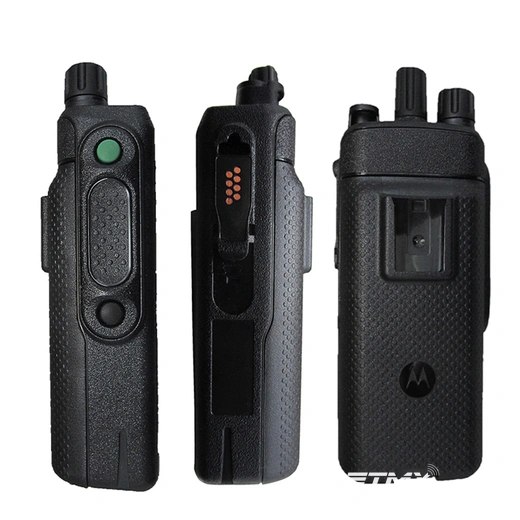

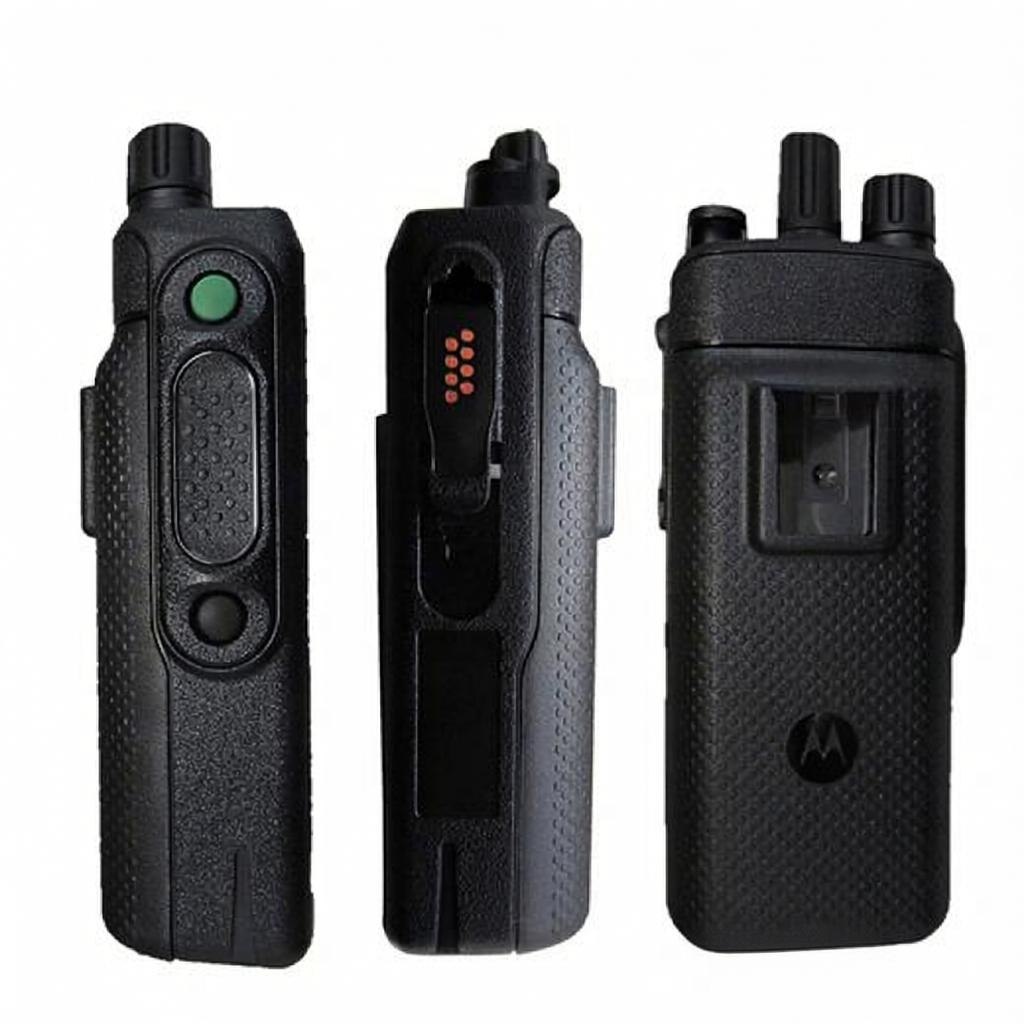

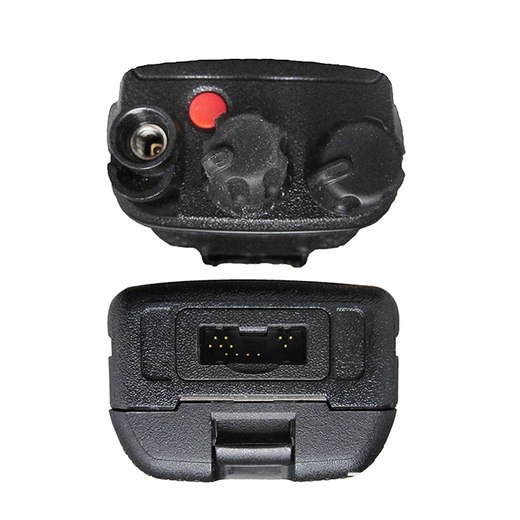

The MTP3250 features two new connectors with excellent corrosion resistance, robustness and conductivity, and low mating resistance. The side connectors have good pullout strength. The bottom connector adopts a self-cleaning design, which can prevent dust and dirt from accumulating, is easy to clean, and has related protection inside the intercom.
Manufactured to the highest quality standards, the MP3250 fully exceeds all Category 11 requirements of the MIL-810 standard. Furthermore, like all Motorola TETRA radios, the MTP3250 has been designed to pass an accelerated life test simulating a 5+ year lifespan, which ensures that the radio can withstand harsh conditions and degrade with durable quality Lifetime maintenance costs.
The MTP3250 features two new connectors with excellent corrosion resistance, robustness and conductivity, and low mating resistance. The side connectors have good pullout strength. The bottom connector adopts a self-cleaning design, which can prevent dust and dirt from accumulating, is easy to clean, and has related protection inside the intercom.
Manufactured to the highest quality standards, the MP3250 fully exceeds all Category 11 requirements of the MIL-810 standard. Furthermore, like all Motorola TETRA radios, the MTP3250 has been designed to pass an accelerated life test simulating a 5+ year lifespan, which ensures that the radio can withstand harsh conditions and degrade with durable quality Lifetime maintenance costs.
easier
This model still retains the dual-knob design for users transitioning from analog walkie-talkies or those who require dual-knobs for other reasons. In addition, the newly equipped side connector can be connected and disconnected very conveniently and quickly. The transflective wide display can display more characters in edit mode and allows users to easily read the display in low light and direct sunlight. The walkie-talkie comes with an accessory configuration file, which is compatible with various accessories provided by Motorola.
This model still retains the dual-knob design for users transitioning from analog walkie-talkies or those who require dual-knobs for other reasons. In addition, the newly equipped side connector can be connected and disconnected very conveniently and quickly. The transflective wide display can display more characters in edit mode and allows users to easily read the display in low light and direct sunlight. The walkie-talkie comes with an accessory configuration file, which is compatible with various accessories provided by Motorola.
The keyboard uses tilted keys, which is not only easy to use, but also prevents pressing the wrong key.
To minimize staff training costs, the MTP3250 features a mobile phone-style user interface for quick familiarization. This model also includes a large color display with support for 262k vibrant colors and large scalable fonts. User-personalizable menus and a simplified keypad further enhance the usability of the radio, allowing users to operate it quickly and intuitively.
- Keypad Style : Full
- IP65/66/67
- Location Services
- Bluetooth
- Multi Slot Packet Data Service (MSPD)
Accessories
- Antenna
- Battery
- Charger
- Power adapter
- Dust cover
- Clip
- Manual
Specifications
| General | |
| Dimensions HxWxD mm | 124 x 53 x 33.5 (with standard battery) |
| Weight | 280g (radio with 1650mAH battery and antenna) |
| Battery Performance (Class 4 and 1650mAH battery) (Class 4 and 2150mAH battery) |
Duty Cycle 5/5/90 > 16 Hours Duty Cycle 5/35/60 > 12 Hours Duty Cycle 5/5/90 > 20 Hours |
| Battery | Li lon 1650mAh and 2150mAh |
| Loud and clear audio | 2Wrms Audio power (4W peak) through radio and accessories |
| RF Specifications | |
| Frequency bands | 350-470 MHz, 800 MHz |
| Transmitter RF | Power class 3L (1.8W) & class 4 (1W) |
| Receiver class | A and B |
| Rx static sensitivity | 350-470 MHz: -116dBm (min); -118dBm (typical) 800 MHz: -114dBM (min); -116dBM (typical) |
| Rx dynamic sensitivity | 350-470 MHz: -107dBm (min); -109dBm (typical) 800 MHz: -105 dBm (min); -107dBm (typical) |
| Environmental | |
| Operating Temperature | -30 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | ETS 300-019-1-7 Class 7.3E |
| Dust and Water ingress protection | IP65/66/67 |
| Shock, drop and vibration | ETS 300-019 1-7 class 5M3; MIL-STD 810 D/E/F/G |
| Location Services | |
| Antenna | Integrated external antenna |
| Simultaneous satellites | 12 |
| Tracking sensitivity | -160 dBm (typical) -150 dBm (guaranteed) |
| Accuracy | < 5 metre (50% probable) @ -130 dBm |
| Protocols | ETSI LIP & Motorola LRRP |
