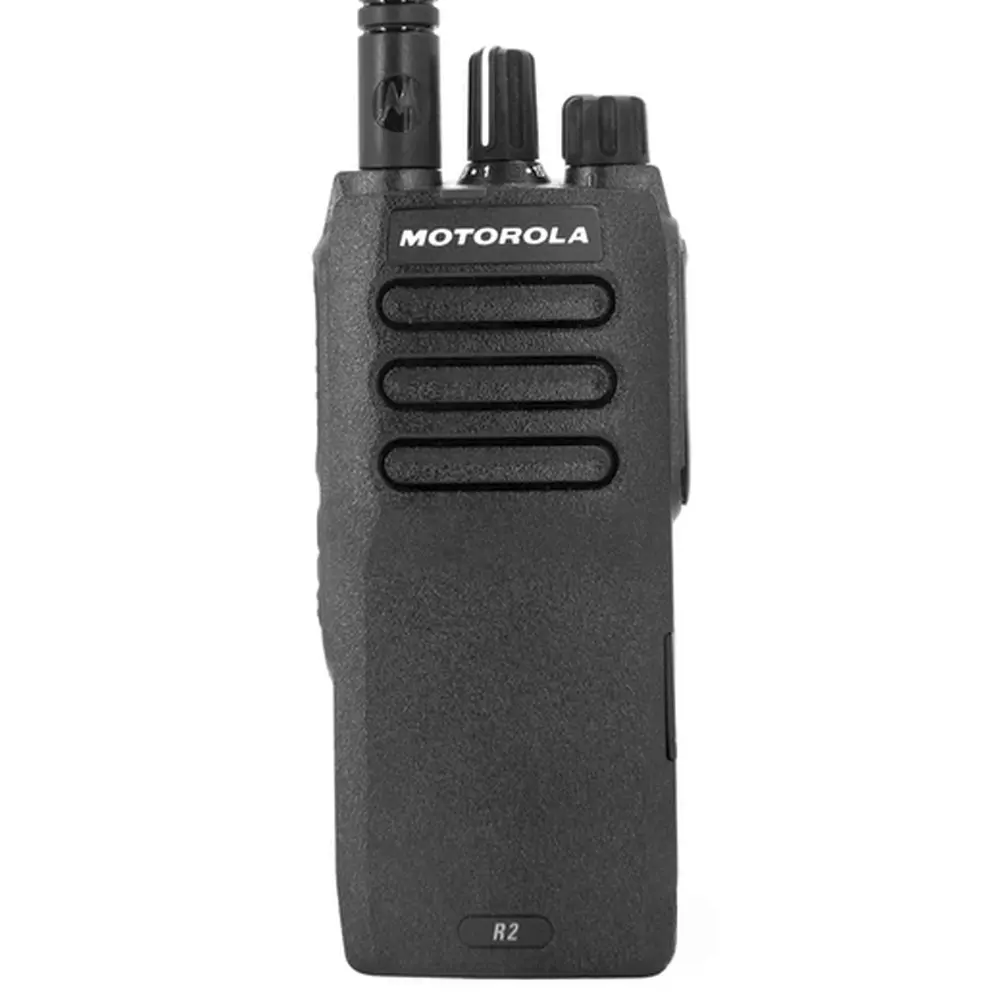

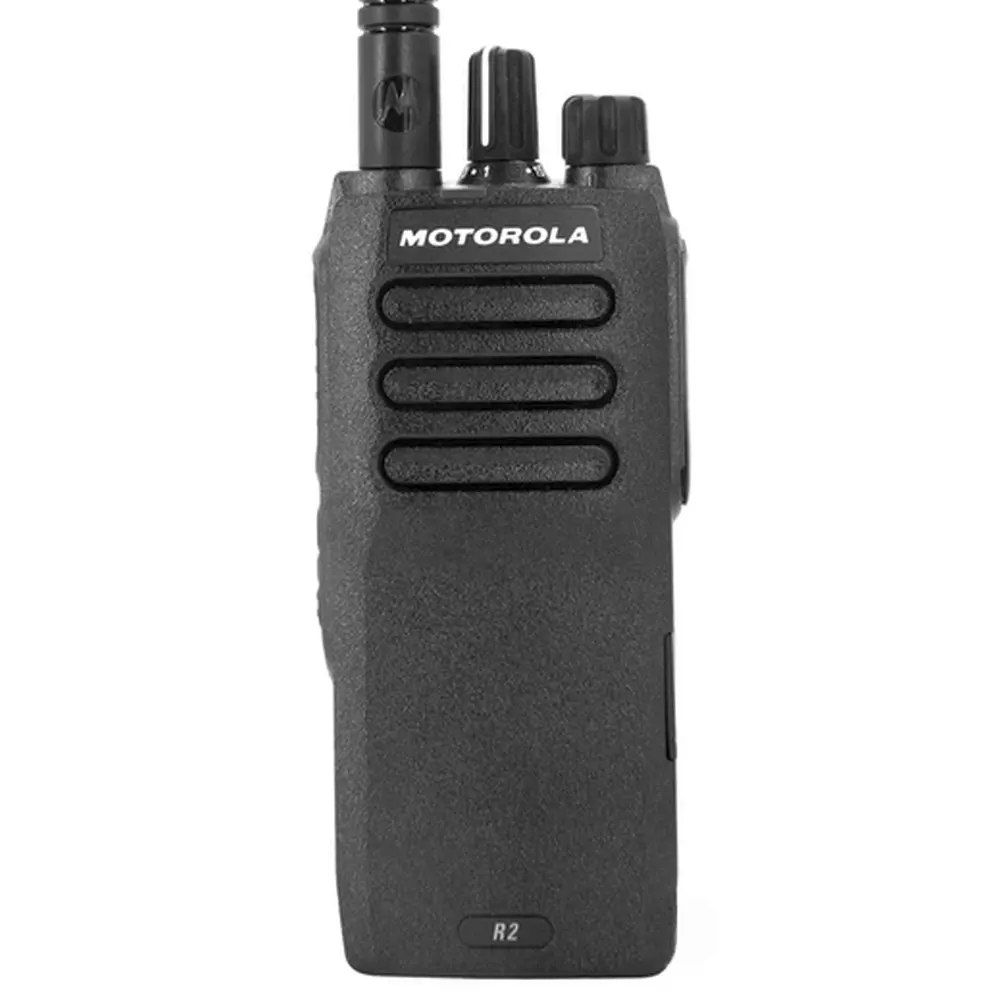

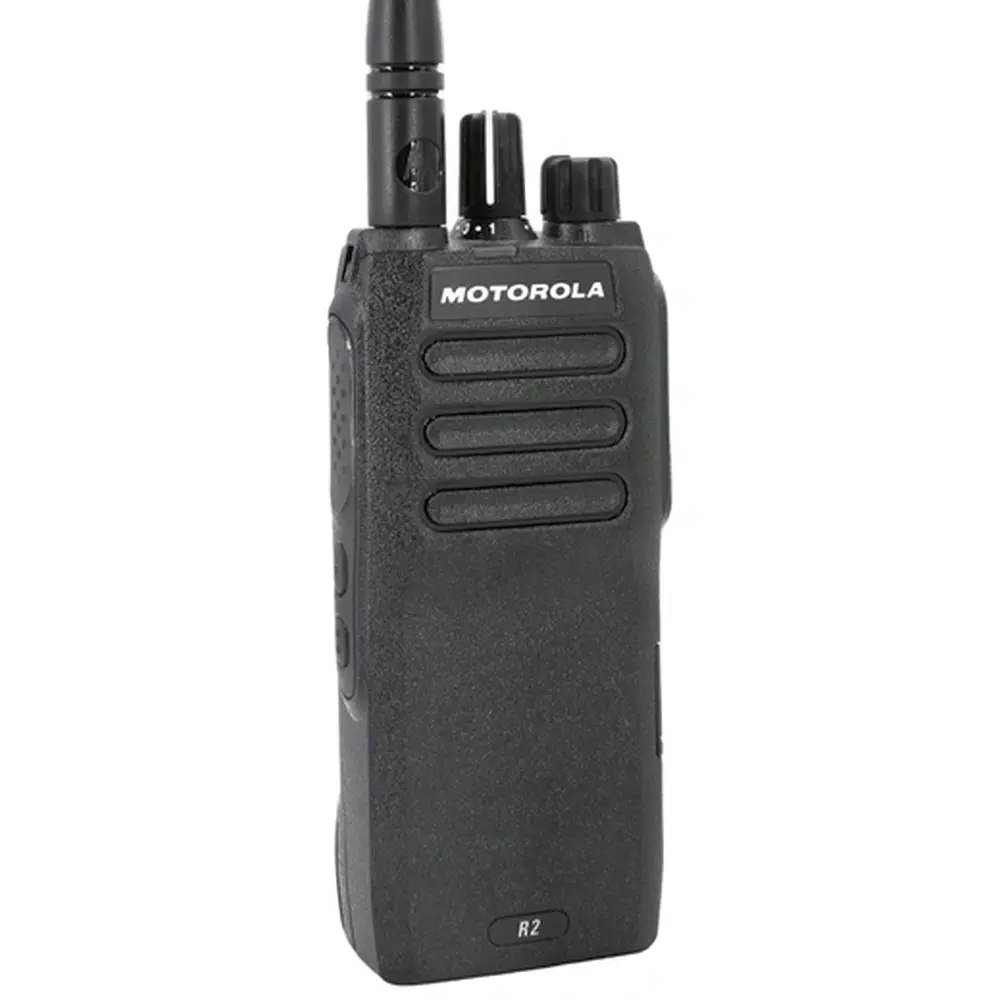

Motorola R2 Walkie Talkie
Entry-level Digital Model
The Motorola R2 features DMR audio, battery, and safety IP, allowing users to get SINC+ noise reduction, enhanced safety, and OTA upgrade architecture at a price significantly lower than analog radios.
Lightweight and Portable
This radio features a slim battery and weighs only 286 grams, easily concealed under a suit jacket or retail apron. It shares audio accessories with the entire MOTOTRBO portfolio, allowing customers to reuse headsets or RSM modules previously purchased for higher-end Motorola DMR radios.
IP55 Protection Rating, Meets MIL-STD 810H Military Standard
This radio operates normally in temperatures ranging from -30°C to +60°C and can withstand thermal shock, salt spray, and sandstorms.
Clear and Loud Voice
With SINC+ adaptive digital noise reduction technology and a maximum audio power of 3 watts, users can easily answer calls even while equipment such as presses and pneumatic drills are running, without needing to repeat themselves.

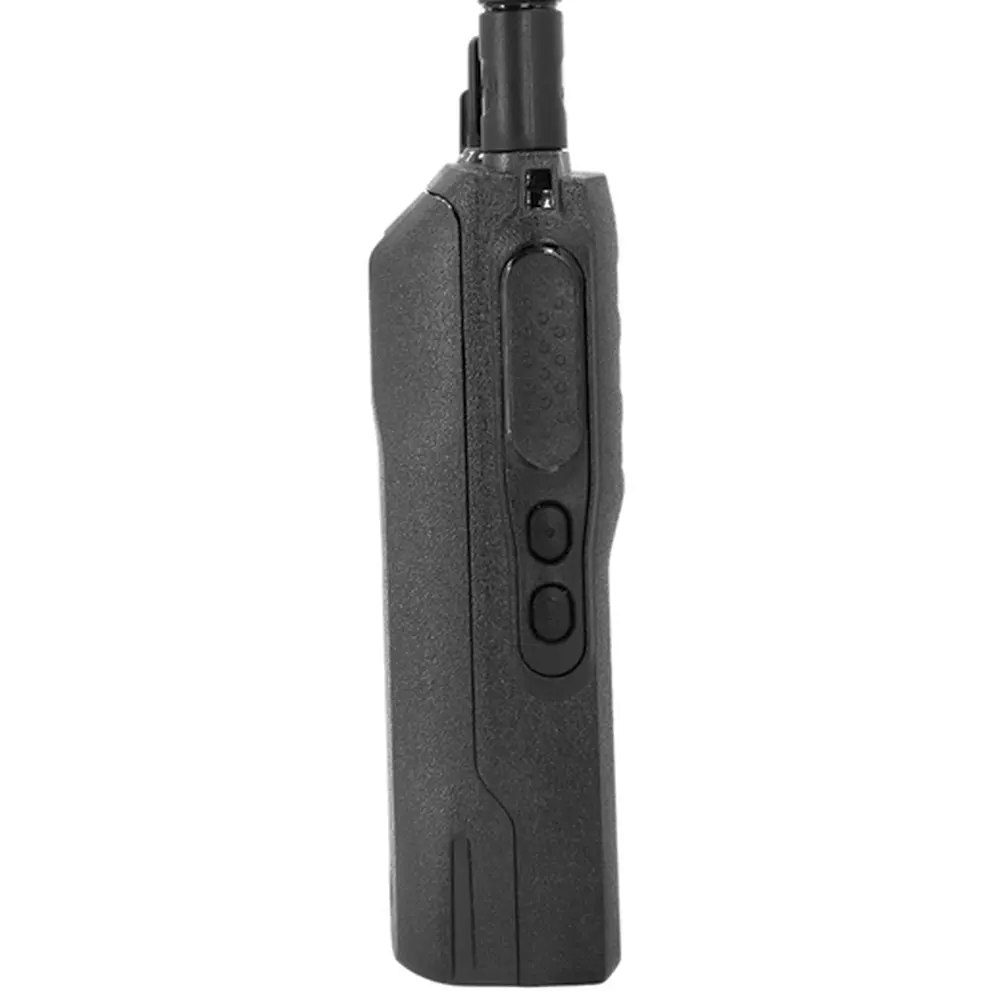

64 Channels, 2 Programmable Buttons
Maintenance, security, logistics, and visitor services departments can each have their own channel groups. The side buttons can be customized with coding for quick calls or solo operations.
26 Hours of Battery Life with a 2900 mAh Battery Pack
Using the optional PMNN4598 high-capacity battery, the Motorola R2 radio offers 26.5 hours of digital battery life at a 5/5/90 duty cycle—longer than most eight-hour shifts and overtime combined.
Other Functions
- Dual Capacity Direct Mode
- Transmit Interrupt
- Dual priority scan
- Quick Call II / MDC1200 capable
- Single-site conventional
- Secure Enhanced Linux operating system
- Enhanced privacy
- Radio disable/enable
- Remote monitor
- Voice announcement
- Loudness up to 101 phons
- SINC+ noise suppression
- Acoustic feedback suppression
- Home channel reminder
- Rental timer

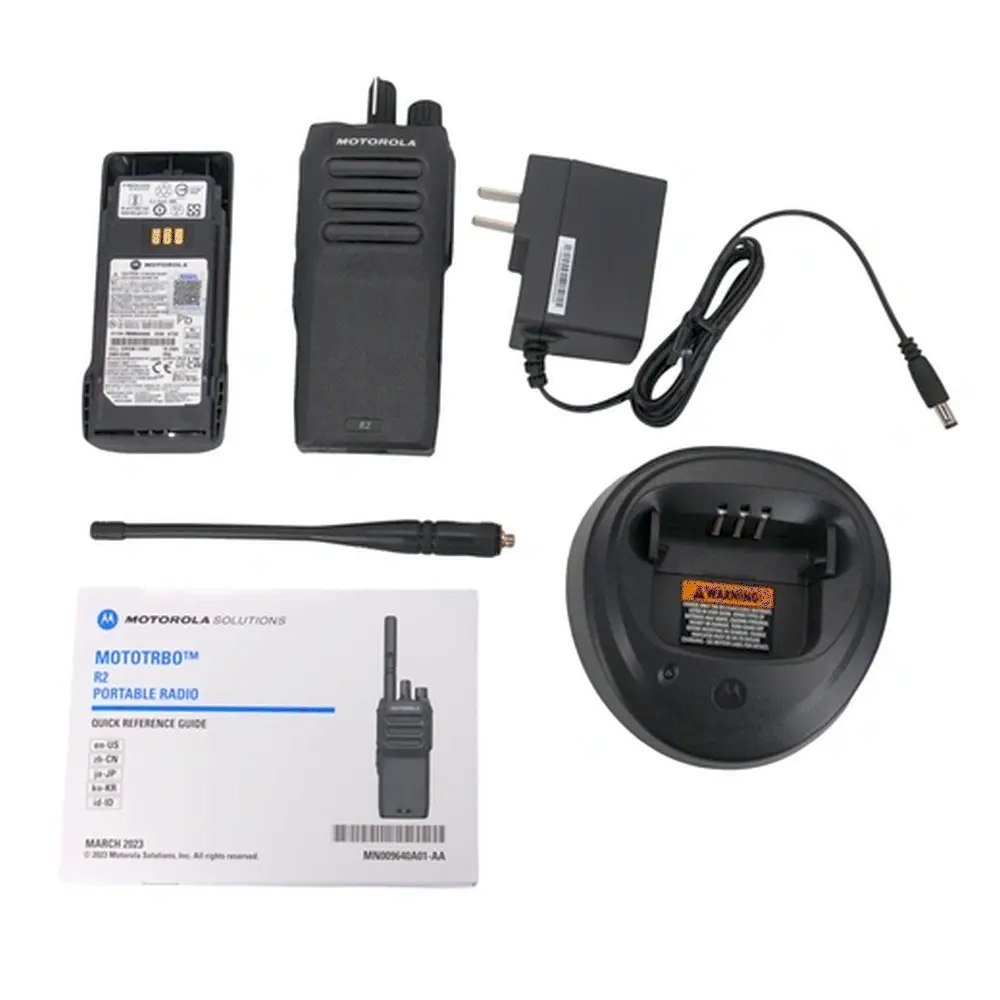

- Antenna
- Battery

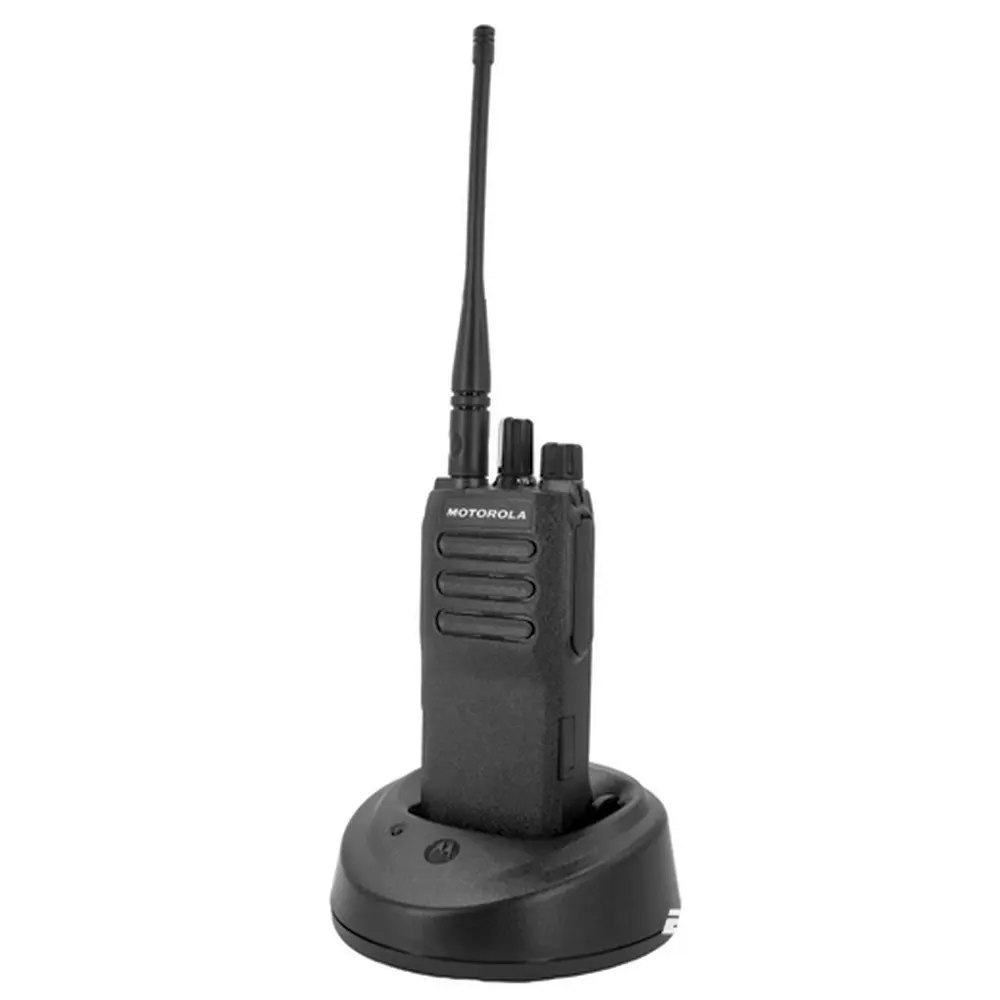

- Charger
- Power adapter
- Dust cover
- Clip
- Manual
Specifications
| General | |
| Band | UHF |
| Frequency | 400-470 MHz |
| High / Low Power | 4 W / 1 W |
| Channel Spacing | 12.5 / 25 kHz |
| Channel Capacity | 64 |
| Power Supply | 7.5 V |
| Dimensions (L×W×H) | 125×55×37 mm (large battery) 125×55×32 mm (slim battery) |
| Weight | 286 g (large battery) 261 g (slim battery) |
| Battery Life (Analog / Digital) | 19.5 h / 26.5 h (large battery) 17 h / 22.5 h (slim battery) |
| Transmitter | |
| 4FSK Digital Modulation | 7K60F1D / 7K60FXD / 7K60F1E / 7K60FXE / 7K60F1W |
| Digital Protocol | ETSI TS 102 361-1/-2/-3/-4, DMR Tier II/III |
| Conducted / Radiated Emissions | -36 dBm (<1 GHz) -30 dBm (>1 GHz) |
| Adjacent Channel Power | 60 dB (12.5 kHz) 70 dB (25 kHz) |
| Frequency Stability | ±0.5 ppm |
| Receiver | |
| Analog Sensitivity (12 dB SINAD) | 0.16 μV |
| Digital Sensitivity (5 % BER) | 0.14 μV |
| Intermodulation | 70 dB |
| Adjacent Channel Selectivity | 60 dB (12.5 kHz) / 70 dB (25 kHz) |
| Spurious Rejection | 70 dB |
| Audio | |
| Digital Vocoder | AMBE+2 |
| Rated Audio | 0.5 W |
| Audio Distortion | 3 % |
| Hum & Noise | -40 dB (12.5 kHz) / -45 dB (25 kHz) |
| Environmental | |
| Operating Temperature | -30 °C ~ +60 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| ESD | IEC 61000-4-2 Level 4 |
| Ingress Protection | IP68 (2 m, 2 h) / IP66 |
| Packaging Test | MIL-STD 810D & E |
