Motorola XPR7350e Walkie Talkie
Product Information

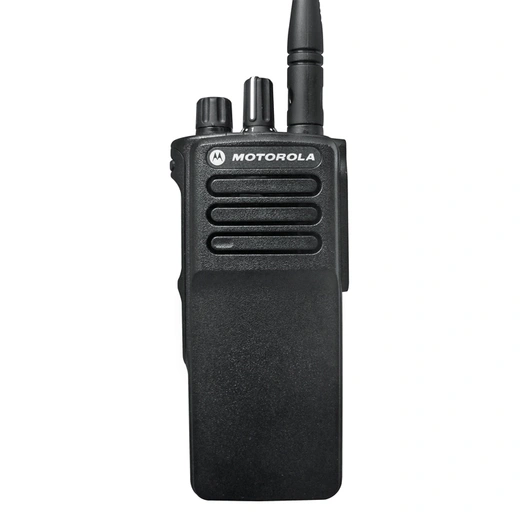

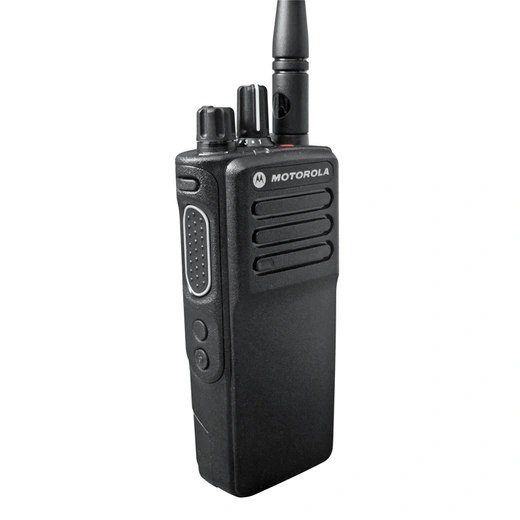

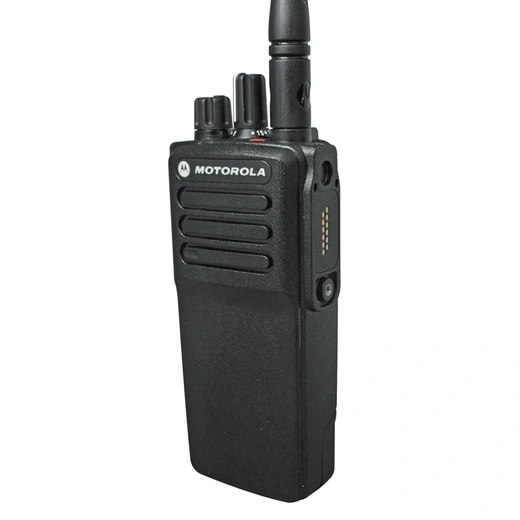

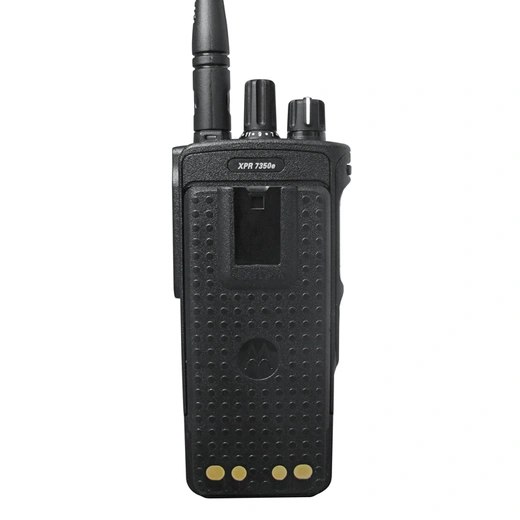

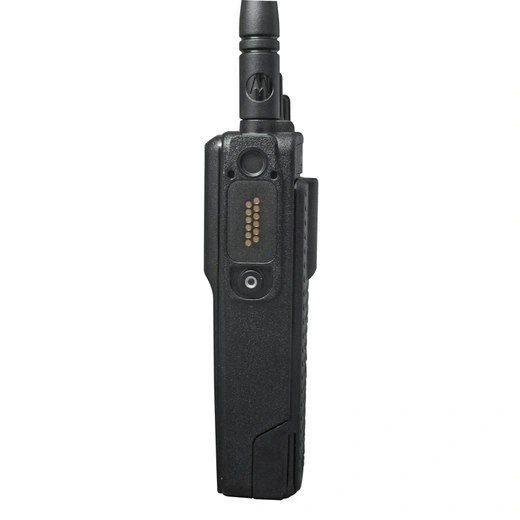

Motorola XPR7350e walkie-talkie is the safest and most reliable DMR digital wireless walkie-talkie with powerful communication functions and excellent performance. It can easily meet the communication needs in various environments. If you want to obtain excellent communication effects in commercial, industrial, public safety and other fields, XPR7350e is undoubtedly your first choice.
This walkie-talkie adopts the latest DMR digital technology, which makes the signal transmission more stable and the sound clearer.
Motorola XPR7350e walkie-talkie has more than 1000 channels, which can satisfy different teams to communicate on their own working frequency bands. Users can quickly switch to different team frequency bands by switching channels to facilitate remote communication. Digital encryption technology ensures the security of the communication information of the walkie-talkie. Therefore, this machine is widely used in commercial and public safety fields.
The Motorola XPR7350e walkie-talkie also has the characteristics of IP68 waterproof, drop resistance, and resistance to various harsh environments. It can give full play to its permanent performance advantages when used outdoors, on construction sites, and in sandstorm weather. At the same time, the battery life of the walkie-talkie can be as long as 14 hours, users can handle work tasks with peace of mind, and do not have to worry about the lack of battery capacity affecting work efficiency.
Function
CONNECTED
The MOTOTRBO XPR 7350e Series is a family of DMR-standard digital radios that delivers operations-critical voice and data communications. Bluetooth audio lets you talk without wires, integrated Wi-Fi® enables remote software updates, and indoor and outdoor location-tracking capabilities give you total visibility of your resources. Built-in WAVE OnCloud support keeps you connected over Wi-Fi when you leave your MOTOTRBO coverage area*. With support for trunking as well as legacy analog technology, you can keep your organization connected as it grows.
SAFE
Safeguard your staff with responsive push-to-talk technology. The prominent orange emergency button on XPR 7350e Series radios summons help with one touch, using Transmit Interrupt to clear a channel when necessary. On radios with full keypads, the Channel Lock feature disables the Channel knob, keeping you from accidentally disconnecting. An integrated accelerometer senses if you’ve fallen, and can initiate a call for assistance. The radio is tested tough to military standards and is waterproof to IP68. It won’t let you down.
PRODUCTIVE
Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a powerful audio amplifier, these radios deliver loud, clear speech, with industrial noise cancellation for better intelligibility. The latest energy technology delivers up to 29 hours of battery life for 3-shift working, and an improved receiver boosts range by up to 8%.
Accessories
- Antenna
- Battery
- Charger
- Power adapter
- Dust cover
- Clip
- Manual
Specifications
| General | ||
| VHF | UHF | |
| Frequency | 136-174 MHz | 403-527 MHz |
| Low Power Output | 5 W | 4 W |
| High Power Output | 1 W | 1 W |
| Channel Spacing | 12.5, 25 kHz | |
| Channel Capacity | 32 | |
| Dimensions (H x W x D), Radio + Slim Battery | 5.1 x 2.2 x 1.3 in (130 x 55 x 34 mm) | |
| Weight, Radio + Slim Battery | 10 oz (290g) | |
| Dimensions (H x W x D), Radio + High Capacity Battery | 5.1 x 2.2 x 1.6 in (130 x 55 x 40 mm) | |
| Weight, Radio + High Capacity Battery | 11 oz (322 g) | |
| FCC Description | AZ489FT7066 | AZ489FT7065 |
| IC Description | 109U-89FT7066 | 109U-89FT7065 |
| Digital / Analog Battery Life , Slim 2100 mAh Battery | 20.0 / 15.0 hrs | 19.0 / 14.5 hrs |
| Digital / Analog Battery Life , High Capacity 3000 mAh Battery | 29.0 / 22.0 hrs | 28.0 / 21.5 hrs |
| Power Supply | 7.5V (Nominal) | |
| Receiver | ||
| Analogue Sensitivity (12 dB SINAD) | 0.16 uV (0.22 uV for 800/900 band) | |
| Digital Sensitivity (5% BER) | 0.14 uV (0.19 uV for 800/900 band) | |
| Intermodulation (TIA603D) | 70 dB | |
| Adjacent Channel Selectivity (TIA603A)-1T | 60 dB (12.5 kHz channel), 70 dB (25 kHz channel) | |
| Adjacent Channel Selectivity (TIA603D)-2T | 45 dB (12.5 kHz channel), 70 dB (25 kHz channel) | |
| Spurious Rejection (TIA603D) | 70 dB | |
| Transmitter | ||
| Channel Spacing | 12.5, 25 kHz | |
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
|
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |
| Conducted/Radiated Emissions (TIA603D) | -36 dBm < 1GHz, -30 dBm >1GHz | |
| Adjacent Channel Power | 60dB (12.5 kHz channel), 70dB (25* kHz channel) | |
| Frequency Stability | ± 0.5 ppm | |
| Environmental Specifications | ||
| Operating Temperature | -30℃ ~ +60℃ | |
| Storage Temperature | -40℃ ~ +85℃ | |
| Thermal Shock | Per MIL-STD | |
| Humidity | Per MIL-STD | |
| Electrostatic Discharge | IEC 61000-4-2 Level 4 | |
| Dust & Water Intrusion | IEC 60529 – IP68, 6.6 ft (2 m) for 2 hrs | |
| Salt Fog | 5% NaCl for 8 hrs at 35 °C, 16 hrs standing | |
| Packaging Test | MIL-STD 810D and E | |
