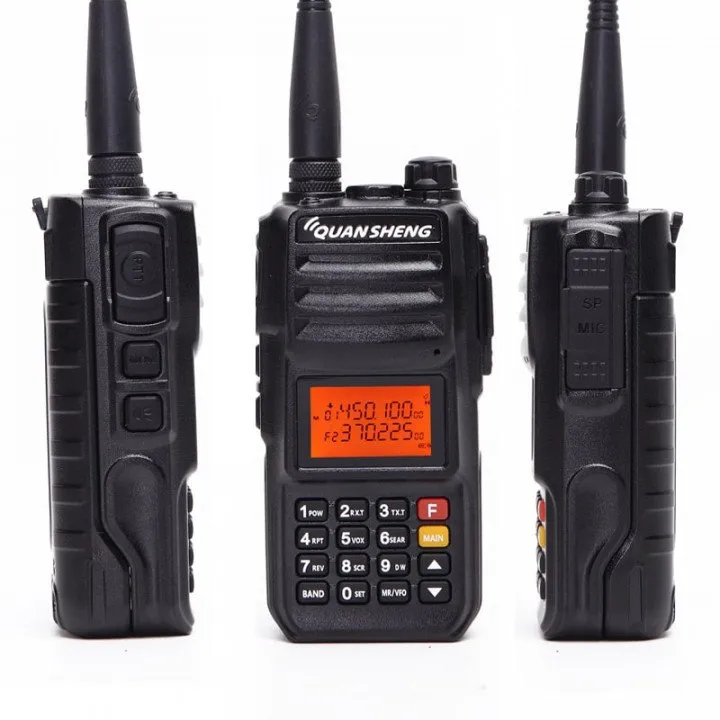

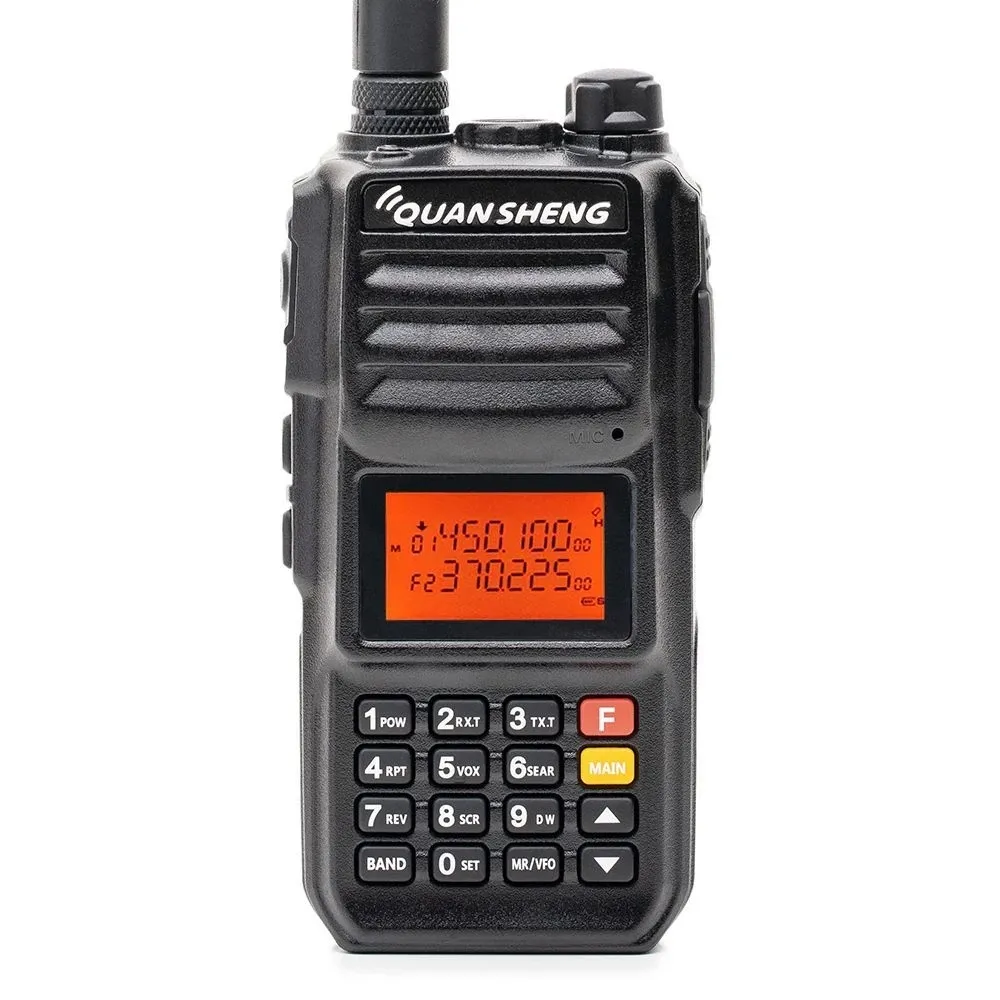

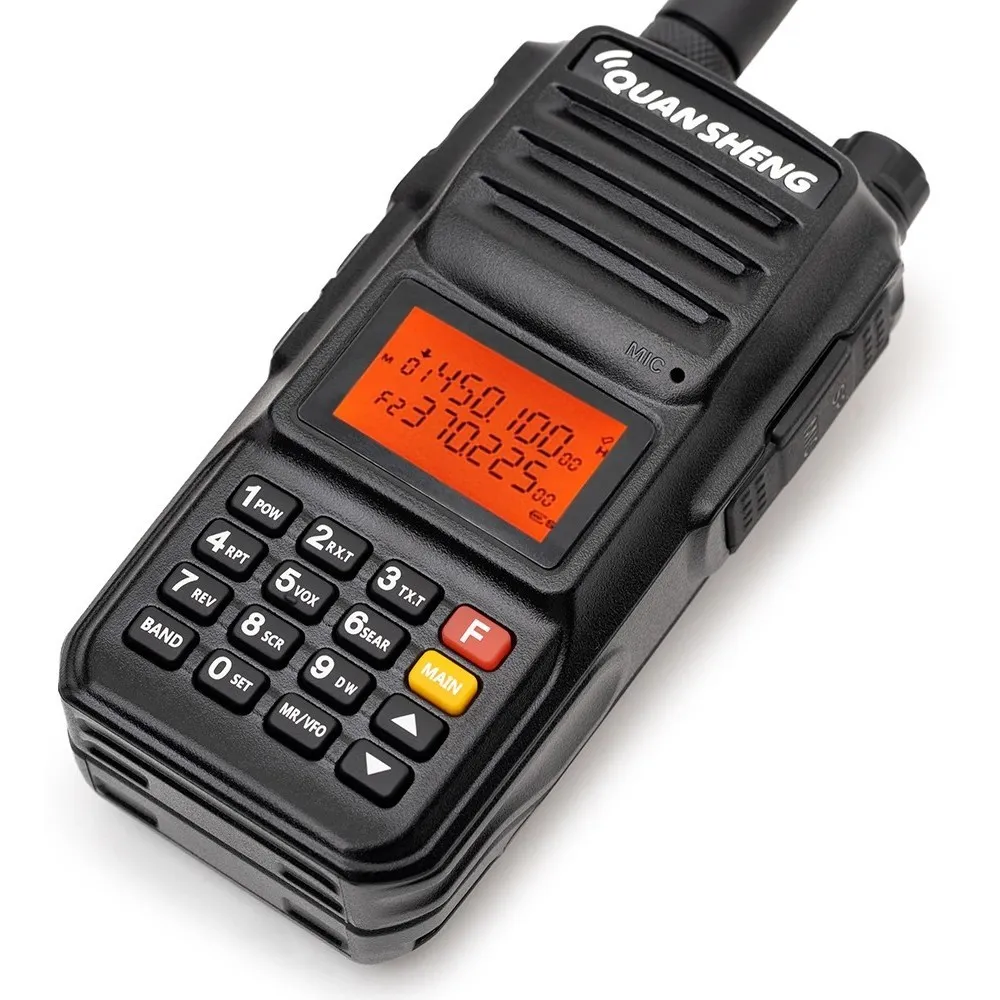

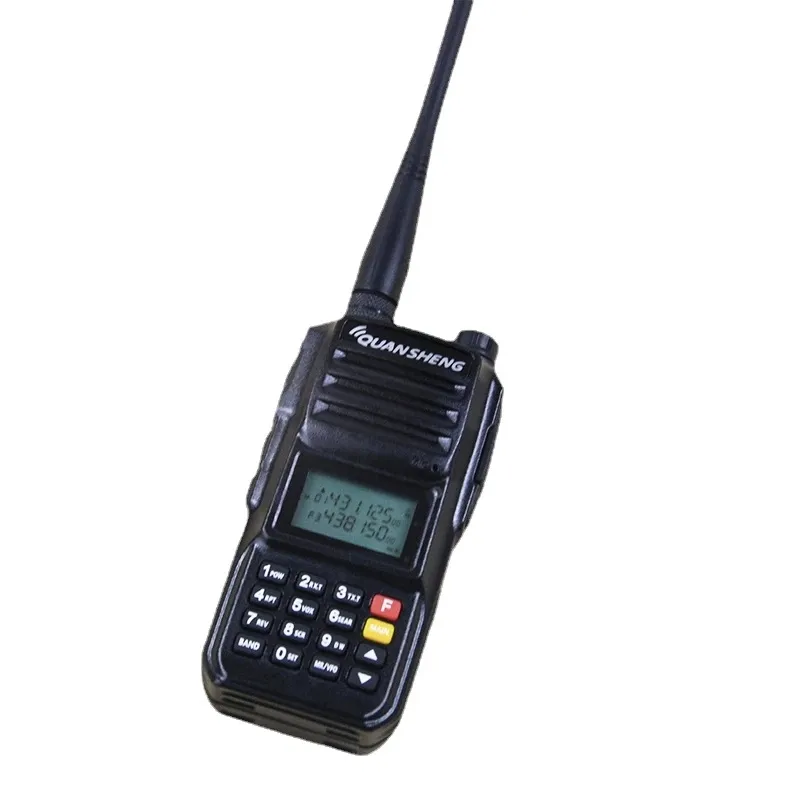

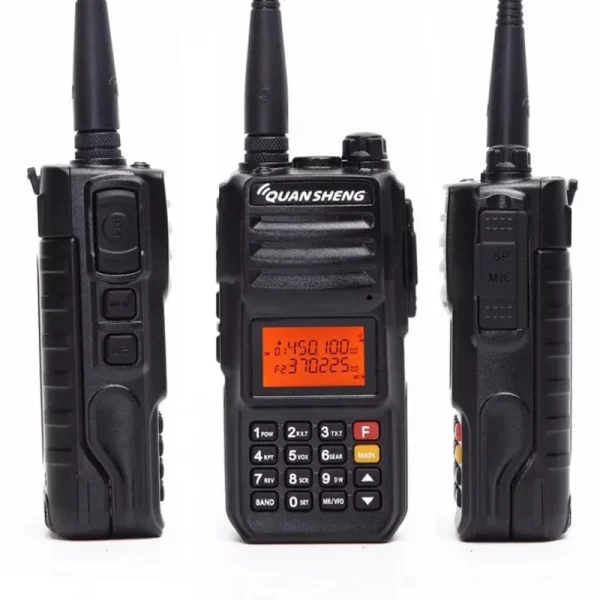

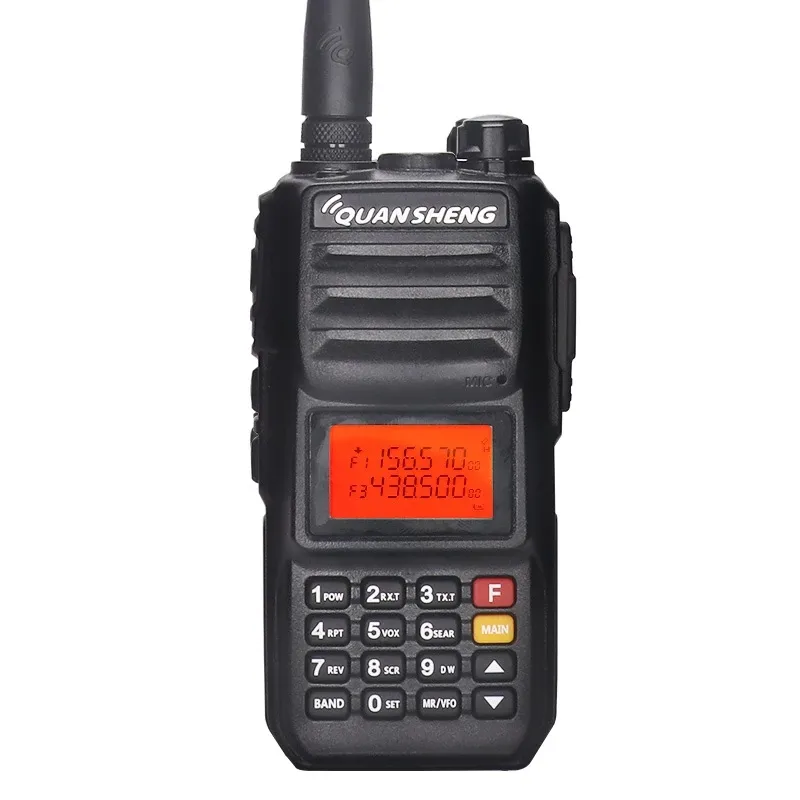

Quansheng TG-UV2 PLUS HAM Radio 10W Power 4000mAh Walkie Talkie Outdoor Sports Camping Hiking Transceiver
Descripition
01. Squelch level
02. H(High), M(Medium), L(Low) output power selective
03. Double frequency, double channel display of the LCD
04. Built-in VOX function
05. Dual-watch operation
06. Respectively receive/transmit CTCSS/DCS code
07. Repeater shift direction set
08. Auto code search
09. Reverse frequency function
10. Voice scrambier (Optional)
11. Multi channel steps
12. Frequency deviation setting
13. Busy channel lock
14. Time-out-timer(TOT)
15. Channel, channel-frequency, channel-name display
16. Up/down scan function / Priority scan
17. Wide/narrow bandwidth
18. 1750Hz call tone
19. Corss-band receiving/transmitting
20. 200 channels
21. Channel name edit / Channel store
22. FM Radio(88-108MHz)
23. PC programmable
24. Main/sub channel display shift
25. Channel scan list additive
MAIN FEATURES
- Dual Band
- 1750 Call Tone
- VOX
- TOT
- Priority Scan
- CTCSS/DCS
- Voice Scrambler
- Wide/Narrow Bandwidth
- Busy Channel Lock
- FM Radio: 88Mhz-108Mhz
- Flashlight
- Dual-watch Operation
- Reverse Function
- H/M/L Output Power
- Voice prompt(Chinese / English)
General Specification:
Frequency Range:
TX: 136-174 Mhz & 350-390Mhz & 400-470Mhz
RX: 88-108Mhz (FM) & 136-174Mhz & 350-390Mhz & 400-470Mhz & 470-520Mhz
Output Power:10W
Battery:4000mAh(Polymer Li-ion)
Channel:200
Channel Spacing:25/12.5KHz
Operating Voltage:7.2V
Antenna Impedance:50Ω
Operating Temperature:-25℃~+65℃
Frequency Stability:±2.5ppm

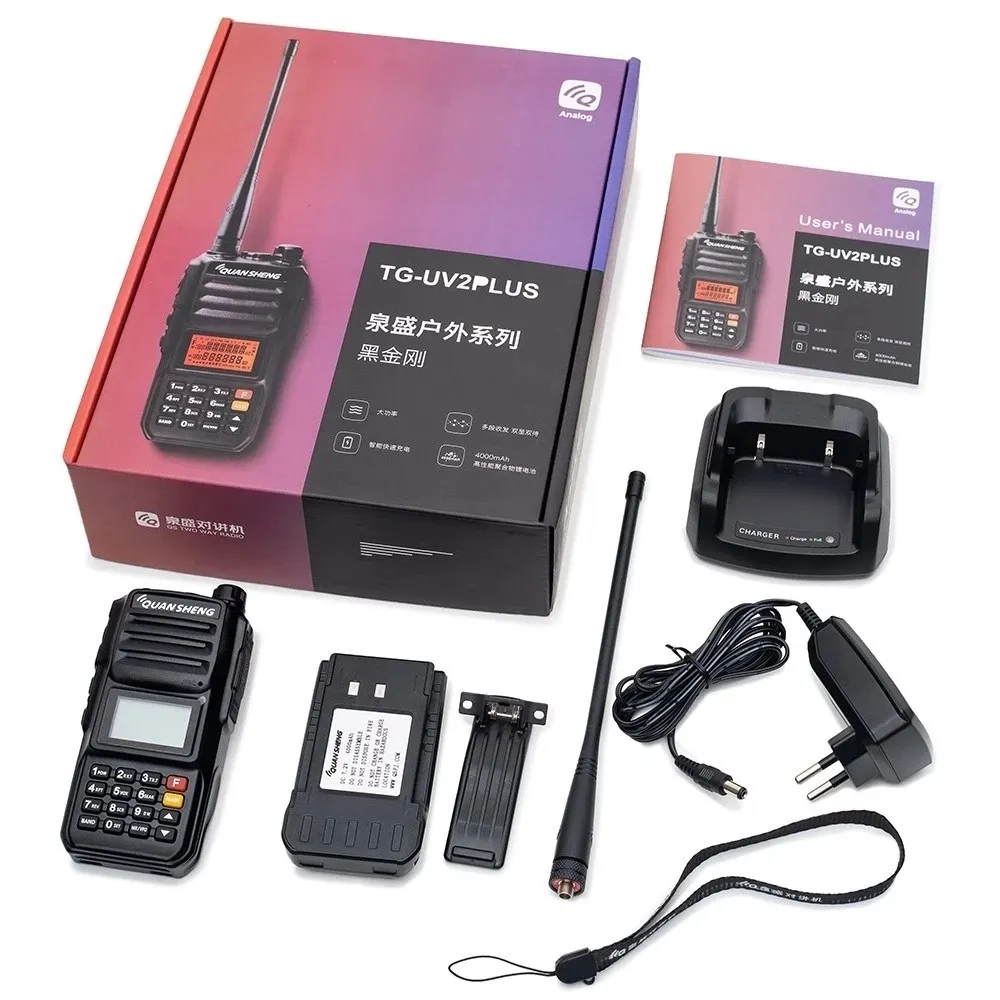

Package Includes:
1 x Quansheng TG-UV2PLUS two way radio
1 x Li-ion battery
1 x Antenna
1x Charger
1 x Adapter
1 x Belt clip
1 x Strap
1 x USER’S MANUAL
