Quansheng TG-UV2PLUS Dual band VHF UHF 136-174MHz 400-470MHz 5Watt Output Power FM Portable Two-way Radio Ham Walkie Talkie
Features:
FM Radio (88-108MHz)
Flashlight
H(High),M(Medium),L(Low) output power selective
Double frequency, Double channel display of the LCD
VOX function
Dual-watch operation
Respectively receive/Transmit CTCSS/DCS code
Repeater shift direction set
Auto code search
Reverse frequency function
Voice scrambler
Multi channel steps
Frequency deviation setting
Busy channel lock
Time-out Timer
Multi display of channel No./Channel frequency/channel name
Priority scan
Wide/narrow bandwidth
Channel Delete
Reset
Up/down scan function
Main/Sub channel shift
1750Hz call tone
Cross-band receiving/transmitting
Squelch level
Channel name edit
Channel Store
Frequency and channel mode shift
Keypad lock
Main/sub channel display shift
Channel scan list
200 channels
PC programmable
High capacity Li-ion battery
Smart charger
Specifications:
General |
|
Frequency Range |
Dual Band, VHF 136-174MHz, UHF 400-470MHz |
Storage Channel |
200 |
Channel Spacing |
25/12.5KHz |
Operating Voltage |
7.2V |
Antenna Impedance |
50Ω |
Operating Temperature |
-25℃~+65℃ |
Frequency Stability |
±2.5ppm |
Modulation Distortion |
≤5% |
Transmitter |
|
Output Power |
5W |
Maximum Deviation |
≤5.0KHz(W) |
Stray Power |
≤7.5μW |
Receiver |
|
Sensitivity |
≤0.25/0.28μV |
Adjacent Channel Selectivity |
70/50dB |
Intermodulation |
60dB |
Spurious Response Rejection |
70dB |
S/N |
43/38dB |
Rated Audio Power Output |
≤0.5W |
Rated Audio Distortion |
≤5% |
Package Contains:
1× TG-UV2PLUS Dual Band 136-174MHz & 400-470MHz Radio
1× 2800mAh Li-ion Battery Pack
1× Desktop Charger
1× AC Adapter
1× SMA-Female Antenna
1× Belt Clip
1× Hand Strap
1× User’s Manual

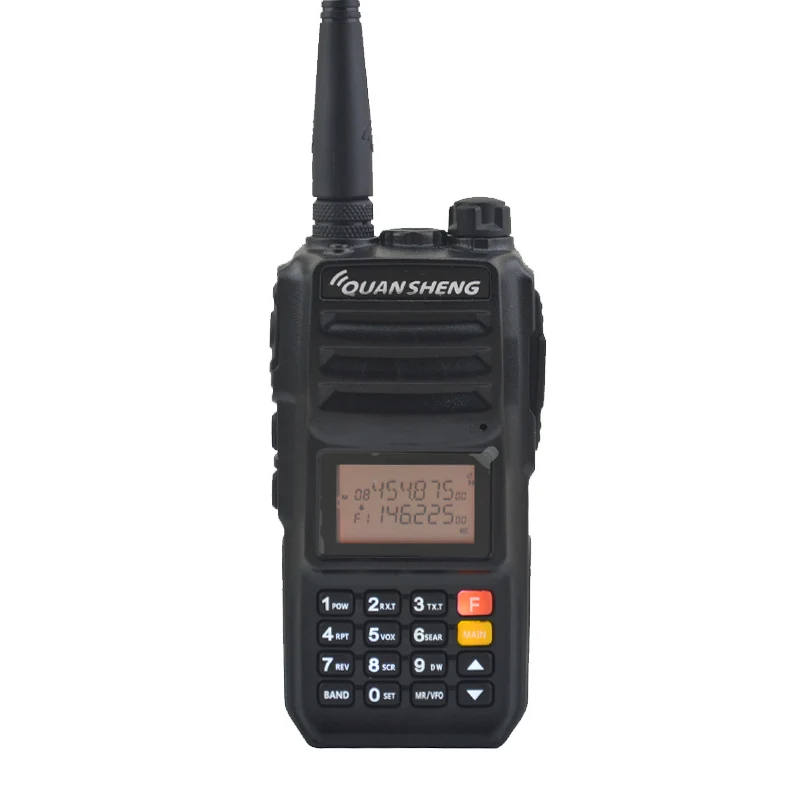

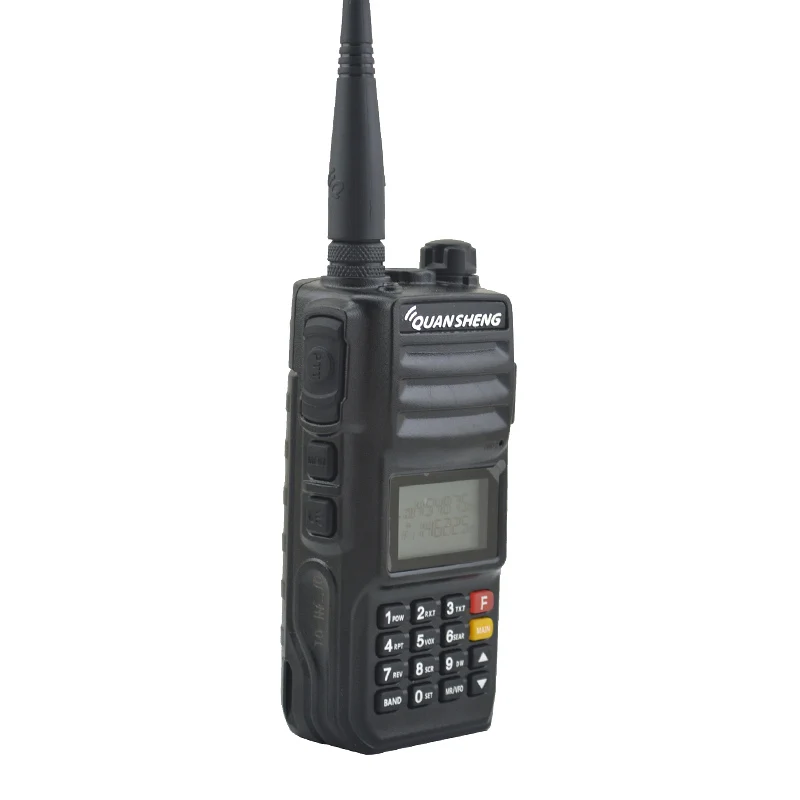

Photos:
