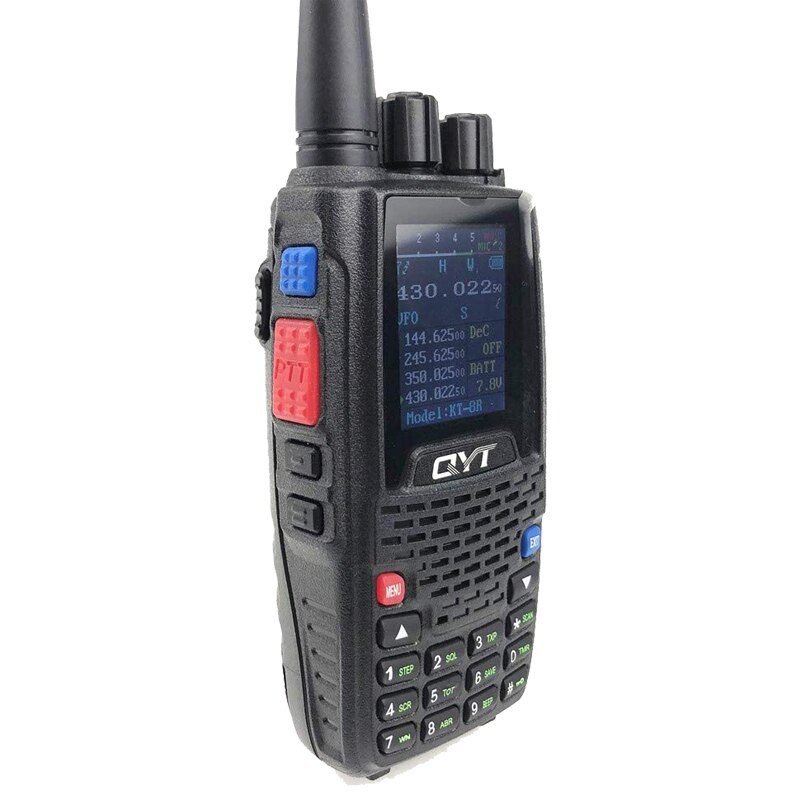

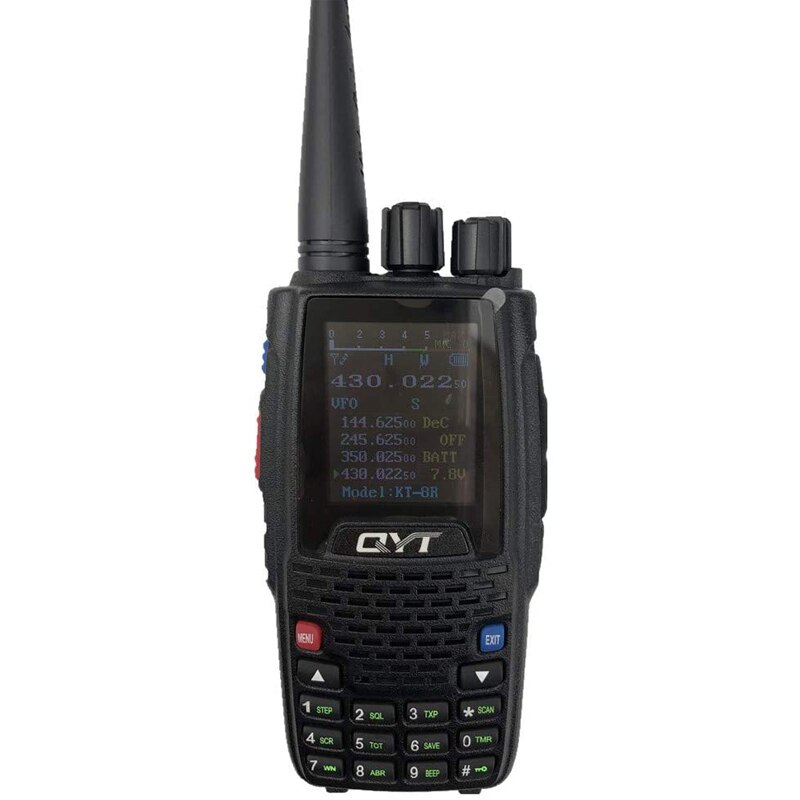

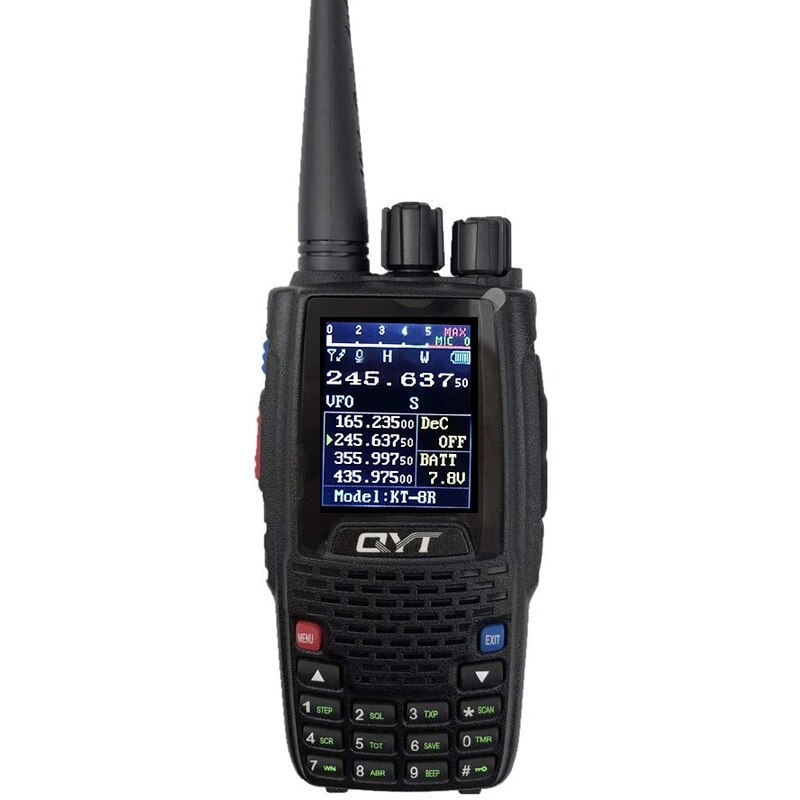

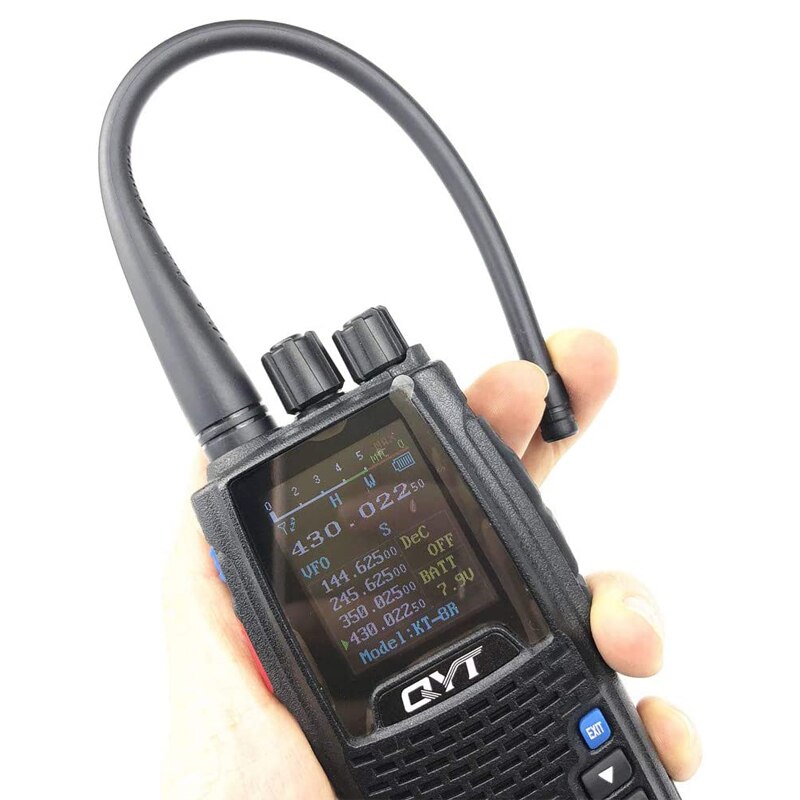

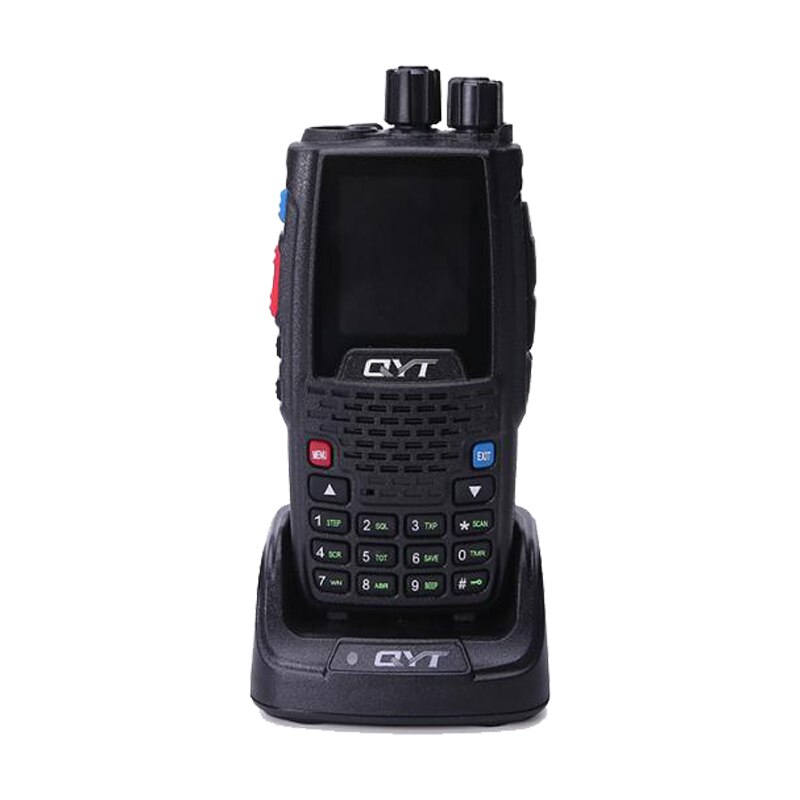

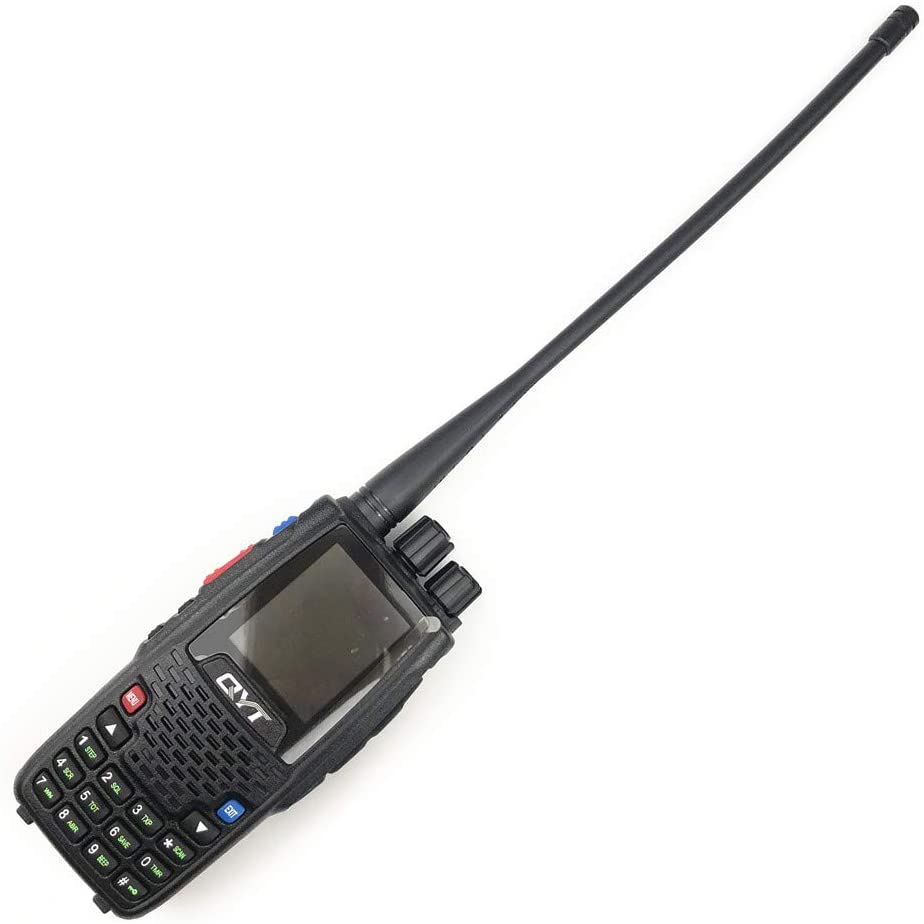

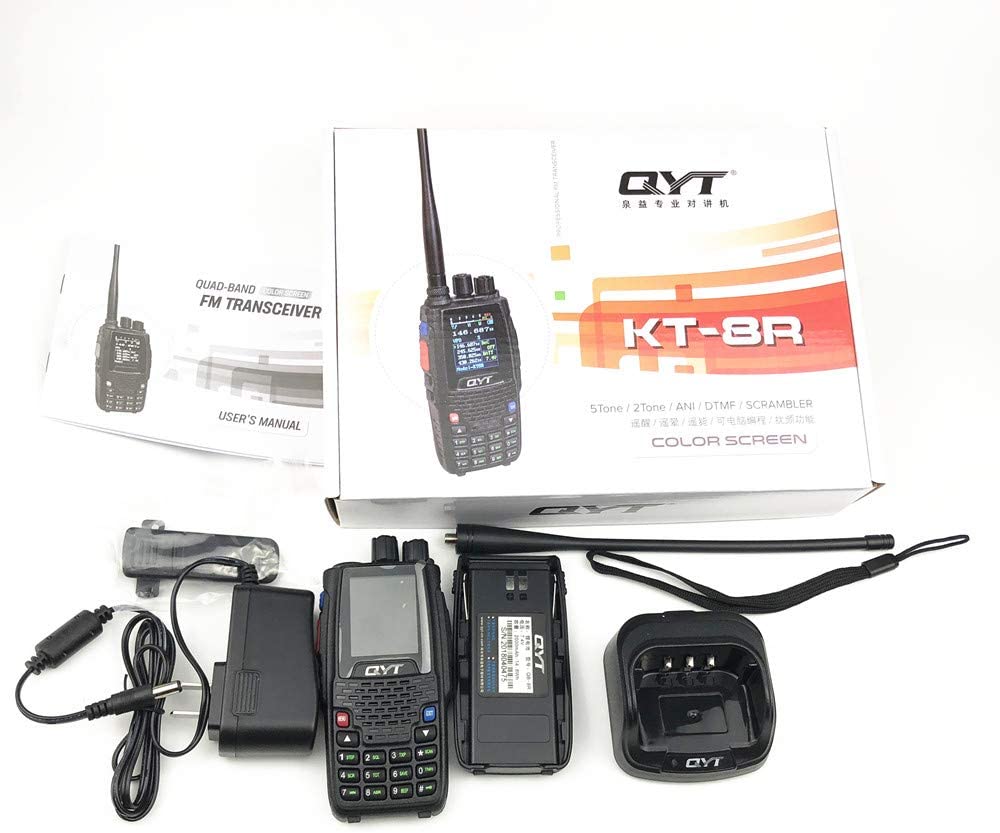

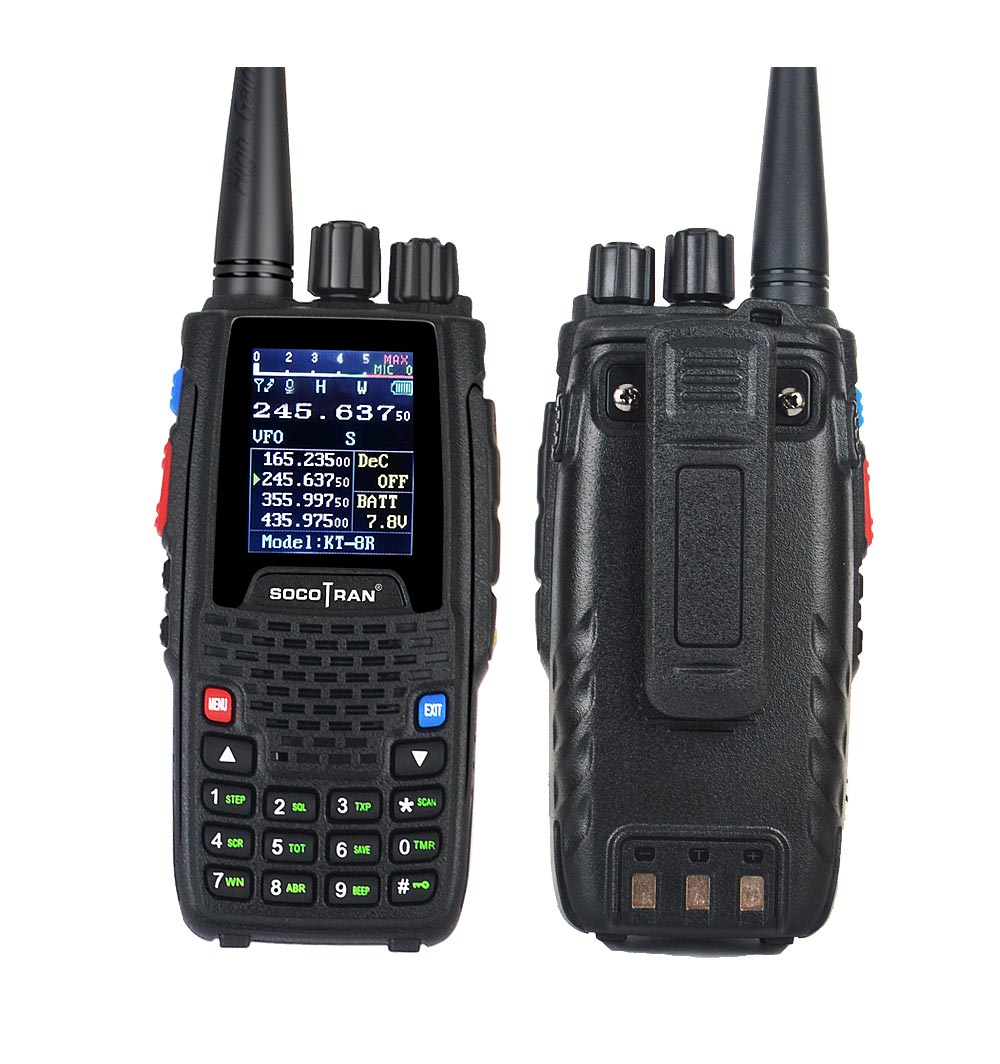

QYT KT-8R Color Display Portable CB Transceiver Quad Band Handheld Two Way Radio
Analog mobile radio has never been so cost performance as with the KT-8R.Mini color screen, quad band , quad standby,. Suitable for various scenarios.
The mini size, simple design, excellent quality and full-range VHF 136-174MHz(220-270MHz) and UHF 400-480MHz(350-390MHz) allowing you to enjoy all kinds of convenience and quickness.
|
General Specifications |
||
| Frequency Range | VHF: 136-174MHz 220-270MHz | |
| UHF: 350-390MHz 400-480MHz | ||
| Channel Capacity | 200 channels | |
| Channel Spacing | 25KHz, 12.5KHz | |
| Channel Step | 2.5MHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz | |
| Working Voltage | 7.4V DC ±15% | |
| Squelch way | CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF | |
| Frequency Stability | ±2.5ppm | |
| Operating Temperature | -20℃~+60℃ | |
| Dimension(W*H*D) | 128(W)*62(H)*35(D)mm | |
| Weight | 230g | |
|
Receiver |
||
| Wide Band | Narrow band | |
| Sensitivity | ≤0.25μV | ≤0.35μV |
| Channel chioce | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio output power | ≥1W±10% | |
|
Transmitter |
||
| Wide Band | Narrow band | |
| Output power | 4W | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60dB |
| Signal noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.25KHz) |
| Audio distortion | ≤5% | |
