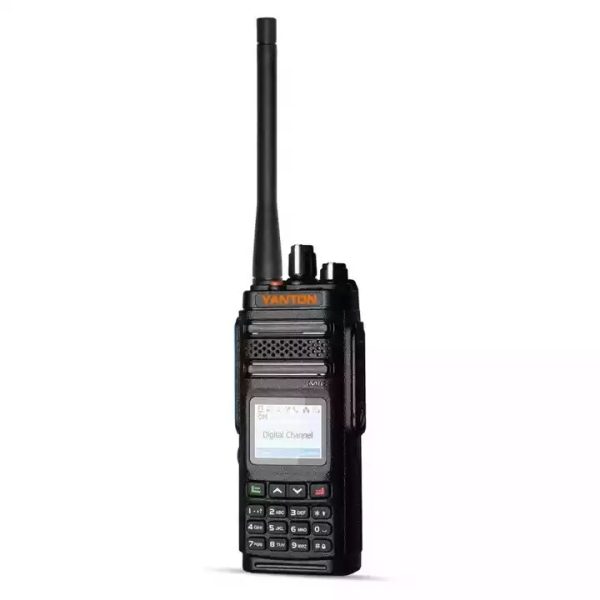

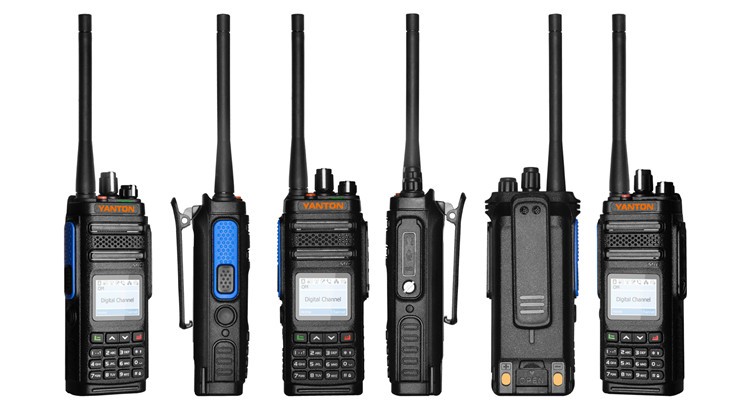

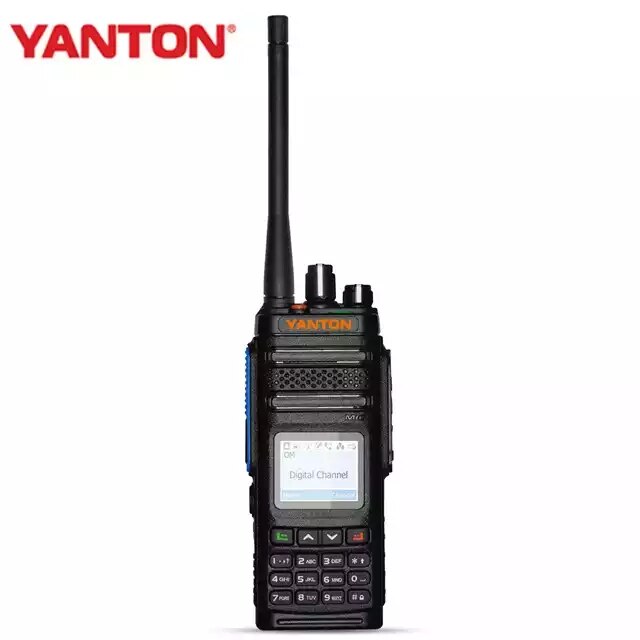

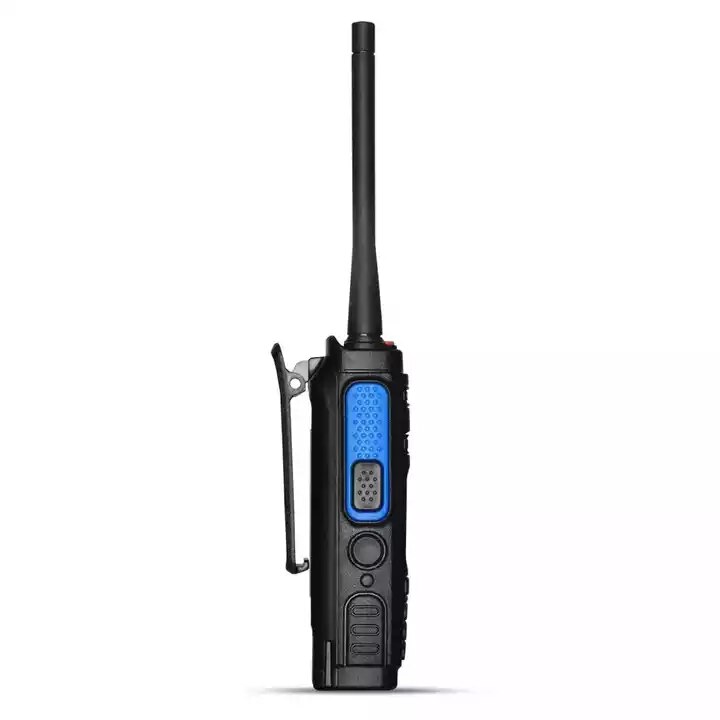

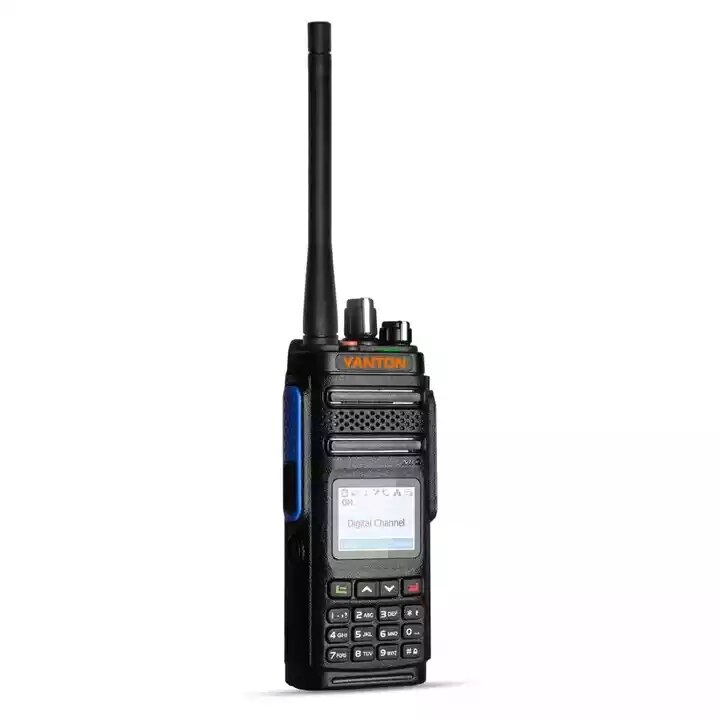

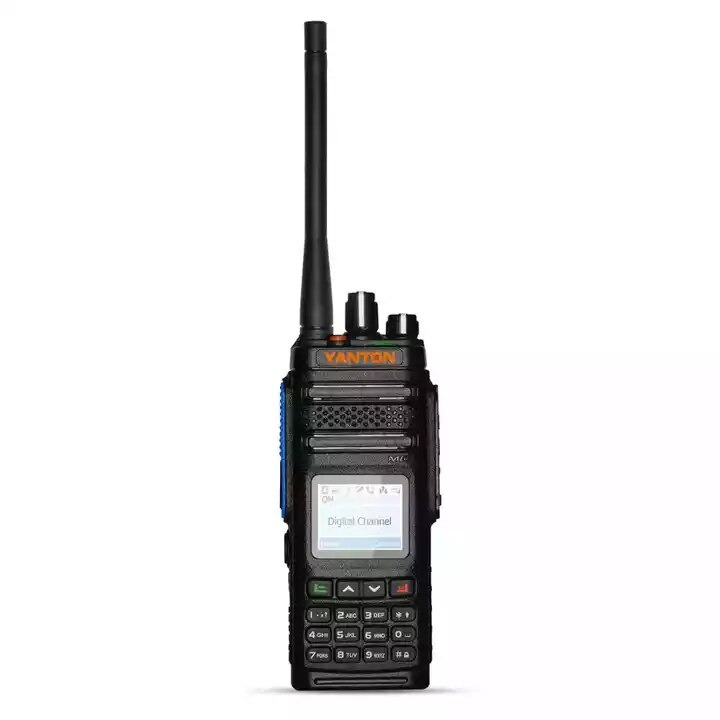

YANTON DM-860 DMR Digital Handy Talky High Power 10W Radio Long Range Two Way Radio Wireless Walkie Talkie

$78.89$129.98

YANTON DM-860 DMR Digital Handy Talky High Power 10W Radio Long Range Two Way Radio Wireless Walkie Talkie

Product Description:

10W high power long range wireless walkie talkie YANTON DM-860 DMR Digital gps handy talky

1.136-174MHZ or 400-480MHZ
2. 32Channels
3.Digital Contacts (All call & Group call & Single call)
4.Alarm Function
5.Scan Function
6.Wide/Narrow bandwidth Selection
7.Hight/ Low Power Switch
8.DTMF/Remote Kill,Stun,Activate&Revive
9.CTCSS/DCS
10.Digital Encryption

1.136-174MHZ or 400-480MHZ
2. 32Channels
3.Digital Contacts (All call & Group call & Single call)
4.Alarm Function
5.Scan Function
6.Wide/Narrow bandwidth Selection
7.Hight/ Low Power Switch
8.DTMF/Remote Kill,Stun,Activate&Revive
9.CTCSS/DCS
10.Digital Encryption

GENERAL
Frequency Range
136-174/400-480MHz
Operating Temperature
-30°C~ +60°C
channel spacing
Analog: 12.5/20/25KHz Digital: 12.5KHz
battery life
About 15/20 hours according to 5-5-90 duty cycle
Memory Channel
32ch
Working voltage
7.2V DC ± 10%
Antenna Impedance
50Ω
Frequency Stability
 ±2.5ppm

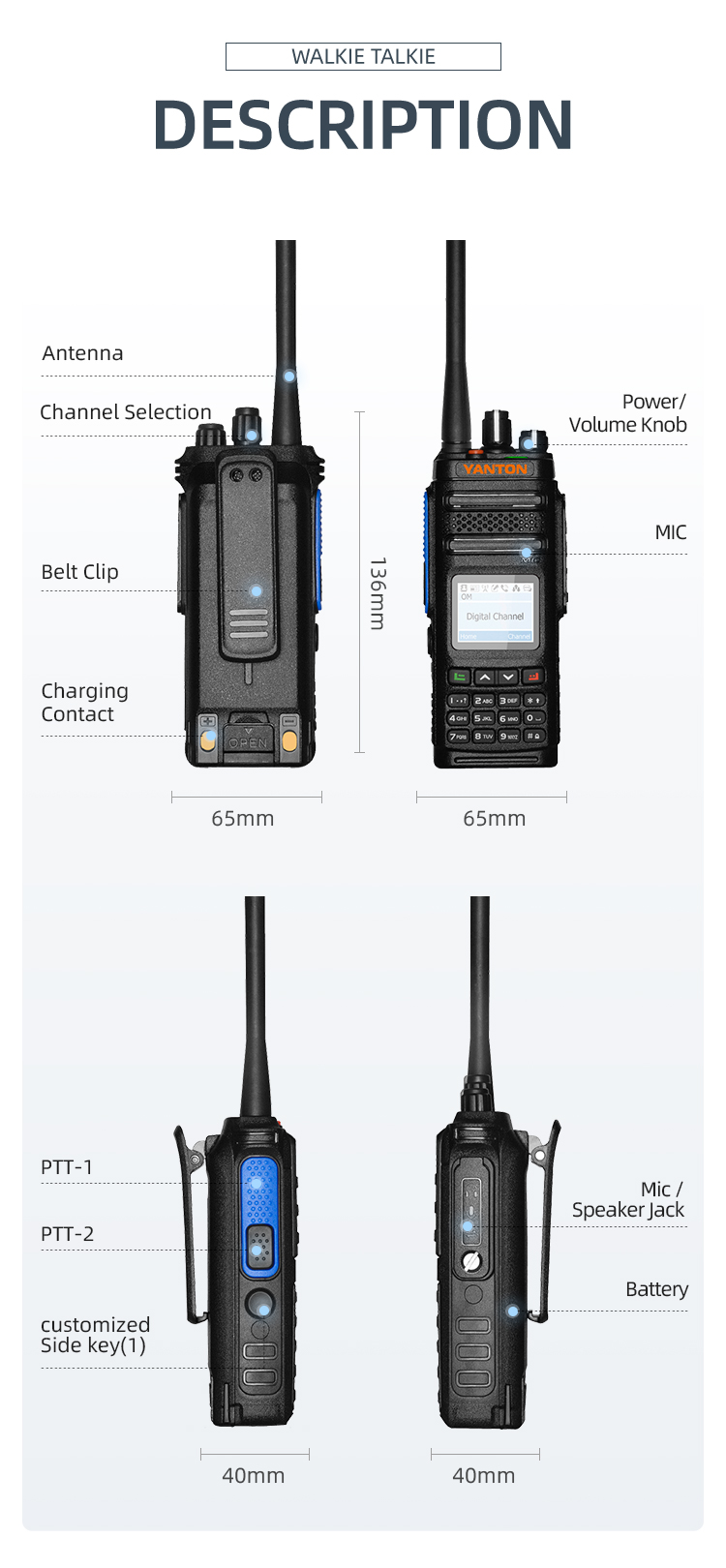

Dimensions
124*45*35mm(without antenna)
Weight
265g
TRANSMIT PART
RF power
 10W
Modulate Mode
 12.5KHz : 7K60FXD(Data Only)/12.5KHz: 7K60FXW(Voice & Data)
Hum & Noise
≥ 45dB
Spurious Emission
≥65dB
Modulation Distortion
 ≤ 5%
RECEIVER PART
Sensitivity
 5% BER:0.25μV
Audio Distortion
 ≤ 5%
Spurious Response Rejection
≥ 70dB
Adjacent Channel Selectivity
≥ 65dB
Inter-modulation
≥ 60dB
Audio Output
≥ 1W
