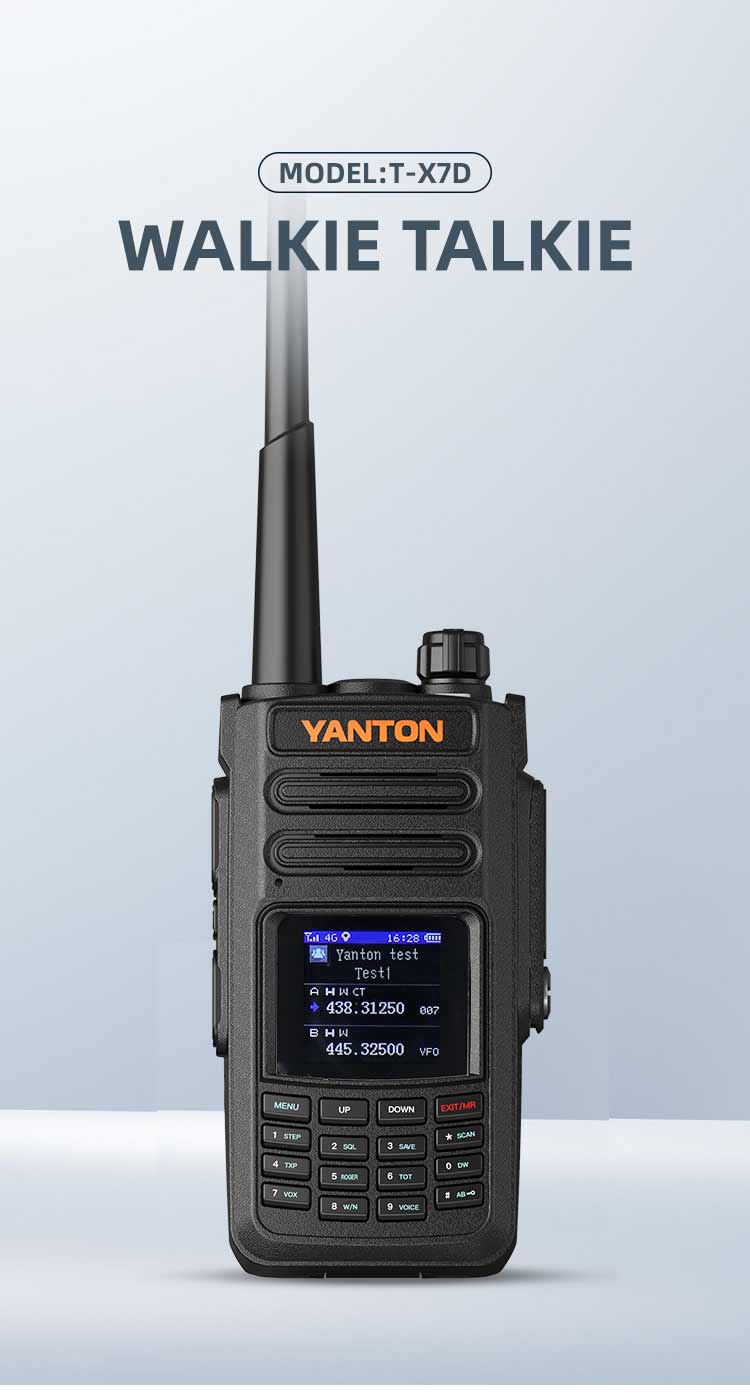

Yanton Walkie Talkie UHF Analog POC Two Way Radio Push To Talk Network Radios T-X7D 4G LTE Smart Phone
Analog/WCDMA/GSM Mode Switch
Function:
Individual Call /Group Call/All Call
Output Power:5W
Contacts
Built-in 50 set of CTCSS and 105 set of DCS
ANI
Double PTT
Friendly Interface Displays The Calling Information
12V/24V Input Intelligent Charger
GENERAL
|
(U)SIM/SIMU
|
Standard SIM card interface 3V SIM card and 1.8V SIM card
|
Operating Temperature
|
-30℃ to +75℃
|
UMTS Band
|
HSDPA/WCDMA:2100/1900/850(900)MHz
|
Average current
|
About 540mA@UMTS 2100 About 239mA@GSM 900
|
Operation current
|
About 0.6A
|
Working voltage
|
DC 7.4V
|
Standby current
|
About 5mA@UMTS About 5mA@GSM
|

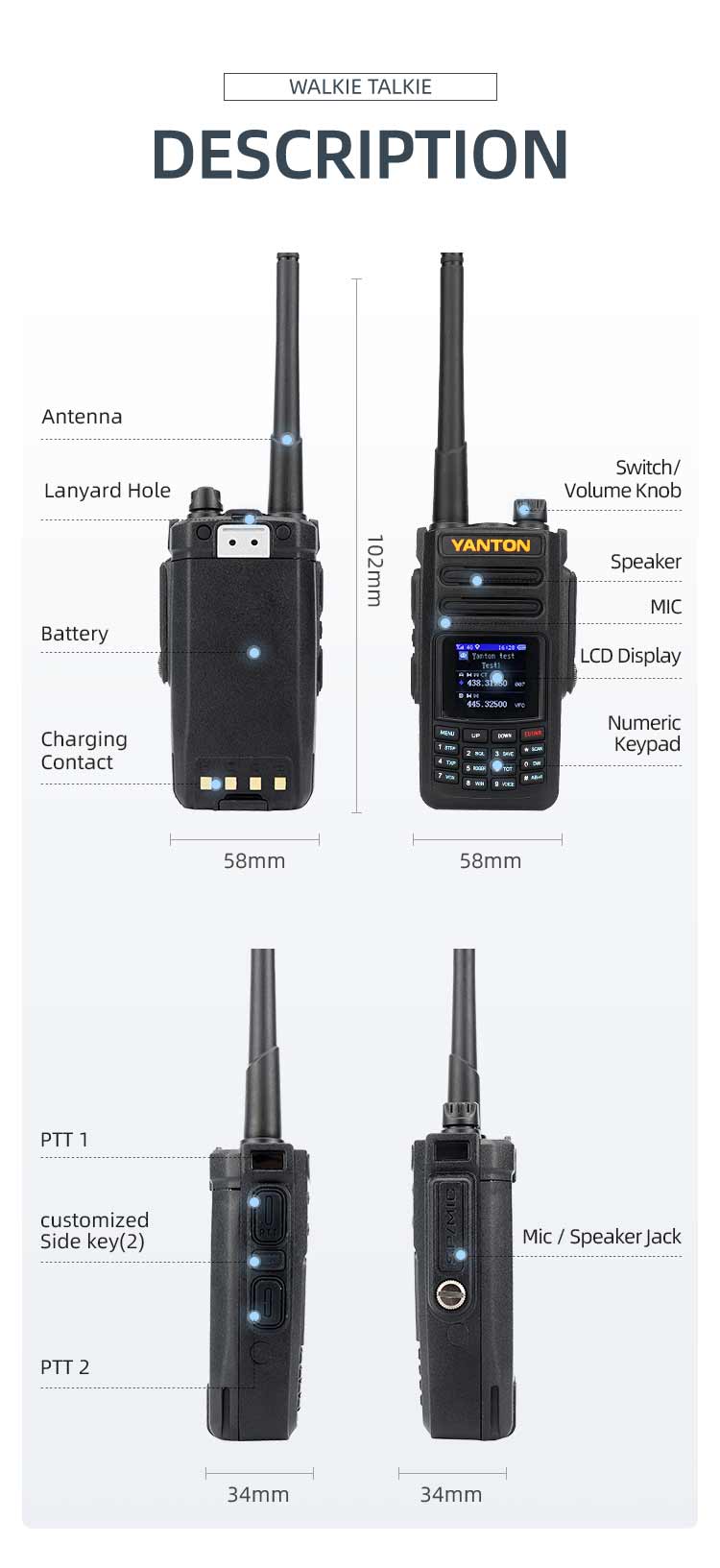

Dimensions
|
102mm*58mm*34mm
|
Weight
|
About 194g
|
|
|
TRANSMIT PART
|
RF power
|
Public
network mode:About 2.2uw;
Analog
mode:5W.
|
Transceiver power
|
UMTS2100/1900/900/850:Power Class 3 (+24dBm +2.5/-1.5dBm)
|
|
EDGE 850MHz/900MHz: Power Class E2 (+27dBm +4.5/-1.5dBm)
|
|
EDGE 1800MHz/1900MHz: Power Class E2 (+26dBm +4.5/-2.5dBm)
|
UART Interface
|
8-wires UART
|
Receiver
|
Receiving Sensitivty
|
WCDMA2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900 : ≤-109dBm
WCDMA850:≤-109 dBm
|
