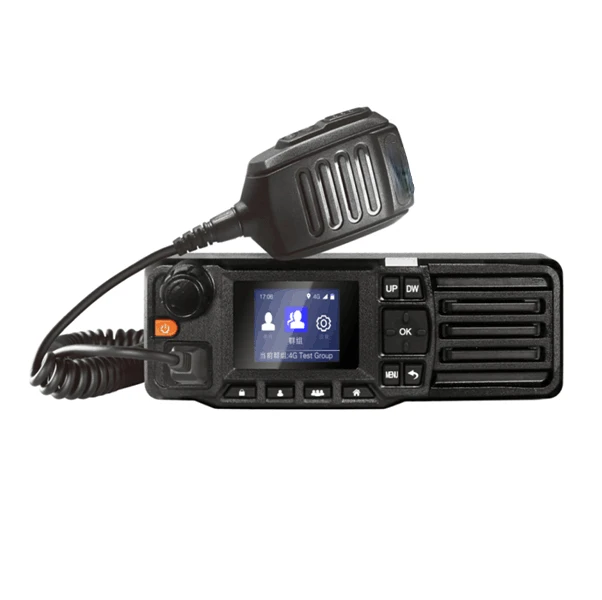

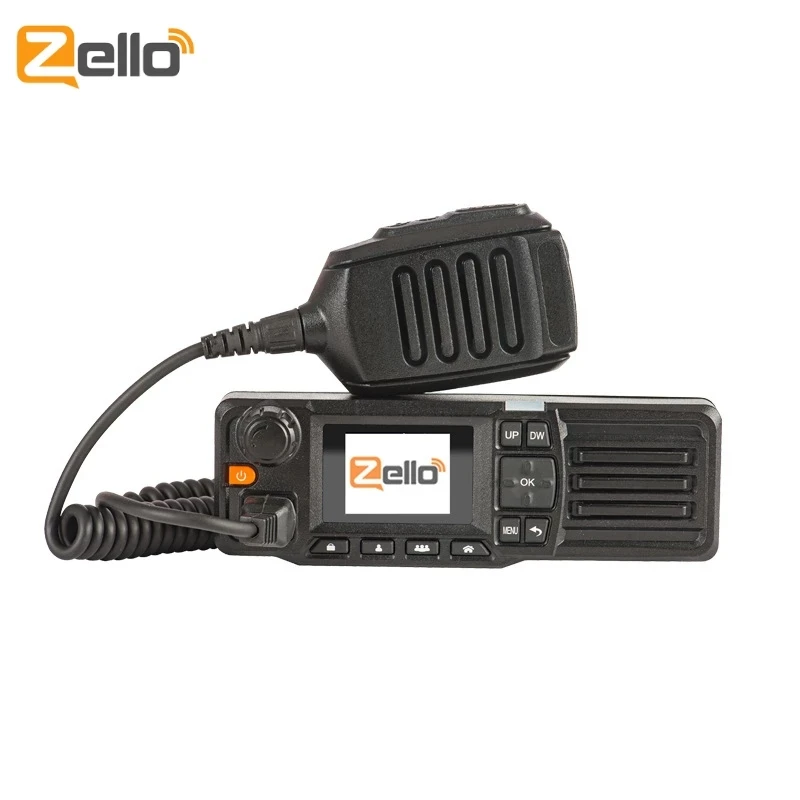

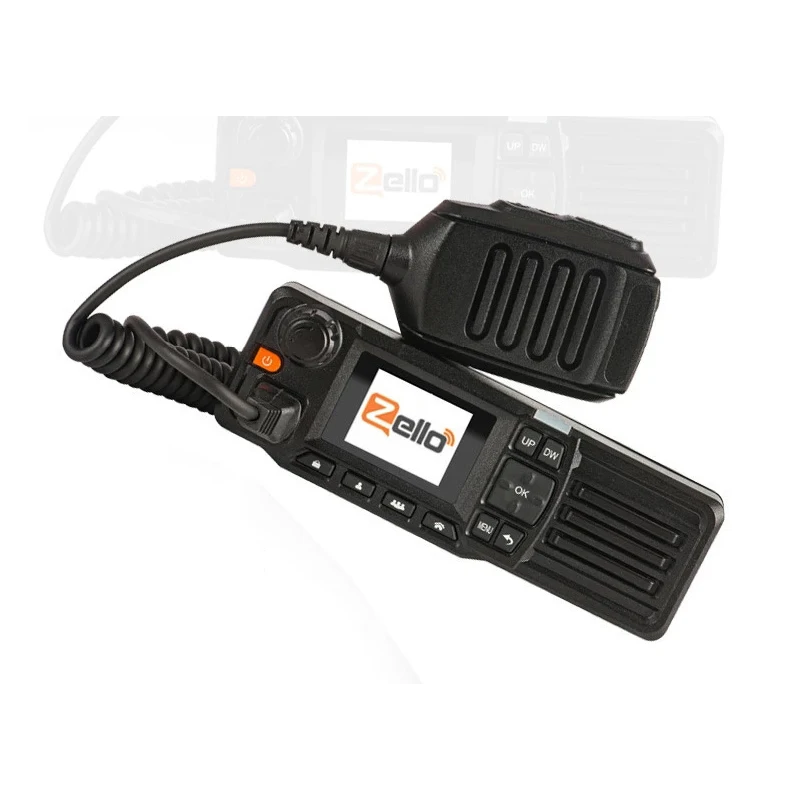

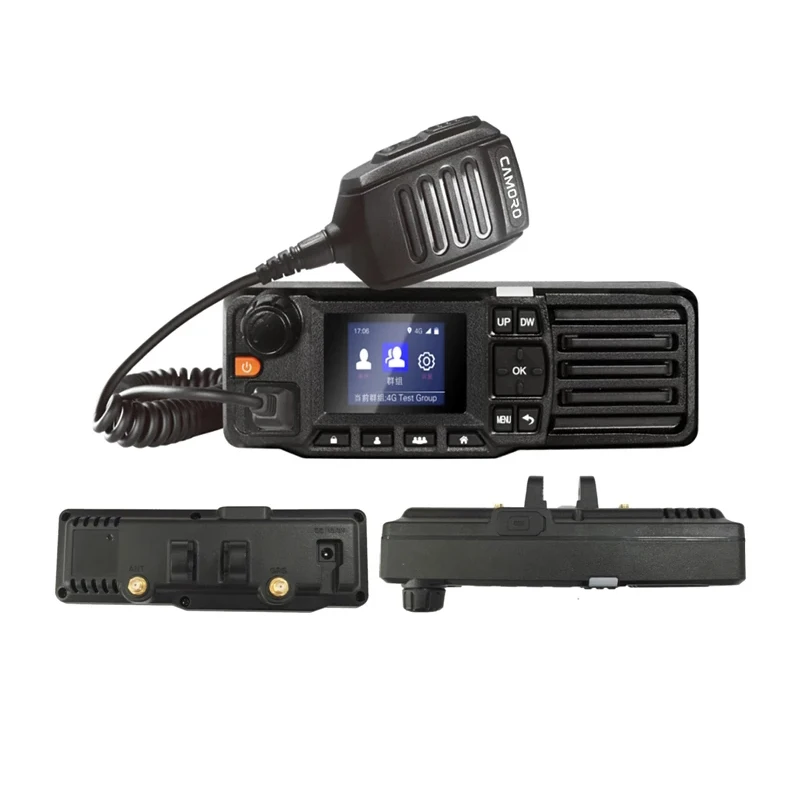

Zello Car Walkie Talkie 4G Car Intercom POC Mobile Radio WiFi GPS Ham Two Way Radio Transceiver Amateur Trucker
Main Features:
1. Unlimited talking distance, 2G/3G/4G compatible.
2. Small size, can easier to mount in limited space, such as private car, trucks, Taxi, Bus, Motorcycle, etc.
3. Based on the Android system, can match your Android application and platform.
4. PTT one-touch communication, strong signal, and long continuation talking.
5. Private Call/Group Call.
6. GPS navigation, radio track playback, Visualization management platform Visualization dispatch platform
7. Low TX power, very environmental
8. 77 inch color screen.
9. Multiple encryptions to keep voice and data safety, support software and hardware assurance.
10. IP54
11. Support WIFI.
12. Support two of GPS, GLONASS, Beidou (Support A-GPS)
Application:
Unique for: Taxi/Bus, Transporting company, Logistics Popular for: Security Guard, Railway, Army, Government, Rescue,
Police,Travelling, etc.

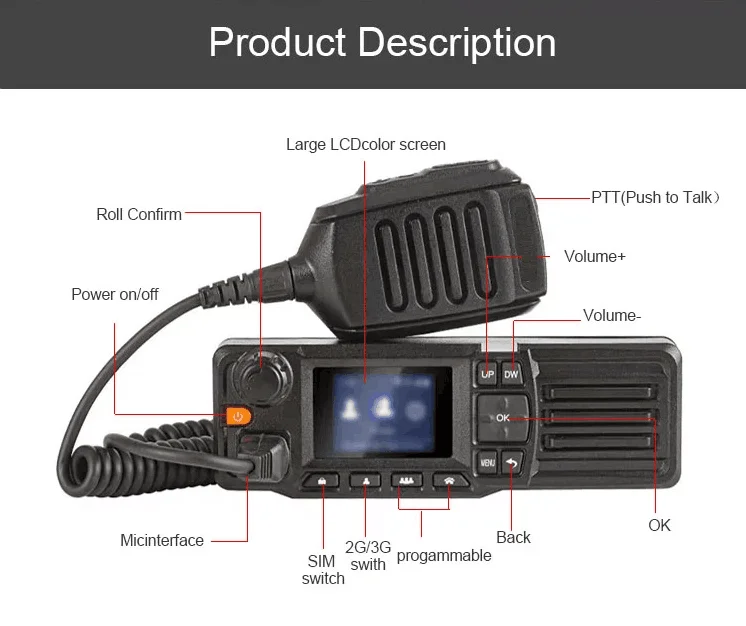

Main Function:
1. wide verizon LCD, protection to following situations: over voltage, over current, overloading and thunderstrike
2. shortcut to switch group, user, and talking history, loud audio and audio control lock function
3. quickest GPS positioning speed comparing to all other Tesunho PoC walkie talkie
4. wide range of input voltage options: 12-28V, can be a 5V 1A quick charger for mobile phone, exteral speaker is available with Tesunho’s standard
5. 8-pin secondary development jack available to other APPs like oil consumption

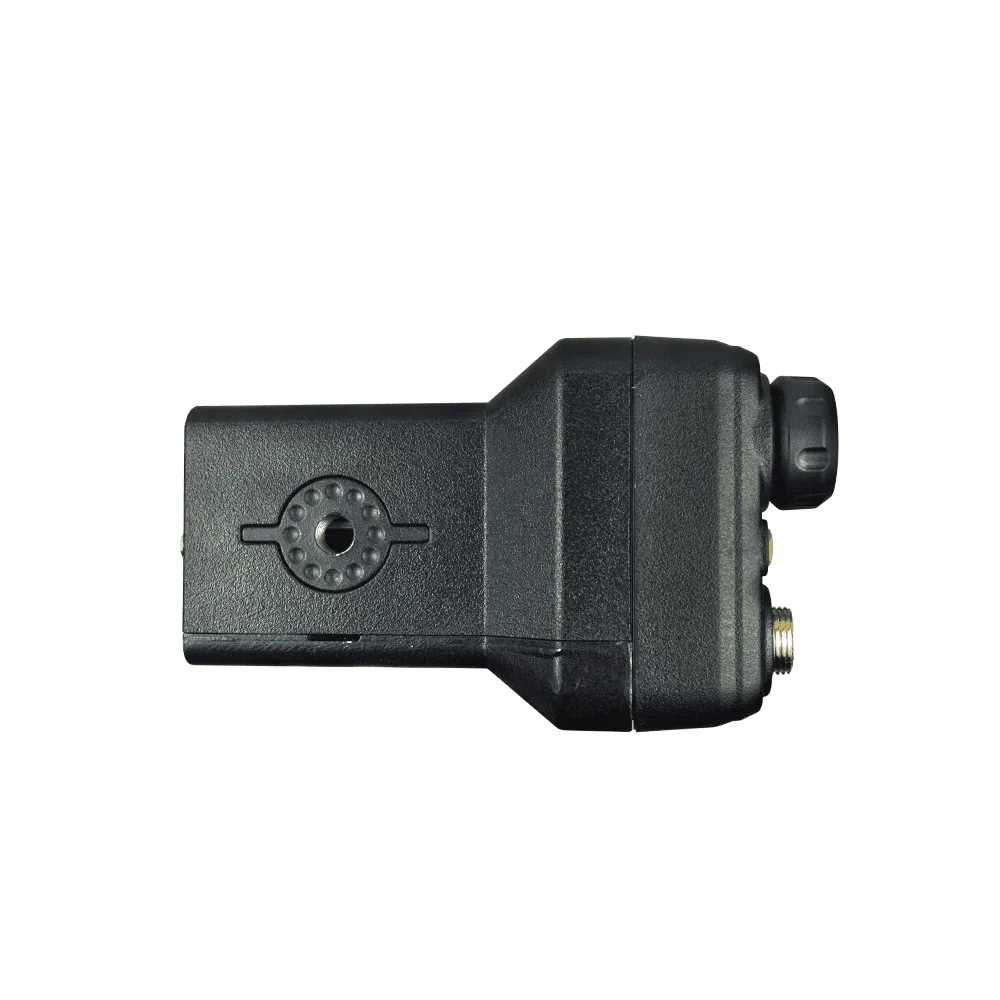

6. maximum bracket rotate degree: 270 degree
1. Unlimited talking distance, 2G/3G/4G compatible.
2. Small size, can easier to mount in limited space, such as private car, trucks, Taxi, Bus, Motorcycle, etc.
3. Based on the Android system, can match your Android application and platform.
4. PTT one-touch communication, strong signal, and long continuation talking.
5. Private Call/Group Call.
6. GPS navigation, radio track playback, Visualization management platform Visualization dispatch platform
7. Low TX power, very environmental
8. 77 inch color screen.
9. Multiple encryptions to keep voice and data safety, support software and hardware assurance.
10. IP54
11. Support WIFI.
12. Support two of GPS, GLONASS, Beidou (Support A-GPS)
Application:
Unique for: Taxi/Bus, Transporting company, Logistics Popular for: Security Guard, Railway, Army, Government, Rescue,
Police,Travelling, etc.
Main Function:
1. wide verizon LCD, protection to following situations: over voltage, over current, overloading and thunderstrike
2. shortcut to switch group, user, and talking history, loud audio and audio control lock function
3. quickest GPS positioning speed comparing to all other Tesunho PoC walkie talkie
4. wide range of input voltage options: 12-28V, can be a 5V 1A quick charger for mobile phone, exteral speaker is available with Tesunho’s standard
5. 8-pin secondary development jack available to other APPs like oil consumption
6. maximum bracket rotate degree: 270 degree
Types
|
Items
|
Specification
|
Notes
|
H/W Platform
|
IC
|
Qualcomm MSM8909
|
|
Technical framework
|
A7
|
||
Basic Frequency
|
1GHz
|
||
Network
|
System
|
L811 (European/Asia version): L809 (Chinese domestic version) L817 (America version): |
|
Bearer
|
CAT 4
|
TDD CAT4, FDD CAT4
|
|
Dimension
|
170mm*54mm*39mm
|
||
Weight
|
200.4g
|
||
LCD
|
Size(inch)
|
1.77
|
|
Resolution
|
128*160
|
||
Connectors
|
Charger
|
vehicle 13.8V
|
|
USB
|
YES
|
Charging, Data transmission
|
|
SIM Card
|
1 SIM card
|
||
Memory card
|
NO
|
||
Memory
|
ROM
|
4GByte
|
|
RAM
|
512MByte
|
||
Sound
|
MICROPHONE
|
YES
|
|
Line-Control earphone
|
NO
|
||
Speaker
|
YES
|
8Ω 3W
|
|
Speaker PA
|
YES
|
||
Connectivity
|
BT
|
YES
|
BT4.0
|
BT power class
|
Class 2
|
||
Standard
|
802.11b/g/n
|
1X1
|
|
WIFI Direct
|
YES
|
||
Wi-fi Router Android Hotspot(Wi-Fi Tethering)
|
YES
|
||
NFC
|
NO
|
||
GPS
|
YES
|
Both
|
|
Beidou
|
YES
|
||

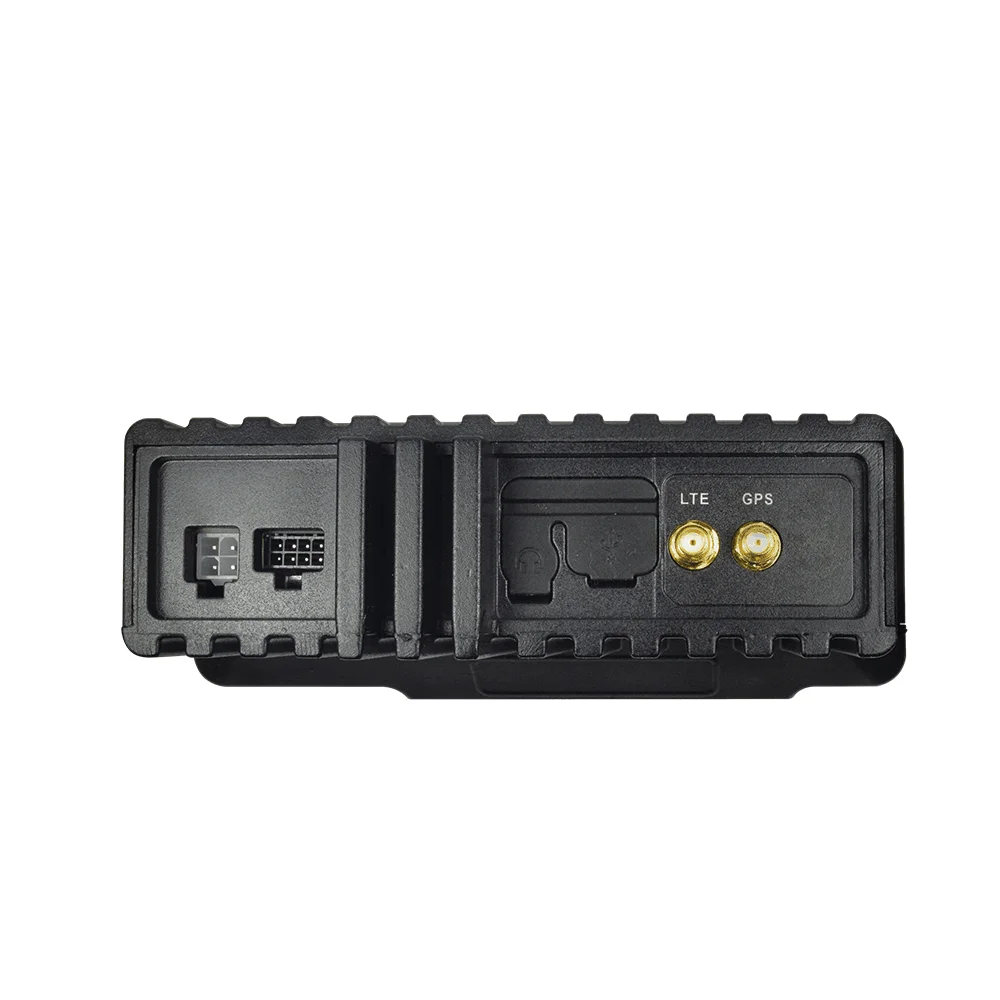

Antenna
|
LTE Main antenna
|
YES
|
SMA jack
|
Auxiliary antenna
|
FPC
|
||
WIFI/BT Antenna
|
FPC
|
||
GPS/BD antenna
|
YES
|
SMA jack
|
|
Operating temperature range
|
-20℃ ~ 60℃
|
||
NOTE: LTE/GSM/WCDMA/CDMA frequency bands can be customizable.
|
