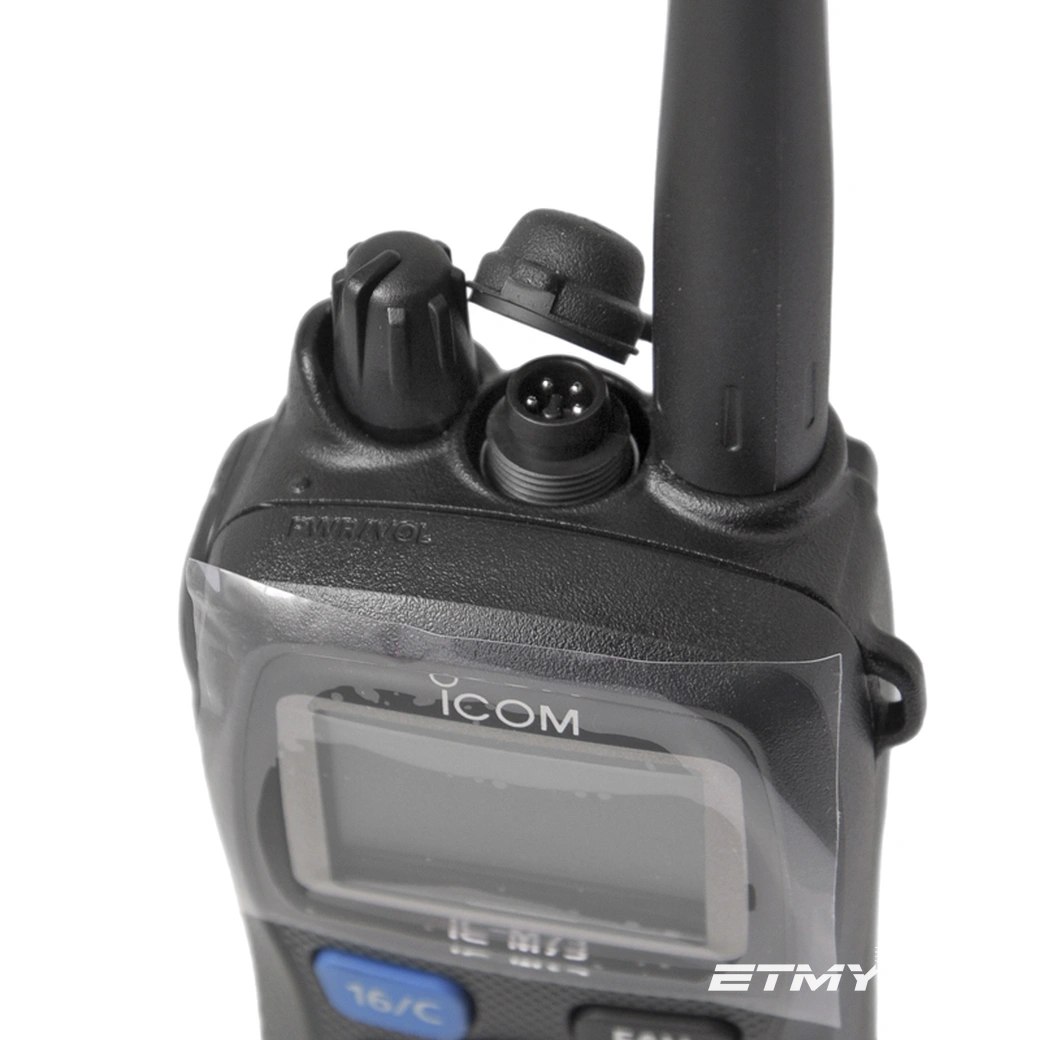

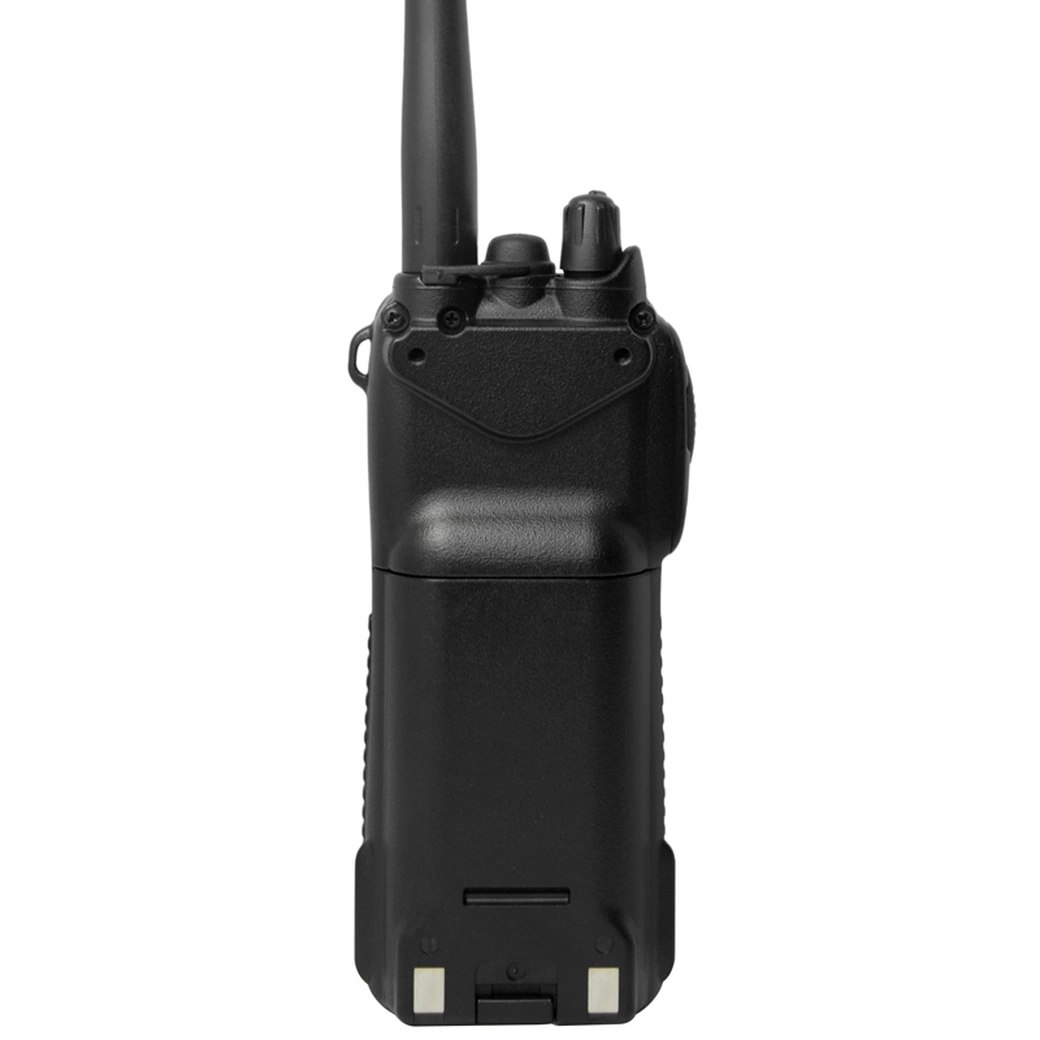

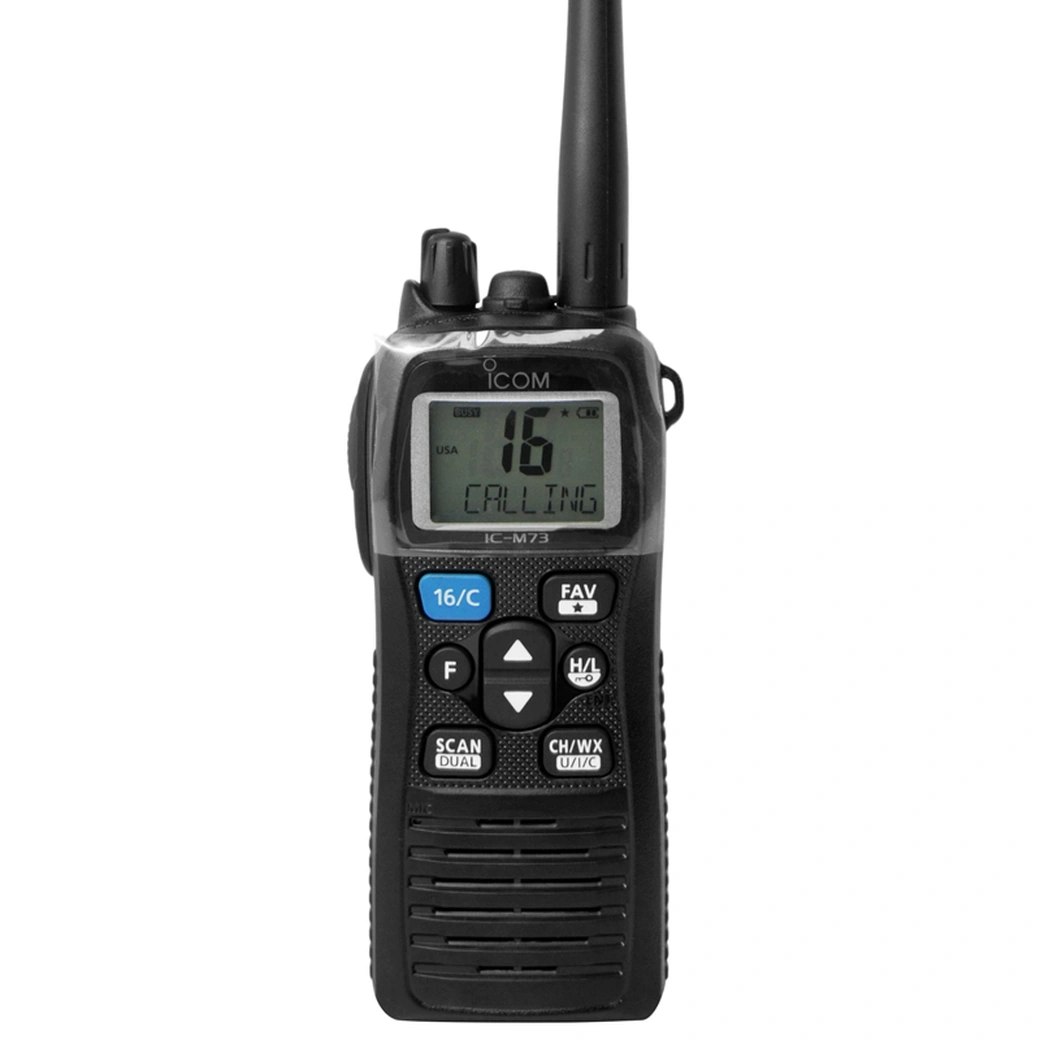

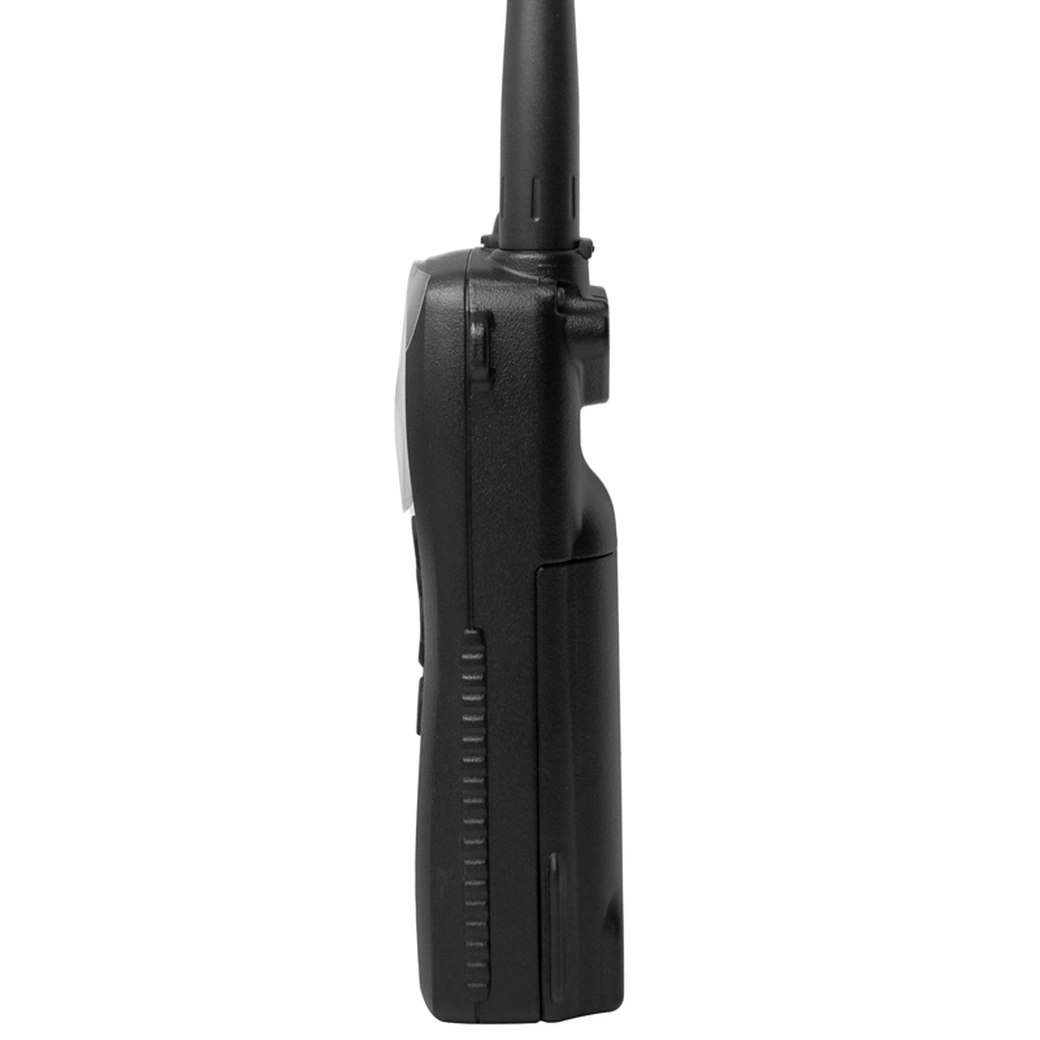

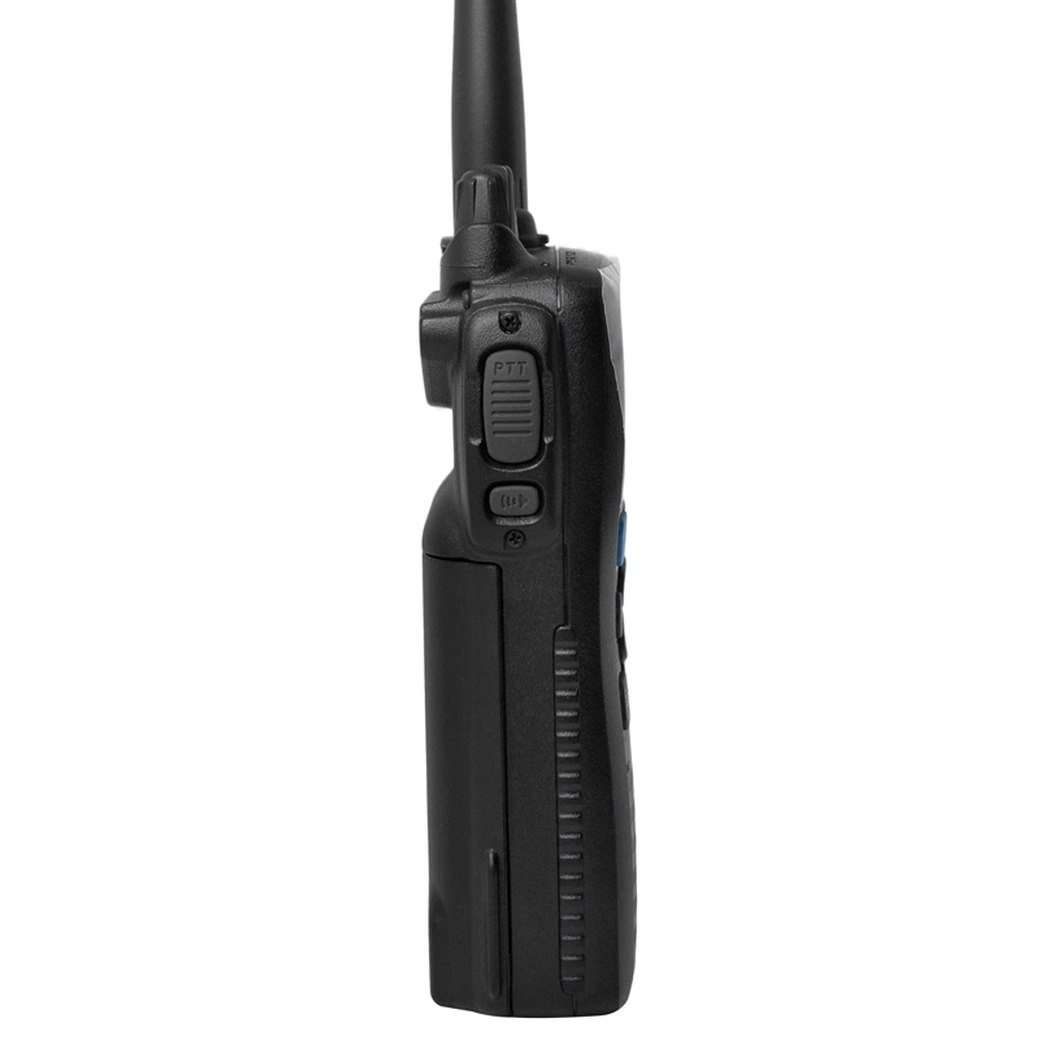

Icom IC-M73 Walkie Talkie
Icom IC-M73
The Icom IC-M73 is a durable and reliable walkie talkie with floating capabilities, waterproof design, and up to 6W power output.
Icom marine walkie talkie ic-m73 icom vhf radio
Icom IC-M73 walkie-talkie is a very suitable communication device for sea personnel. Its excellent performance design provides users with more stable and efficient communication protection. It is convenient and practical. A must-have for marine activities such as homework.
The small and slender design of the Icom IC-M73 walkie-talkie is also its unique feature. It is very easy to carry and use. It can be easily put into a pocket or a backpack, and it can also be conveniently loaded in a designated position on the boat, making it more flexible to use and convenience. At the same time, the protruding design of the walkie-talkie can also effectively avoid misoperation and enhance the reliability and service life of the walkie-talkie.
The waterproof performance of the Icom IC-M73 walkie-talkie is very outstanding. It meets the IPX8 waterproof standard and can work continuously for 30 minutes at a depth of 1.5 meters underwater. It can also remain stable even in bad weather and submerged in water. And clear communication quality, thus providing more reliable and effective communication protection for seafarers such as crew.
The Icom IC-M73 walkie-talkie not only has a powerful 6W high power, but also has excellent clarity and good signal transmission capability, which can effectively reduce signal interference and noise, and ensure the immediacy and accuracy of maritime communication. This is especially crucial for people working at sea, which can help them better deal with emergencies and dangerous incidents and reduce communication risks.
Other Features
- AquaQuake prevents audio degradation from a water-logged speaker
- Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
- 4 level battery indicator
- Favorite channel and tag scan functions
- Rapid desktop charger, BC-210, and cigarette lighter cable, CP-25H, are supplied
- Optional waterproof speaker-microphones, HM-167 and HM-202
- Auto power save function
- Basic version (no voice recorder, no noise canceller and no bass boost function) available for limited markets.
Specifications
| GENERAL | |
| Frequency range Tx Rx |
156.025-157.425 MHz 156.050-163.275 MHz |
| Usable channel groups | INT,USA,CAN,Wx channels |
| Type of emission | 16KOG3E(FM) |
| Current drain(approximate) Tx 6W output Rx Max.audio (Int SP/Ext SP) |
1.5A
450 mA/250 mA
|
| Operating temp.range | 20°C to +60°C;-4F to +140°F |
| Antenna impedance | 50Q |
| Dimensions (WxHxD) (projections not included) |
52.5x125x30 mm 2.0×4.9×1.2 in |
| Weight (approximate) | 320 g; 11.3 oz (With BP-245H,FA-S64V,MB-103) |
| TRANSMITTER | |
| Output power (Hi/Mid/Low) | 6 w/3 W/1 w |
| Max. frequency deviation | 土5.0 kHz |
| Frequency stability | 士10 ppm |
| Spurious emissions | -68 dBc typical |
| Adjacent channel power | 70 dB |
| Audio harmonic distortion | 10% (at 60% dev.) |
| Residual modulation | 40 dB |
| RECEIVER | |
| Sensitivity | 0.22 uV typical (at 12dB SINAD) |
| Squelch sensitivity | 0.35 uV typical (at threshold) |
| Adjacent channel selectivity | 70 dB typical |
| Spurious response | 70 dB typical |
| Intermodulation | 70 dB typical |
| Hum and noise | 40 dB |
| Audio output power (at 10%distortion,8 load) |
700 mW typical (Internal SP) 350 mW typical(External SP) |
