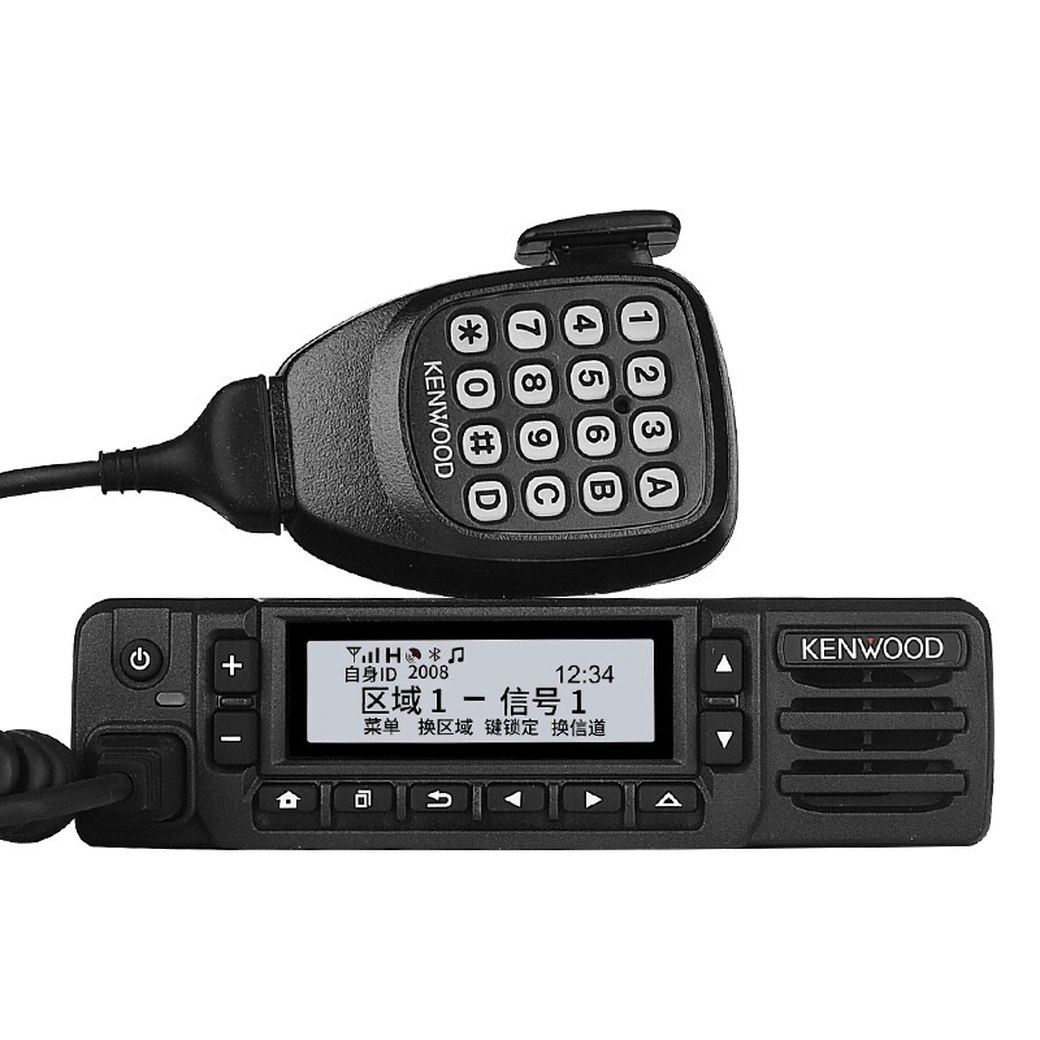

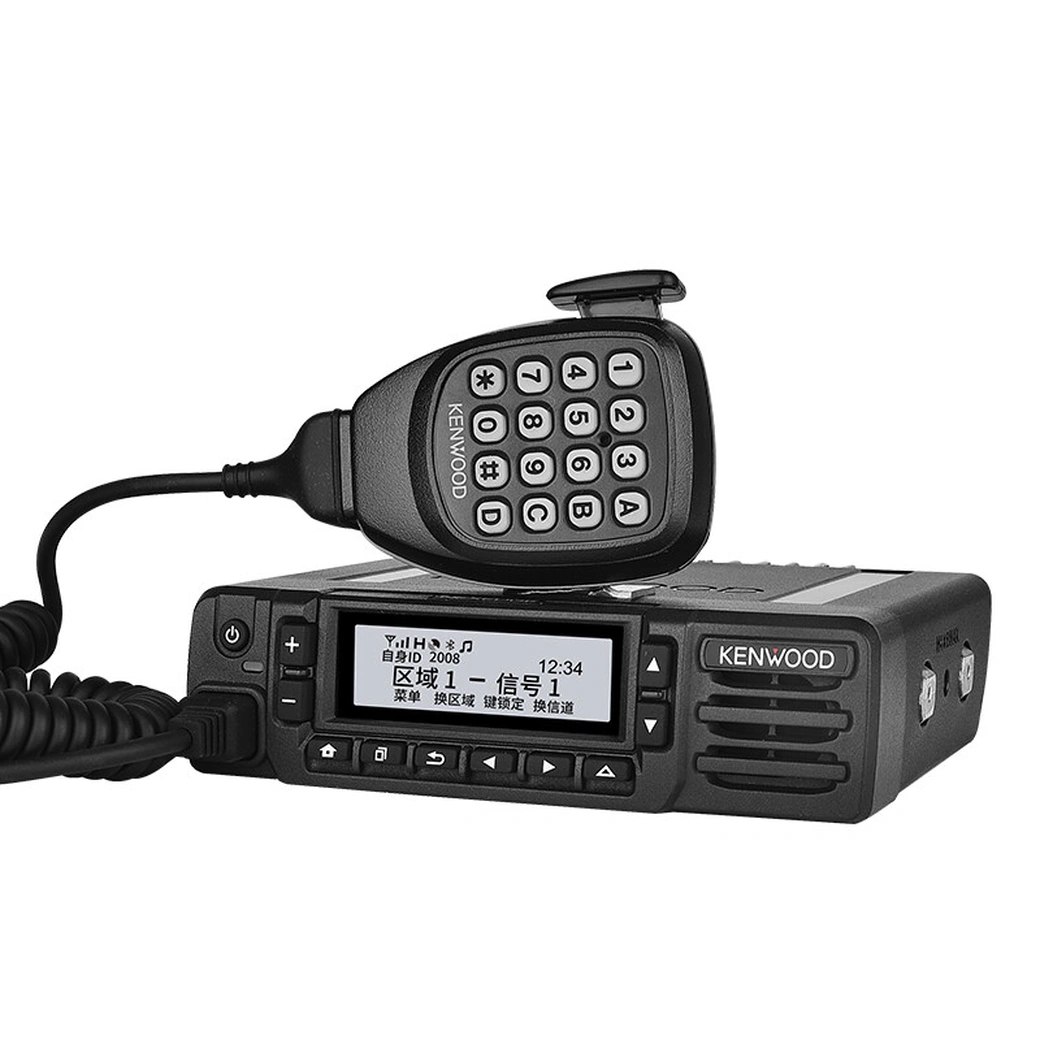

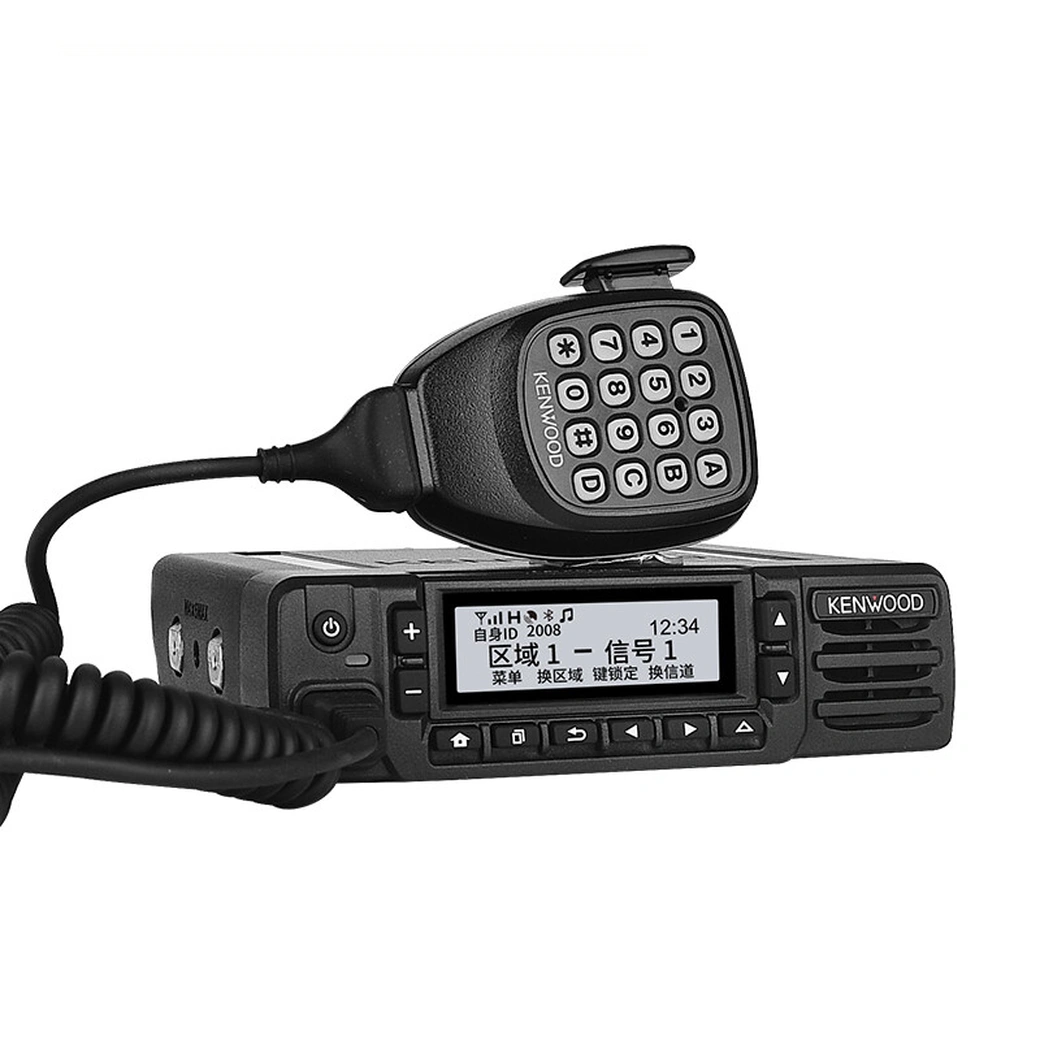

Kenwood NX-3820 Mobile Radio
Kenwood NX-3820
Kenwood NX-3820 professional mobile radio is built for integrators who need one box that can follow a fleet from analog today to NXDN tomorrow and DMR next year. The radio ships with three personalities in firmware—NXDN mobile radio, DMR Tier II and wide/narrow FM—so a utility crew can leave the yard at 5 a.m. on legacy 25 kHz FM, switch to 6.25 kHz NXDN at noon for double channel capacity, and still reach the old handhelds on the same frequency pair.
Main features
Wideband UHF Powerhouse
400–520 MHz range with 5/25/45 W steps keeps the same unit punching 50 W on a mining hauler and dropping to 5 W inside RF-restricted depots.
400–520 MHz range with 5/25/45 W steps keeps the same unit punching 50 W on a mining hauler and dropping to 5 W inside RF-restricted depots.
NXDN Mobile Radio Channel Efficiency
True 6.25 kHz FDMA squeezes two voice paths into one licence slot, doubling capacity for marathon logistics or security patrols without extra fees.
True 6.25 kHz FDMA squeezes two voice paths into one licence slot, doubling capacity for marathon logistics or security patrols without extra fees.
Built-in GPS and Bluetooth
FleetSync plus GPS logs every PTT with time and location; Bluetooth headsets keep ambulance drivers hands-free and compliant.
FleetSync plus GPS logs every PTT with time and location; Bluetooth headsets keep ambulance drivers hands-free and compliant.

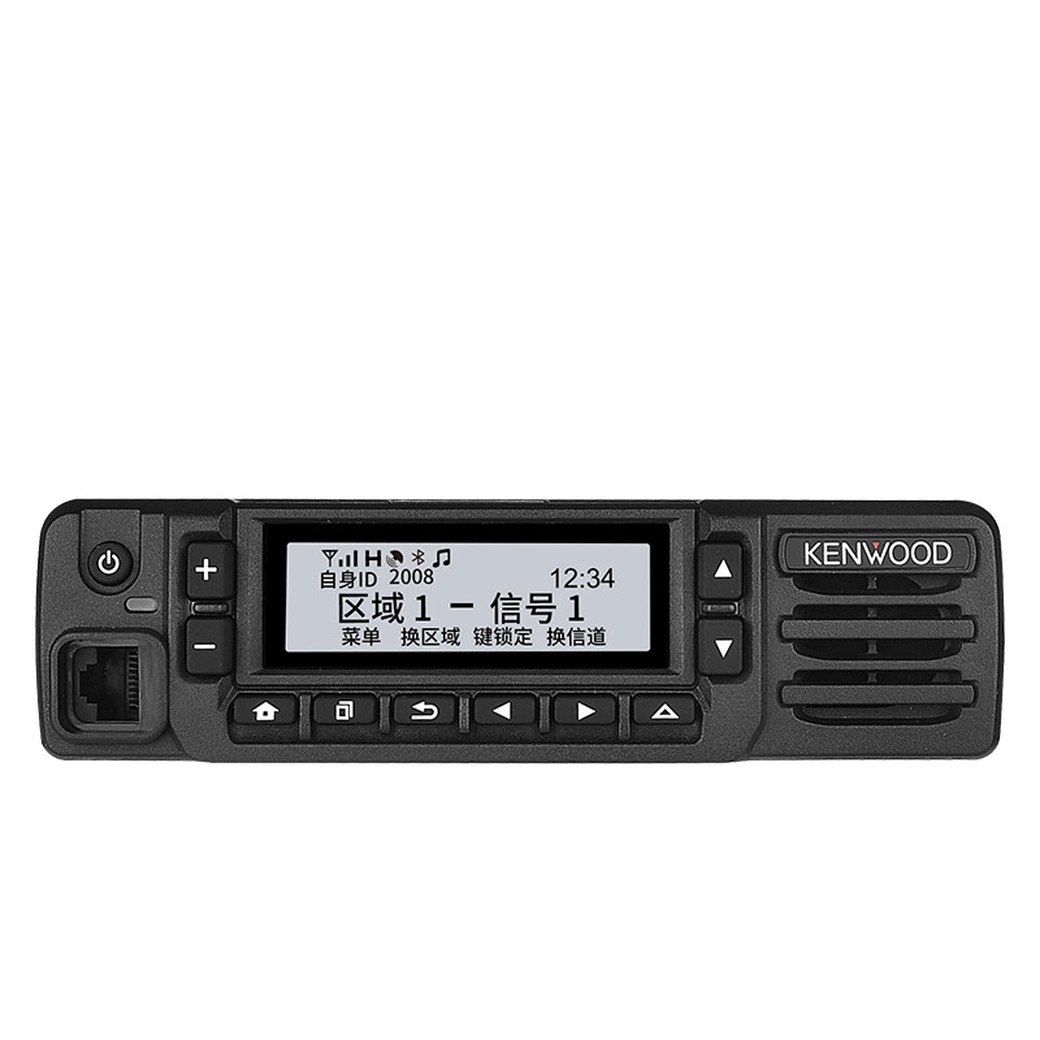

Detachable Control Head
Dash-mount the display while the RF deck hides in the trunk—trimming install time on a 200-bus fleet to under forty minutes per vehicle.
Dash-mount the display while the RF deck hides in the trunk—trimming install time on a 200-bus fleet to under forty minutes per vehicle.
Over-the-Air Programming
Push firmware, frequencies and encryption keys from the office; 120 units updated city-wide before the shift rolled out.
Push firmware, frequencies and encryption keys from the office; 120 units updated city-wide before the shift rolled out.
Rugged Audio for Real Work
4 W external speaker and DSP noise cancellation let concrete mixers hear dispatch over 95 dB ambient—proof that this kenwood nx3820 is built for job-site noise, not the showroom.
4 W external speaker and DSP noise cancellation let concrete mixers hear dispatch over 95 dB ambient—proof that this kenwood nx3820 is built for job-site noise, not the showroom.
Other functions
- NXDN Type-C & Gen2 Trunked
- NXDN Conventional
- 6.25 & 12.5 kHz Channels
- All Group Call
- Over-the-Air Alias (OAA)
- Over-the-Air Programming (OTAP)
- Complies with ETSI DMR Tier II standards
- Two-slot TDMA in 12.5 kHz channels
- Call Interruption
- Dual-slot Direct Mode
- ARC4 Encryption
NX-3820 accessories
- 1*NX-3820 Mobile radio
- 1*Handheld MIC
- 1*Bracket
- 1*MIC stand
- 1*Parts
- 1*Power cord
- 1*Manual
Specification
| GENERAL | |
| Frequency Range | Type 1: 450–520 MHz Type 2: 400–470 MHz |
| Max. Channels per Radio | Up to 1000 channels with option |
| Number of Channels | 512 |
| Number of Zones | 128 |
| Channel Spacing | Analog: 12.5 / 15 / 25 kHz Digital: 6.25 / 12.5 kHz |
| Operating Voltage | 13.6 V DC ±15 % |
| Current Drain | 0.45 A / 2.3 A / 12 A |
| Operating Temperature | -22 °F to +140 °F (-30 °C to +60 °C) |
| Frequency Stability | ±1.0 ppm |
| Antenna Impedance | 50 Ω |
| Dimensions (W×H×D) | 6.30×1.69×6.30 in (160×43×160 mm) |
| Weight (net) | 2.65 lb (1.2 kg) |
| FCC ID | K44479200 |
| IC Certification | 282F-479200 |
| RECEIVER | |
| Sensitivity | NXDN 6.25 kHz: 0.20 µV NXDN 12.5 kHz: 0.25 µV DMR 12.5 kHz (5 %BER): 0.30 µV DMR 12.5 kHz (1 %BER): 0.45 µV Analog 12 dB SINAD: 0.25 µV |
| Selectivity | 70 dB / 80 dB |
| Intermodulation | 70 dB |
| Spurious Rejection | 80 dB |
| Audio Distortion | 2 % |
| Audio Output | 4 W / 4 Ω |
| TRANSMITTER | |
| RF Power Output | 50 W / 30 W / 5 W |
| Spurious Emission | -73 dB |
| FM Hum & Noise | 45 dB / 40 dB |
| Audio Distortion | 2 % |
| Digital Protocol | ETSI TS 102 361-1,-2,-3 |
| Emission Designator | 16K0F3E, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 7K60FXD, 7K60FXE, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D |
