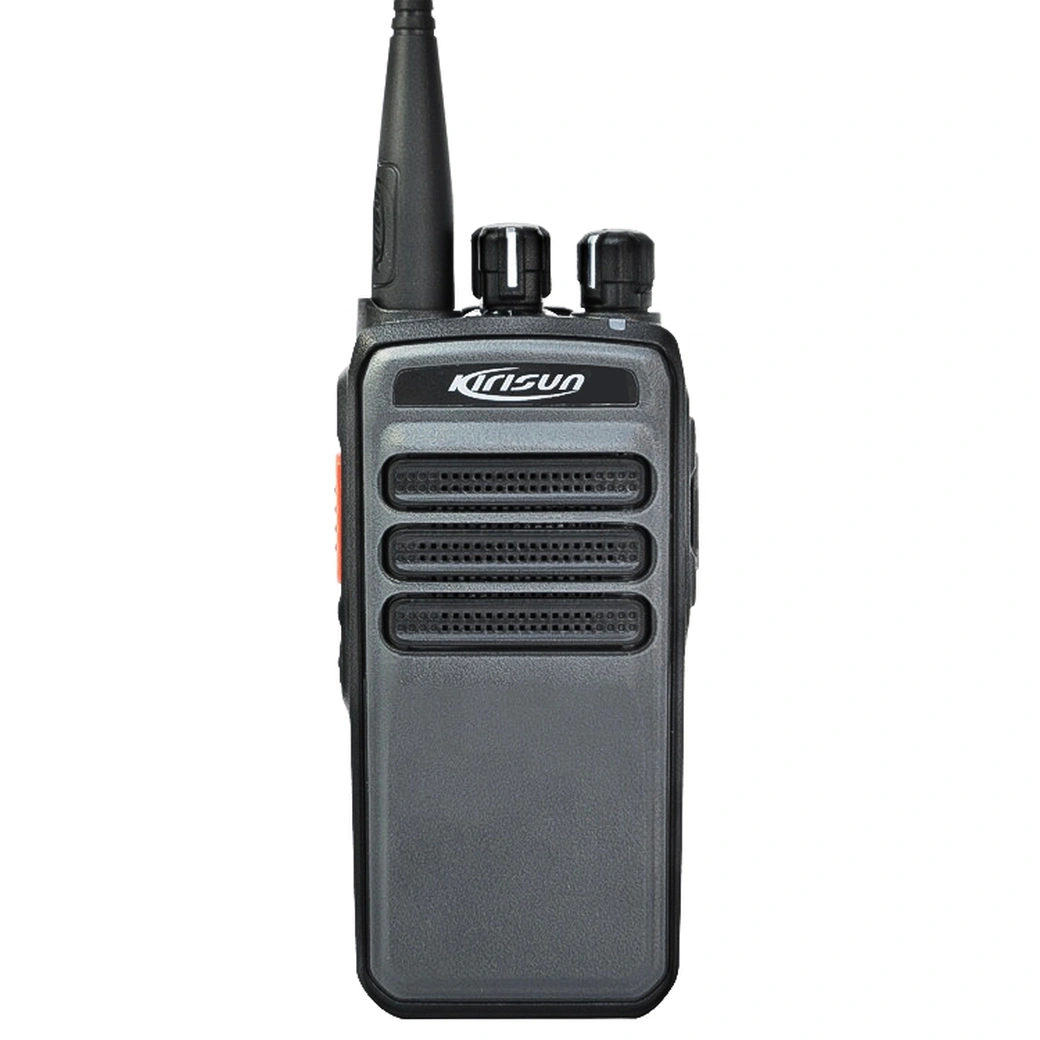

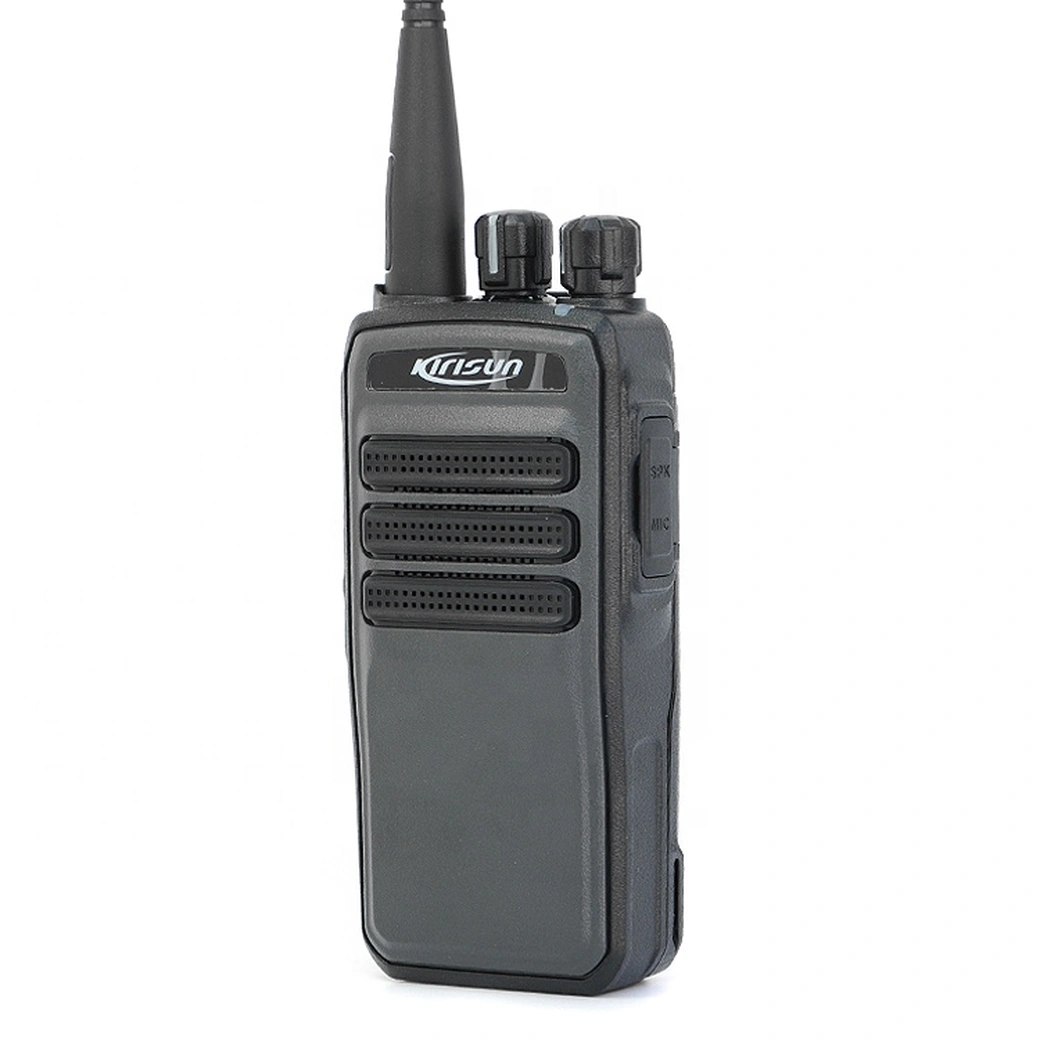

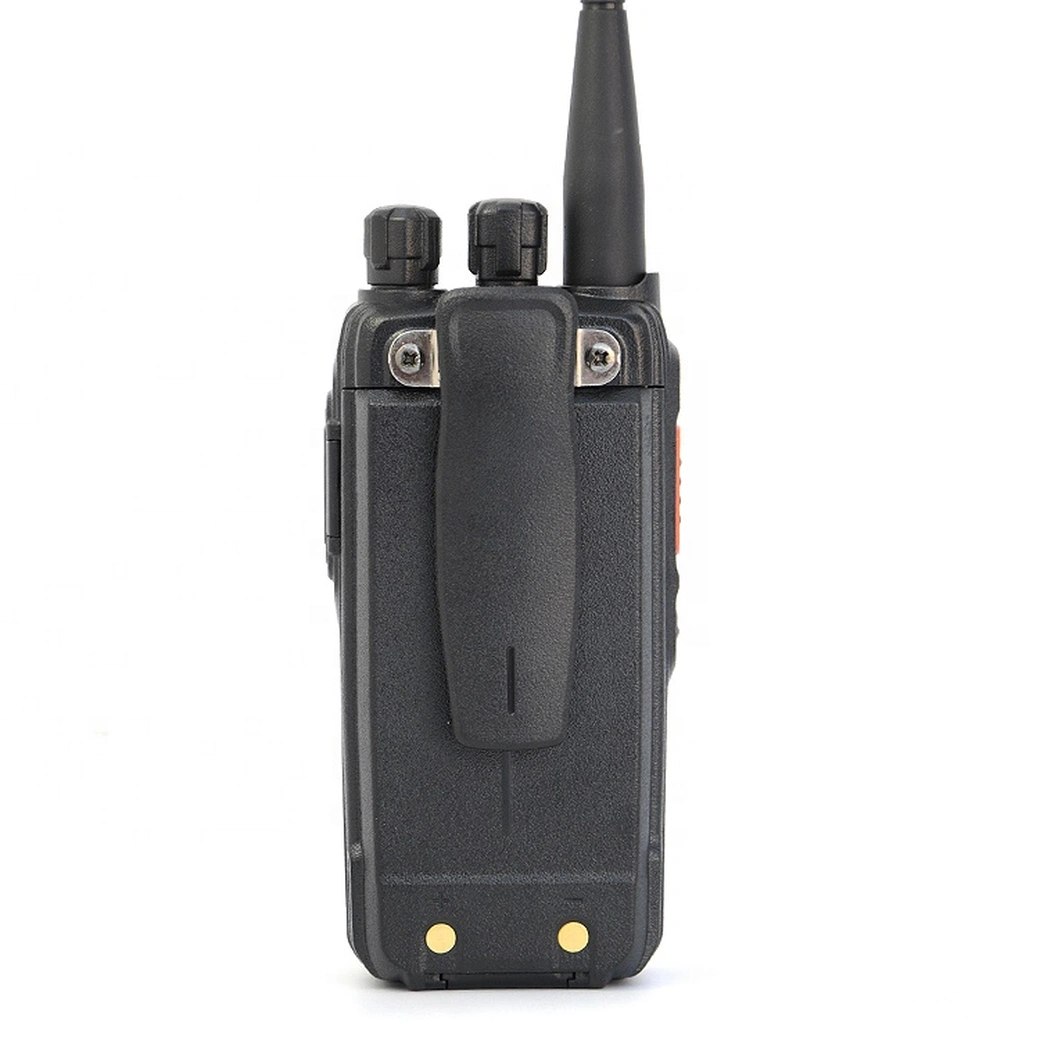

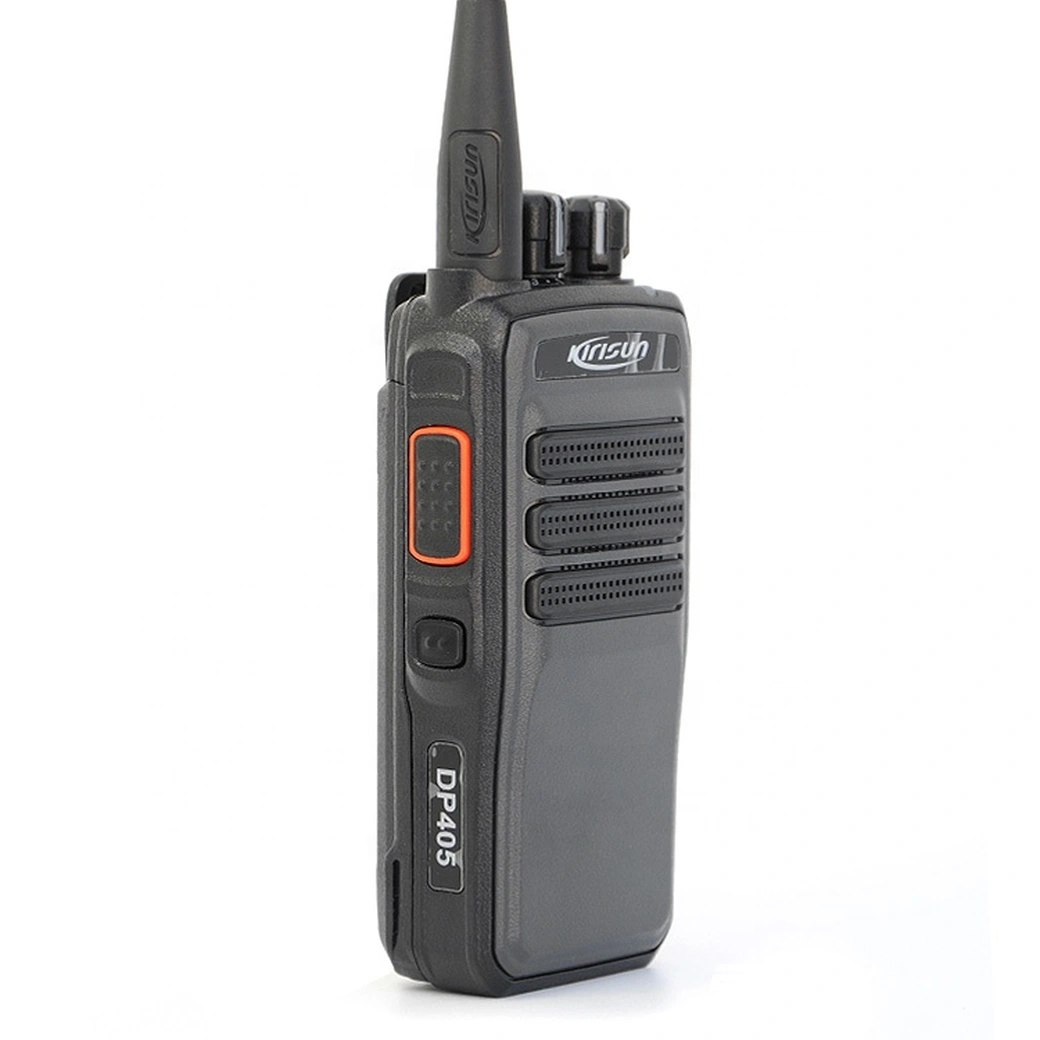

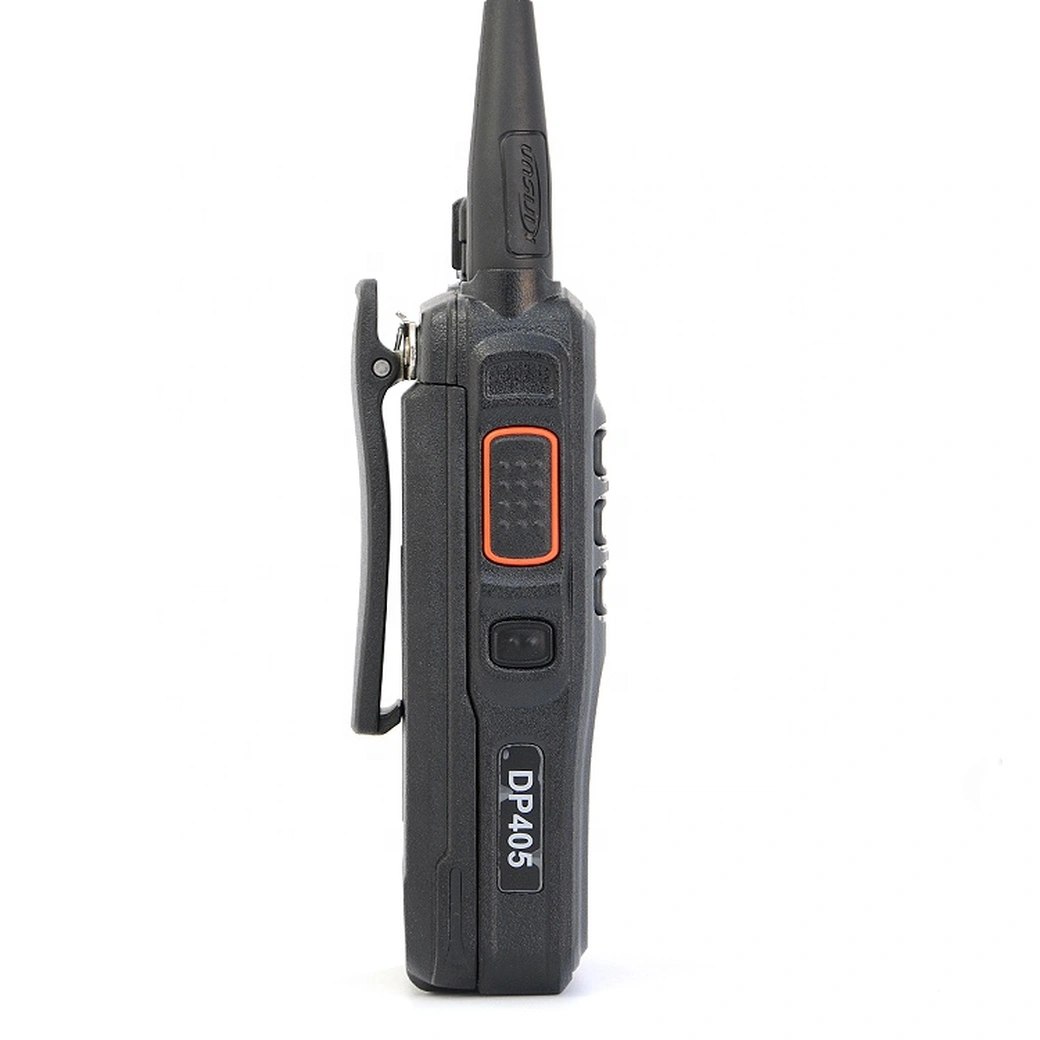

Kirisun DP405 Walkie Talkie
long range encrypted Kirisun DP405 dmr digital two way radio kirisun walkie talkie with voice encryption price
Features
Digital Standard and Analog Compatibility
The Kirisun DP405 meets the DMR digital standard and can work in both digital and analog modes. This is really helpful for teams or companies that are moving from analog to digital systems. They don’t need to change all their equipment at once. The Kirisun DP405 can work with both types of systems, which makes the transition easier and more flexible.
Self-defined Voice Annunciation
The user can directly download voice annunciation of different languages and also zone alert tone to the radio through the PC software based on the actual needs. After powering on, the voice annunciation will automatically switch to the local language.
Improved Call Capacity with DMO 2-slot
The feature of DMO 2-slot realizes two group calls on the same frequency at the same time in Direct Mode. The call capacity can be increased without having to apply for additional frequency, thus greatly helping the user to save the cost.
Smooth Transition and Compatibility with Both Analog and Digital Mode
It supports both digital and analog mode, so the user can go on using the existing analog radio to talk to DP405.
Longer Operation Duration
TDMA technology and power-saving feature enable the battery to work longer. DP405 with standard 2000mAH battery can perform for 16 hours to meet the user’s demands on longer operation.It can work continuously for up to 18 hours and has a standby time of up to 100 hours. This means that users don’t need to worry about frequent recharging during long work periods. The battery life of the Kirisun DP405 can meet the basic needs of most users in daily work.
ARC 40-bit Encryption Guarantees Safe Communication
It supports ARC 40-bit encryption, which guarantees communication safety and prevent from being eavesdropped.
Practical Business Functions
The Kirisun DP405 includes several business functions that can help manage communication more effectively. For example, it has radio – check, remote monitoring, and remote activation/deactivation capabilities. These features allow administrators to check the status of the Kirisun DP405 units, monitor communication activities, and manage access rights. These functions are quite helpful for businesses to maintain the efficient operation of their communication networks.
Functions
- Voice broadcast
- Whisper function
- High and low power transmission options
- Monitoring function
- TOT transmission time limit protection
- Single work
- CTCSS/DCS codec
- Offline function
- Automatic power saving, low battery alarm
- Read and write frequency password setting
- No transmission when busy
- Computer programming, support online upgrade
Accessories
| Power adapter | KB-760B Li-ion battery(2000mAh) | Antenna |
| Lanyard | Manual | Charging cable |
Specifications
| General Specifications | |
| Frequency Bands |
VHF: 136-174 MHz;
350: 350-400 MHz
UHF: 400-470 MHz
|
| Channel Capacity | 256 channels (16 zones × 16 channels) |
| Channel Spacing |
Analog: 12.5KHz / 20KHz / 25KHz;
Digital: 12.5KHz
|
| Battery (Standard) | DC 7.4V ±20%, 2000mAh Lithium-ion battery |
| Battery Life | Analog: ~18 hours; Digital: ~20 hours |
| Operating Temperature | -30°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W × H × D) | 34.5mm × 60mm × 130mm (excluding antenna) |
| Weight | ≤280 grams (including battery, belt clip, antenna) |
| Receiving Part | |
| Frequency Stability | ±0.5 ppm |
| Analog Sensitivity | ≤ -121 dBm @ 12dB SINAD |
| Digital Sensitivity | ≤ -119 dBm @ 5% BER |
| Intermodulation | -65 @ dB 12.5/20/25 kHz |
| Adjacent Channel Selectivity | Analog: ≥60 dB @ 12.5kHz; ≥70 dB @ 25kHz; Digital: ≥60 dB @ 12.5kHz |
| Co-channel Suppression | 0 to -12 dB @ 12.5/20/25 kHz |
| Blocking | 84 dB |
| Rated Audio Power | >1W |
| Audio Distortion | ≤ 3% |
| Signal-to-Noise Ratio (Audio) | ≥ -40 dB @ 12.5 kHz; > -45 dB @ 25 kHz |
| Conducted Spurious Emission | <-57 dBm |
| Antenna Impedance | 50 Ω |
| Transmitting Part | |
| Frequency Stability | ±0.5 ppm |
| Power Output | VHF: 1W / 5W; UHF: 1W / 4W |
| FM Modulation Format | 11K CCD (F3E) @ 12.5kHz; 16K CCD @ 25kHz |
| 4FSK Digital Modulation | 7.6K FXD (data); 7.6K FXW (data + voice) |
| Digital Codec | AMBE++ |
| Digital Protocol | ETSI-TS102 361-1, -2, -3 |
| Modulation Sensitivity | 8+2 mV |
| Conducted/Radiated Spurious | -36 dBm <1 GHz; -30 dBm > 1 GHz |
| Signal-to-Noise (Audio) | ≥ -40 dB @ 12.5 kHz; ≥ -45 dB @ 25 kHz |
| Adjacent Channel Power (Analog) | ≥60 dB @ 12.5 kHz; ≥70 dB @ 25 kHz |
| 4FSK Modulation Precision | ≤ 3% |
| Frequency Deviation Limit | ≤ +2.5 kHz @ 12.5 kHz |
| Audio Distortion | ≤ 3% |
| Audio Frequency Response | 300 Hz – 3 kHz, ±1/-3 dB |
