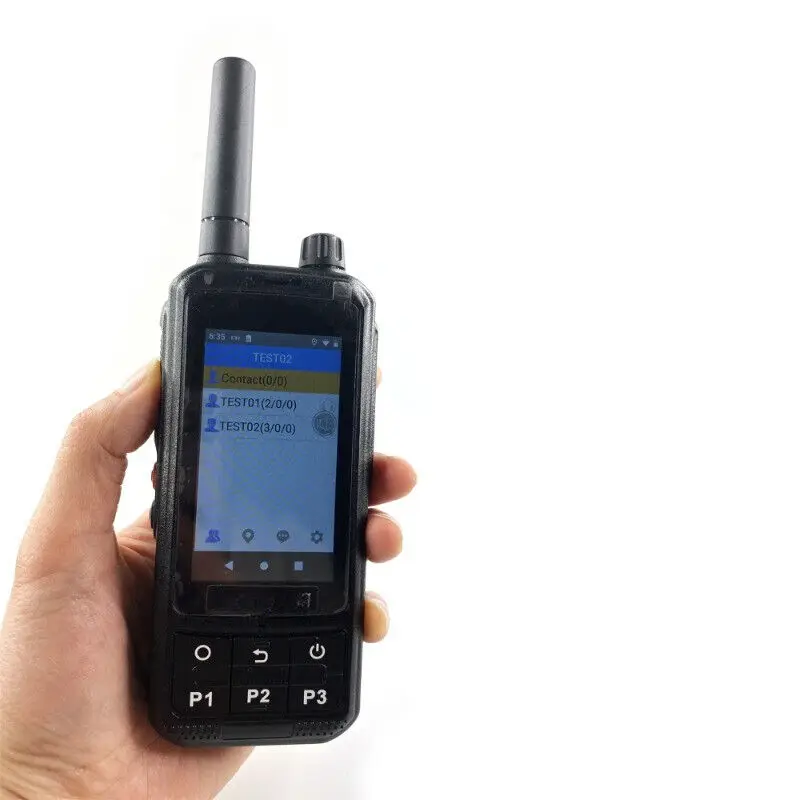

Android Wifi Zello 4g Poc Real Ptt Star Sim Card Ham Push To Talk Two Way Radio
Product Description
|
General Specifications
|
||
|
Network support
|
LTE/WCDMA/GSM
|
|
|
Platform
|
MTK MT6737WM
|
|
|

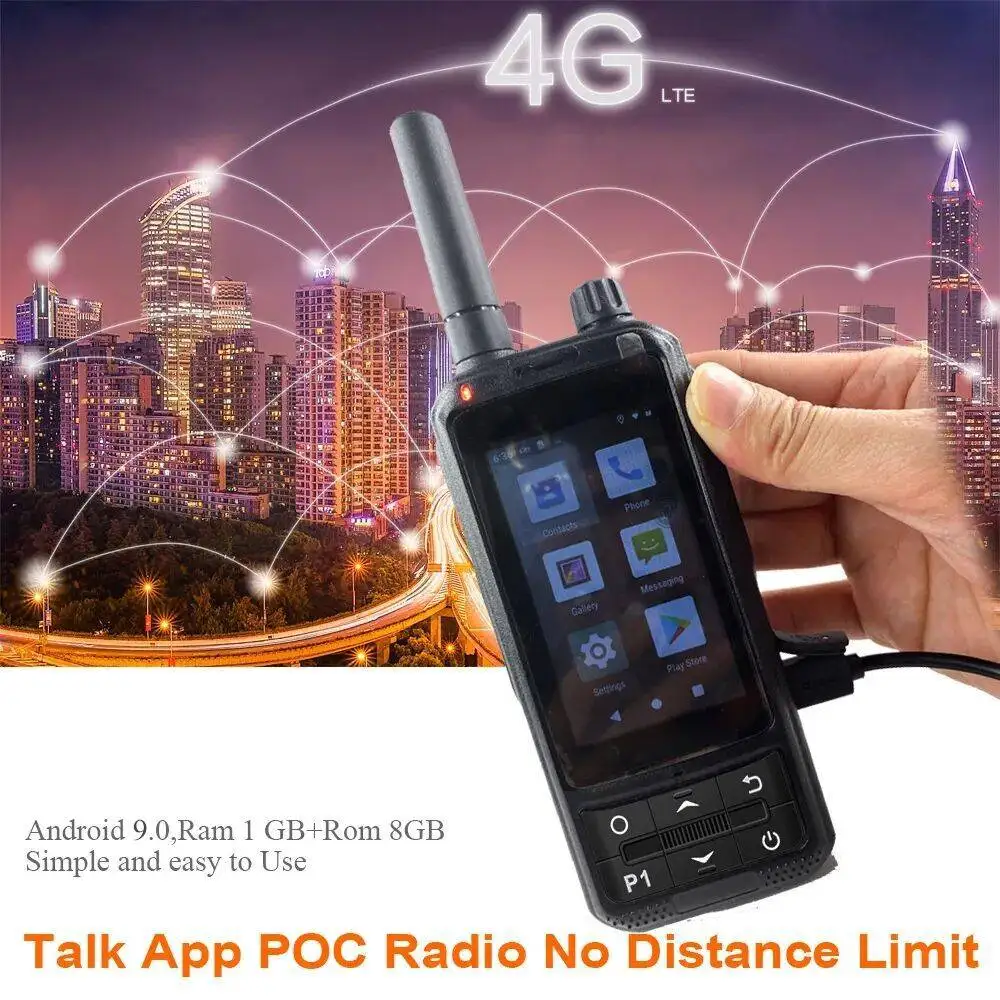

Operate system
|
Android 9.0
|
|
|
Cam’era
|
Front(5MP) and Rare(8MP), focus automatically
|
|
|
Memory
|
8GB(ROM)+1GB(RAM)
|
|
|
Extended Memory
|
Up to 32GB
|
|
|

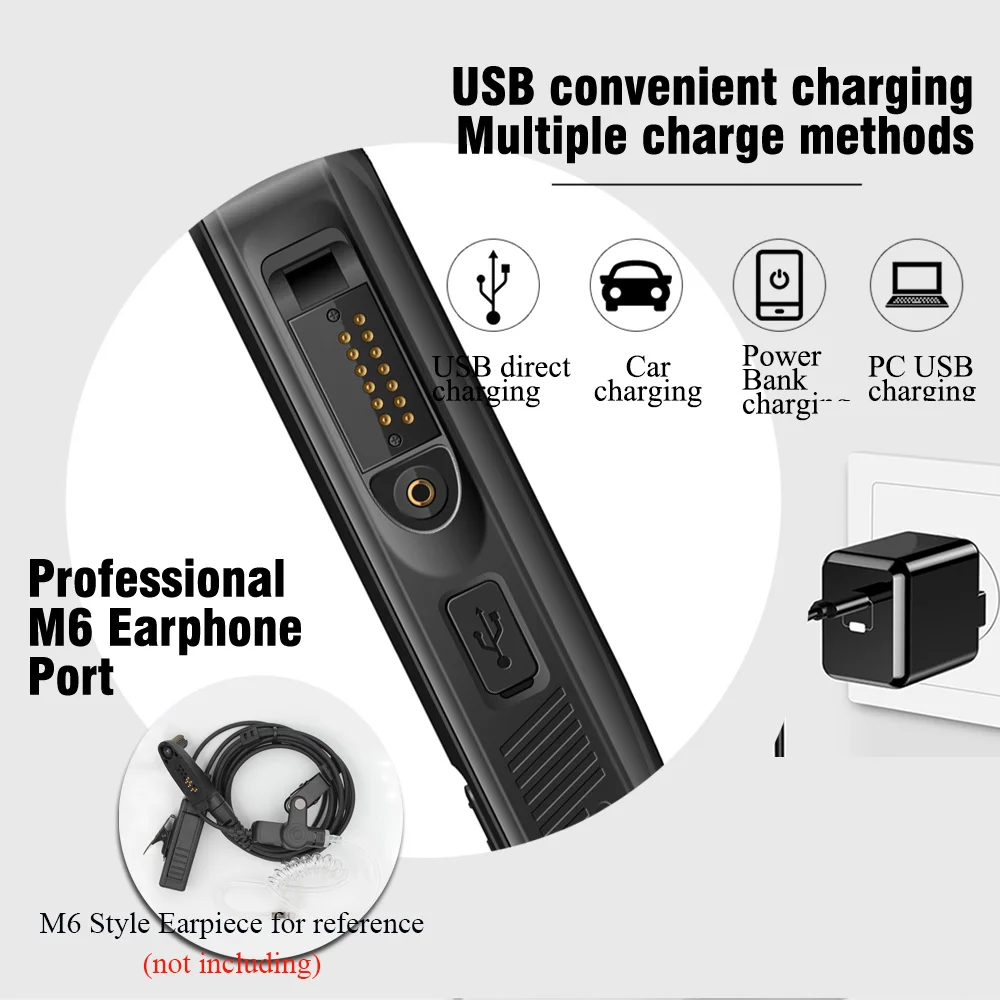

Speaker+handset
|
Support
|
|
|
Speaker & earhpone connector
|
M6
|
|
|

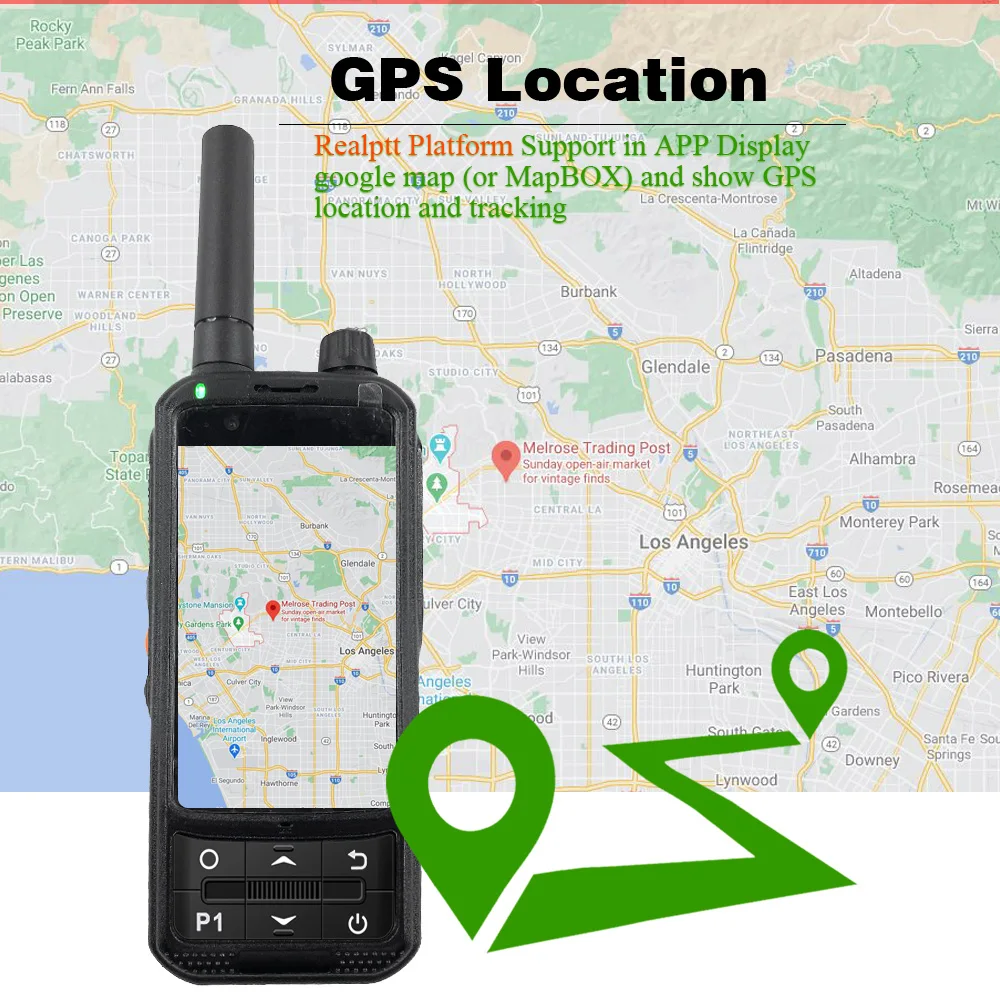

GPS
|
Support
|
|
|

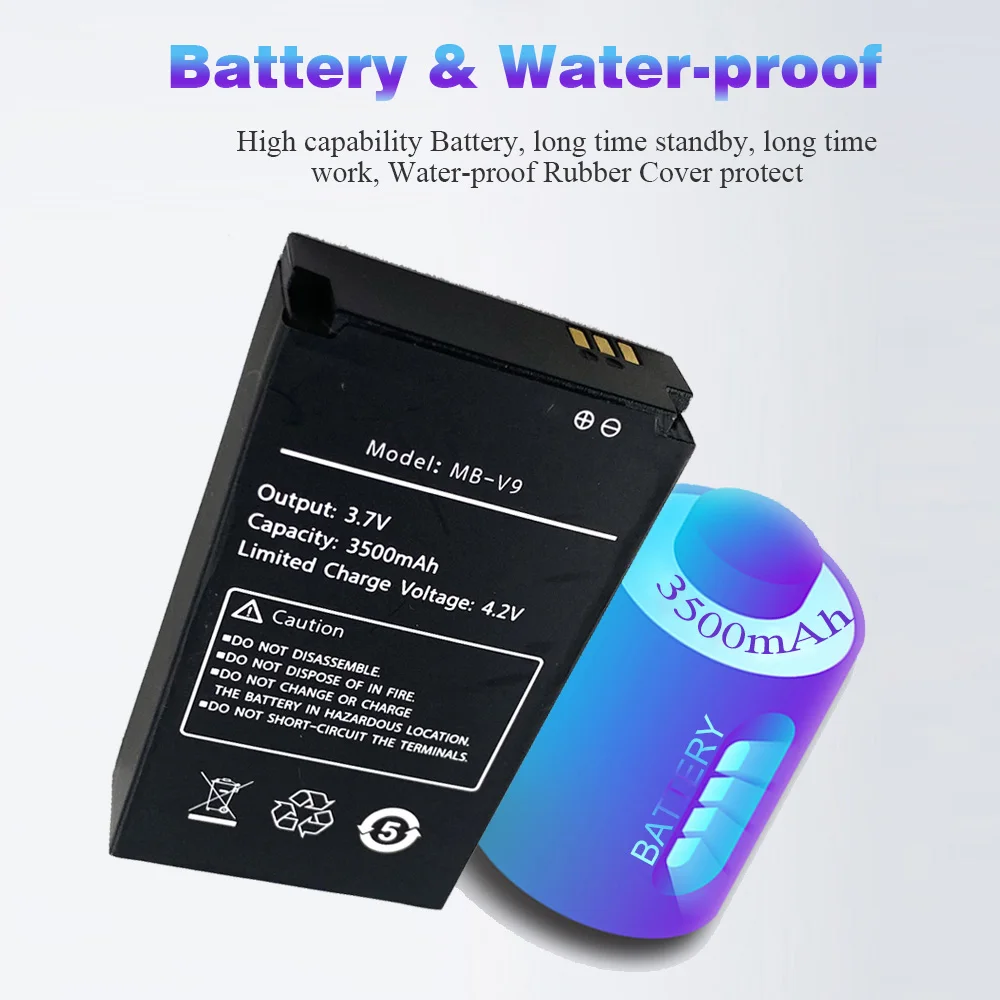

battery capacity
|
3500mAh
|
|
|
Dimensions: H x W x D (mm)
|
180*65*24(mm)
|
|
|
Weight
|
262g
|
|
|
Screen size
|
3 inch 360*640 Multi-touch Screen
|
|
|
Standby Time
|
29hours
|
|
|
Electrical Specifications
|
||
|
Working Frequency(TNZ800-01-EU) |
FDD-LTE: B1/B3/B7/B20/B28A/B28B
|
|
|
TDD-LTE: B38/B39/B40
|
||
|
WCDMA: B1/B2/B5/B8
|
||
|
GSM: B2/B3/B5/B8
|
||
|
Working Frequency(TNZ800-02-US) |
FDD-LTE: B2/B4/B5/B12/B13/B17
|
|
|
WCDMA: B1/B2/B5/B8
|
||
|
GSM: B2/B3/B5/B8
|
||
|
Working Frequency(TNZ800-03-EU) |
FDD-LTE: B1/B3/B7/B20/B28
|
|
|
TDD-LTE: B38/B39/B40
|
||
|
WCDMA: B1/B2/B5/B8
|
||
|
GSM: B2/B3/B5/B8
|
||
|
Working Frequency(TNZ800-06-US) |
FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
|
|
|
TDD-LTE: B38
|
||
|
WCDMA: B1/B2/B5/B8
|
||
|
GSM: B2/B3/B5/B8
|
||
|
Working Current
|
Power Off: ≤20uA; Sleep mode: ≤3mA;
|
|
|
Working Temperature/Humidity
|
T: -30℃~+75℃; H: 5%~95%
|
|
|
Storage Temperature
|
-40℃~+90℃
|
|
|
Rated Audio Output Power
|
1.3W
|
|
|
Audio Distortion@ Rated Audio
|
0.1
|
|
|
Charger
|
5V 1A Micro USB
|
|
|
Max Output Power
|
24dBm~33dBm, ±2dBm
|
|
|
RX sensitivity
|
≤-110dBm
|
|
