ICOM IC-V8 VHF 136-174MHz 100 Channels FM Transceiver

Features:

Quality, simplicity, anywhere

• Tough construction

• 16 button keypad for easy-to-access functions

• Powerful 5.5W of output power

• Reversible up/down switches and rotary selector

• 5-character alphanumeric display

• 100 memory channels and one call channel

• CTCSS and DTCS operation standard

• Standard DTMF encoder and optional DTMF decoder

• Set mode and initial set mode menu ensure easy operation

• Very fast scanning speed of 40 channels per second

(During program scanning)

• Mic. simple remote control with optional HM-75A

• LED backlighting for LCD

• PC cloning capability

• Reverse shift function

• Auto squelch delay

Specifications:

GENERAL
Frequency Coverage	136-174MHz
Mode	FM (F3E,F2D)
Memory Channels	100
Frequency Stability	±10ppm
Operating Temperature Range	-10°c to +60°c
Power Supply Requirement	7.2V DC
Current Drain (at 7.2v DC)	TX:5.5W 2.0A RX :Standby by 70mA, Max.Audio 250mA
Antenna Connector	BNC
Dimensions	54(W)132(H)35(D)mm
Weight	350g
TRANSMITTER
Output Power	5.5W(H), 0.5W(L)
Spurious Emissions	Less than -60dB
Max. freq. deviation	±5.0KHz
RECEIVER
Receiving System	Double conversion super-heterodyne
Intermediate freq.	1st 21.7MHz 2nnd 450kHz
Sensitivity	0.16μV(typ: at 12dB SINAD)
Squelch Sensitivity	0.10μV(typ: threshold)
Selectivity	65dB(typical)
Intermodulation	75dB(typical)
Spurious and image rejection	75dB(typical)
Audio Output Power	300mW with an 8Ω load (at 7.2V DC)

Package CONTAIN:

1VHF 136-174MHz IC-V8 radio

1 BNC Antenna

1BP-210N 1650mAh battery pack

1BC-137 Desktop Charger with AC Adapter(Europe plug,UK plug,US plug all available)

1ENG User Manual

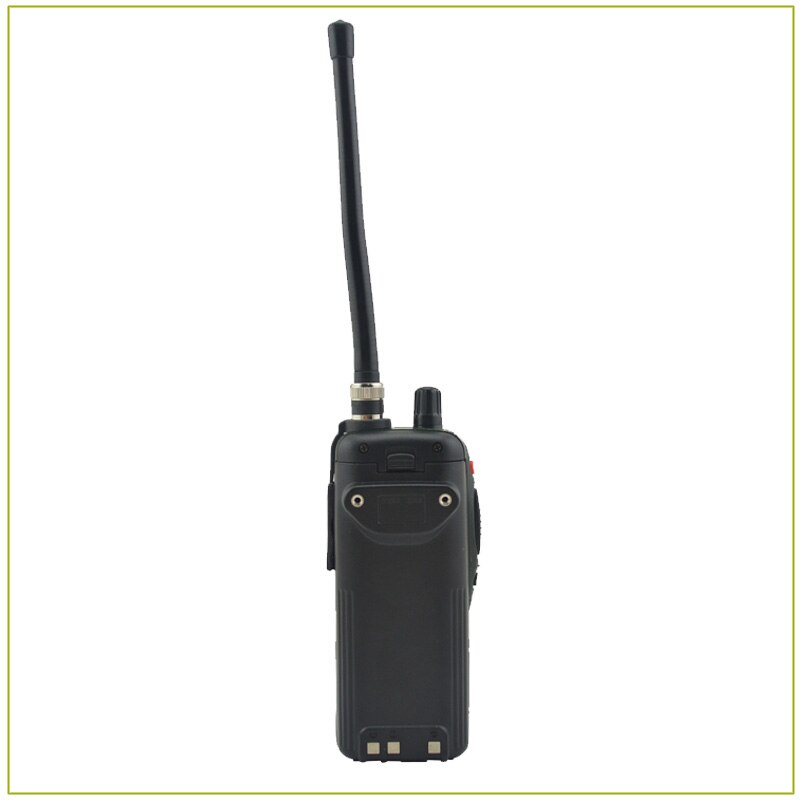

Picture:
