Motorola CP140 UHF 403-440MHz 16 Conventional Channels COMMERCIAL Portable Two-Way Radio
The CP140 portable two-way radio delivers the quality features you want at a very competitive price. Available in UHF and VHF, this radio features a lightweight, ergonomic design that is comfortable to carry and operate, even while wearing gloves. A range of battery choices along with rapid recharging capabilities help ensure readiness. Programmable option buttons make customization easy.
Features:
Flexible channel capacity
Operates on 16 channels.
Oversize Push-to-Talk button
Enlarged for maximum tactile response, accommodating users wearing gloves.
Programmable buttons
Can be programmed with two programmable buttons to quickly access needed features
Private line codes (PLCs)
42 standard TPL codes and 84 standard digital codes maximize options.
Bright sensors
Tricolor LED indicator shows feedback of calling, scanning or monitoring features.
Large rotary channel selector
Switches channels quickly and easily.
Diecast chassis
Small, lightweight, yet sturdy frame is built to withstand everyday wear and tear.
Priority Channel
Scans for higher-priority channel.
Specifications:
|
GENERAL |
|
| Frequency | 403-440MHz |
| Channel Capacity | 16 Channels |
| Power Supply | 7.5Volts±20% |
| Dimensions | 130.5mm x 62mm x 45mm |
| Weight | 397g |
|
RECEIVER |
|
| Sensitivity | 0.25μV |
| Adjacent Channel Selectivity | -65dB |
| Intermodulation | -70dB |
| Frequency Stability | 0.00025% |
| Spurious Rejection | -75dB |
| Image and 1/2 I-F Rejection | -70dB |
| Audio Output | 500mW |
|
TRANSMITTER |
|
| RF Output | 1W/5W |
| Channel Spacing | 12.5/20/25KHz |
| Frequency Stability | 0.00025% |
| Spurs/Harmonics | -36dBmGHz |
| Audio Response | +1,-3dB |
| Audio Distortion | <3% |
| FM Noise | -40dB(12.5KHz),-45dB(25KHz) |
Package CONTAIN:
1UHF1 403-440MHz 16 Channels CP140 radio
1 Antenna
11200mAh Ni-MH battery pack
1Desktop Charger with AC Adapter(Europe plug,UK plug,US plug all available)
1ENG User Manual

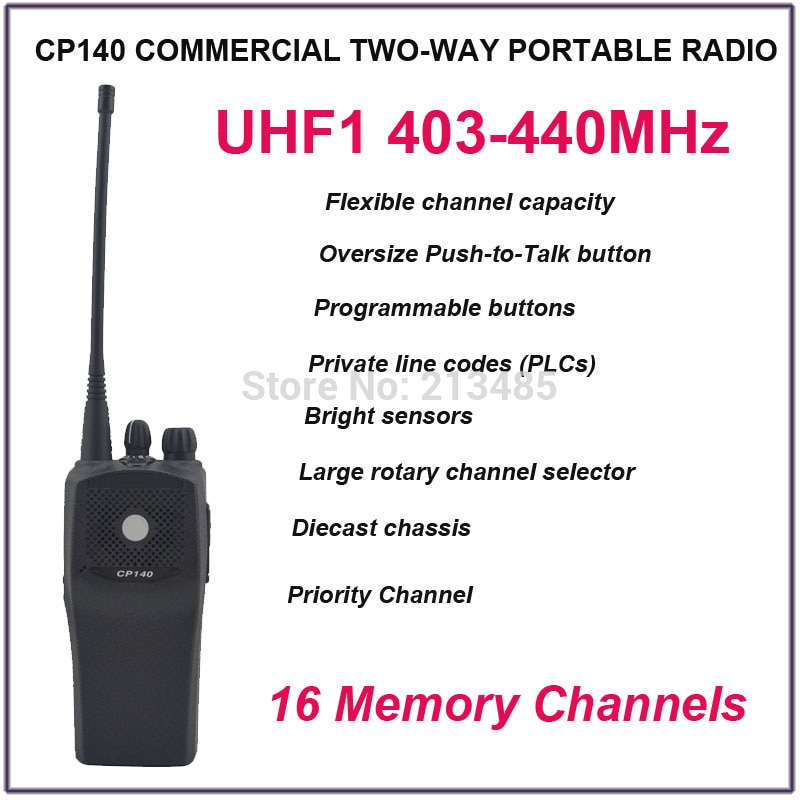

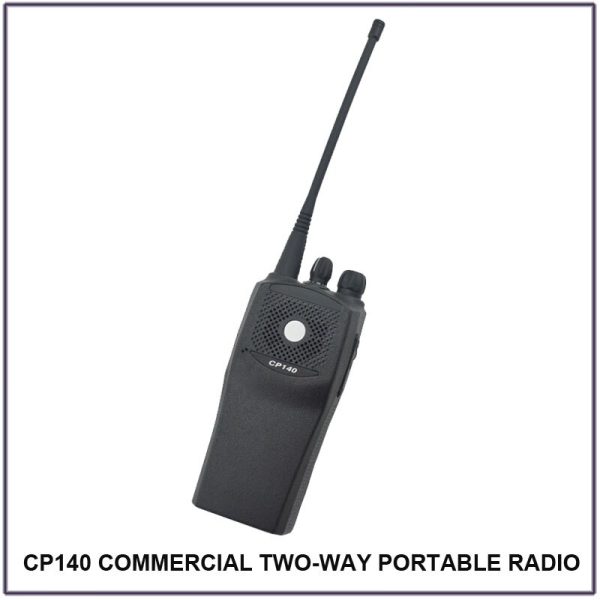

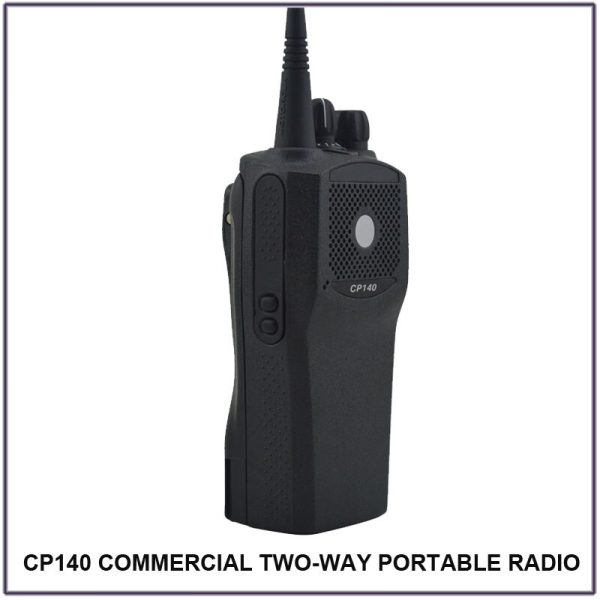

Picture:
