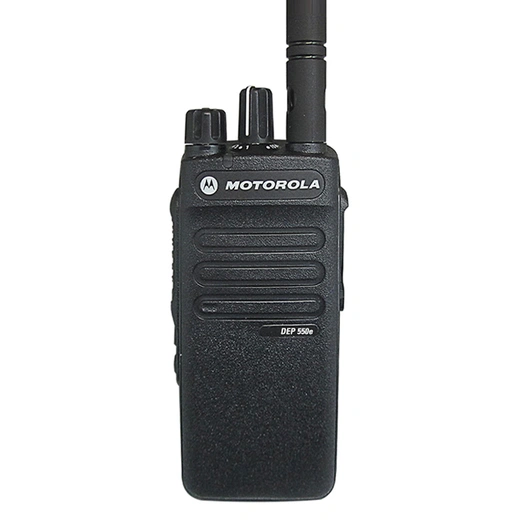

Motorola DEP550e
A durable and reliable two-way radio perfect for businesses and industries that require effective communication.
Motorola DEP550e walkie-talkie is a high-performance, multi-functional professional walkie-talkie. It is a professionally certified and reliable product with strong signaling and audio performance, as well as good durability and reliability. Widely used in medical, education, manufacturing, construction and other fields to provide users with efficient and convenient communication services.
DEP550e adopts Motorola’s leading DMR digital intercom technology, which can easily realize digital upgrade communication and provide clear and stable voice communication quality.
DEP550e also has a series of practical functions, such as group call, single call, emergency call, scanning, etc., to meet the communication needs of users in different scenarios. In addition, it adopts an IP67-level dustproof and waterproof design, which can work in harsh environments and meet the high requirements of users for equipment.
product features
- Bluetooth 4.0 capable location and tracking for interiors
- HazLoc models available for use in environments flammable or explosive
- Integrated Wi-Fi with upgradability firmware over the air
- Audio optimized for more clarity at high volume
- power management for a total of up to 27 hours of battery autonomy
- Improved receiver for range extended in up to 8%
- IP67 rating for improved water resistance and to dust
specifications
| Model Number | Motorola DEP550e |
| GENERAL SPECIFICATIONS | |
| Band
|
136-174MHz
403-527MHz |
| High Power Output | 1-5W |
| Channel Spacing | 12.5/25KHz |
| Channel Capacity | 16 |
| Dimensions(HXWXD) | 122 x 56 x 36 mm |
| Weight(Radio + Standard 1600mAh Battery) | 264g |
| Digital/Analogue Battery Life(Standard 1600mAh Battery) | 11.5 – 16.0hrs |
| Power Supply(Nominal) | 7.5V |
| TRANSMITTER SPECIFICATIONS | |
| 4FSK Digital Modulation | 12.5 kHz Oata:7K60FID and 7K60FXD 12,5 kHz Voice:7K60FIE and 7K60FXE Combination of 12,5 kHz Voice and Data:7K60FIW |
| Digital Protocol | ETSI TS 102 361-1,-2,-3 |
| Conducted/Radiated Emissions(TIA603D) | -36dBm<1GHz, -30dBm>1GHz |
| Adjacent Channel Power | 60dB(12.5KHz channel),
70dB(25KHz channel) |
| Frequency Stability | ±0.5ppm |
| AUDIO SPECIFICATIONS | |
| Digital Vocoder Type | AMBE+2 |
| Audio Response | TIA603D |
| Rated Audio | 0.5 W |
| Audio Distortion at Rated Audio | 3% |
| Hum and Noise | -40 dB (12.5 kHz channel), -45 dB (25 kHz channel) |
| Conducted Spurious Emissions (TIA603D) | -57 dBm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -30 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Electrostatic Discharge | IEC 61000-4-2 Level 4 |
| Dust and Water Intrusion | IEC 60529 – IP67 |
| Packaging Test | MIL-STD 810D and E |
