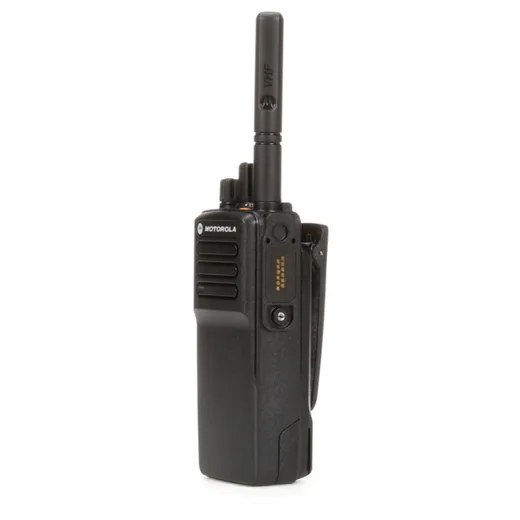

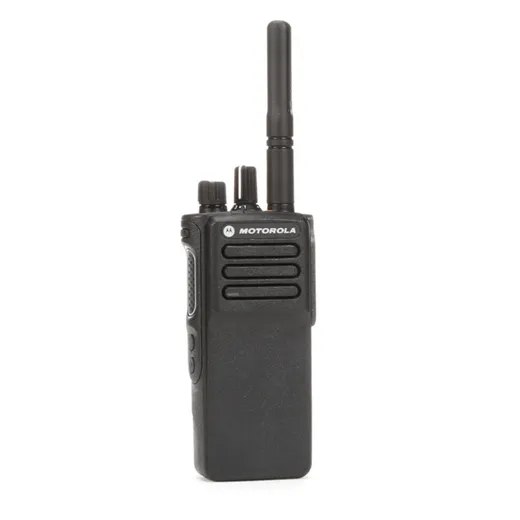

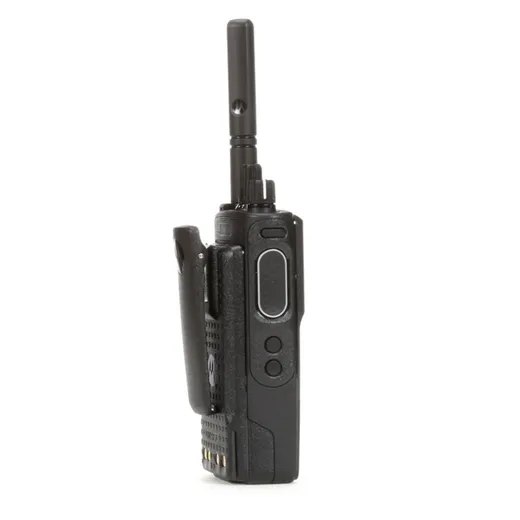

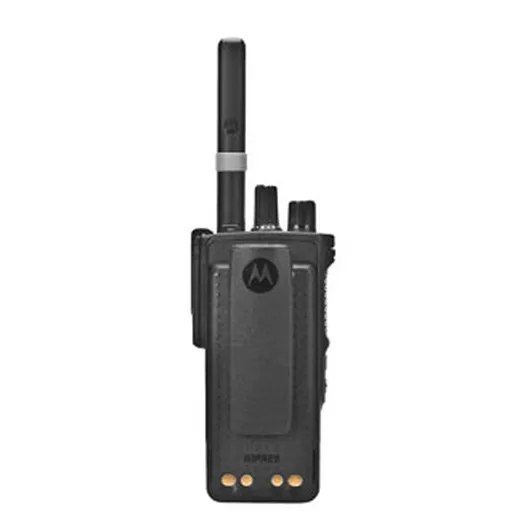

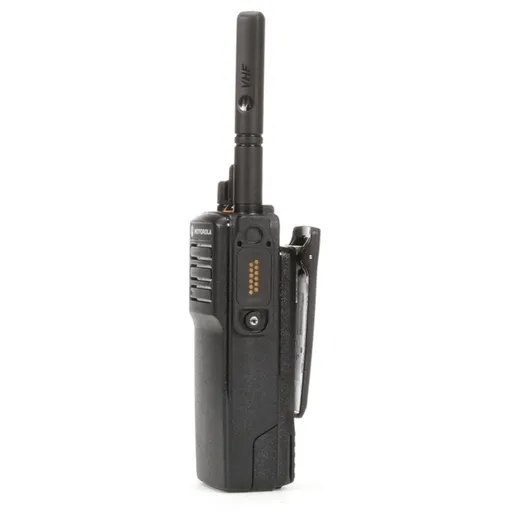

Motorola DGP8050e Walkie Talkie
Motorola DGP8050e Two Way Radio
Main features
Supports DMR Tier II/III Standards
The Motorola DGP8050e comes pre-installed with firmware compliant with ETSI TS 102 361-1-3, allowing the same device to roam on traditional repeaters and easily upgrade to trunked Capacity Max systems.
1000 Channels, Full Keyboard, Color Display
Patrol personnel can set up interagency, SWAT, narcotics, and event channels on a single handheld device. The 2-inch color screen displays areas, encryption icons, and signal strength in sunlight, offering greater usability than police two-way radio models without screens.
256-bit AES Encryption and Enhanced Privacy Protection
The DGP8050e uses AES encryption and 40-bit basic privacy protection, meeting the requirements of most sensitive law enforcement communications. Unlike other secure radios, the DGP8050e’s key loading can be upgraded over the air via the radio management system, reducing factory returns for maintenance by 80%.
Optional Explosion-Proof and IP68 Dual Certification
This walkie-talkie is UL TIA-4950 explosion-proof certified, suitable for Class 1 explosive environments, and meets IP68 (2 meters, 2 hours) protection standards, making it suitable for diving operations.
Integrated Accelerometer and Personnel Fall Alarm Function
The built-in triaxial sensor triggers tilt, stillness, and personnel fall alarms, wirelessly transmitting alerts to the dispatch center. Because this function is native, no external sensor clip is required, keeping the police two-way radio slim and snagging-free.
Bluetooth 4.0 + Wi-Fi Integration
Officers can pair it with a wireless concealed headset for listening, while IT personnel can push firmware updates via Wi-Fi through the same radio during roll call. Motorola’s older security radios required two separate option boards—we’ve saved space and cost here.
GNSS and Indoor Positioning
GPS, GLONASS, and BeiDou provide positioning accuracy of less than 5 meters outdoors; Bluetooth beacons provide room-level positioning inside courthouses.
Other Functions
-
AES-256 Encryption
-
Enhanced Privacy (40-bit)
-
Man Down Alert
-
Lone Worker Timer
-
Emergency Button
-
Transmit Interrupt
-
Radio Disable / Enable
-
Remote Monitor
-
Over-the-Air Programming (OTAP)
-
Bluetooth Audio
-
Wi-Fi Firmware Update
-
Multi-constellation GNSS
-
Indoor Location Beacon
-
Capacity Max Trunking
-
IP Site Connect
- Antenna(136-155 MHz/152-174 MHz/ 403-527 MHz)
- Battery(2450 mAh/2450 mAh IMPRES/ Explosion-Proof Battery )
- Charger
- Power adapter
- Dust cover
- Back Clip
- Manual
| General | ||||
| Band | VHF | 350 | UHF | 800 |
| Frequency | 136-174 MHz | 350-400 MHz | 403-527 MHz | 806-825 MHz 851-870 MHz |
| High Power Output | 5W | 4W | 4W | 2.5W |
| Low Power Output | 1W | 1W | 1W | 1W |
| Channel Spacing | 12.5, 20, 25 kHz | |||
| Channel Capacity | 32 | |||
| Dimensions (H×W×D), Radio + Slim Battery | 130 × 55 × 34 mm (5.1 × 2.2 × 1.3 in) | |||
| Weight, Radio + Slim Battery | 290 g (10 oz) | |||
| Dimensions (H×W×D), Radio + High Capacity Battery | 130 × 55 × 40 mm (5.1 × 2.2 × 1.6 in) | |||
| Weight, Radio + High Capacity Battery | 322 g (11 oz) | |||
| FCC Description | AZ489FT7066 | – | AZ489FT7065 | AZ489FT7067 |
| Digital / Analog Battery Life, Slim 1650 mAh Battery | 16.0 / 12.0 hrs | 15.5 / 11.5 hrs | 15.5 / 12.0 hrs | |
| Digital / Analog Battery Life, High Capacity 2250 mAh Battery | 22.0 / 16.5 hrs | 21.0 / 16.0 hrs | 21.0 / 17.5 hrs | |
| Digital / Analog Battery Life, High Capacity LV 3000 mAh Battery | 29.0 / 22.0 hrs | 28.0 / 21.5 hrs | 28.0 / 23.0 hrs | |
| Power Supply (Nominal) | 7.5 V | |||
| Receiver | ||||
| Band | VHF | 350 | UHF | 800 |
| Analog Sensitivity (12 dB SINAD) | 0.16 µV | 0.22 µV | ||
| Digital Sensitivity (5 % BER) | 0.14 µV | 0.19 µV | ||
| Frequency Stability | ±0.5 ppm | |||
| Intermodulation (TIA603D) | 70 dB | |||
| Adjacent Channel Selectivity (TIA603A)-1T | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | |||
| Adjacent Channel Selectivity (TIA603D)-2T | 45 dB @ 12.5 kHz / 70 dB @ 25 kHz | |||
| Spurious Rejection (TIA603D) | 70 dB | |||
| Hum and Noise | –40 dB @ 12.5 kHz / –45 dB @ 25 kHz | |||
| Conducted Spurious Emissions (TIA603D) | –57 dBm | |||
| Transmitter | ||||
| Conducted Spurious Emissions (TIA603D) | 136-174 MHz | 403-527 MHz | ||
| Hum and Noise | –40 dB @ 12.5 kHz | |||
| –45 dB @ 25 kHz | ||||
| Conducted / Radiated Emission (TIA603D) | –36 dBm <1 GHz | |||
| –30 dBm >1 GHz | ||||
| Adjacent Channel Power | 60 dB @ 12.5 kHz | |||
| 70 dB @ 25 kHz | ||||
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D & 7K60FXD 12.5 kHz Voice: 7K60F1E & 7K60FXE 12.5 kHz Voice & Data: 7K60F1W |
|||
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |||
| Environmental Specifications | ||||
| Operating Temperature | –30 ℃ ~ +60 ℃ | |||
| Storage Temperature | –40 ℃ ~ +85 ℃ | |||
| Electrostatic Discharge | IEC 61000-4-2 (level 3) | |||
| Thermal Shock | Per MIL-STD table | |||
| Dust & Water Intrusion | IEC 60529 – IP68, 2 m for 2 hrs | |||
| Humidity | Per MIL-STD table | |||
| Packaging Test | MIL-STD 810D and E | |||
| Salt Fog | Per MIL-STD table | |||
| Audio Specifications | ||||
| Digital Vocoder Type | AMBE+2™ | |||
| Audio Response | TIA603D | |||
| Rated Audio | 0.5 W | |||
| Audio Distortion at Rated Audio | 3 % | |||
