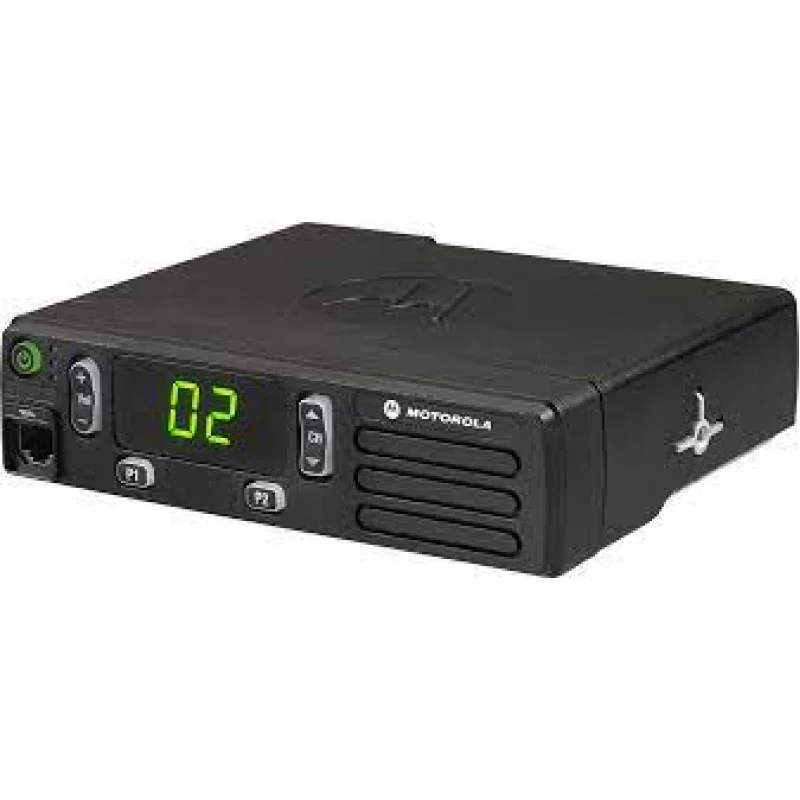

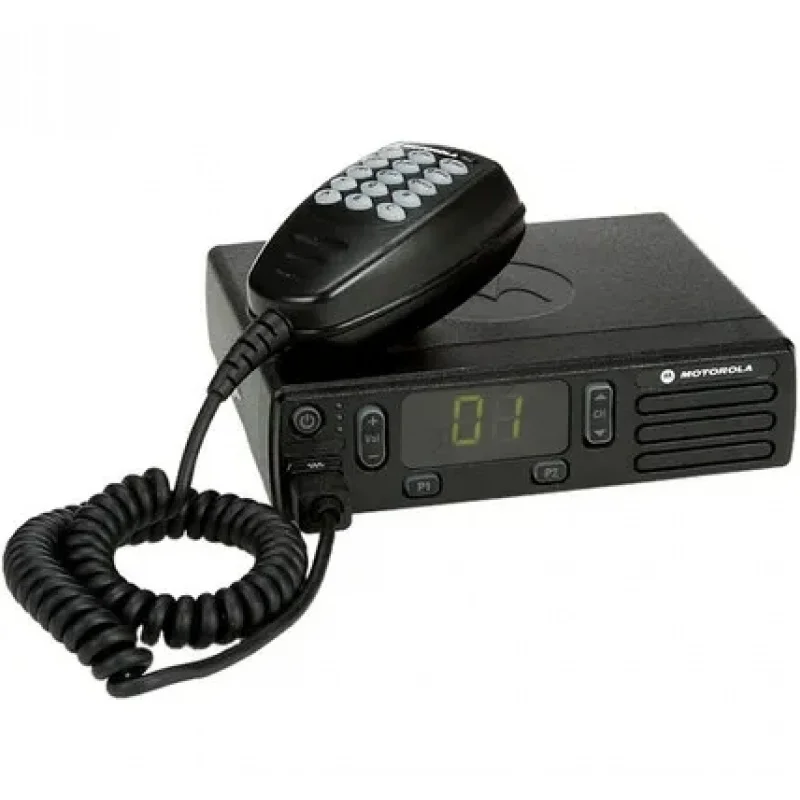

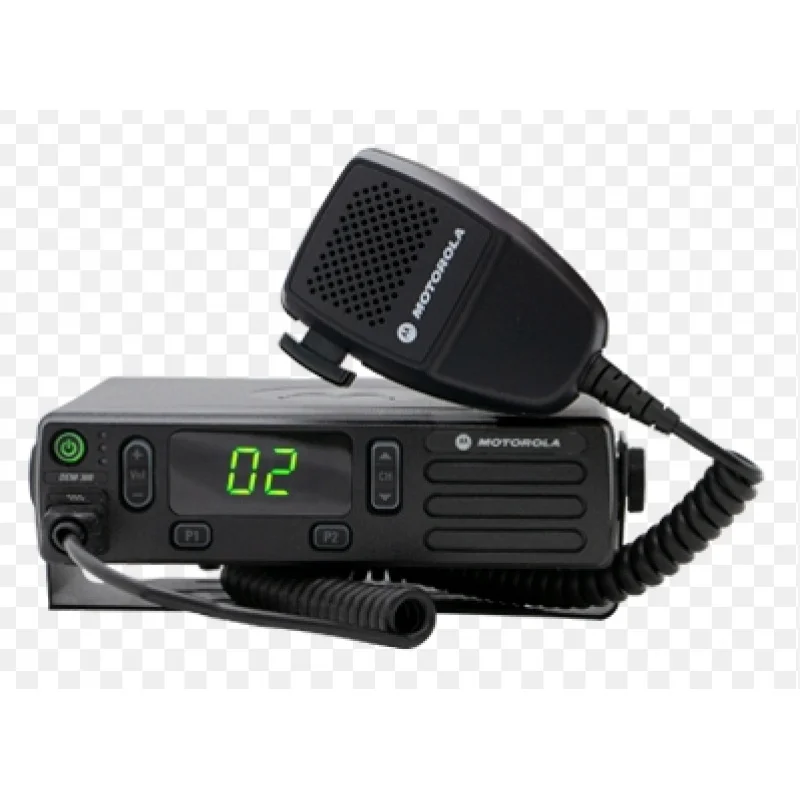

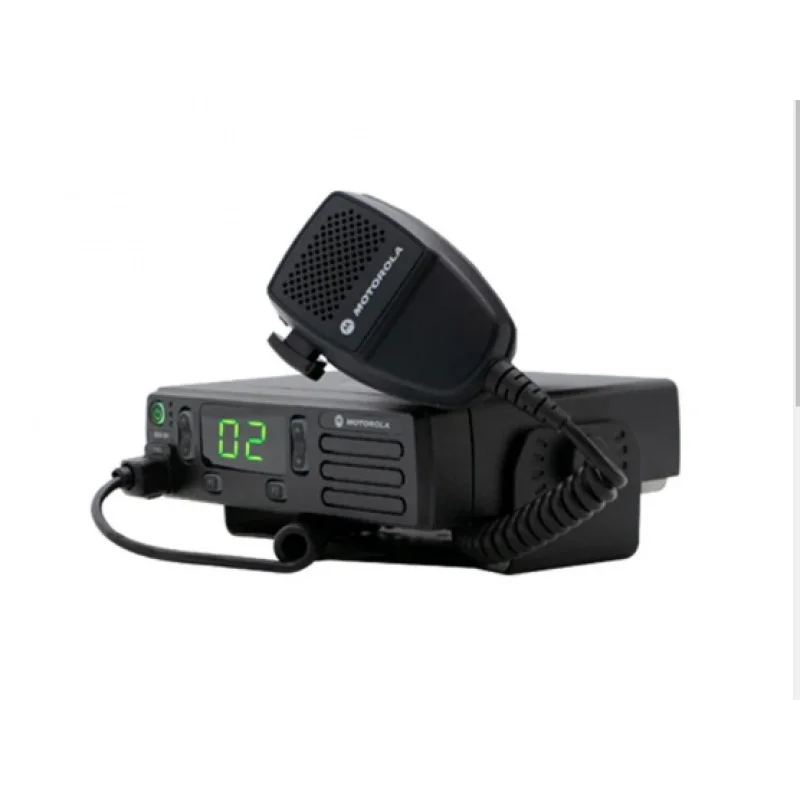

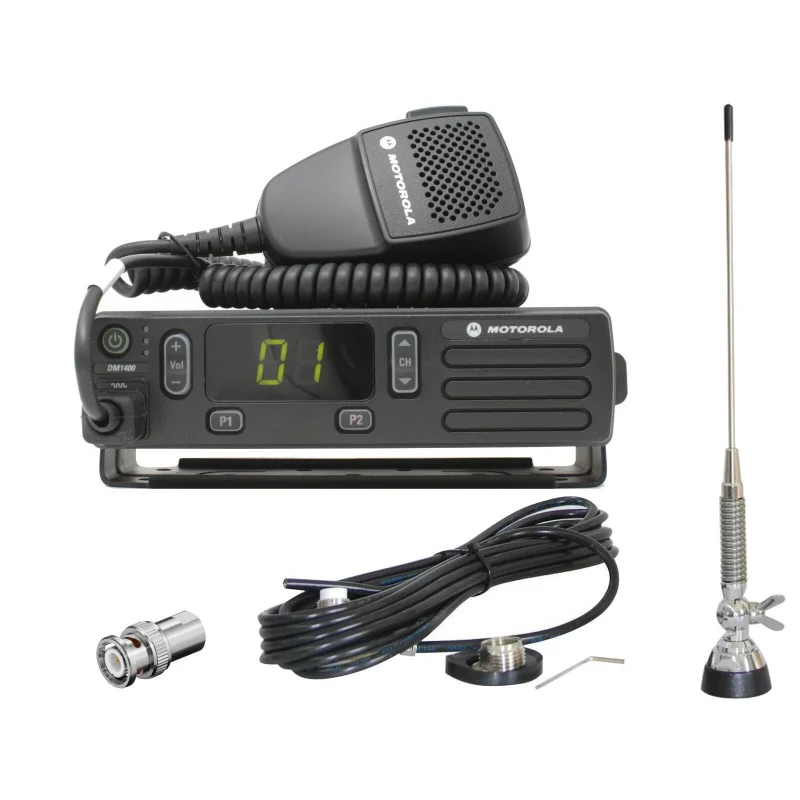

Motorola DM1400 Digital Mobile Radio DEM 300 DM1400 Ham Radio 50KM UHF/VHF High Quality Vehicle Radio
The rugged MOTOTRBO DM1400 and DM1600 are available as analog/digital mobile radios that offer all the benefits of the latest technology – from superior audio to greater coverage. These affordable performers are compatible with advanced MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritize critical communications.

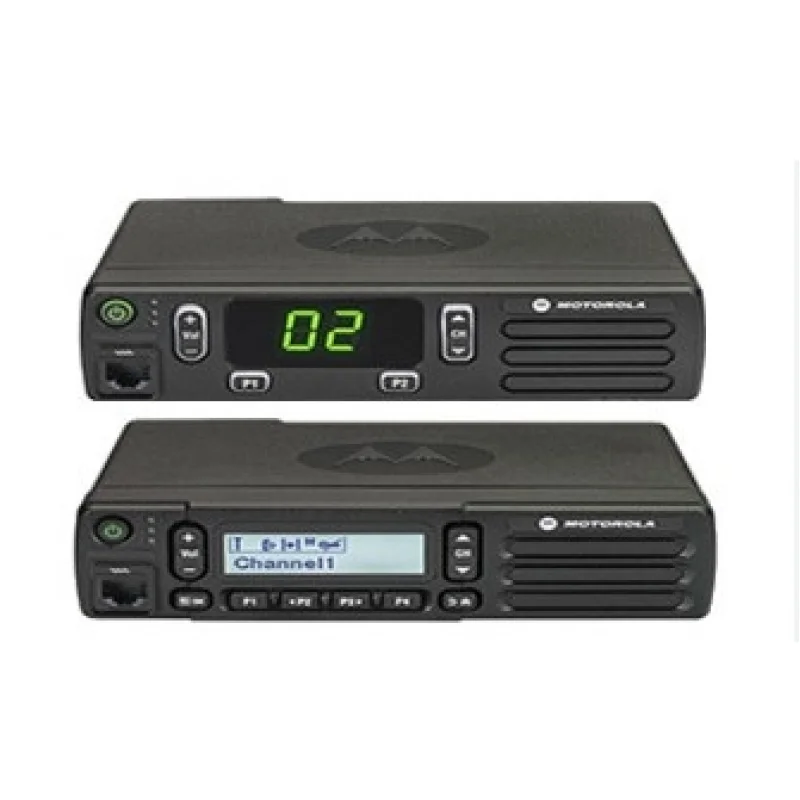

With its bright, high contrast alphanumeric screen, the DM1600 allows drivers to see important information such as caller Id at a glance. The DM1400 offers lower capacity and a simpler numeric display.
The DM1400 and DM1600 are so easy to use and deliver such clear voice communications, you’ll be amazed how efficient your operation can be.
FEATURES
• Analogue / digital
• Voice Communications
• Canned Text Message
• dual Capacity direct Mode
• Transmit Interrupt (decode only)
• Voice announcement
• Numeric display (DM1400)
• Digital Mobile Radio (DMR) Standards Compliant
• IP54 Rated
OPTIONS • Radio Management Suite
2. Specifications
| General Specifications | |
| Frequency Range | VHF:136MHz-174MHz UHF:403MHz-470MHz |
| Memory Channel | 16 |
| Channel Spacing | 12.5/20/25 kHz |
| Power Output | 1 – 25W; 25 – 45W |
| Power Supply | 13.2Vdc (10.8 – 15.6 Vdc) Negative Vehicle ground |
| Dimensions (L×W×H) | 1.7 x 6.7 x 5.3 in (44 x 169 x 134 mm) |
| Weight | 2,9 Ibs (1.3 kg) |
| Communication Range | about 10-20km |
| Sealing | IP54, MIL-STD |
| Dust | Meets MIL-STD 810-C,D&E and TIA/EIA 603 |
| Transmitter Specifications | |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Modulation Limiting | ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz |
| FM Hum & Noise | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz |
| Conducted/Radiated Emissions | -36 dBm < 1 GHz / -30 dBm > 1 GHz |
| Adjacent Channel Power | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz |
| Receiver Specifications | |
| Frequency Stability | +/- 0.5ppm |
| Channel Spacing | 12.5 kHz / 25 kHz |
| Intermodulation | 70 dB |
| adjacent Channel Selectivity (TIa603d) | 50 dB @ 12.5 kHz
75 dB @ 20/25kHz |
| Audio Response | + 1, -3dB |
| Digital Vocoder Type | AMBE +2™ |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 |
