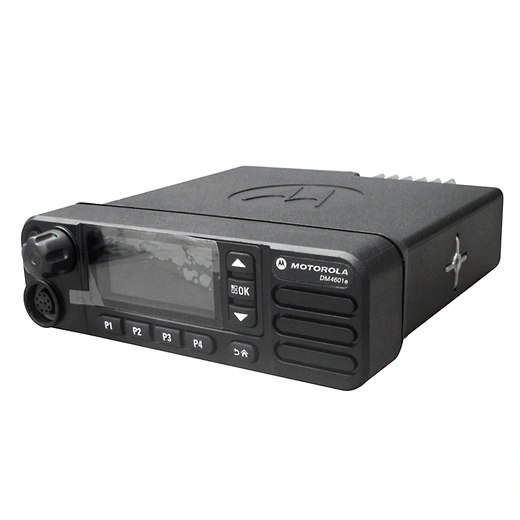

Motorola DM4601e Mobile Radio
Main features
DMR Analog Two Modes
motorola dm4601e ships with DMR Tier II & Tier III plus legacy FM in the same firmware.
45 W High Power, 12 V Ready
25–45 W VHF and 25–40 W UHF outputs run off standard 12 V vehicle supply. Install the motorola base radio in trucks, buses, or fixed sites without external power converters.
1000-Channel Memory
Sell fewer radios. A single dmr mobile radio handles site, regional, and emergency talk groups—ideal for mining, public safety, or campus fleets.
Built-In GPS + Bluetooth 4.0
GNSS reports precise location every 60 s; Bluetooth pairs with wireless mics up to 100 m. Bundle location services and hands-free kits as an up-sell.
Over-the-Air Updates via Wi-Fi
Built-in 802.11 b/g/n eliminates bench visits. Push new codeplugs or encryption keys at 03:00 and have every motorola base radio updated by 06:00.
IP54 & MIL-STD-810G
Survives vibration, dust, and –30 °C to +60 °C. Quote the same unit for desert rigs or arctic patrol vehicles—no ruggedization surcharge.

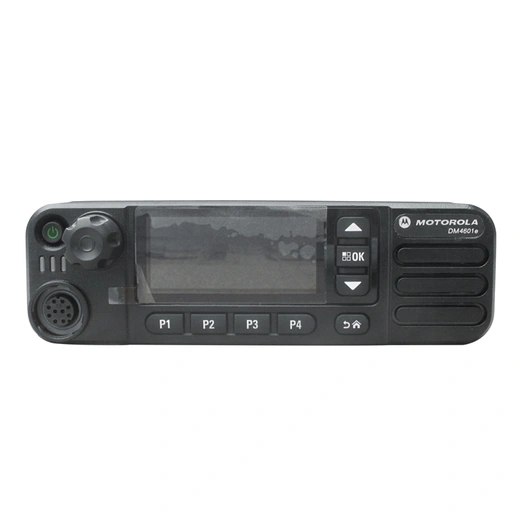

Large Color Display & 4 Programmable Keys
Users see contact names, text messages, and work-order tickets at a glance. Integrators map emergency, scan, or private-call functions to front-panel keys—no external keypad required.
Other features
- Bluetooth 4.0
- Indoor location tracking
- Multi-constellation GNSS for increased location
- Intergrated Wi-Fi
- Over-the – air software updates
DM4601e accessories

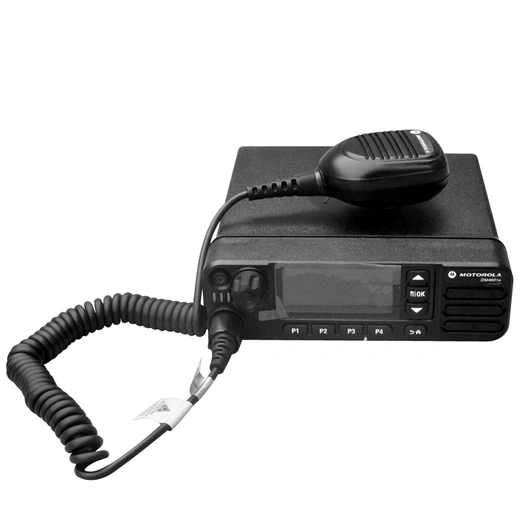

- Handheld MIC RMN5052
- Bracket
- MIC stand
- Parts
- Power cord
- Manual
Specifications
| Performance Characteristics | |
| Frequency | VHF (136-174 MHz) / UHF (403-470/450-527 MHz) |
| Repeater capable | Yes |
| Power output | 45 W (VHF) / 40 W (UHF) |
| Physical Characteristics | |
| Emergency button | Yes |
| Keypad | Full |
| Display | Full |
| Weight (with 1400 mAh Li-ion battery) | 1.8 kg |
| Dimensions H×W×D (with standard battery) | 51 × 175 × 206 mm |
| Radio Features | |
| Transmit interrupt | Yes |
| Channel spacing (kHz) | 12.5 (6.25 efficient) |
| Voice announcement | Yes |
| Vibrate alert | Yes |
| Programmable buttons | Yes |
| Time out timer | Yes |
| Talkaround | Yes |
| Text messaging capable | Yes |
| Scan types | Normal, Priority, Dual priority, Nuisance channel delete, Talk group |
| Phone book | Yes |
| Group call | Yes |
| One to one calling | Yes |
| Missed call alerts | Yes |
| CPS (Customer Programming Software) | Yes |
| Number of channels | 1000 |
| Technology | |
| System type | Conventional, Capacity Plus, IP Site Connect |
| Digital technology | Yes |
| User Environment | |
| Mil spec | 810 C, 810 D, 810 E, 810 F, 810 G |
| Noise reduction software | Yes |
| IP Standards | IP54 |
| Warranty | |
| Standard package | microphone, cable |
| Standard warranty | 1 year |
