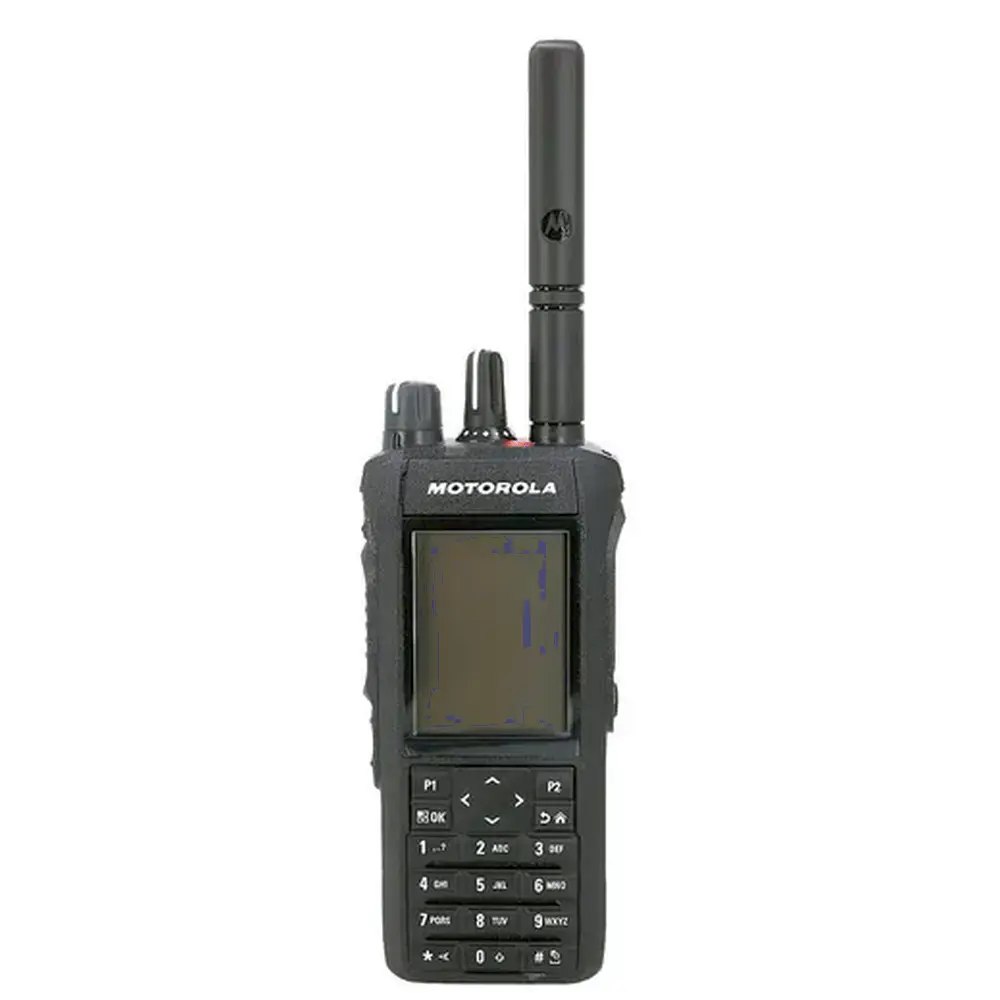

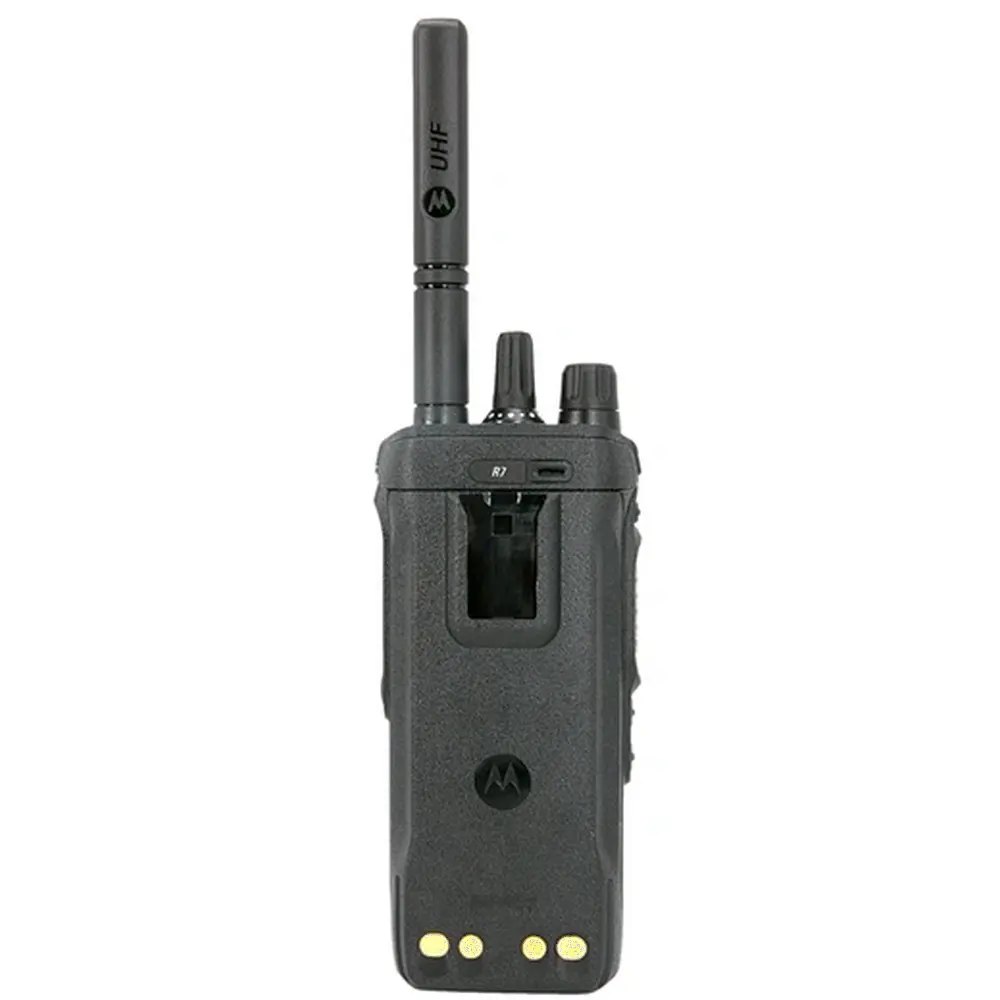

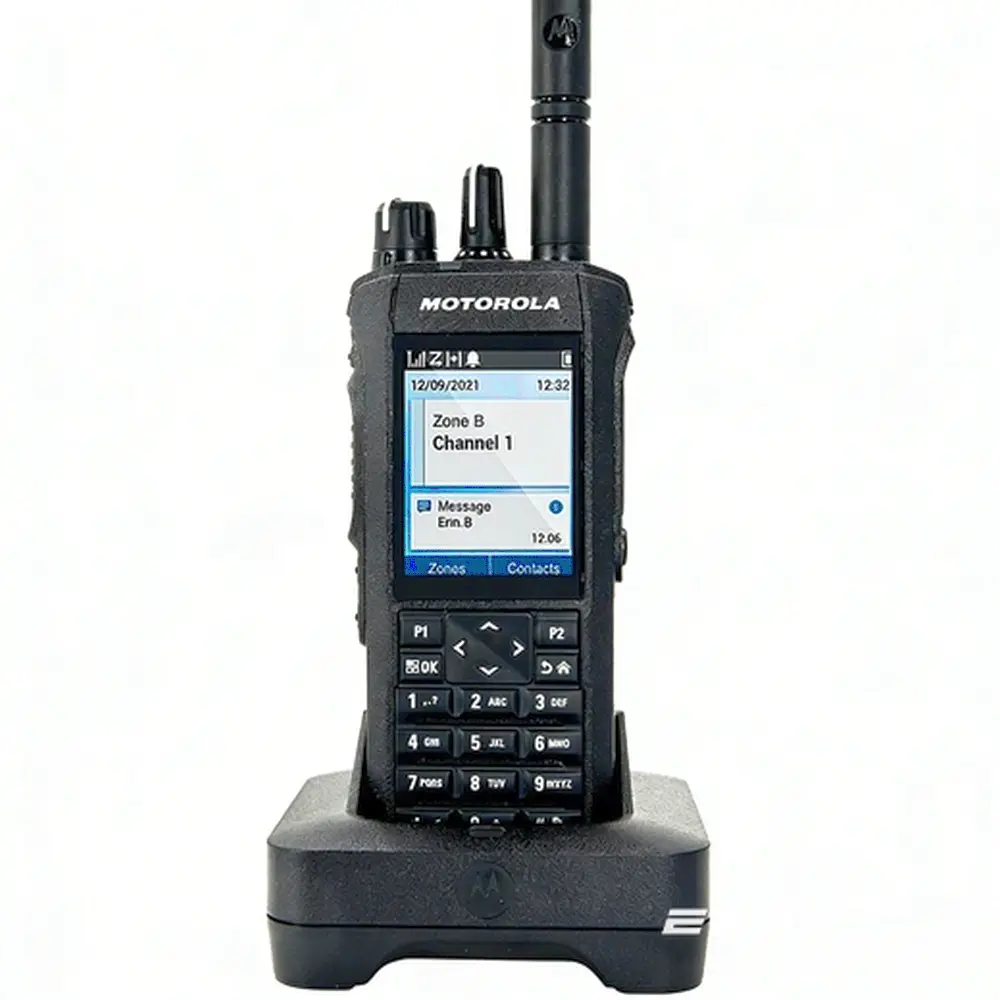

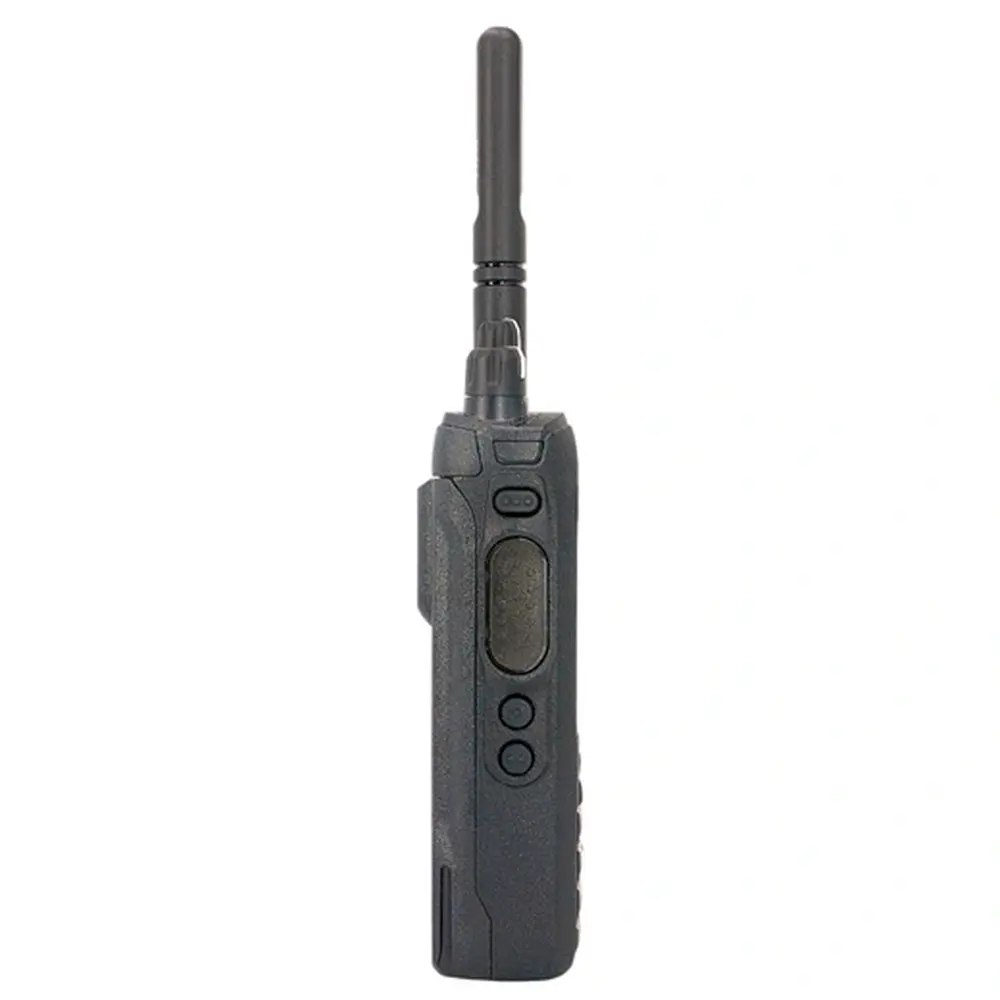

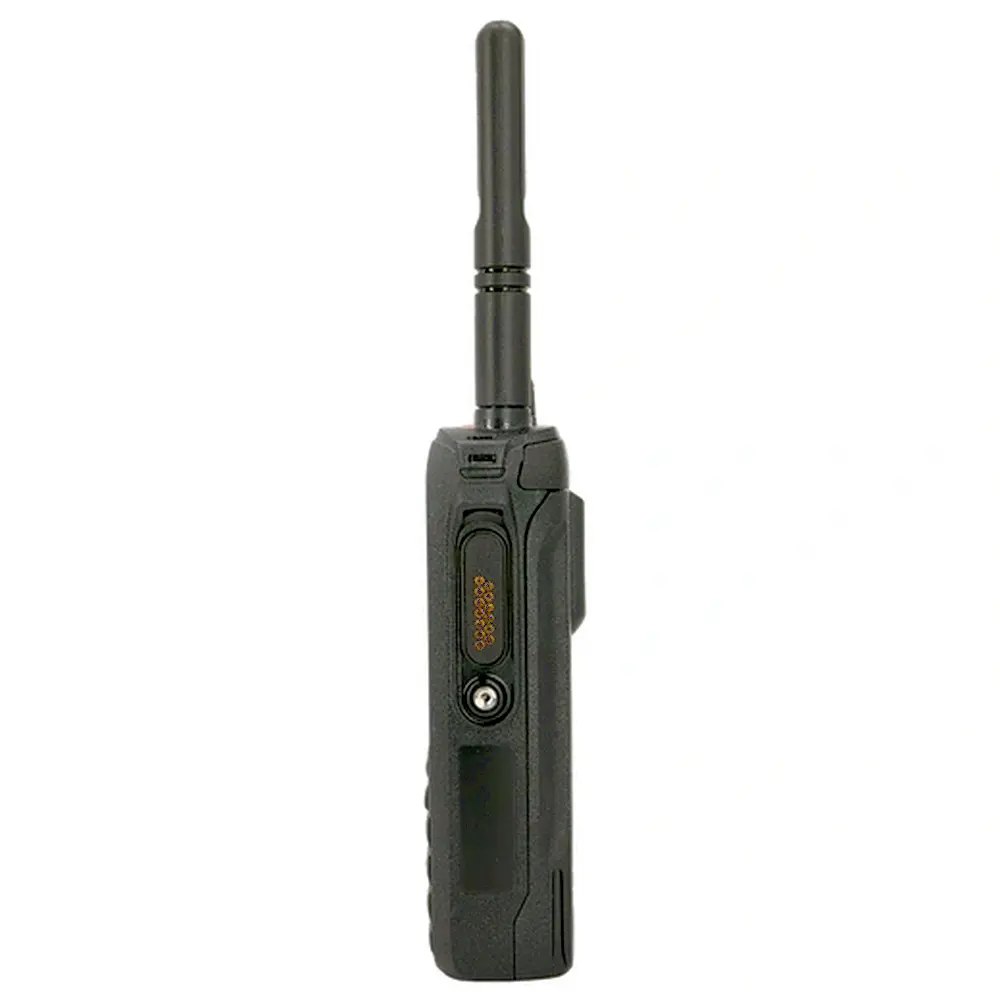

Motorola R7 Walkie Talkie
Motorola R7 VHF UHF Two Way Radio
Motorola MOTOTRBO R7 is a professional two way radio with the loudest and clearest voice. It features a programmable 107-phon volume with no harsh highs, IP68 water resistance, and wireless Wi-Fi updates, effectively converting noise into information. Whether patrolling city streets, running supply chains, or commanding massive venues.
Main features
Clear and Loud
The Motorola R7 features adaptive dual-microphone noise cancellation, with front and rear microphones sampling ambient noise 50,000 times per second, effectively eliminating interference from everything from diesel generators to sirens. Combined with a wideband speaker and 32-bit DSP, it delivers a volume of 107 cubic watts at 30 centimeters—louder than a subway train—while automatic acoustic feedback suppression effectively prevents the harsh howling common in traditional Motorola professional radios.
Built for All-Weather Duty
From its reinforced aluminum chassis to its chemically resistant casing, every detail of the MOTOTRBO R7 has undergone MIL-STD-810H military standard testing, withstanding 2-meter drops, thermal shock, vibration, and salt spray, making its durability far exceed that of any comparable consumer-grade police radio. IP68 protection rating allows for immersion in 2 meters of water for 2 hours and withstands high-pressure disinfectant spray.
28-Hour Battery Life: The optional 3200 mAh IMPRES lithium-ion battery pack provides 28 hours of battery life in digital mode (5-5-90 operating mode) and 21.5 hours in analog mode—longer than any comparable Motorola DMR radio.
Wi-Fi 5 + WPA3 Wireless Programming and Management
Dual-band 802.11ac supports remote code push, firmware updates, and battery diagnostics without removing the radio from service. WPA3 encryption provides better protection for sensitive call group data than Bluetooth-only models.
Bluetooth 5.2 – Audio, Data, and Indoor Positioning
Supports simultaneous connection of one wireless headset and four data peripherals. BLE beacons enable indoor positioning within a 1-meter range, allowing the MOTOTRBO R7 to function as a real-time personnel tracker without additional badges.
1000 Channels / 64 Zones
Stores all law enforcement, fire, utility, and activity frequencies owned by your organization. Zone templates can be imported in seconds via CPS 2.0, significantly reducing deployment time for large Motorola DMR radio fleets.
Enhanced Privacy and Security Suite
40-bit ARC4 and 256-bit AES encryption, along with a FIPS-compliant security processor, ensure sensitive tactical communications are transmitted only between target personnel—critical for today’s police two-way radio networks.
Other Functions
-
Radio ID
-
TX Power Level
-
Channel Spacing
-
Scan List Edit
-
Color Display Brightness
-
Voice Announcement Language
-
Bluetooth Pairing
-
Wi-Fi SSID Profile
-
Emergency Button Function
-
Lone Worker Timer
-
Man-Down
-
AES Encryption Key
-
Programmable Button Assignment
-
GPS On/Off
-
Time-Out Timer
-
Priority Channel Scan
-
VOX Sensitivity
-
Zone Selection

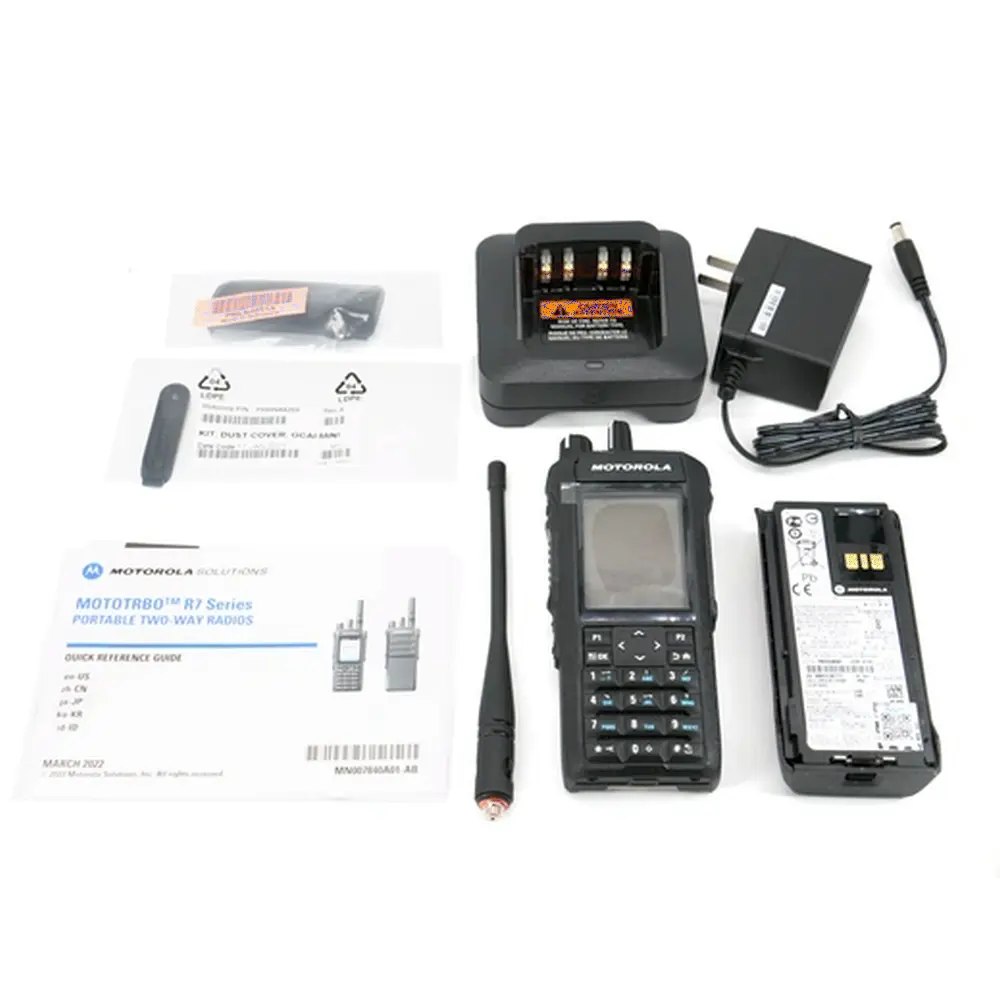

Accessories
- Antenna(UHF Long/UHF Short/VHF)
- Battery
- Charger
- Power adapter
- Dust cover
- Back Clip
- User Manual
Specifications
| General | ||
| Band | VHF | UHF |
| Frequency | 136–174 MHz | 400–527 MHz |
| High Power Output | 5 W | 4 W |
| Low Power Output | 1 W | 1 W |
| Channel Spacing | 12.5, 25 kHz | |
| Channel Capacity | 1000 / 64 | |
| Power Supply (Nominal) | 7.5 V | |
| Transmitter | ||
| Channel Spacing | 12.5, 25 kHz | |
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination: 7K60F1W |
|
| Digital Protocol | ETSI TS 102 361-1, -2, -3, -4 DMR Tier II, III |
|
| Conducted/Radiated Emissions (TIA603D) | –36 dBm < 1 GHz –30 dBm > 1 GHz |
|
| Adjacent Channel Power | 60 dB (12.5 kHz channel) 70 dB (25 kHz channel) |
|
| Frequency Stability | ±0.5 ppm | |
| Receiver | ||
| Analogue Sensitivity (12 dB SINAD) | 0.16 μV | |
| Digital Sensitivity (5 % BER) | 0.14 μV | |
| Intermodulation (TIA603D) | 70 dB | |
| Adjacent Channel Selectivity (TIA603A)-1T | 60 dB (12.5 kHz channel) 70 dB (25 kHz channel) |
|
| Adjacent Channel Selectivity (TIA603D)-2T & (TIA603C)-2T | 45 dB (12.5 kHz channel) 70 dB (25 kHz channel) |
|
| Spurious Rejection (TIA603D) | 70 dB | |
| Audio | ||
| Digital Vocoder Type | AMBE+2 | |
| Audio Response | TIA603D | |
| Rated Audio | 0.5 W | |
| Audio Distortion at Rated Audio | 3 % | |
| Hum and Noise | –40 dB (12.5 kHz channel) –45 dB (25 kHz channel) |
|
| Conducted Spurious Emissions (TIA603D) | –57 dBm | |
| Environmental | ||
| Operating Temperature | –30 °C to +60 °C | |
| Storage Temperature | –40 °C to +85 °C | |
| Electrostatic Discharge | IEC 61000-4-2 Level 4 | |
| Dust and Water Intrusion | IP68 (submersion up to 2 m, 2 hrs) IP66 for high-pressure-water resistance per IEC 60529 |
|
| Packaging Test | MIL-STD 810D and E | |
