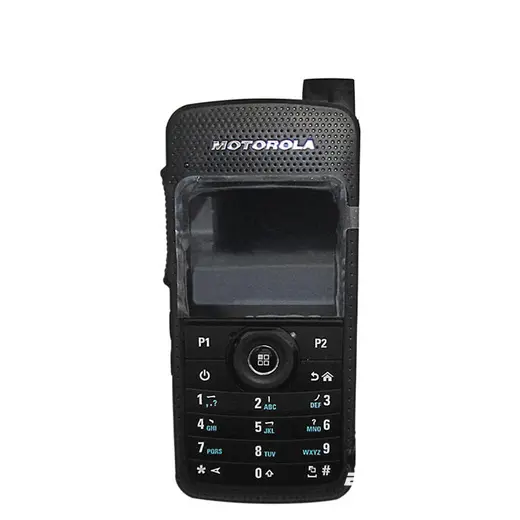

Motorola SL1K walkie talkie
Motorola SL1K
The Motorola SL1K Walkie Talkie is a sleek and powerful device with DMR digital technology. It is specially designed for hotel use.
Product Information
With an ultra-slim design and built-in features like Smart Audio, integrated Bluetooth and privacy mode, the Motorola SL1K is versatile and powerful, designed for high-end hotels for superior customer service and faster responsiveness.
The SL series thin and light digital walkie-talkie was first tried in the hotel field, and the interface of the hotel management software HotSOS and SL1K was applied to hotel management.Function
- Dual internal speakers deliver loud, clear audio quality
- Tri-color LED indicator for clear, visible feedback of calling, scanning, roaming and monitoring features
- Contoured push-to-talk button provides comfort and is easy to access
- Four-way navigation disk for easy scrolling through menus and channels (supports up to 1,000 channels)
- Three programmable option buttons for quick access to frequently used features; ability to program up to nine of your favorite features into a single programmable button; also supports emergency call
- Audio connector port supports discreet wired audio accessories (wireless Bluetooth® audio also available)
- Built-in photosensor automatically adjusts backlighting on the screen to optimize viewing in all types of conditions; special “day/night mode” changes screen and illuminates icons to make them clear and readable in varying light conditions
- Large, high-definition, five-line, color display offers high clarity and resolution
- Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level
- Innovative antenna design optimizes range performance
- 2W DMR digital radio
- Weighs less than half of a standard two-way radio
- Operates in UHF 403-470 MHz frequency band
- Discreet communications; covert mode setting and vibrate alert feature for increased security and privacy, eliminates guest disturbances
- Customizable voice announcement provides audible confirmation of channel or zone changes or programmable button statuses, without having to view the radio display
- Send quick text messages including customizable and pre-programmed messages
- Enhanced work order ticket management feature simplifies use and improves work order ticket response time
Accessories
- Charger
- Clip
- Manual
- Earpiece
- Strap
Specifications
| General | ||
| Channel Capacity | 1000 | |
| Frequency | UHF: 403-470 MHz | |
| Dimensions with BT70 Li-ion (1400 mAh) Battery | Height (H) x Width (W) x Thickness (T) | 4.76 x 2.17 x 0.68 inches (121 x 55 x 17.4 mm) |
| Weight | 5.39 oz / 153 g | |
| Dimensions with BT90 Li-ion (1800 mAh) Battery | Height (H) x Width (W) x Thickness (T) | 4.76 x 2.17 x 0.78 inches (121 x 55 x 19.8 mm) |
| Weight | 5.82 oz / 165 g | |
| Power Supply | 3.7 V (Nominal) | |
| Operating Temperature | -20℃ ~ +60℃ | |
| FCC Description | ABZ99FT4090 | |
| IC Description | 109AB-99FT4090 | |
| BT70 Li-ion (1400mAh) Battery | 8.5 hrs | |
| BT90 Li-ion (1800mAh) Battery | 11.5 hrs | |
| Receiver | ||
| Frequencies | 403-470 MHz | |
| Channel Spacing | 12.5 kHz | |
| Frequency Stability | ±1.5ppm | |
| Digital Sensitivity | 5% BER : 0.3uV | |
| Rated Audio | 0.5W | |
| Conducted Spurious Emissions (TIA603D) | -57 dBm | |
| Transmitter | ||
| Frequencies | 403-470 MHz | |
| Channel Spacing | 12.5 kHz | |
| Frequency Stability | ±1.5ppm | |
| Low Power Output | 2W | |
| 4FSK Digital Modulation | 12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
|
| Conducted/RadiatedEmission (TIA603D) | -36 dBm < 1GHz / -30 dBm >1GHz | |
| Digital Vocoder Type | AMBE+2™ | |
| Digital Protocol | ETSI TS 102 361-1, -2, -3 | |
| Environmental Specifications | ||
| Operating Temperature | -20℃ ~ +60℃ | |
| Storage Temperature | -30℃ ~ +70 ℃ | |
| Thermal Shock | Per MIL-STD | |
| Humidity | 8 hr soak @ +50° C and 95% RH | |
| ESD | IEC 61000-4-2 | |
| Dust & Water Intrusion | IP54 | |
| Packaging Test | MIL-STD 810D and E | |
| Salt Fog | 8 hrs exposure to 5% saline solution (sodium chloride) at 35° C, 16 hours standing period | |
