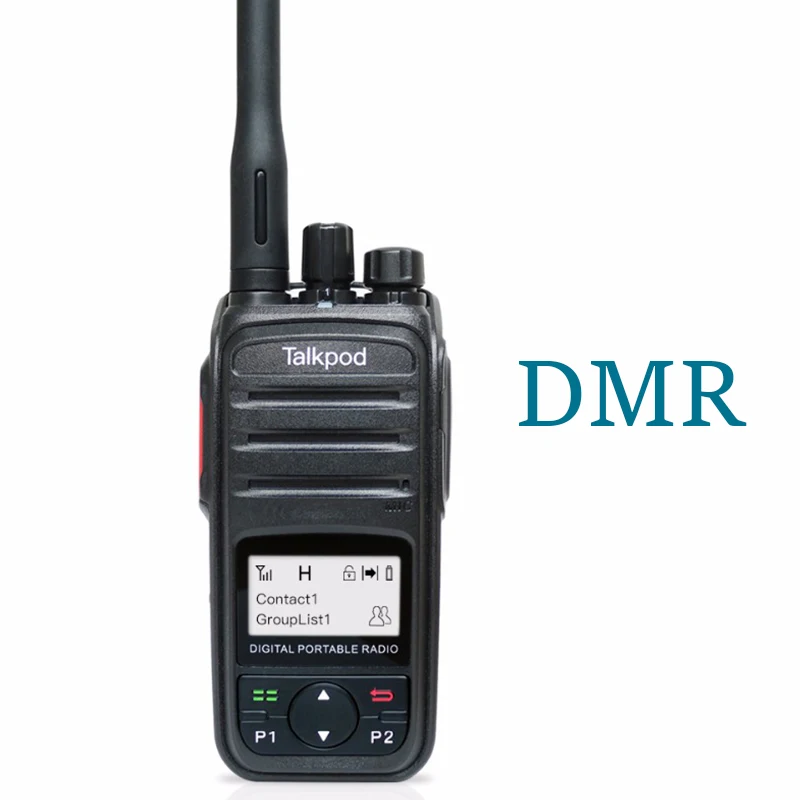

Talkpod D55 UHF Waterproof Walkie Talkie Two Way Radio DMR Digital Two Way Radio 999 Channels Transceiver
GENERAL
Model Number D55
Band UHF
Frequency 400-470MHz
High Power Output 5W
Low Power Output 1W
Channel Spacing 12.5/25KHz
Channel Capacity 999
Zone Capacity 4
Dimensions (H×W×D) 115x56x27.5(mm)
Weight 256g
FCC Description 2ADQZTPD5X
Battery Life(5/5/90) 12Hrs @Analog; 18Hrs @Digital
Slim Battery 1650mAh
Battery Life(5/5/90) 20Hrs @Analog; 30Hrs @Digital
High Capacity 3200mAh
Operating Voltage 7.4V
Frequency Stability ±1.5ppm
Antenna Impedance 50Ω
Increased Capacity 2-slot time division multiple
access in 12.5kHz channel
AUDIO
Digital Vocoder Type AMBE++ or AMBE+2TM
Speaker FST ND3662
Audio IC ST TDA2822
Audio Response +1~-3dB
Rated Audio Output 1W
Rated Audio Distortion ≤3%
FM Hum & Noise 12.5KHz @11K0F3E
Conducted Spurious Emission < -57dBm
TRANSMITTER
Channel Spacing 12.5/25KHz
4FSK Digital Modulation 12.5KHz Data Ony:7K60FXD;
12.5KHz Data & Voice: 7K60FXW
Digital Protocol ETSI-TS102 361-1,2&3
Conducted/Radiated -36dBm<1GHz
Emission -30dBm>1GHz
Adjacent Channel Power 60dB @12.5KHz; 70dB @25KHz
Frequency Stability ± 0.5 ppm
Modulation Limiting ±2.5KHz @ 12.5KHz;
±5.0KHz @ 25KHz
FM Modulation(Analog 11K fF3E @ 12.5KHz;
Emissions Designator) 16KfF3E @ 25KHz
FM Hum & Noise 12.5KHz @11K0F3E
RECEIVER
Sensitivity (Analog) 0.35µV/-116dBm (SINAD);
0.22µV/-120dBm (Typical)
Sensitivity (Digital) 0.35µV/-117dBm (SINAD);
0.22µV/-110dBm (Typical)
Intermodulation 70dB
Adjacent Channel 60 dB (12.5 kHz channel),
Selectivity 1T 70 dB (25 kHz channel)
Adjacent Channel 60 dB (12.5 kHz channel),
Selectivity 2T 70 dB (25 kHz channel)
Spurious Rejection 70dB
ENVIRONMENTAL
Operating Temperature -10℃ to 55℃
Storage Temperature -40℃ to 85℃
Operating Humidity 5% – 95% RH
Drop Resistance 2M(6′) any orientation
Water Resistance IP67
* Specifications subject to change without notice.
