Wouxun KG-UV9D Plus Air Band Walkie Talkie VHF UHF Type-C Cross Band Repeater Transmission Communciator DTMF Ham Two Way Radio

Wouxun KG-UV9D Plus WalkieTalkie Seven Bands Air Band Cross Band Long Range DTMF 999CH VOX Type-C Two Way Radio Security

KG-UV9D Mate:

★【FCC&CE&Genuine】We are a genuine Wouxun authorized Wouxun Radio.We strictly follow the frequency limit requirements and programming guidelines of the FCC CE under the technical specifications.For authenticity, you can check on Wouxun’s official website

Wouxun KG-UV9DMate
Reception	Transmission
76-108MHz(RX)	Euro： 144-146MHz(TX) 430-440MHz（TX）
136-174Mhz (RX)	American： 144-148MHz(TX) 420-450MHz(TX)
230-250Mhz (RX)
350-400Mhz(RX)
400-512MHz(RX)
700-960HZ(RX)
108-136Mhz(Air Ground RX )

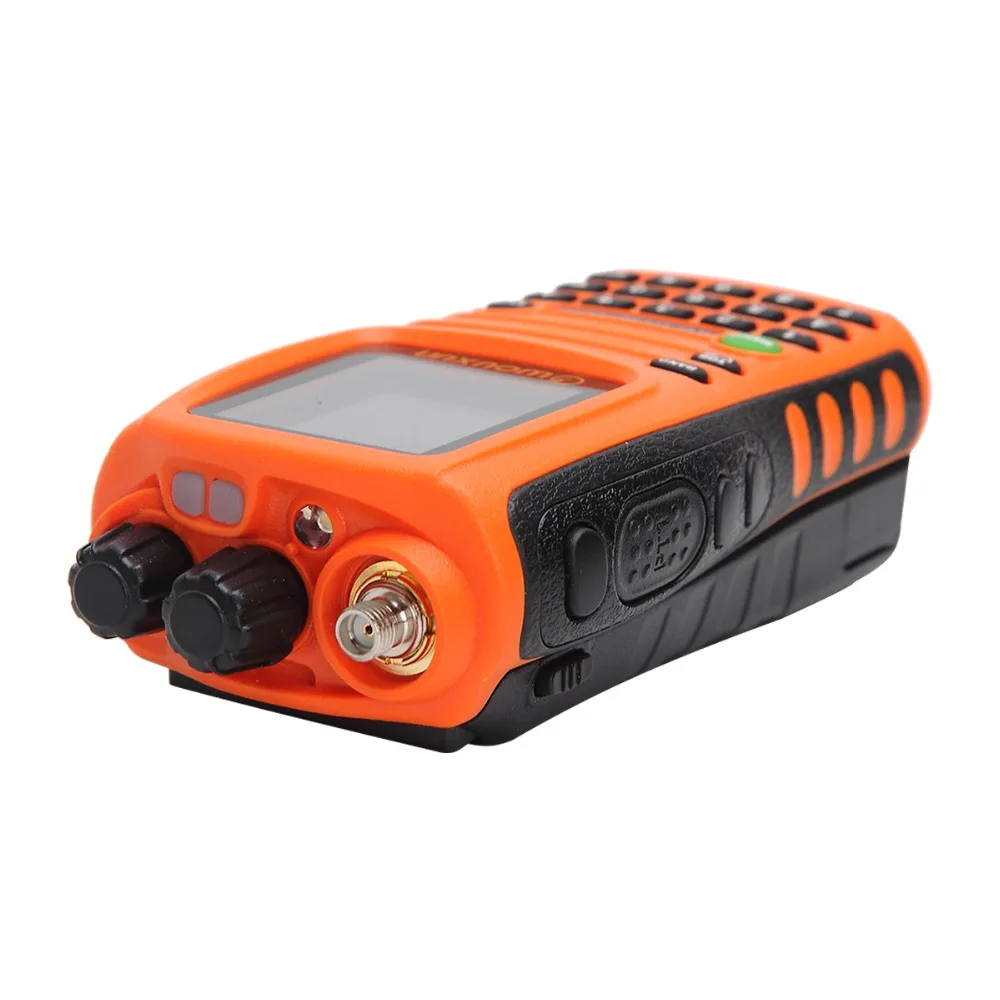

The Wouxun KG-UV9D Mate is Upgrade version KG-UV9D Plus, High Power 10Watt, With 3200mAh  Battery, First use of orange crust design, more fashionable and beautiful!  We believe this new design will give you a Best experience！

1.10W Powerful,3200mAh Li-ion Battery
Output power: VHF: 10W, 5W,L: 1W;  UHF : H: 8W,5W,L:1W
3200mAh High Capacity battery

2.Dual Band , Cross Band Repeater , Large Color Screen

With two independent receivers for both UHF and VHF, you can listen to either the same or different bands simultaneously , large color screen can display more information

3.VHF UHF Reception and Dual Bands Transmission

Wider frequency ranges meet different demands. The frequency range is fromTX:Euro：144-146MHz（TX）430-440MHz(TX)

American：144-148MHz(TX)420-450MHz(TX)
108-136Mhz(air band )RX

136-174MHz（RX）400-470MHz（RX）, including FM radio and Air band

4.Classic Circuit , Excellent Performance

Mature circuit design and high quality electronic components, after years of use can still maintain stable performance

5.Using High Quality Plastic and Rubber Material

High quality plastic can make the shell more robust and durable good rubber material can make the button has a good touch feel

KG-UV9D Mate Features:

-Frequency Range

TX:Euro：144-146MHz（TX）430-440MHz(TX)

American：144-148MHz(TX)420-450MHz(TX)

108-136Mhz(air band)RX

136-174MHz（RX）400-470MHz（RX）

-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)

-Separate Bands Duplex (U-V,V-U)

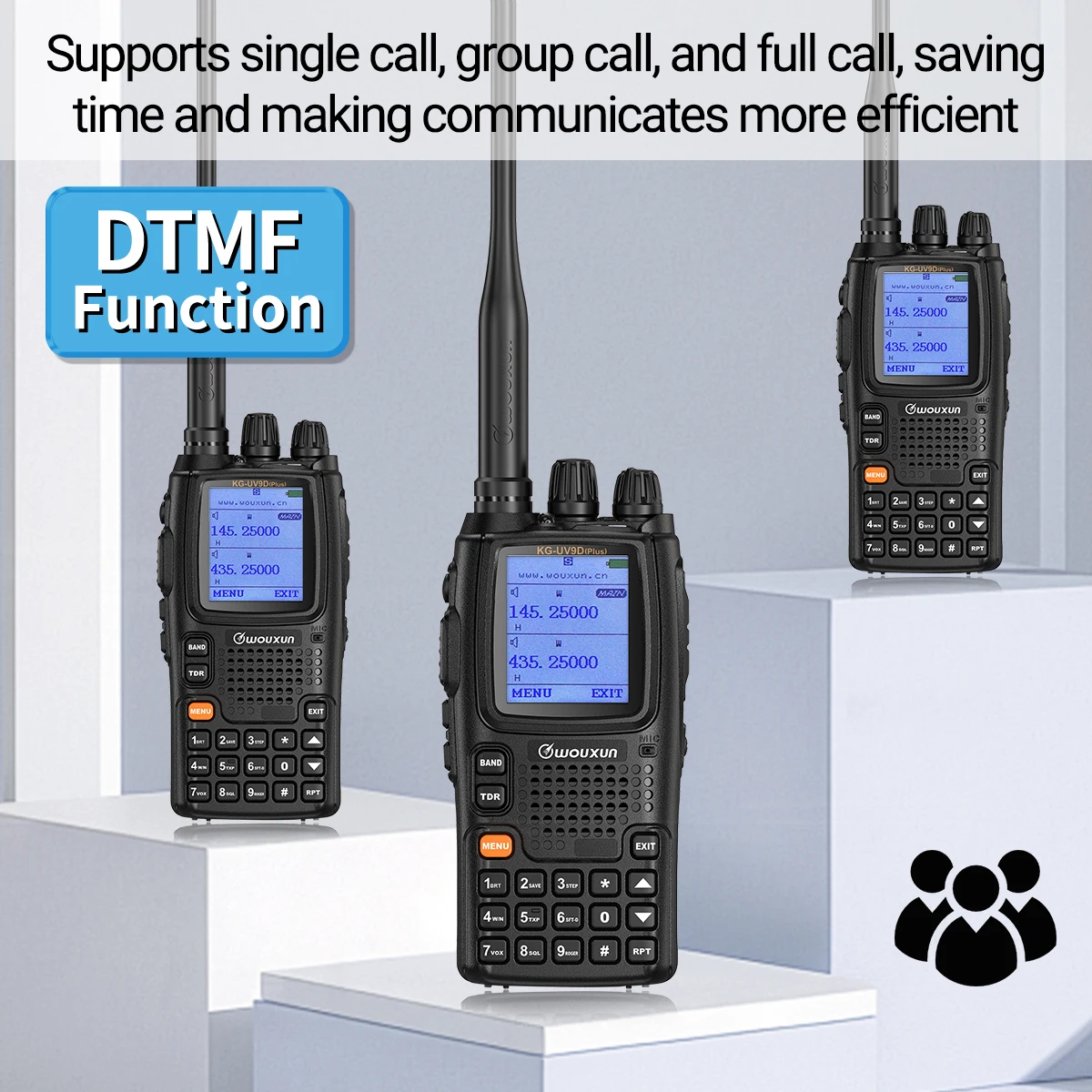

-DTMF Encoding/Decoding

-All Calls,Group Calls and Selective Calls

-Stun,Kill,Monitor and Inspection

-CTCSS/DCS Scan

-Programmable Non-Standard CTCSS/DCS

-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)

-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)

-English Voice Guide

-Priority Scan, Priority Channel Setting

-Twin Band Simultaneous Scan

-Multi Power Save Modes

-Auto Power-OFF Timer (APO)

-Three Output Power Levels:

High / Med / Low Power Settings (10W, 5W, 1W)

-Multi Single-Tone Pulse

-Multi Keypad Lock Modes

-PTT ID

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection
