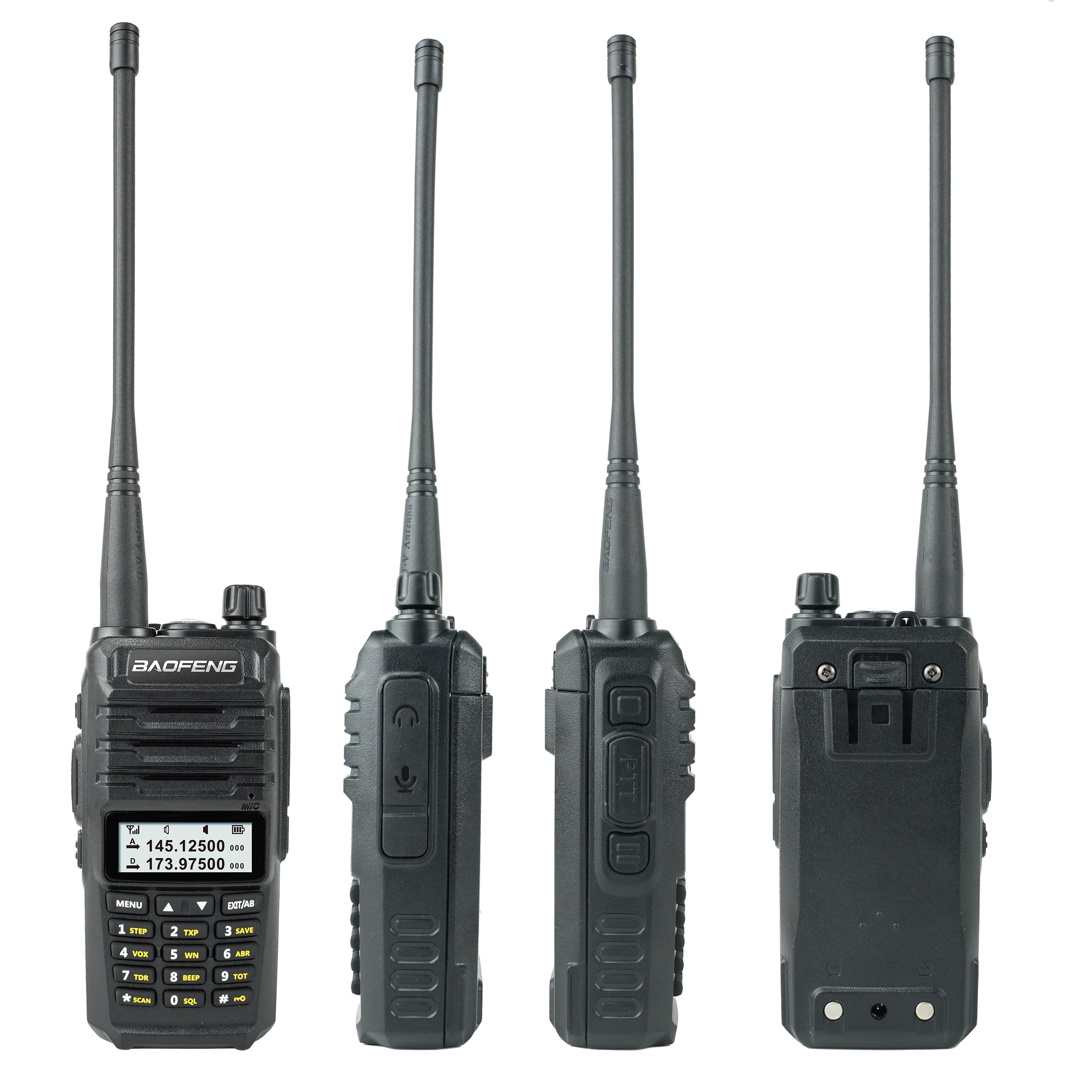

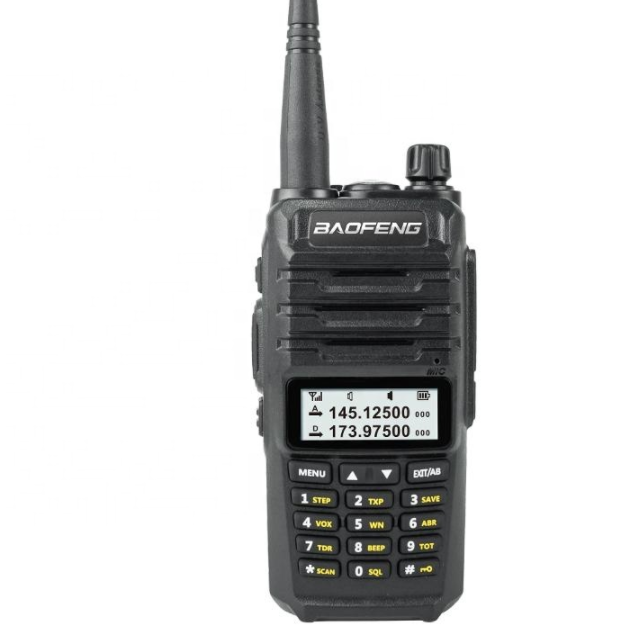

Baofeng UV-E70 Ham Radios 5W Handheld Talkie Walkie Transceiver 128 Channels Two Way Radio
Main Features
– DTMF encoded – Bult-in key lock – Tone end of transmission – VOX function – Noise Reduction Circuit – Long Communication Range – Battery Save.CTCSS/DCS – FM Radio – Dual Watch/dual reception – Bult-in LED flashlight General Frequency range 65MHz-108MHz(Only commercial FM radio reception) 136MHz-174MHz(Rx/Tx),200MHz-260MHz(Rx/Tx) 400MHz-480MHz(Rx/Tx) Memory channels Up to 128 channels Frequency stability 2.5ppm Frequency step 2.5kHz/5kHz/6.25kHz/12.5kHz/20kHz/25kHz Antenna impedance 50Ω Operating temperature -20℃to60℃ Supply voltage Rechargeable Lithium-lon mAh 7.4V/1800 Consumption in receptiom 380mA Consumption in transmission ≤1.4A Mode of operation Simplex or semi-duplex Duty cyde 03/03/54 min.(Rx/Tx/Standby) Dimensions 65mm*41.5mm*133.8mm Weight 279g(approximate) Transmitter RF power 5W/1W Type of modulation FM Emission class 16K¢F3E/11K¢F3E(W/N) Maximum deviation ≤±5kHz/≤±2.5kHz(W/N) Spurious emissions <-60dB Receiver Receiver sensitivity 0.2 μV(at 12 dB SINAD) Intermodulation 60dB Audio output 1W Spurious Radiation ≥65dB
