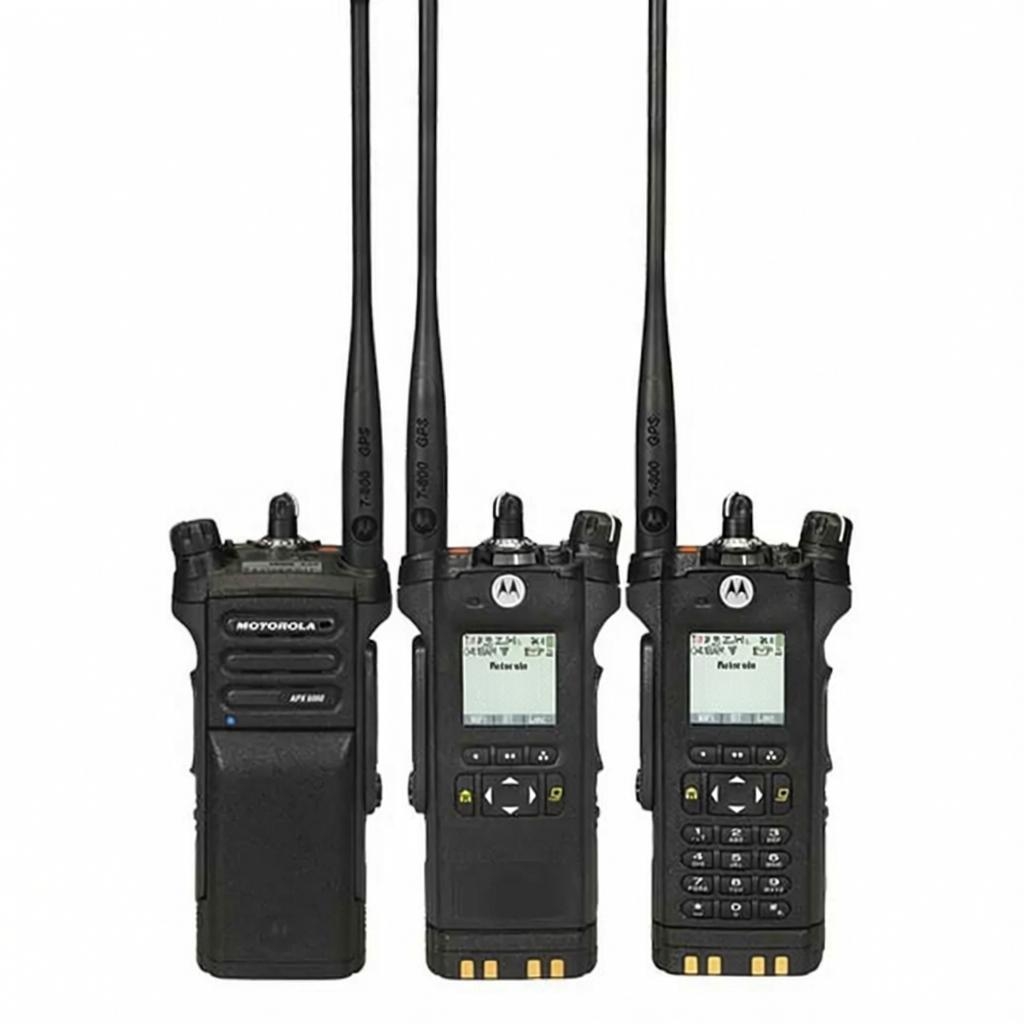

Motorola APX6000 Walkie Talkie
Main Features
Triple-Band, One Radio
Order 700/800 MHz, VHF, or UHF R1/R2 from the same part-number family—stock one SKU, serve every agency.
P25 Phase 2 + TDMA
Doubles call capacity on licensed 12.5 kHz channels—ideal for crowded motorola security radios networks.
AES-256 & ADP Encryption
1,024-key storage meets FIPS 140-2 Level 3—no external crypto boxes needed for motorola walkie talkie professional fleets.
Mission-Critical Wireless Bluetooth
Pair encrypted earpieces or Man-Down sensors without compromising ATEX or HazLoc ratings.
Dual-Mic Noise Cancellation
Cuts 105 dB siren noise to intelligible speech—validated on airport tarmacs and factory floors.
IP67 + MIL-STD-810G
Survives 2 m drops, dust storms, and 2-hour submersion—perfect for marine rescue or refinery turnarounds.
1000-Channel / 250-Zone Memory
Segment by district, shift, or mutual-aid plan; push updates over-the-air via FLASHport.
Integrated GPS + Voice Announcement
Real-time AVL with audible channel ID—keeps gloved firefighters oriented in zero-visibility smoke.
Hot-Swap IMPRES Batteries
Choose 2150 mAh slim or 4200 mAh high-cap; smart energy analytics predict end-of-life before a shift starts.
Backward & Forward Compatible
Works with legacy SmartZone repeaters today, ready for Astro 25 Phase 2 trunking tomorrow.
Other functions
- Zone Selection
- Channel Selection
- Scan List Edit
- Scan On/Off
- TX Power High/Low
- Squelch Level
- VOX On/Off
- Voice Announcement On/Off
- Encryption On/Off
- Emergency Button Function
- Keypad Lock
- LED Indicator Brightness
APX6000 Accessories
- Antenna
- Battery
- Charger
- Power adapter
- Dust cover
- Clip
- Manual
Specifications
| TRANSMITTER – TYPICAL PERFORMANCE SPECIFICATIONS | ||||||||
| 700/800 | VHF | UHF Range 1 | UHF Range 2 | |||||
| Frequency Range/ Bandsplits | 700 MHz
800 MHz |
763-776, 793-806 MHz 806-824, 851-870 MHz |
136-174 MHz | 380-470 MHz | 450-520 MHz | |||
| Channel Spacing | 25/12.5 kHz | 30/25/12.5 kHz | 25/12.5 kHz | 25/12.5 kHz | ||||
| Maximum Frequency Separation | Full Bandsplit | Full Bandsplit | Full Bandsplit | Full Bandsplit | ||||
| Rated RF Output Power Adj | 1-3 Watts Max | 1-5 Watts Max | 1-5 Watts Max | 1-5 Watts Max | ||||
| Battery | ||||||||
| Battery Capacity / Type | Dimensions (HxWxD) | Battery Part Number | ||||||
| Li-Ion IMPRES 2150 mAh IP67 |
3.39” x 2.34” x 1.46”
|
PMNN4403
|
||||||
| Li-Ion IMPRES 2900 mAh IP67 |
3.07” x 2.34” x 1.65”
|
NNTN7038
|
||||||
| Li-Ion IMPRES 4200 mAh IP67 |
5.07” x 2.34” x 1.65”
|
NNTN7034
|
||||||
| Li-Ion IMPRES 4100 mAh IP67 |
5.07” x 2.34” x 1.65”
|
NNTN7033
|
||||||
| RADIO MODELS | ||||||||
| Display | Full bitmap color LCD display 3 lines of text x 14 characters 1 line of icons 1 menu line x 3 menus White backlight |
|||||||
| Keypad | Backlight keypad 3 soft keys 4 direction navigation key 4×3 keypad Home and Data buttons |
|||||||
| Channel Capacity | 96/1000 | |||||||
| FLASHport Memory | 64 MB | |||||||
| RECEIVER – TYPICAL PERFORMANCE SPECIFICATIONS | ||||||||
| 700/800 | VHF | UHF Range 1 | UHF Range 2 | |||||
| Frequency Range/Bandsplits | 700 MHz
800 MHz |
136-174 MHz
403-470 MHz |
763-776 MHz 851-870 MHz |
380-470 MHz | 450-520 MHz | |||
| Channel Spacing | 25/12.5 kHz | 30/25/12.5 kHz | 25/12.5 kHz | 25/12.5 kHz | ||||
| Maximum Frequency Separation | Full Bandsplit | Full Bandsplit | Full Bandsplit | Full Bandsplit | ||||
| Audio Output Power at Rated | 500mW | 500mW | 500mW | 500mW | ||||
| Frequency Stability (-30°C to +60°C; +25°C Ref.) |
±0.00010 % | ±0.00010 % | ±0.00010 % | ±0.00010 % | ||||
| Analog Sensitivity Digital Sensitivity |
12 dB SINAD 1% BER (800 MHz) 5% BER |
0.250μV 0.400μV 0.250μV |
0.216μV 0.277μV 0.188μV |
0.234μV 0.307μV 0.207μV |
0.234μV 0.307μV 0.207μV |
|||
| Selectivity | 25 kHz channel 12.5 kHz channel |
-76 dB -67 dB |
-76 dB -70 dB |
-76 dB -67 dB |
-76 dB -67 dB |
|||
| Intermodulation | -75 dB | -79 dB | -77 dB | -77 dB | ||||
| Spurious Rejection | -76.6 dB | -80.5 dB | -80.3 dB | -80.3 dB | ||||
| FM Hum and Noise | 25 kHz 12.5 kHz |
-53 dB -47 dB |
-51 dB -45 dB |
-50 dB -45 dB |
-50 dB -45 dB |
|||
| Audio Distortion | 1.00% | 1.00% | 1.00% | 1.00% | ||||
| ENCRYPTION | ||||||||
| Supported Encryption Algorithms | AES/ADP | |||||||
| Encryption Algorithm Capacity | 8 | |||||||
| Encryption Algorithm Capacity | Module capable of storing 1024 keys. Programmable for 48 Common Key Reference (CKR) or 16 Physical Identifier (PID) |
|||||||
| Encryption Frame Re-sync Interval | P25 CAI 300 mSec | |||||||
| Encryption Keying | Key Loader | |||||||
| Synchronization | XL – Counter Addressing OFB – Output Feedback |
|||||||
| Vector Generator | National Institute of Standards and Technology (NIST) approved random number generator |
|||||||
| Encryption Type | Digital | |||||||
| Key Storage | Tamper protected volatile or non-volatile memory | |||||||
| Key Erasure | Keyboard command and tamper detection | |||||||
| Standards | FIPS 140-2 Level 3; FIPS 197 | |||||||
| ENVIRONMENTAL SPECIFICATIONS | ||||||||
| Operating Temperature | -30ºC / +60ºC | |||||||
| Storage Temperature | -40ºC / +85ºC | |||||||
| Humidity | Per MIL-STD | |||||||
| ESD | IEC 801-2 KV | |||||||
| Water and Dust Intrusion | Mil Std 512.X, Delta – T | |||||||
